Randell RAN HTD-5 Custom & Serving Serving Counters
Description
Randell RAN HTD-5 Mobile Modular Hot Food Table
72" W × 30" D × 35-1/2" H • 5 Independently-Controlled WellsEngineered for heavy-duty front- or back-of-house use, the RAN HTD-5 keeps meats, vegetables and sauces at safe, appetizing temperatures during even the longest service windows. A one-piece 16-gauge stainless top, enclosed laminate cabinet and heavy-duty casters deliver the durability and flexibility modern operations demand.
Key Features & Benefits

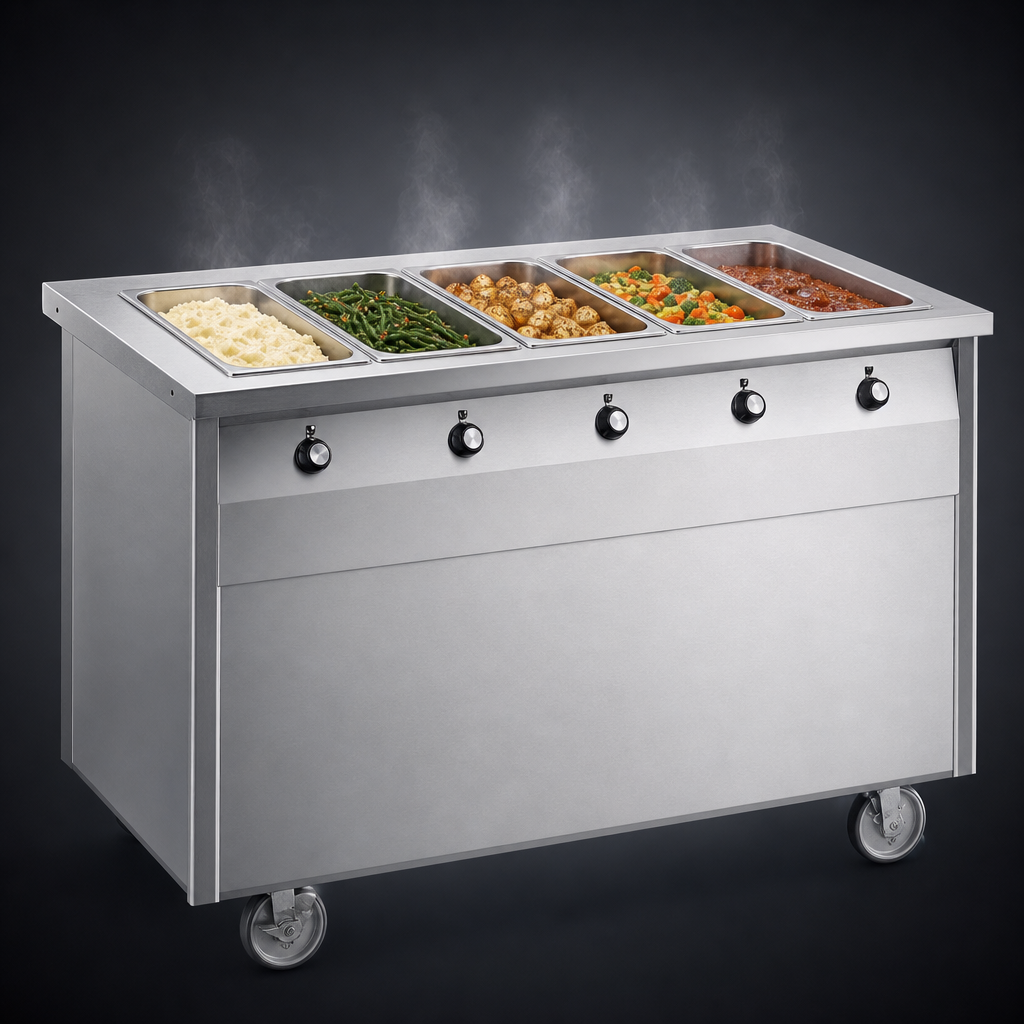

- (5) 12" × 20" die-stamped hot wells with raised sanitary rims—no adapter plates required.

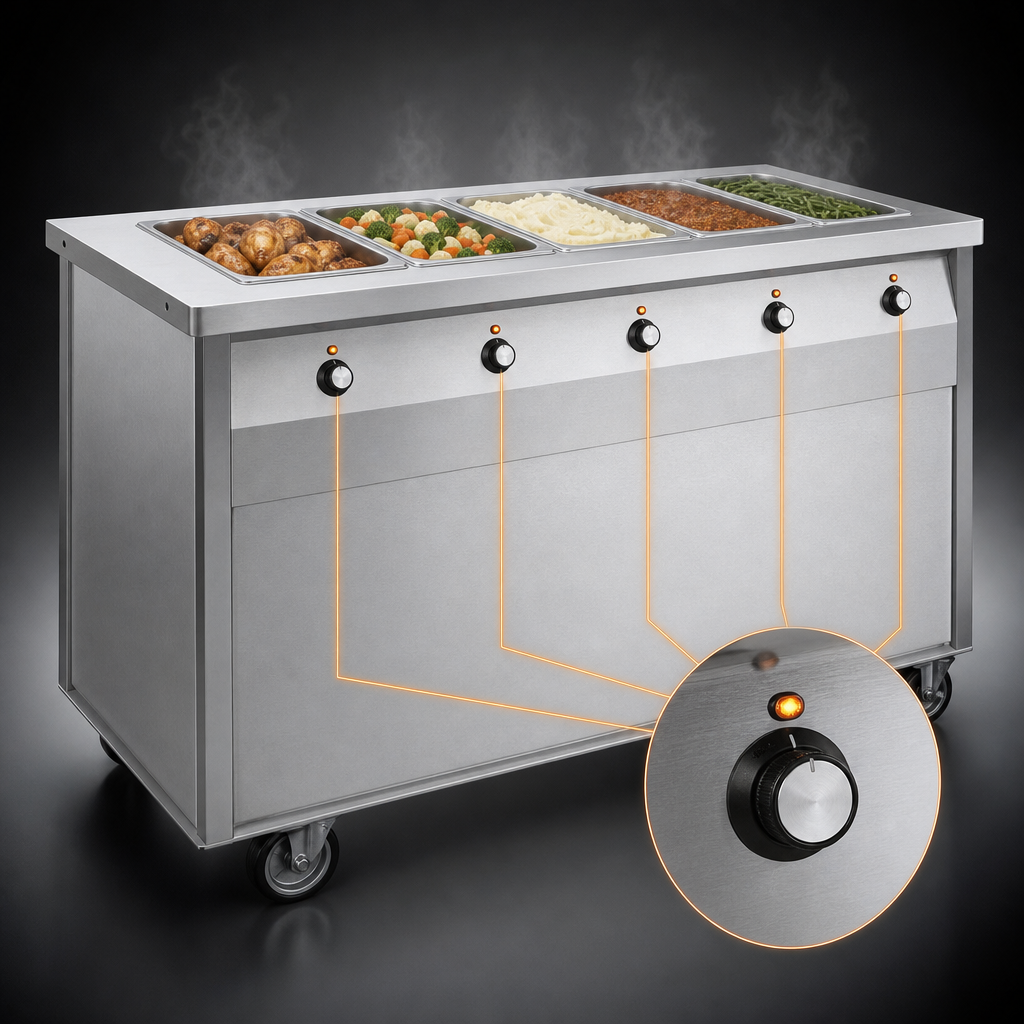

- Individual thermostatic controls & on/off indicator lights for pinpoint temperature management.
- Integrated drain system: each well empties into a common 1" gate-valved drain for fast clean-up.
- 16-gauge stainless-steel top with 1-1/2" 90° nosing—stands up to constant pan changes.
- Enclosed cabinet base with interchangeable laminate panels (galvanized backing) keeps contents concealed while matching your décor.
- Concealed spring-loaded locking device lets you connect multiple Randell serving modules into one continuous line.
- Four 5" swivel casters—two locking—for effortless mobility and rock-solid stationing.
- 8' factory-installed cord & plug; select voltage/wattage options to fit your power supply.
- cULus Listed & NSF 4 certified for safe, code-compliant operation.
- Made in the USA for reliable quality and shorter lead times.
Ideal Applications
- School & university cafeterias
- Healthcare tray lines
- Corporate dining & B&I
- Buffet & catering setups
Specifications
| Model | RAN HTD-5 (Closed Base) |
|---|---|
| Overall Dimensions (W × D × H) | 72" × 30" × 35-1/2" |
| Number / Size of Wells | 5 × 12" × 20" (full-size hotel pans) |
| Construction – Top | One-piece, 16-ga 300-series stainless steel |
| Base | Enclosed cabinet, laminate exterior, galvanized backing |
| Controls | 5 independent thermostats with indicator lights |
| Drain | Common 1" drain with gate valve |
| Casters | (4) swivel, 5" dia. – (2) braking |
| Electrical Options* |
120 V / 1ɸ / 20.83 A / NEMA 5-30P (500 W per well) 208 V / 1ɸ / 20.79 A / NEMA 6-30P (865 W per well) 208 V / 1ɸ / 26.44 A / NEMA 6-50P (1100 W per well) 240 V / 1ɸ / 22.92 A / NEMA 6-30P (1100 W per well) |
| Shipping Weight | Approx. 325 lb (147 kg) |
| Certifications | cULus, NSF 4 |
| Country of Origin | USA |
* Amperage shown is for the base unit only. Loads for any optional heat lamps or illuminated displays must be added to the total circuit draw.
Popular Accessories (sold separately)
- Tray slides or overshelves
- Food shields / sneeze guards
- Graphics & colored laminate panel kits
- Solid-surface or 14-ga stainless tops
- Electrical distribution system for daisy-chained serving lines
