Randell RAN HTD-4S Custom & Serving Serving Counters
Description
Randell RAN HTD-4S Mobile Hot Food Serving Table — 60" Four-Well, Open Storage
Serve with confidence, control and mobility.Built in the USA for demanding commercial kitchens, Randell’s 4-well hot table combines precise holding temperatures with a rugged stainless steel work surface and easy-rolling casters. Lock it into your serving line, dial-in each well, and keep entrées at their best from the first guest to the last.
Why Operators Love It

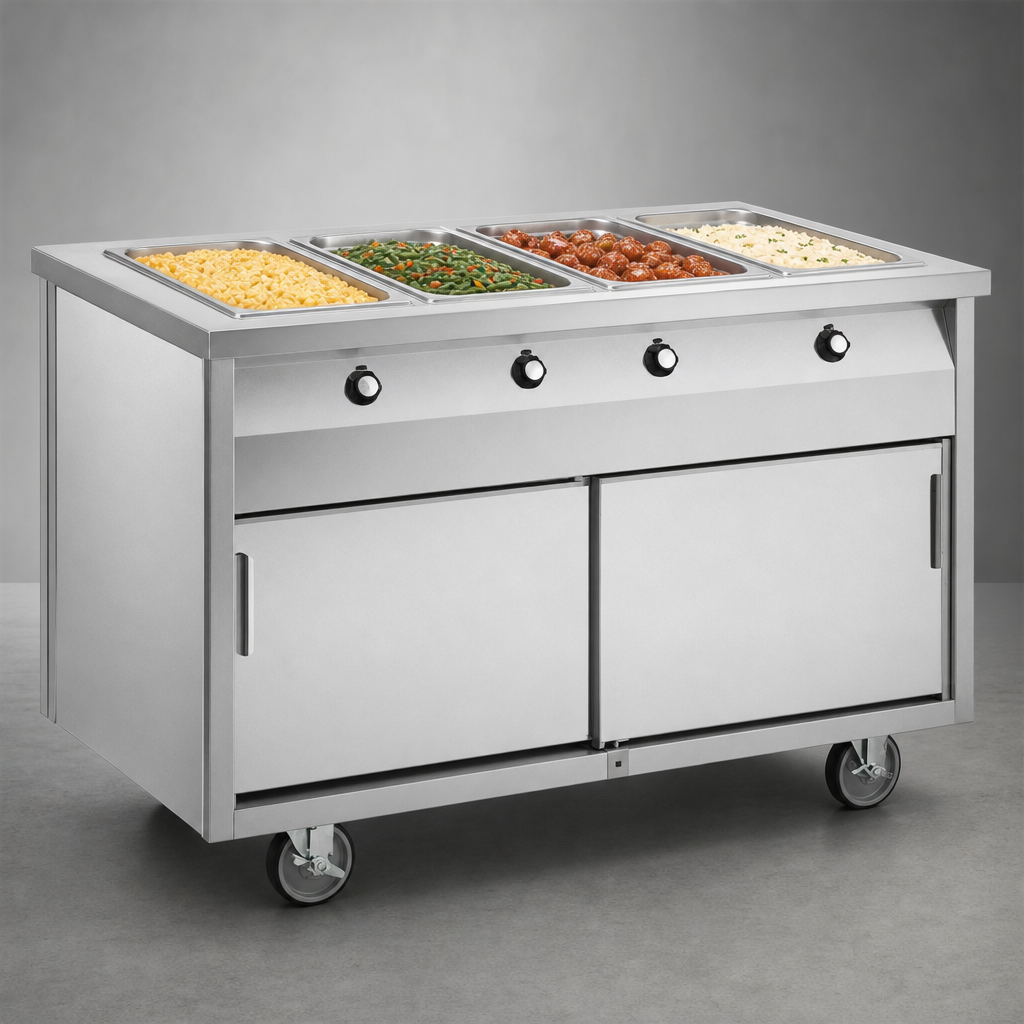

- (4) 12" × 20" die-stamped hot wells, each with its own thermostatic control
- 16-gauge, one-piece stainless steel top with raised sanitary rims
- Common 1" drain manifold with gate valve for quick, mess-free cleanup
- Open cabinet base with 22-gauge stainless steel undershelf for pans, lids or utensils
- Laminate exterior panels (galvanized-backed) are field-replaceable to match future décor
- (4) 5" swivel casters — 2 lock for rock-solid stationing
- Spring-activated locking device interlocks with other Randell serving line modules
- 8' factory-installed cordset; no hard-wiring required
- cULus listed & NSF Std. 4 compliant
- Proudly made in Michigan, USA
Independent Temperature Control
Hold gravy at a gentle simmer beside piping-hot pasta. Each well’s thermostat and on/off indicator light are mounted in a removable front panel, giving technicians instant access to elements and wiring when service is ever required.
Specifications
| Model | RAN HTD-4S (open base) |
|---|---|
| Overall Dimensions | 60" W × 30" D × 35 ½" H |
| Wells | 4 × 12" × 20" (wet or dry operation) |
| Top Construction | 16-ga. stainless steel, 1 ½" 90° nosing |
| Undershelf | 22-ga. stainless steel with integral bracing |
| Exterior | High-pressure laminate panels, galvanized backing |
| Mobility | (4) swivel casters, 2 with brakes |
| Electrical | 120/208/240 V, 1-ph (see amperage table) |
| Shipping Weight | Approx. 260 lb |
| Certifications | NSF, cULus |
Amperage & Plug Options
| Voltage | Element Wattage | Full-Load Amps | NEMA Plug |
|---|---|---|---|
| 120 V | 500 W / well | 16.67 A | 5-30P |
| 120 V | 1100 W / well | 36.67 A | 5-50P |
| 208 V | 865 W / well | 16.63 A | 6-30P |
| 208 V | 1100 W / well | 21.15 A | 6-30P |
| 240 V | 1100 W / well | 18.33 A | 6-30P |
Amperage is for the base unit only. Add any accessory lighting or heat lamps to determine total circuit load.
Perfect For
- School and university cafeterias
- Supermarket hot bars
- Healthcare tray lines
- Buffets & catering operations
