Randell LPRES1L2-72C4 Undercounter & Worktop Refrigeration
Description

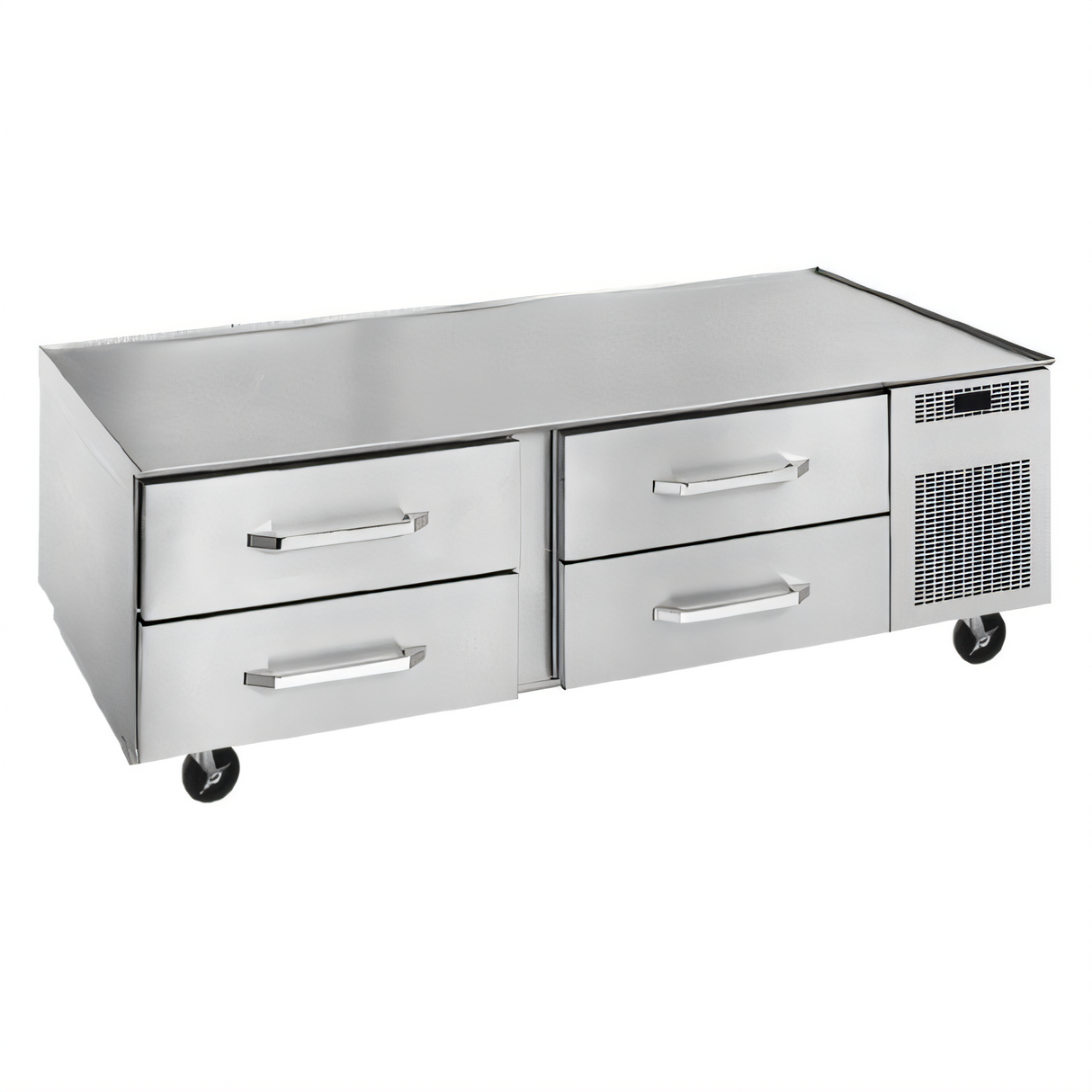

Randell LPRES1L2-72C4 Refrigerated Chef Base – 72" W, 4-Drawer
Left-side compressor • 4" pan system • Made in the USABuilt to shoulder the weight of today’s high-performance cooking equipment while keeping your mise en place ice-cold, the Randell LPRES1L2-72C4 is the ultimate 72-inch refrigerated equipment stand for demanding commercial kitchens. Heavy-duty construction, precision electronic temperature control and a patented quick-release drawer system deliver years of worry-free service straight out of the box.
Key Features & Benefits
- One-piece 304 stainless steel marine-edge top reinforced by a 12 ga sub-top – supports 225 lb/ft of cooking equipment.

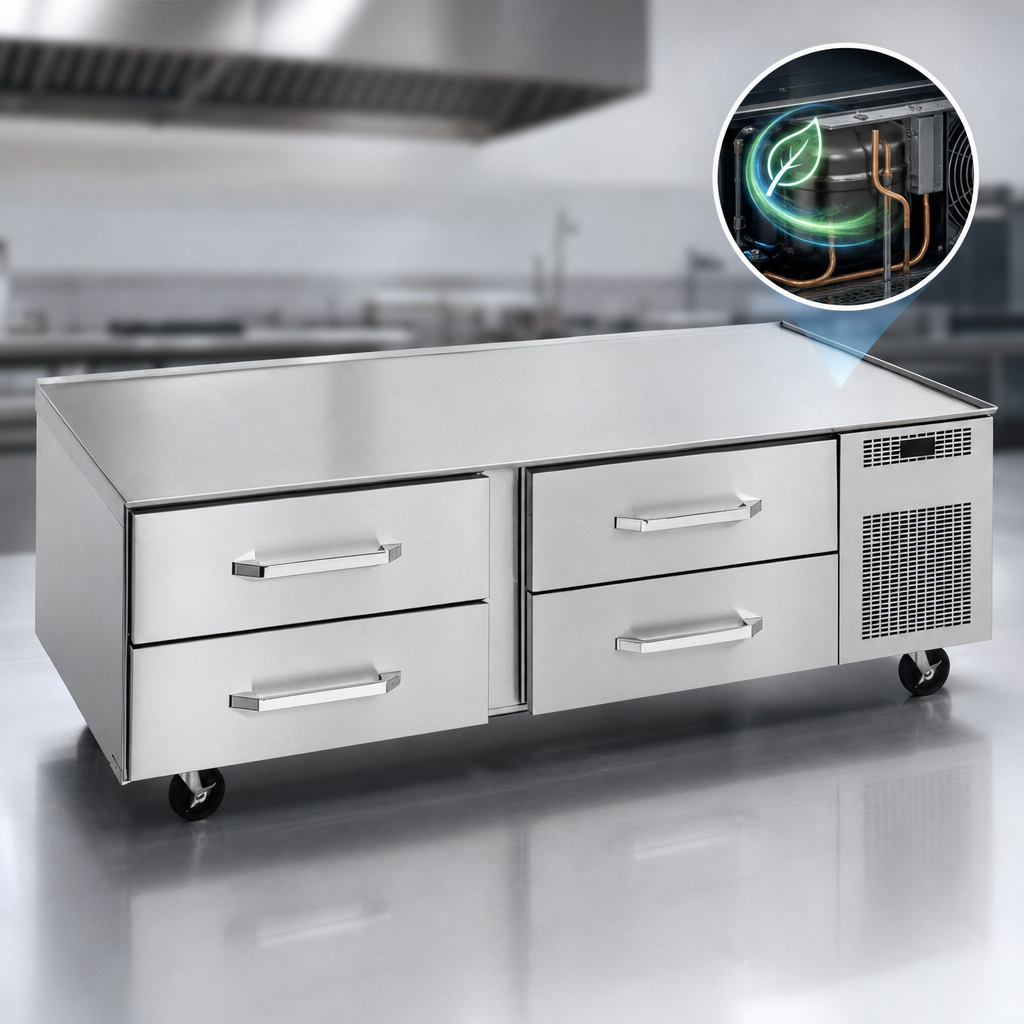

- Self-contained R-290 refrigeration with an external electronic controller for exact cabinet temperatures and simple monitoring.
- Four full-extension 27" drawers, each holding (2) 12" × 20" × 4" hotel pans – 8 pans total (pans sold separately).
- Patented, fully welded drawer cartridge assembly with 14 ga tracks & 1-5/8" stainless steel bearings – removes without tools for fast cleaning.
- 3-year warranty on the entire drawer system for added peace of mind.
- 100 % front-breathing left-mounted compressor allows flush installation or curb mounting with no special venting.
- 4" heavy-duty swivel casters (front locking) factory-mounted to full-length steel rails – move the unit easily or reposition the casters to clear floor obstacles.
- Foamed-in-place, CFC-free polyurethane insulation and anodized aluminum interior with coved corners meet NSF sanitation standards.
- UL, cUL & NSF listed; proudly Made in the USA.
Technical Specifications
| Model | LPRES1L2-72C4 |
|---|---|
| Compressor Location | Left-side, front-breathing |
| Overall Dimensions (W × D × H) | 72" × 32.5" × 23.5" |
| Drawer Configuration | (4) 27" drawers, quick-release |
| Pan Capacity | (8) 12" × 20" × 4" pans (2 per drawer) |
| Refrigerant | R-290 Hydrocarbon (0 ODP / 3 GWP) |
| Compressor | 1/4 HP, capillary tube system |
| Electrical | 115 V / 60 Hz / 1-ph, 6 A, NEMA 5-15P |
| Construction | Stainless steel exterior, anodized aluminum interior, foamed-in-place insulation |
| Casters | 4" HD casters, front locking (field repositionable) |
| Certifications | UL, cUL, NSF |
| Country of Origin | USA |
Ideal Applications
- Mounting charbroilers, griddles, flattops or countertop ranges.
- Storing raw proteins, sauté items or garnishes directly beneath the cooking zone to streamline workflow.
- High-volume restaurants, hotels, resort kitchens, and institutional foodservice operations.
Looking for a different size, pan depth or right-hand compressor? Contact us for the full Randell LPRES/RES lineup and customization options.
