Randell 9570-6AWF Custom & Serving Steam Tables & Food Wells
$6,990.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Randell 9570-6AWF Custom & Serving Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Randell 9570-6AWF Custom & Serving Steam Tables & Food Wells
$6,990.00
Unit price
/
Unavailable
Description

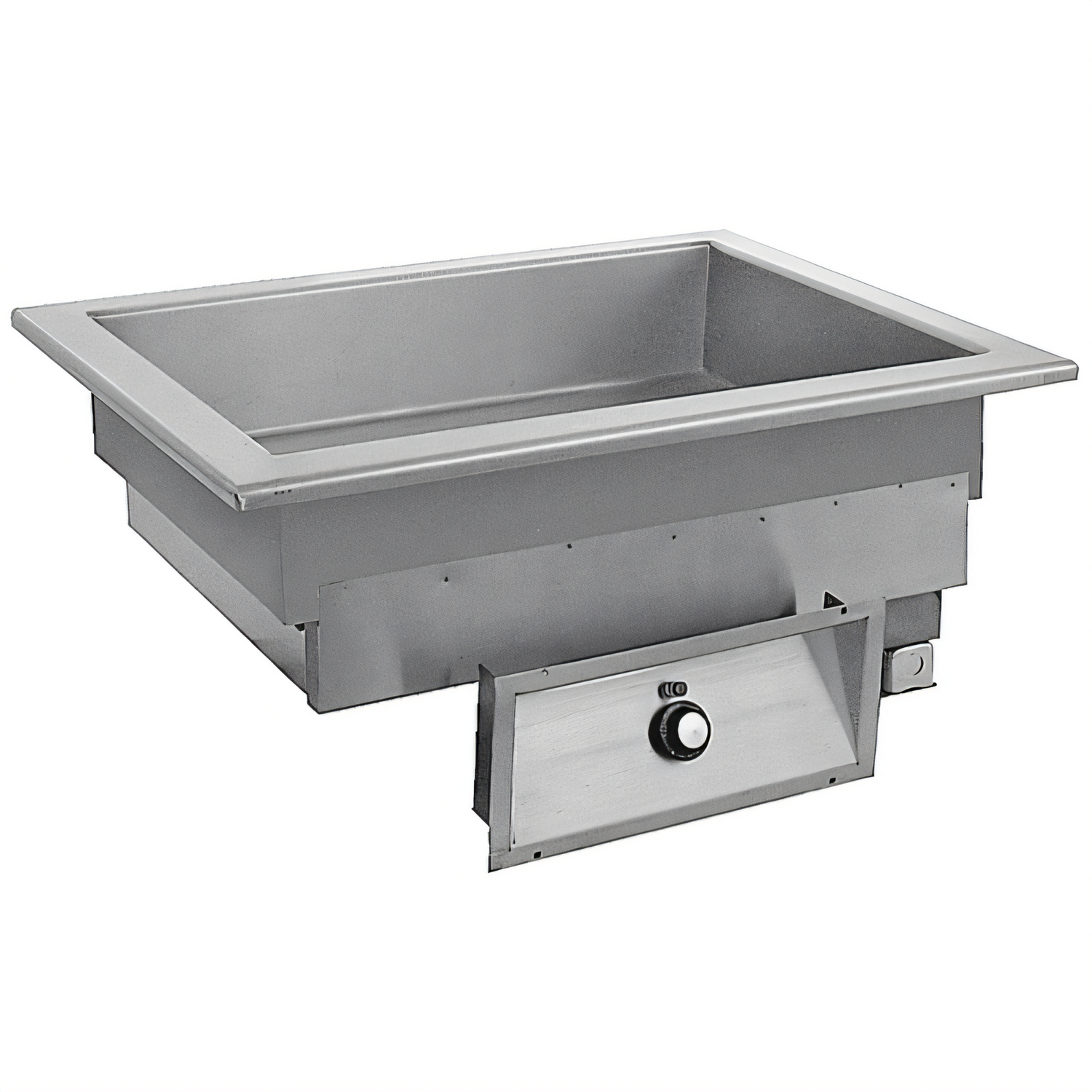

Randell 9570-6AWF Drop-In Hot Food Well
6-Well | Auto-Water-Fill | 6 kW | Made in USAKeep entrées and sides at safe, appetizing temperatures in one convenient well. Built for demanding serving lines, the Randell 9570-6AWF combines a common waterbath, true thermostatic controls, and automatic water fill to deliver worry-free, even heating across six full-size (12" × 20") pans.
Key features & benefits

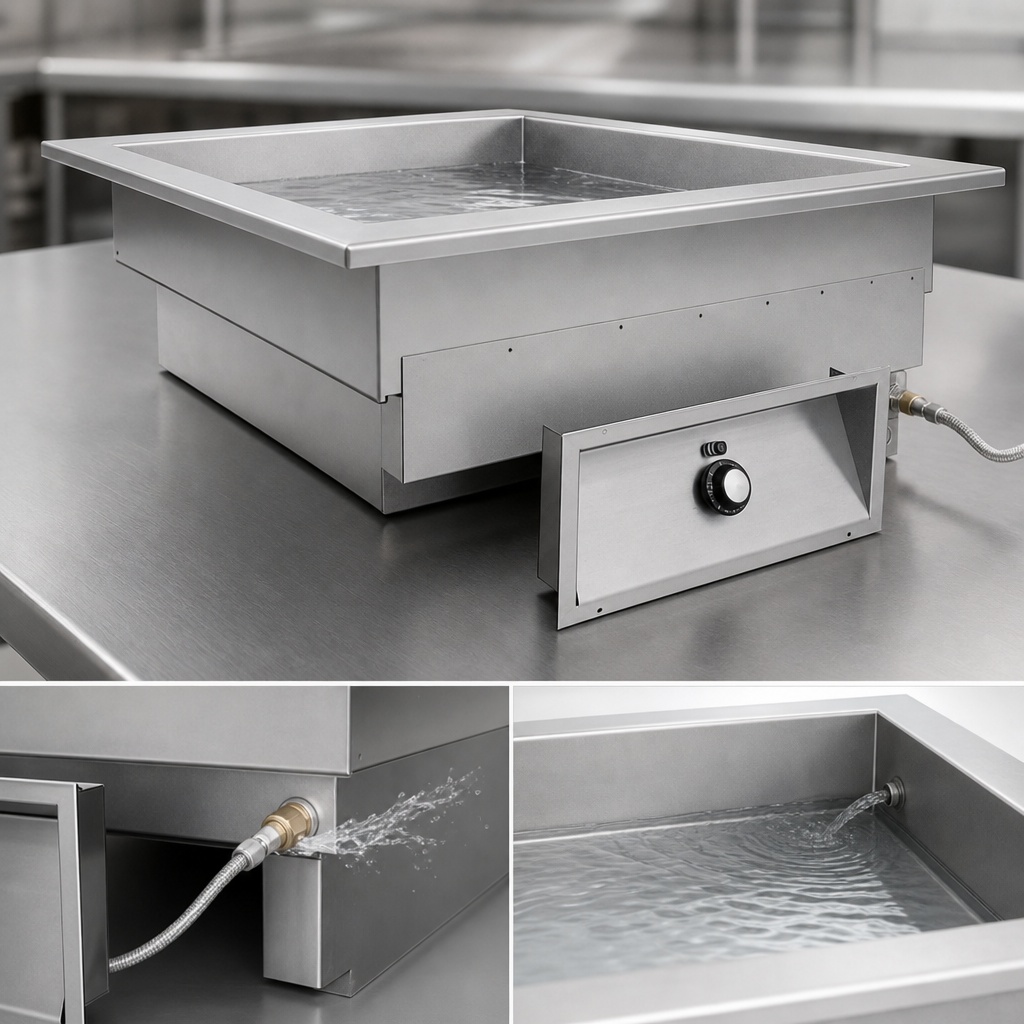

- Auto-water-fill system maintains proper bath level—no manual refills or dry-fire risk.
- Open tank, bain-marie style design for uniform wet operation and superior moisture retention.
- True thermostatic controls (remote panel) deliver precise holding temperatures for every menu item.
- 16-gauge stainless-steel top and tank withstand daily commercial abuse and simplify cleanup.
- Fully insulated, corrosion-resistant steel exterior improves energy efficiency and extends equipment life.
- 1" stainless-steel drain with gate valve speeds end-of-day draining and sanitation.
- Factory pre-wired control panel and external element connections reduce field installation time.
Perfect for
- School & university cafeterias
- Hospital and corporate dining
- Hotel breakfast bars & buffets
- C-stores & supermarkets
- Any custom serving counter requiring a flush, drop-in look
Technical specifications
| Manufacturer | Randell |
|---|---|
| Model | 9570-6AWF |
| Pan capacity | (6) 12" × 20" full-size steam table pans |
| Overall dimensions (L × D) | 86.25" × 26.25" |
| Drop-in cut-out (L × W) | 81.375" × 23" |
| Control panel cut-out | 14.25" × 5.75" |
| Heating style | Common waterbath, wet operation |
| Heat input | 6 kW total (2 elements) |
| Electrical | 208 V / 28.8 A or 240 V / 25 A, 1-phase |
| Drain connection | 1" NPT with gate valve |
| Shipping weight | 220 lb |
Certifications & approvals
- cULus Listed
- NSF Standard 4
- Made in the USA
One-year parts & labor warranty included; extended coverage available.
Important: This unit is designed for wet operation only and must be installed with the provided remote control panel and drain line. Always follow local electrical and plumbing codes.
Features & Specs
Features & Specs
Manufacturer
Randell
Brand_name
Custom & Serving
Certifications
NSF, UL, Made in USA
Height
9.0in
Width
82.0in
Depth
26.0in
Shipping Weight
220.0lbs
Controls
thermostatic controls
Style
bain-marie
Construction
stainless steel top, corrosion resistant steel exterior
Insulated or Non-Insulated
insulated
Pan Capacity
(6) full size (12" x 20")
Drain
with drain
Wet or Dry operation
wet
Specifications
Drop-In Hot Food Unit, electric, (6) 12" x 20" pan size, auto-water fill, wet operation, common waterbath, thermostatic controls, stainless steel top corrosion resistant steel exterior, drain & gate valve, 6kW, cUL, UL, NSF, Made in USA
