Randell 9570-6 Custom & Serving Steam Tables & Food Wells
Description

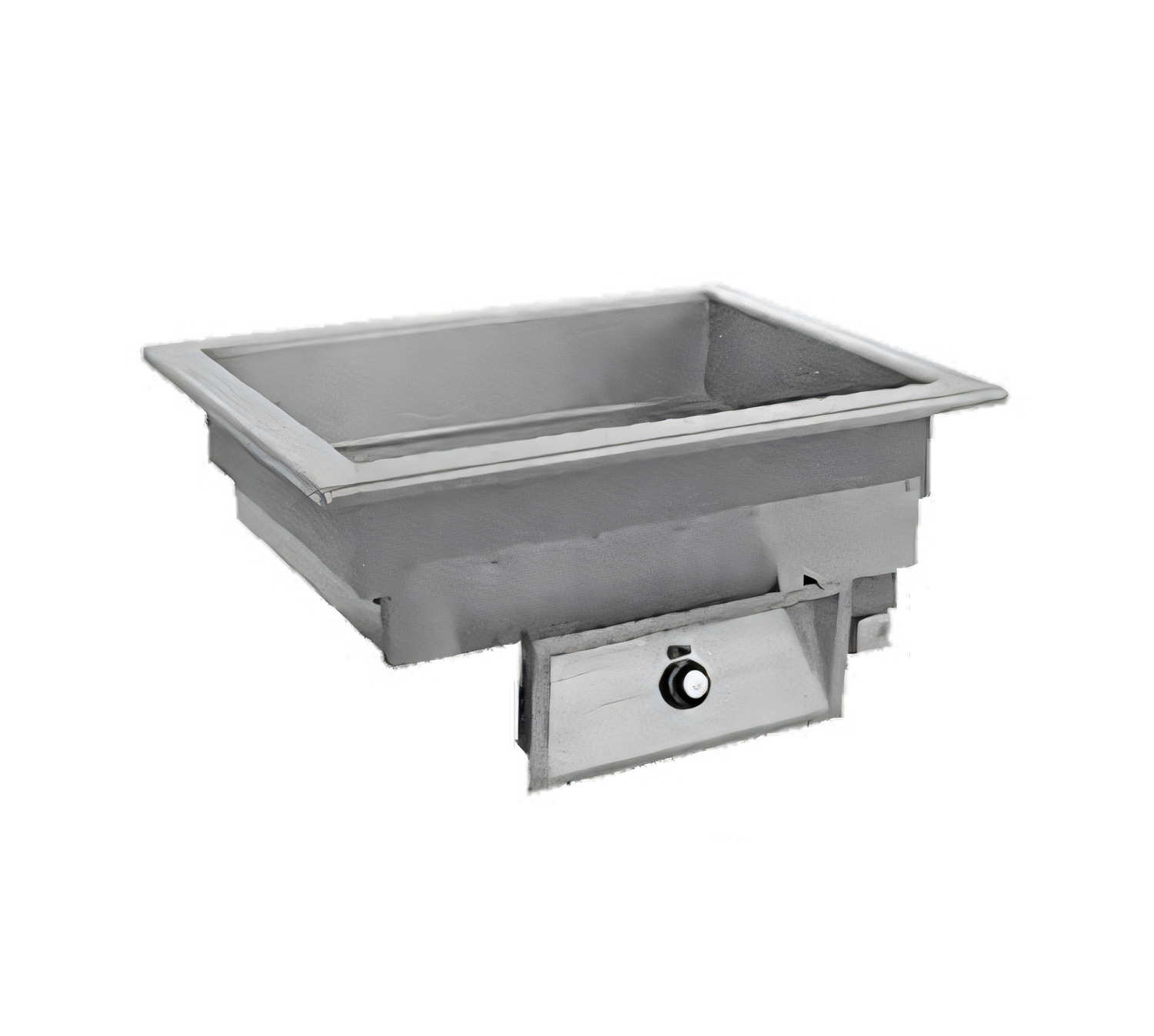

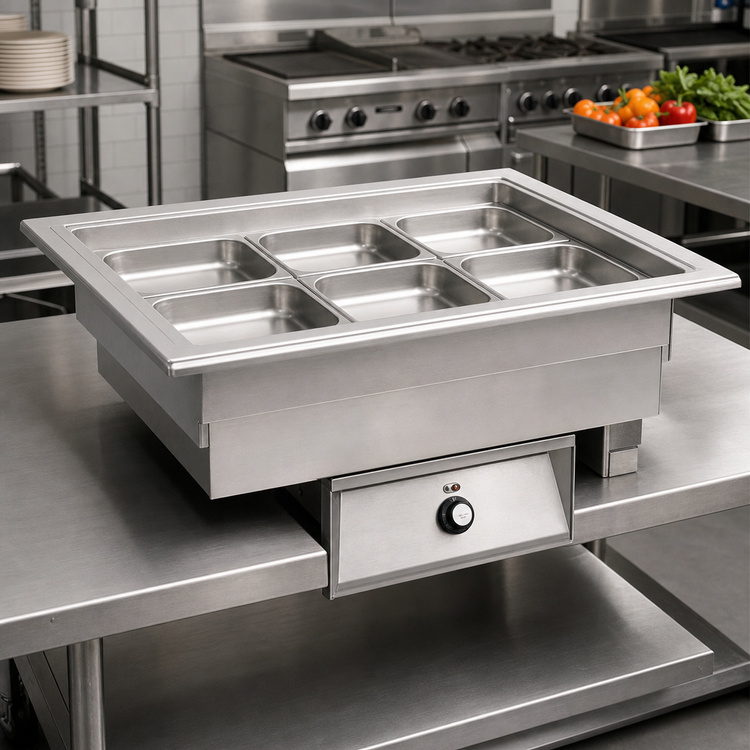

Randell 9570-6 Drop-In Hot Food Well
(6) full-size 12" × 20" pans • Common water-bath • 6 kW electricBuilt for demanding serving lines, buffets, and commissary counters, the Randell 9570-6 keeps six hotel pans of menu items hot, fresh, and food-safe throughout service. A true thermostatic control maintains precise temperatures while the open bain-marie tank delivers even, gentle heat in wet operation. Fabricated and finished in the USA, this well is engineered to drop seamlessly into stainless-steel or laminate counters and includes a remote-mount control panel for a clean installation.
Standard Features & Benefits
- Accommodates six 12" × 20" full-size pans (or fractional pans with optional adaptor bars)

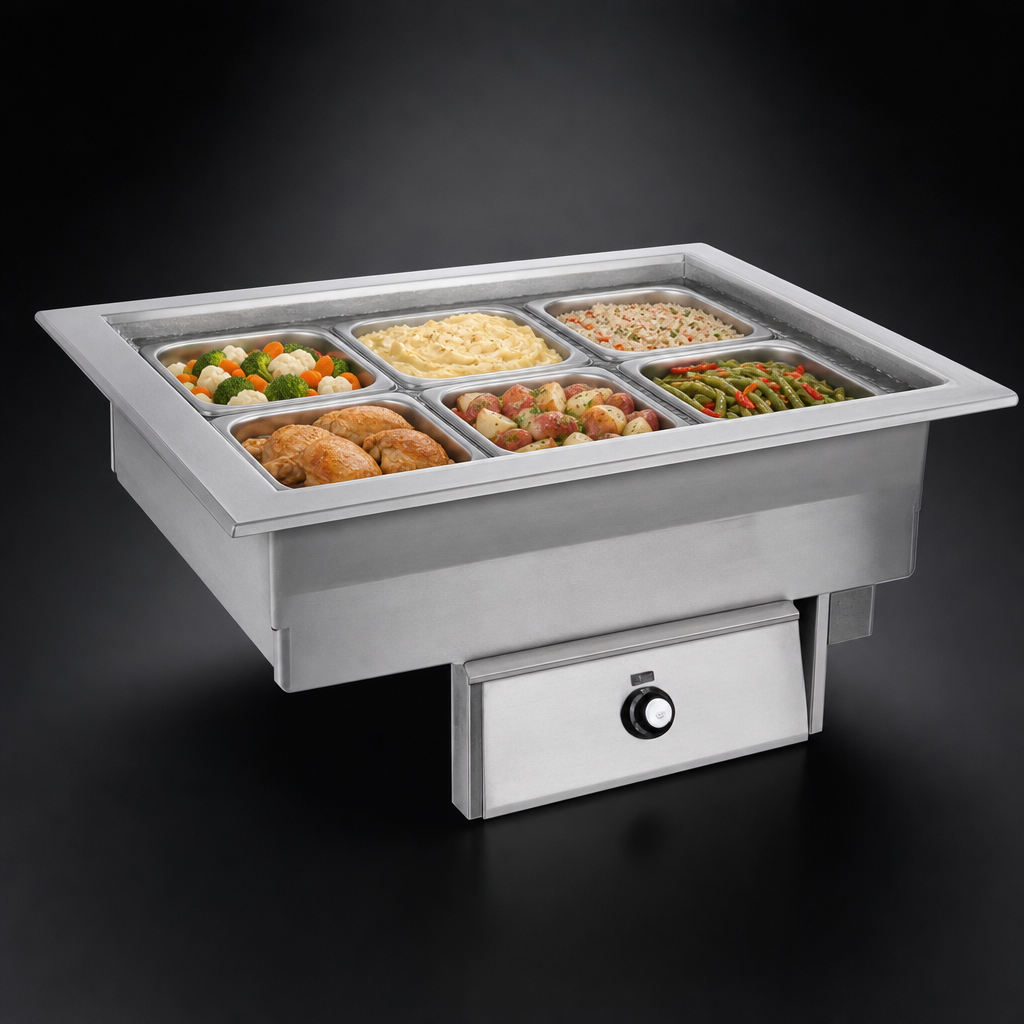

- Common open tank bain-marie design for consistent wet heat
- True thermostatic controls—no guessing, just set and hold target temperature
- 16-gauge one-piece stainless-steel top and tank for superior durability and easy sanitation
- Fully insulated, corrosion-resistant steel exterior reduces ambient heat loss
- 1" stainless-steel drain with gate valve for fast, mess-free water changes
- Pre-wired remote control panel simplifies electrical connections and keeps wiring out of the heated zone
- UL, cUL & NSF listed—meets strict safety and sanitation standards
- Proudly made in the USA
Key Specifications
| Model | 9570-6 |
|---|---|
| Pan capacity | (6) full-size 12" × 20" pans |
| Overall dimensions (L × D) | 82" × 26" |
| Counter cut-out (L × D) | 78.5" × 22.25" |
| Heat type | Wet (bain-marie water bath) |
| Wattage / Elements | 6,000 W • 2 heating elements |
| Electrical | 208 V / 28.8 A / 60 Hz / 1-ph -or- 240 V / 25 A / 60 Hz / 1-ph |
| Shipping weight | ≈ 210 lb |
| Construction | 16-ga stainless top & tank; insulated corrosion-resistant steel body |
| Drain | 1" NPT nipple with gate valve |
| Controls | Remote stainless panel, thermostatic, pre-wired |
| Certifications | UL, cUL, NSF |
Dimensions and amperage are nominal. Always verify cut-out and electrical requirements with the latest spec sheet before fabrication.
Popular Options & Accessories
- Adaptor bars for fractional steam-table pans
- Extended thermostatic lead for extra-long control-panel runs
