Description

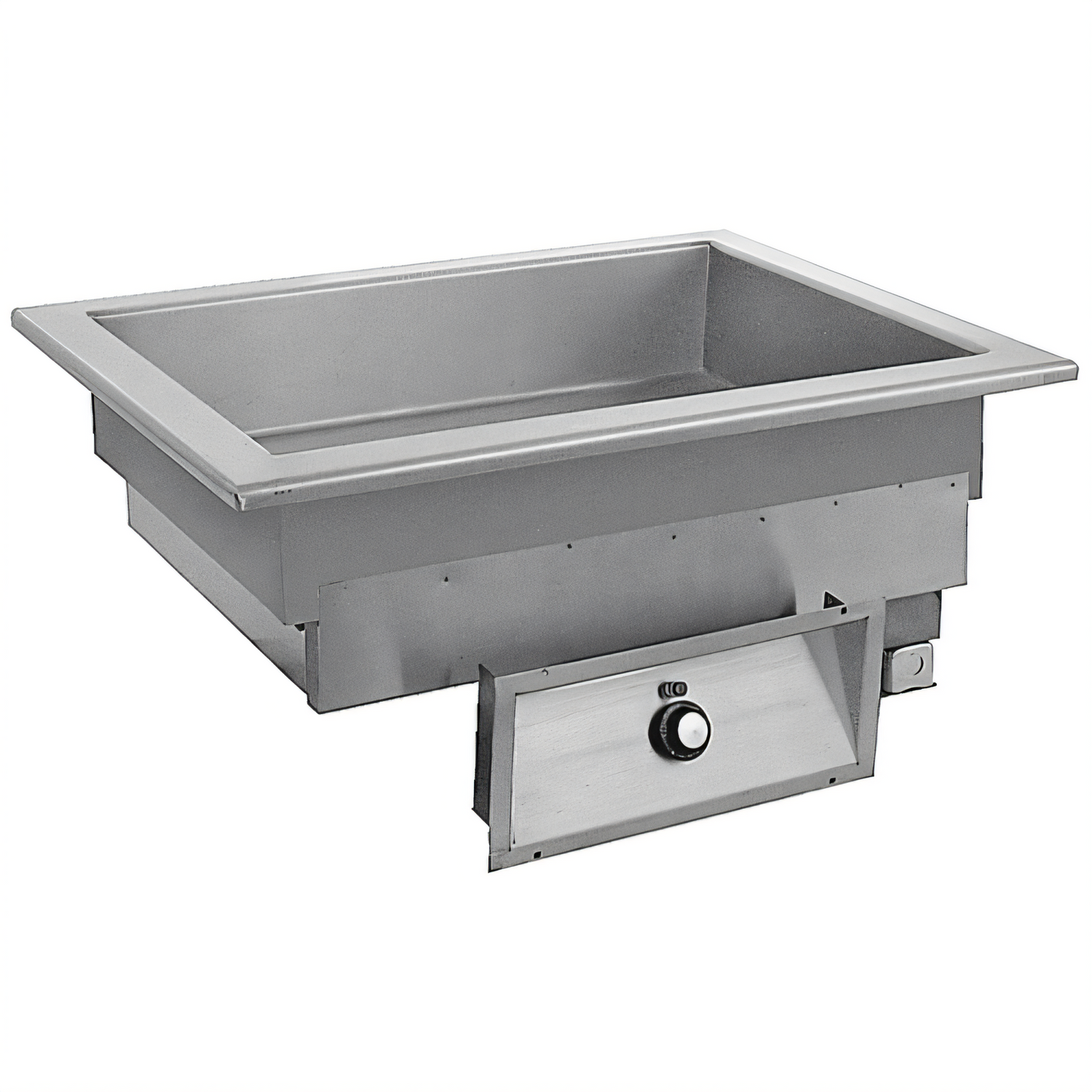

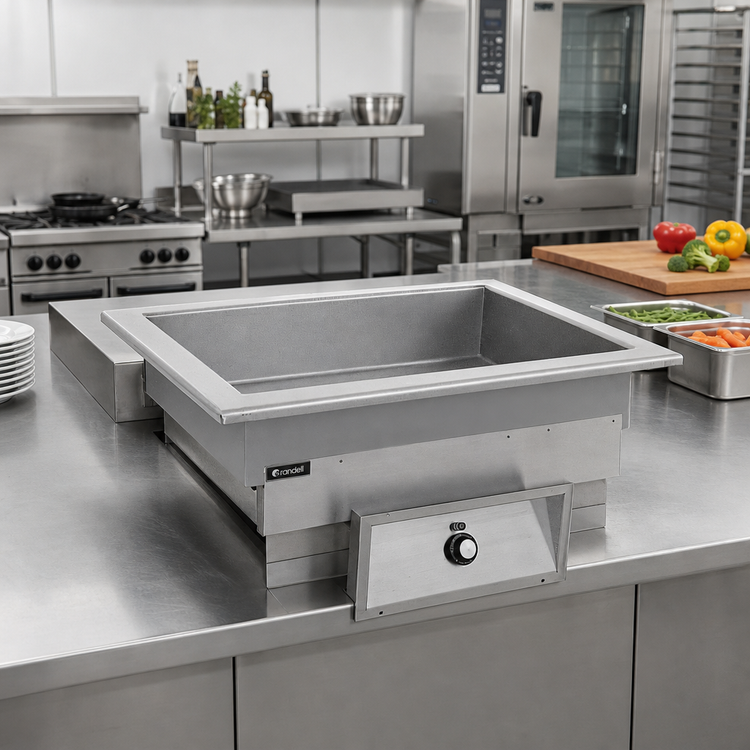

Randell 9570-5AWF Drop-In Hot Food Well

5-Pan • Auto-Water Fill • Thermostatic Control • Made in USA

Keep entrées, sides, and sauces at the perfect serving temperature with Randell’s 9570-5AWF electric hot food well. Engineered for high-volume cafeterias, buffets, and serving lines, this wet bain-marie style unit accommodates five full-size 12" × 20" hotel pans in a single common waterbath, automatically maintains water level, and provides precise thermostatic control—so your team can focus on customers instead of constant monitoring.

Why You’ll Love It

  • Auto-Water Fill keeps the bath topped up automatically—no more manual refills during busy rushes.
  • True Thermostatic Controls (remote stainless panel) deliver accurate, even heat for consistent food quality.
  • 6 kW Heating Power from two elements positioned outside the heated zone to prevent wiring fatigue.

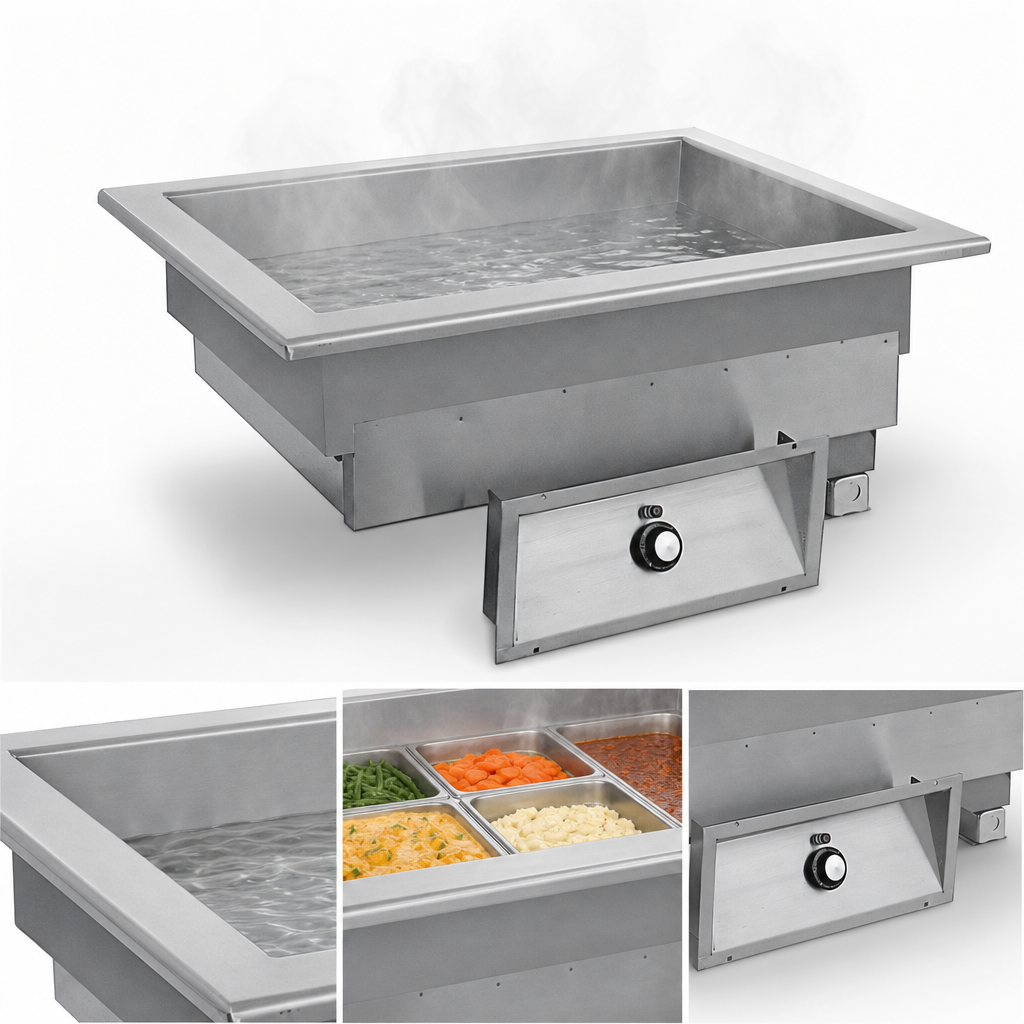

  • Open Tank Bain-Marie Design for dependable wet operation and gentle, uniform heating.
  • Built-In Drain & Gate Valve with 1" stainless nipple for quick, safe water removal at day’s end.
  • All-Stainless 16 ga. Top & Tank plus a fully insulated, corrosion-resistant steel exterior for long service life.
  • Counter Friendly—approved for installation in stainless or laminate tops.
  • UL, cULus & NSF 4 listed and proudly made in the USA.

Specifications

Model 9570-5AWF
Pan Capacity 5 × 12" × 20" full-size pans (4", 6" or 8" deep)
Overall Dimensions (L × D) 73.5" × 26.25"
Counter Cut-Out (L × D) 68.625" × 23"
Well Depth 5.75"
Total Wattage 6,000 W (two 3 kW elements)
Electrical 208 V / 28.8 A / 60 Hz / 1 ph
-or-
240 V / 25 A / 60 Hz / 1 ph
Drain Connection 1" NPT stainless drain with gate valve
Shipping Weight 195 lb
Certifications cULus, NSF 4
Warranty 1-Year parts & labor (USA & Canada)

Included

  • Remote stainless control panel—pre-wired for quick field installation
  • Factory-installed auto-water fill kit
  • 1" drain nipple & gate valve

Popular Accessories

  • Adaptor bars for fractional pans
  • Extended thermostatic lead (for deeper counters)
  • Filler plates & templated cutting boards
Installation Note: This unit requires 208 V or 240 V single-phase hard-wire electrical connection, a freshwater supply for auto-fill, and a 1" drain line. Professional installation by a licensed electrician and plumber is strongly recommended to maintain warranty and compliance.

Need a different size? Randell’s 9570 series is available in 2- to 6-well configurations—search our store or contact us for details.

Features & Specs

Manufacturer

Randell

Brand_name

Custom & Serving

Certifications

NSF, UL, Made in USA

Height

9.0in

Width

69.3in

Depth

26.0in

Shipping Weight

195.0lbs

Style

bain-marie

Pan Capacity

(5) full size (12" x 20")

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Drain

with drain

Wet or Dry operation

wet

Specifications

Drop-In Hot Food Unit, electric, (5) 12" x 20" pan size, auto-water fill, wet operation, common waterbath, thermostatic controls, stainless steel top corrosion resistant steel exterior, drain & gate valve, 6kW, cUL, UL, NSF, Made in USA
