Randell 9570-5 Custom & Serving Steam Tables & Food Wells
Randell 9570-5 Custom & Serving Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Randell 9570-5 Custom & Serving Steam Tables & Food Wells
Description

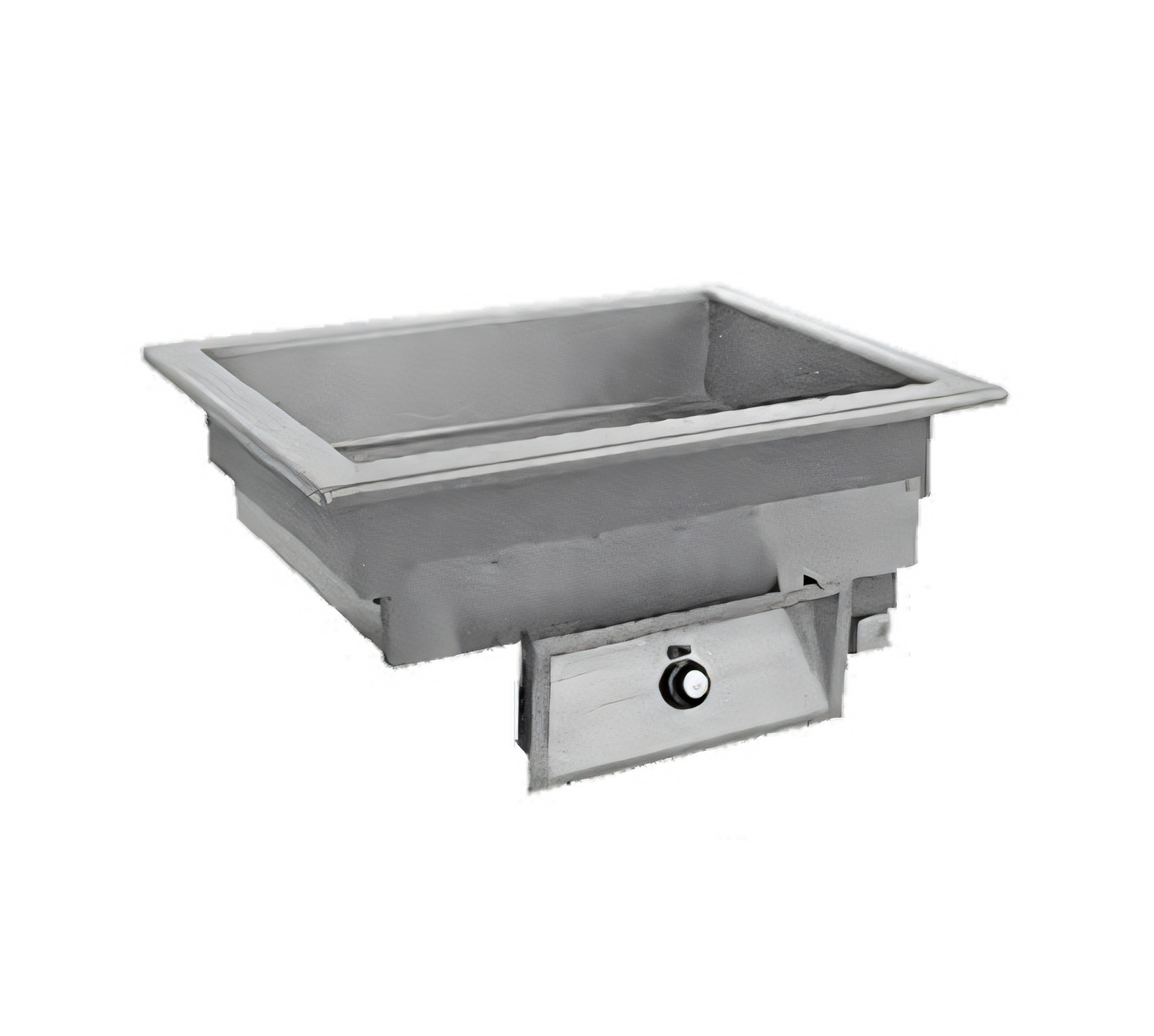

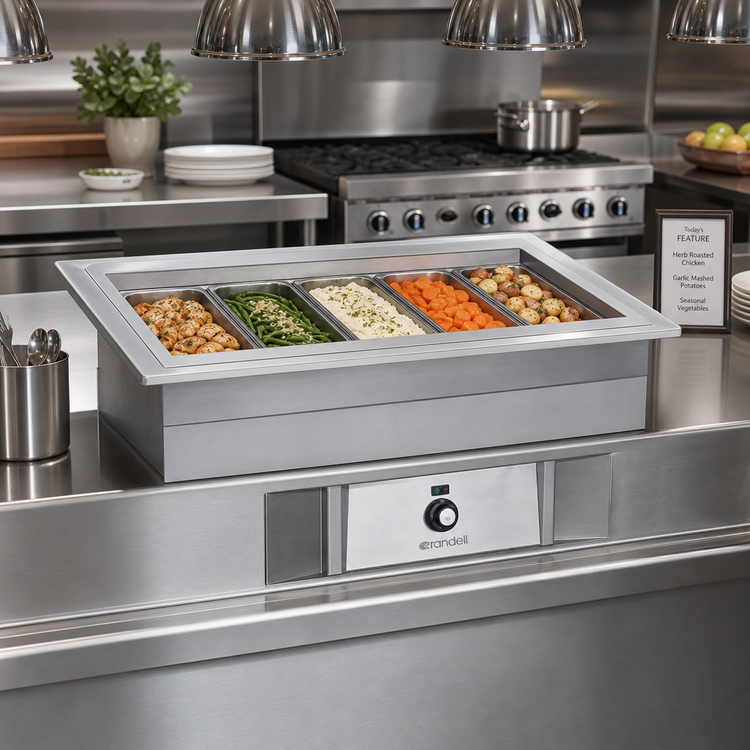

Randell 9570-5 Drop-In Hot Food Well – 5 Pan, Electric, Wet Operation
Common-bath bain-marie with remote thermostatic controlsHold bulk entrées, sides and sauces at perfect serving temperature in a single, space-saving cut-out. Built on Randell’s proven 9570 platform, this five-pan drop-in hot well delivers precise heat, fast recovery and long-term reliability for demanding food-service lines.
Why You’ll Love It

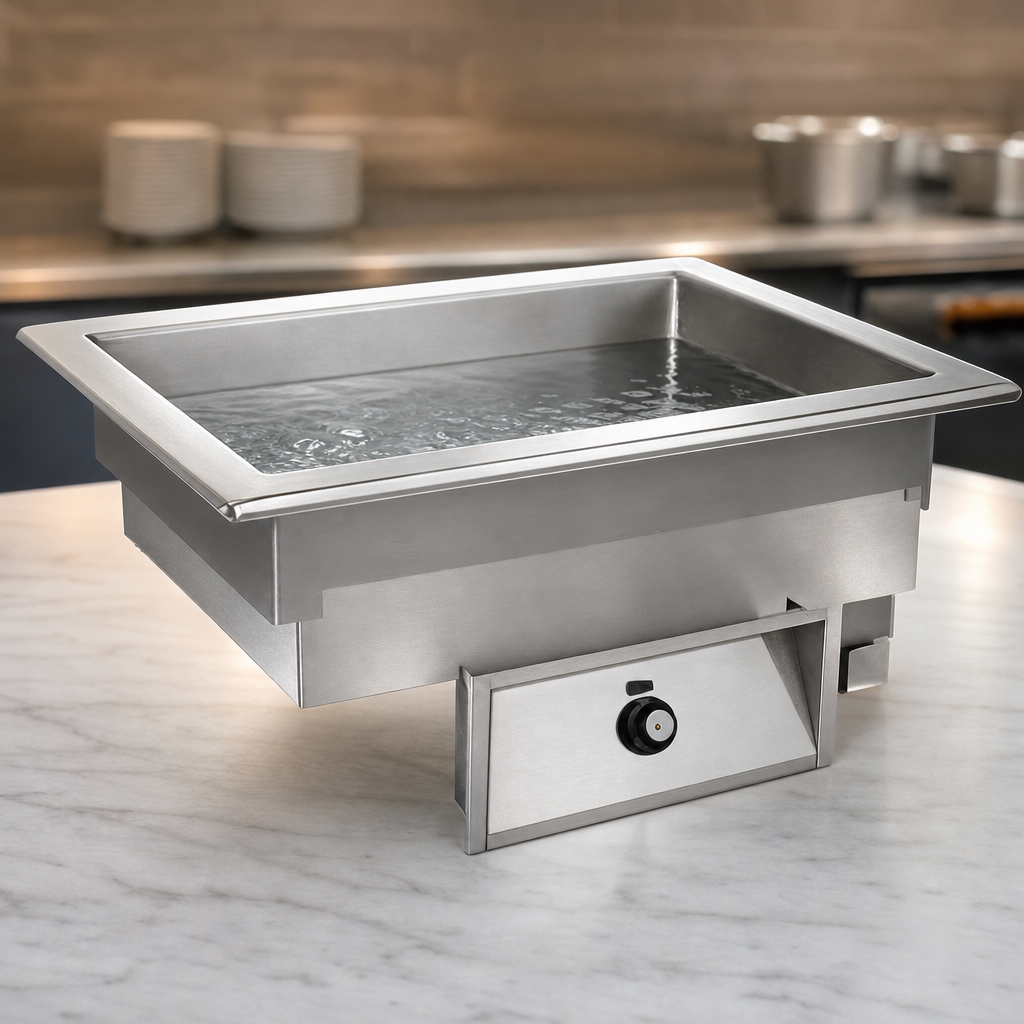

- Five full-size 12" × 20" wells share one open water-bath for even, gentle heat.
- True thermostatic control maintains safe 140-190 °F holding temps without guesswork.
- 16-gauge stainless top & tank resist dings, corrosion and harsh cleaners.
- Exterior is fully insulated corrosion-resistant steel to lock heat in and reduce energy use.
- 1" drain nipple with gate valve speeds cleanup at the end of service.
- Remote stainless control panel keeps electronics away from heat and steam for longer life.
- Field-approved for installation in stainless or laminate counter tops.
- cULus & NSF 4 listed; proudly Made in the USA.
At-a-Glance Specs
| Model | 9570-5 |
|---|---|
| Pan capacity | 5 × full-size 12" × 20" steam-table pans (not included) |
| Operation | Wet bain-marie (common water-bath) |
| Overall dimensions (L × D) | 69.25" × 26" |
| Counter cut-out | 65.75" × 22.25" |
| Heating elements | 2 × 3 kW (6 kW total) |
| Electrical | 208 / 240 V, 60 Hz, 1-phase — 28.8 A @ 208 V | 25 A @ 240 V |
| Controls | Remote, thermostatic, pre-wired to junction box |
| Drain | 1" stainless nipple with gate valve |
| Certifications | cULus, NSF 4 |
| Shipping weight | 185 lb (approx.) |
| Country of origin | USA |
Popular Accessories
- Adaptor bars for fractional pan layouts
- Extended thermostatic lead (for deep counter fronts)
Unified Brands/Randell reserves the right to modify design or specifications without notice. Always consult the latest specification sheet before cutting countertops.
