Randell 9570-4AWF Drop-In Electric Hot Food Well — 4 Full-Size 12" x 20" Pans, Auto Water Fill, 6 kW

SKU: 9570-4AWF
$11,058.60
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Randell Restaurant Equipment Steam Tables & Food Wells

Randell 9570-4AWF Drop-In Electric Hot Food Well — 4 Full-Size 12" x 20" Pans, Auto Water Fill, 6 kW

Bain-Marie Wet Operation · Thermostatic Controls · Stainless Steel Top

Auto-fill drop-in bain-marie reliably holds four full-size 12" x 20" pans with true thermostatic control and 6 kW of heating power for consistent hot-holding in high-volume serving lines.

  • Drop-in electric hot well with open water bath (bain-marie) for even, gentle hot-holding.
  • Auto water fill maintains water level for continuous service (AWF model; requires water supply).
  • Holds 4 full-size 12" x 20" pans in a common waterbath with true thermostatic control.
  • 6 kW total power with two heating elements; prewired for 208/240V, 1-Phase operation.
  • One-piece 16 gauge stainless steel top and water bath; fully insulated corrosion-resistant steel exterior.
  • Includes 1" stainless steel drain nipple with gate valve for fast, sanitary draining.
  • NSF and UL listed; Made in USA.

Overall Dimensions:

56.5"W x 26.0"D x 9.0"H

Product Weight:

170.0 lb

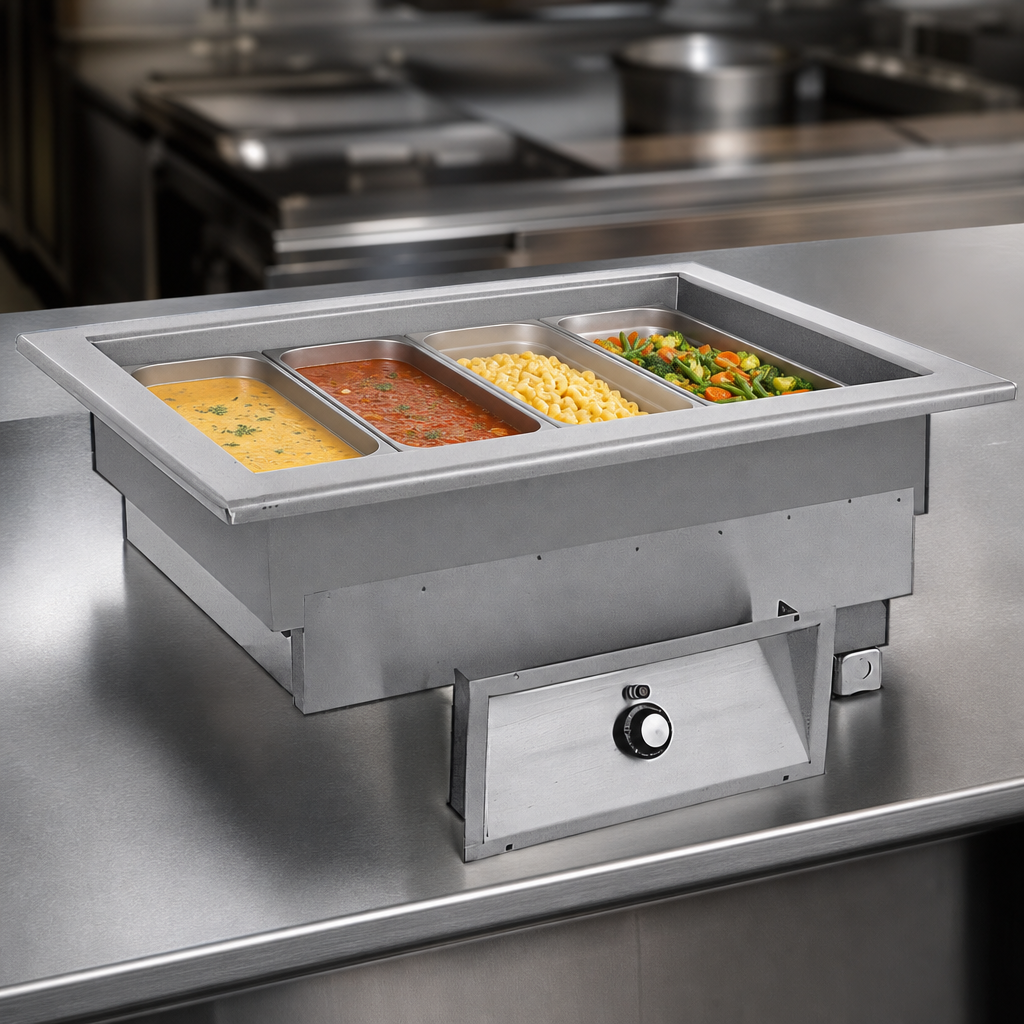

Open Water Bath (Bain-Marie)

Common open tank water bath provides even heat distribution for soups, sauces and prepared foods, preventing hot spots and overcooking.

Auto Water Fill

Automatic water fill (AWF) maintains correct bath level for continuous operation, reducing manual refills (requires water connection).

Thermostatic Controls

True thermostatic control for precise food temperatures; controls are prewired to a junction box mounted on a separate stainless steel panel for field installation.

Durable Construction

One-piece 16 gauge stainless steel top and water bath with a fully insulated, corrosion-resistant steel exterior for long service life and easy cleaning.

Drain & Gate Valve

1" stainless steel drain nipple and gate valve provided for quick, sanitary draining of the water bath.

Electrical

6 kW total (two heating elements); prewired for either 208 or 240 Volts, single-phase. Connections to heating elements are located outside the heated zone to protect wiring.

Installation

Drop-in design approved for installation in stainless or laminate counters; separate control panel cut-out provided for field mounting.

Approvals

Units listed to NSF Standard 4 and UL/cULus; assembled in the USA.

Type Drop-In Hot Well
Installation Type Drop-In
Pan Capacity 4
Pan Size 12" x 20"
Watts 6 kW
Voltage 208/240 Volts
Amps 28.8 Amps (208 Volts); 25 Amps (240 Volts)
Phase 1-Phase
Hertz 60 Hz
Controls Thermostatic
Material Stainless Steel
Interior Finish Stainless Steel
Finish Corrosion Resistant Steel Exterior
Water Connection Required
Drain Connection Required
Number Of Elements 2
Unit Cut Out Size 55.875" x 23"
Control Panel Cut Out Size 14.25" x 5.75"
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Weight 170 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. The 'AWF' model includes automatic water fill that maintains the correct water level in the bath. A water supply connection is required for the auto-fill feature to operate.
This model accepts four full-size 12" x 20" pans in a common waterbath.
Operates on 208 or 240 Volts, single-phase (1-Phase) at 60 Hz with 6 kW total heating power. Draws approximately 28.8 Amps at 208V or 25 Amps at 240V. Unit is prewired to a separate stainless steel control panel for field installation; provide appropriate circuit protection and wiring per local code.
Unit cut-out size is 55.875" x 23". Control panel cut-out size is 14.25" x 5.75". The unit is approved for installation in either stainless or laminate countertops.
Yes. The unit is NSF and UL/cULus listed and is made in the USA.
