Description

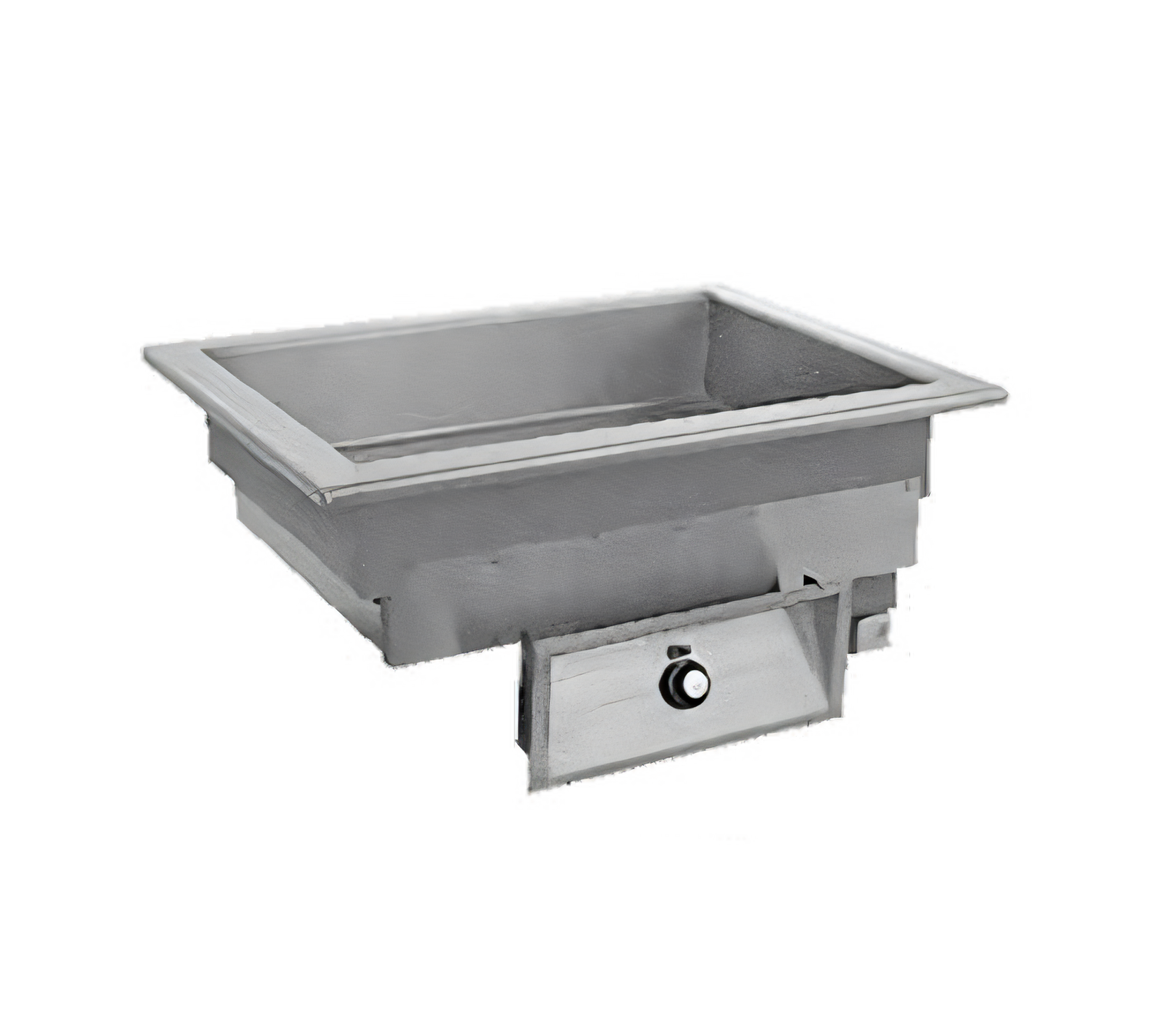

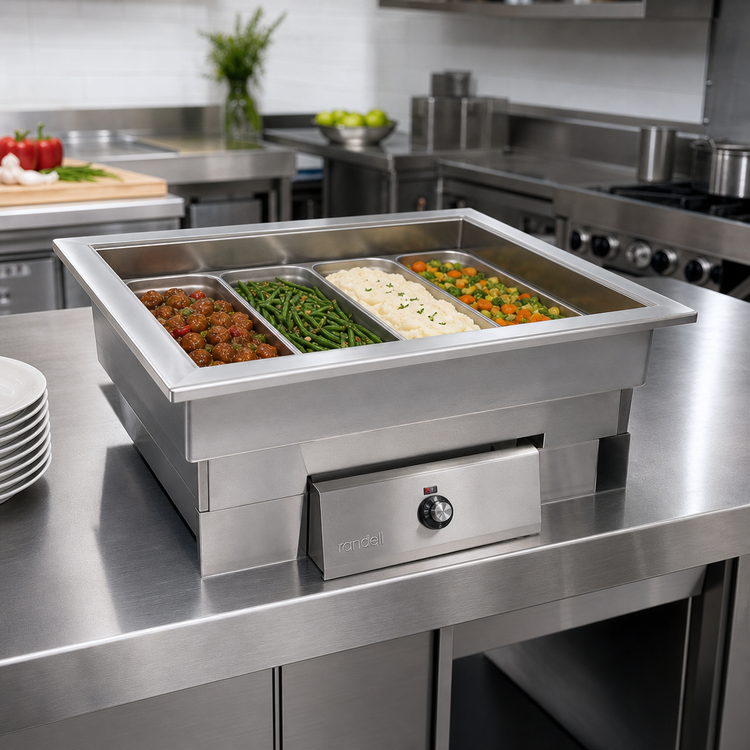

Randell 9570-4 Drop-In Hot Food Well

4-Pan • 6 kW • Wet Operation • Made in USA

Keep entrées, sides, and sauces at perfect serving temperatures with Randell’s 9570-4 electrically-heated bain-marie well. Engineered for high-volume buffets, cafeterias, and serving lines, this four-pan hot well drops cleanly into your counter and delivers precise thermostatic control, rapid heat-up, and easy draining in one rugged stainless-steel package.

Key Features & Benefits
  • Holds four standard 12" × 20" hotel pans in a common waterbath for consistent, gentle heat.
  • True thermostatic controls (remote-mounted panel) maintain accurate food temperatures without constant adjustment.
  • 16-gauge stainless-steel top and one-piece tank resist corrosion and simplify cleanup.
  • Fully insulated, corrosion-resistant steel exterior boosts energy efficiency and protects surrounding cabinetry.
  • 1" stainless-steel drain with gate valve speeds end-of-service cleanup—no lifting heavy wells to empty water.
  • Remote-mounted electrical components stay outside the heated zone, extending wiring life.
  • Approved for installation in stainless or laminate counters; cut-out template included.
  • cULus & NSF 4 listed; proudly built in the USA.
Technical Specifications
Model 9570-4
Pan Capacity (4) 12" × 20" full-size pans
Overall Dimensions (L × D) 56.5" × 26"
Counter Cut-Out (L × D) 53" × 22.25"
Control Panel Cut-Out 14.25" × 5.75"

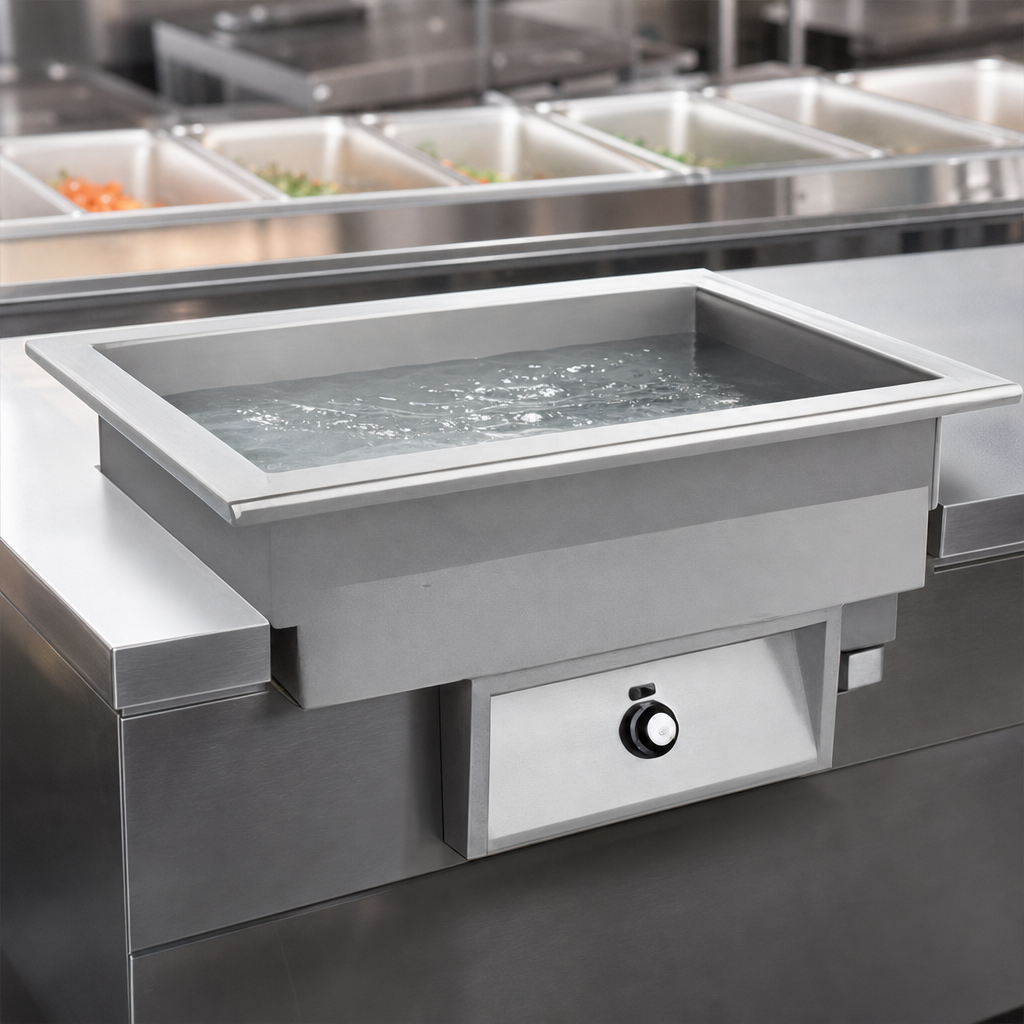

Heat Type Wet operation, open water bath
Heating Elements 2
Wattage / kW 6000 W / 6 kW
Amps 28.8 A @ 208 V | 25 A @ 240 V, 1-phase
Drain Connection 1" NPT with gate valve
Shipping Weight 160 lb
Certifications cULus, NSF
Popular Accessories
  • Adaptor bars for fractional pans
  • Extended thermostatic lead (remote mounting)
Important: This unit is designed for wet operation only. Always keep the water level above the heating elements during use to prevent damage and ensure accurate temperature control.

Need a different size? Randell 9570 series wells are available in 2- to 6-pan configurations. Contact us for a custom quote.

Features & Specs

Manufacturer

Randell

Brand_name

Custom & Serving

Certifications

NSF, UL, Made in USA

Height

9.0in

Width

56.5in

Depth

26.0in

Shipping Weight

160.0lbs

Style

bain-marie

Construction

stainless steel top, corrosion resistant steel exterior

Controls

thermostatic controls

Insulated or Non-Insulated

insulated

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Drop-In Hot Food Unit, electric, (4) 12" x 20" pan size, wet operation, common waterbath, thermostatic controls, stainless steel top corrosion resistant steel exterior, drain & gate valve, 6kW, cUL, UL, NSF, Made in USA
