Randell 9570-3 Custom & Serving Steam Tables & Food Wells
Description

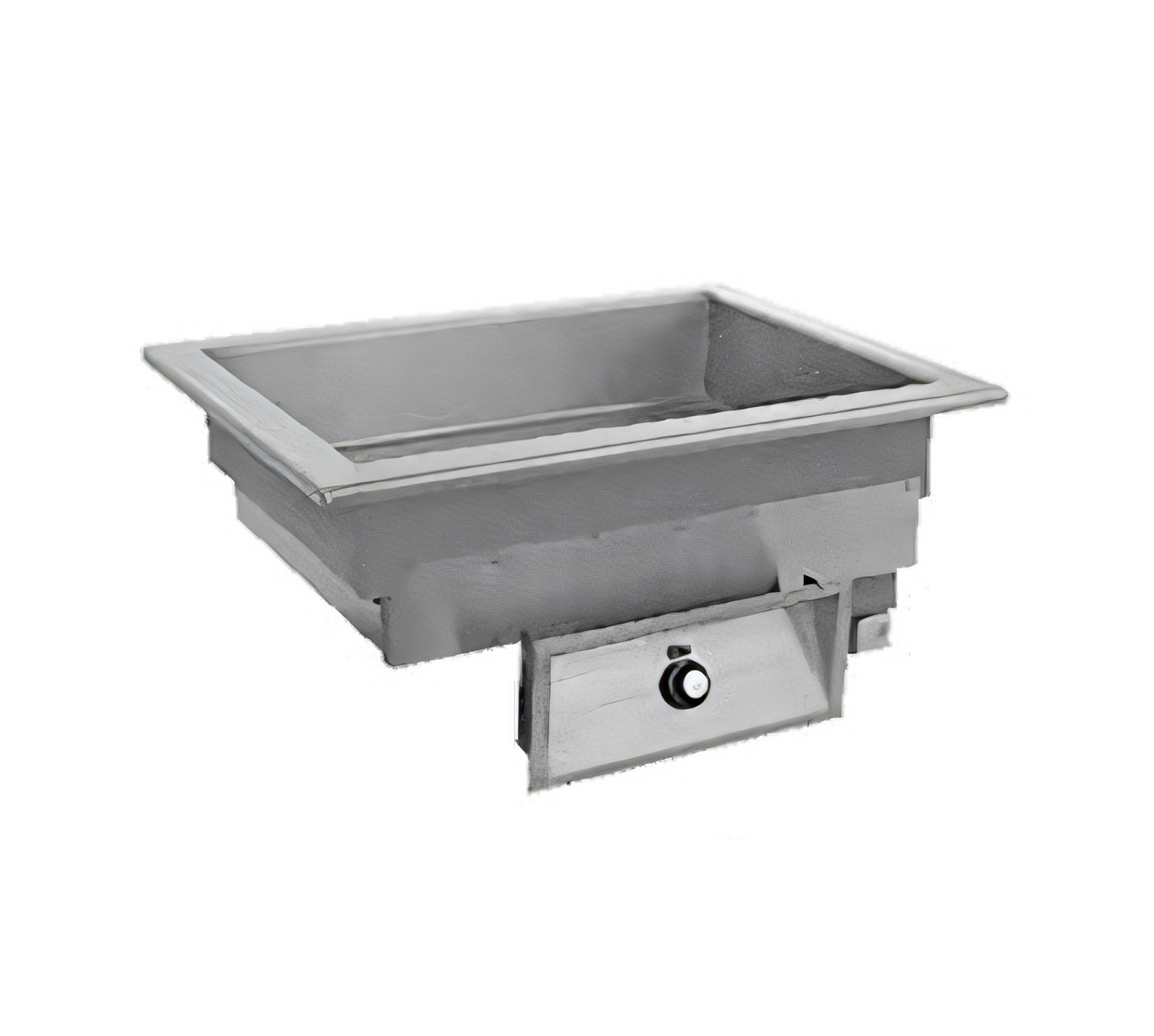

Randell 9570-3 Drop-In Hot Food Well
3-Pan • Wet Operation • Thermostatic ControlGive every guest a just-made experience. Randell’s 9570-3 bain-marie style hot well holds three full-size 12" × 20" pans in a common water bath, delivering consistent, moisture-rich heat from the first plate to the last. Built, wired and certified in the USA, it’s the trouble-free way to add high-capacity hot holding to any serving line or buffet counter.
Why You’ll Love It
- One-piece 16 ga stainless steel top & water bath for maximum durability and easy cleanup.

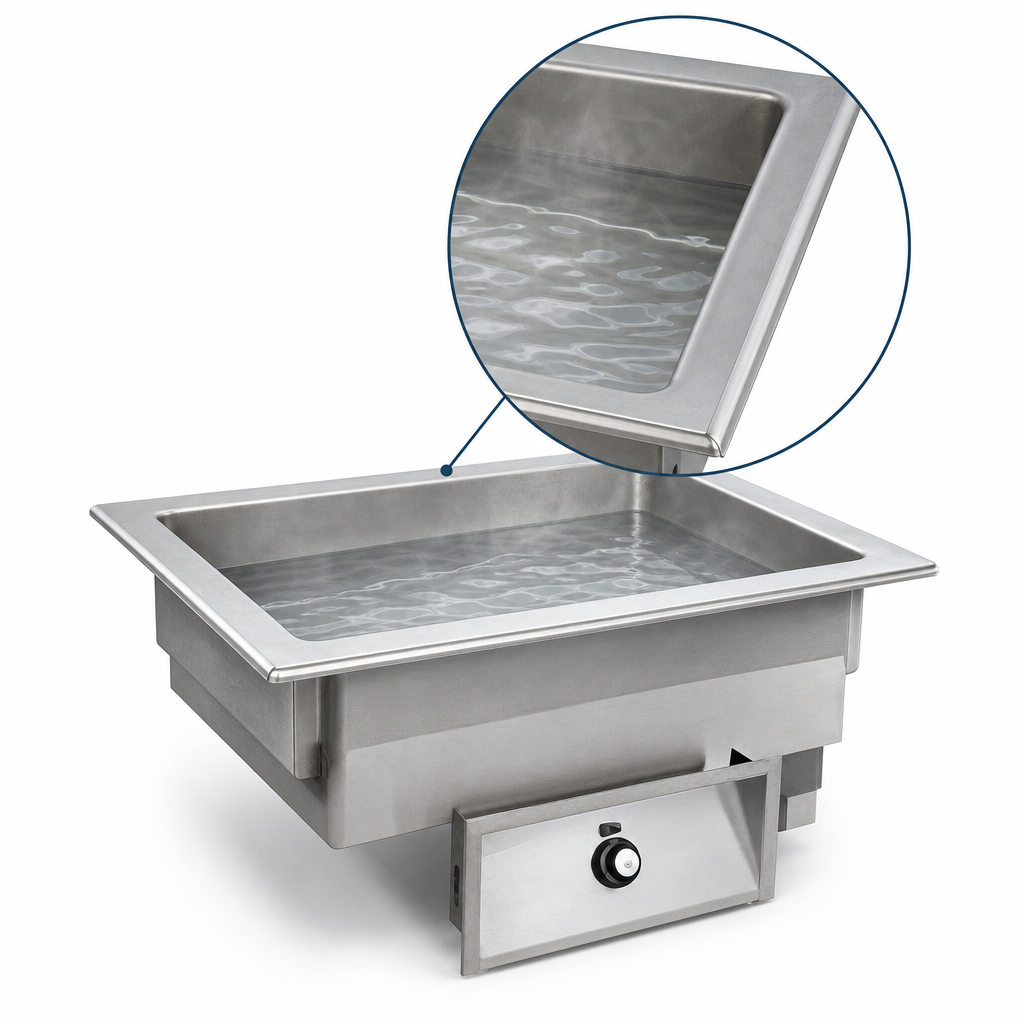

- Open tank bain-marie design provides even, gentle heat across all wells.
- True thermostatic control (pre-wired to a remote stainless panel) keeps food precisely within safe holding temps.
- Heating element and wiring are positioned outside the heated zone—extending service life.
- Built-in 1" drain with gate valve speeds up water changes and sanitation.
- Fully insulated, corrosion-resistant steel exterior reduces radiant heat and saves energy.
- Approved for installation in stainless or laminate countertops.
- cULus & NSF-4 listed for food-service compliance; proudly Made in USA.
Technical Specifications
| Model | 9570-3 |
|---|---|
| Pan Capacity | (3) Full-size 12" × 20" steam table pans |
| Operation | Wet (common water bath) |
| Wattage | 3 kW |
| Voltage / Phase | 208 V or 240 V, 1 PH |
| Amps | 14.4 A @ 208 V | 12.5 A @ 240 V |
| Overall Dimensions | 43.75" L × 26" D (fits 26" counter depth) |
| Counter Cut-Out (well) | 40.25" L × 22.25" D |
| Control Panel Cut-Out | 14.25" L × 5.75" H (field mounted) |
| No. of Heating Elements | 1 (outside heated zone) |
| Drain Connection | 1" NPT stainless nipple w/ gate valve |
| Ship Weight | 135 lb |
| Certifications | cULus, NSF-4 |
| Origin | Made in USA |
Factory Options & Accessories
- Adaptor bars for fractional pans
- Extended thermostatic lead (longer control-mount reach)
Warranty
Includes a 1-year parts & labor warranty backed by Unified Brands’ nationwide service network.
Need a larger or smaller unit? The Randell 9570 series is available in 2-, 4-, 5- and 6-well configurations—contact us for a quick quote.
