Randell  |  Custom & Serving  |  SKU: 9560-6AWF

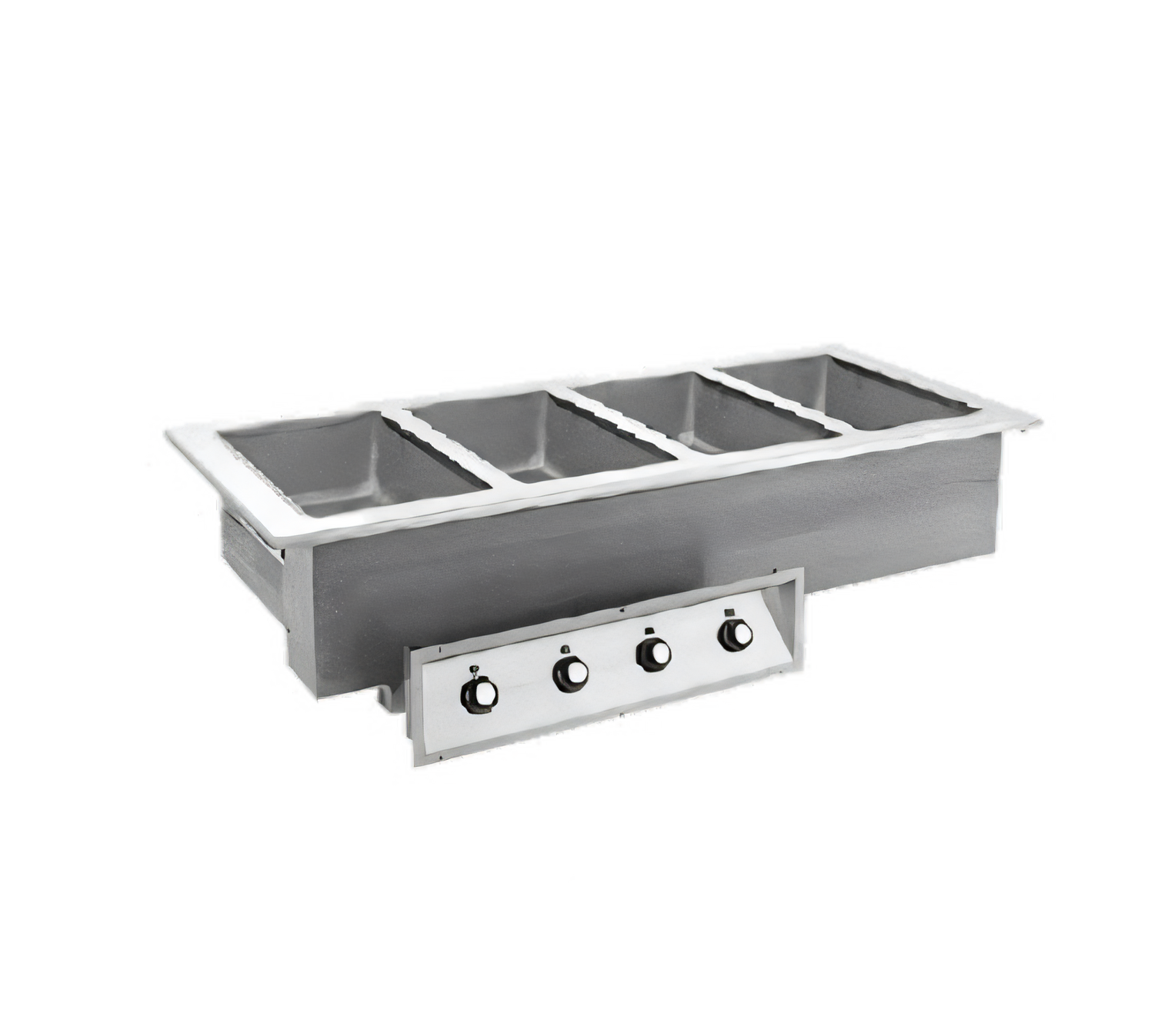

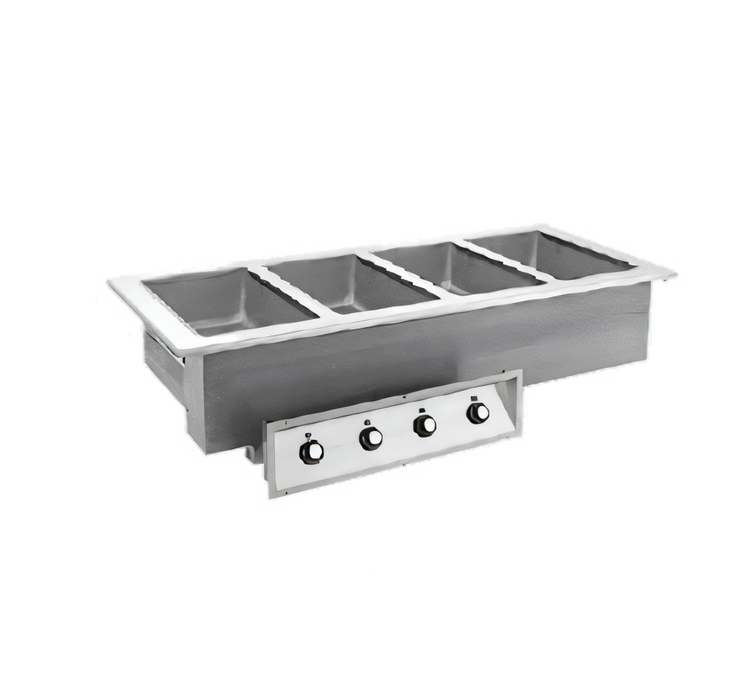

Randell 9560-6AWF Custom & Serving Steam Tables & Food Wells

$10,153.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Randell 9560-6DM Drop-In Hot Food Well (Auto-Fill)

6-Well • 12" × 20" pans • 240 V / 6.6 kW • Wet operation

Keep every entrée at precisely the right serving temperature—without babysitting the wells. The Randell 9560-6DM combines true thermostatic control, automatic water fill and a fully welded stainless top to deliver rock-solid performance on even the busiest buffet or serving line.

Why you’ll love it

  • Six individually sealed 12" × 20" wells—ideal for full-size pans or fractional pans with adaptor bars.
  • Auto-water fill maintains optimum water level for consistent heat transfer and labor-free operation.
  • True thermostatic controls for each well give you pinpoint temperature accuracy instead of simple “low-med-high” guessing.
  • Die-stamped 18-ga. stainless steel top with raised rims keeps spills contained and wipes clean fast.
  • Corrosion-resistant, fully insulated steel body reduces energy loss and keeps counter surfaces cool.
  • Factory-installed drains and common gate valve speed up end-of-day cleanup—just open one valve to empty all wells.
  • Pre-wired stainless control panel ships loose for easy “front-of-counter” installation.
  • Made in the USA and certified cULus & NSF for open-kitchen peace of mind.

At-a-glance specs

Model 9560-6-240DM AWF (Auto Water Fill)
Pan capacity (6) full-size 12" × 20" pans, 6 ¹⁄₂" deep
Operation Wet (water-bath)
Controls (6) individual thermostats with lighted on/off switches
Heating power 6.6 kW @ 240 V, 27.6 A (single-point hard-wire)
Exterior / top Corrosion-resistant steel body / 18-ga. stainless steel top
Drain system Individual drains manifolded to one factory-installed gate valve
Overall size (L × W) 86.75" × 26"
Counter cut-out 84.375" × 22.5"
Control panel 38" × 5.75" × 6" (ships loose)
Approx. weight 260 lb
Certifications cULus, NSF
Country of origin Made in USA

Pro tips for best results

  • Fill wells with hot water (140 °F / 60 °C) at start-up for a quicker pre-heat.
  • Keep stainless lids or pans in place when service is slow to retain heat and moisture.
  • Drain and wipe wells daily—never use abrasive pads that can scratch the polished surface.
Electrical connection required: This unit ships without a cord and must be hard-wired by a qualified electrician to a covered junction box. Verify available voltage and amperage before ordering.

Pans, adaptor bars and counter cut-out framing sold separately.

Features & Specs

Manufacturer

Randell

Brand_name

Custom & Serving

Certifications

NSF, UL, Made in USA

Width

88.97in

Depth

26.0in

Shipping Weight

290.0lbs

Pan Capacity

(6) full size (12" x 20")

Controls

thermostatic controls

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Wet or Dry operation

wet

Specifications

Drop-In Hot Food Unit, electric, (6) 12" x 20" pan size, auto-water fill, wet operation, individual thermostatic control, stainless steel top, corrosion resistant steel exterior, with drain and common gate valve, 6.6kW, cUL, UL, NSF, Made in USA
