Randell  |  Custom & Serving  |  SKU: 9560-6-DM

Randell 9560-6-DM Custom & Serving Steam Tables & Food Wells

$8,752.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Owner's manual Warranty sheet
Related Searches
Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Randell 9560-6DM Drop-In Hot Food Well Unit

6 Full-Size Wells | Wet Operation | Drains & Manifold | 208/240 V, 6.6 kW

Engineered for demanding, high-volume service lines, the Randell 9560-6DM keeps six hotel pans of entrées, sides, or sauces hot, fresh, and ready to serve—while making daily clean-up fast and easy.

Why You’ll Love It

  • Six 12" × 20" × 6.5" sealed wells, each with its own precise thermostatic control.

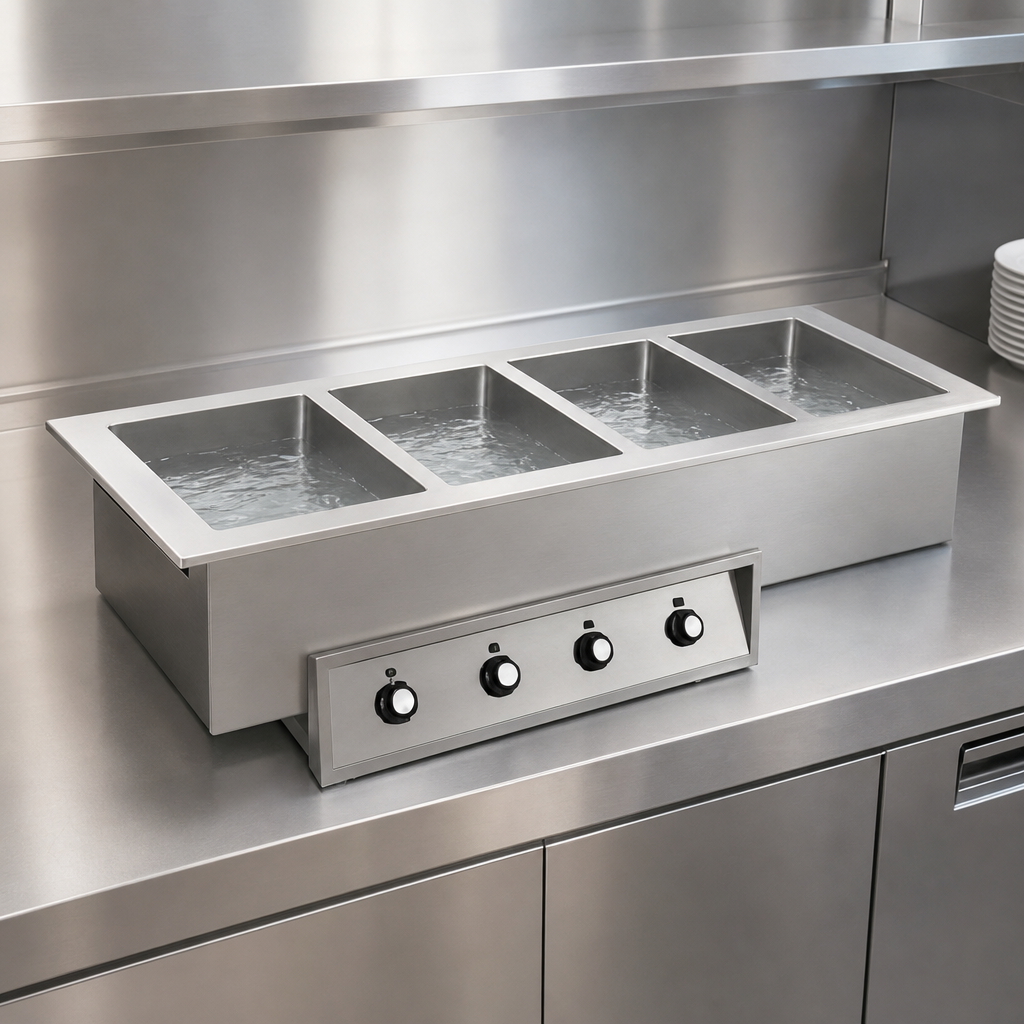

  • Wet-only design maintains ideal food moisture and appearance for hours.
  • One-piece 18-ga. stainless steel top with die-stamped, raised rims for a sanitary, flush install.
  • Factory-installed drains & common manifold with gate valve for one-step draining.
  • Remote stainless steel control panel (pre-wired) with lighted on/off indicators.
  • Fully insulated, corrosion-resistant steel exterior protects surrounding cabinetry.
  • Single-point electrical connection—unit arrives pre-wired to junction box.
  • cULus & NSF listed; proudly made in the USA.

Technical Specs

Model 9560-6DM
Pan Capacity 6 × 12" × 20" full-size steam table pans
Overall Dimensions (W × D) 86.75" × 26"
Counter Cut-Out (W × D) 84.375" × 22.5"
Well Depth 6.5"
Operation Type Wet only
Total Wattage 6.6 kW
Electrical 208 V / 31.7 A or 240 V / 27.6 A, 1-Ph, hard-wired
Control Panel Cut-Out 38" × 5.75" × 6"
Approx. Shipping Weight 260 lb
Certifications cULus, NSF

Popular Accessories

  • Adaptor bars for fractional pans
  • Extended thermostatic leads
  • 500 W low-wattage elements
  • Automatic water-fill kit
Installation Note: This unit is designed for wet operation only and must be hard-wired to a dedicated junction box by a qualified electrician. Follow local codes and Randell installation guidelines.

Looking for a different capacity? Randell 9560 wells are also available in 1- to 5-pan models—ask us for details.

Features & Specs

Manufacturer

Randell

Brand_name

Custom & Serving

Certifications

NSF, UL, Made in USA

Width

86.7in

Depth

26.0in

Shipping Weight

290.0lbs

Controls

thermostatic controls

Pan Capacity

(6) full size (12" x 20")

Insulated or Non-Insulated

insulated

Style

individual pans

Wet or Dry operation

wet

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Specifications

Drop-In Hot Food Unit, electric, (6) 12" x 20" pan size, wet operation, individual thermostatic controls, stainless steel top corrosion resistant steel exterior, drains & manifolds included, 6.6kW, cUL, UL, NSF, Made in USA
