Randell  |  Custom & Serving  |  SKU: 9560-5AWF

Randell 9560-5AWF Custom & Serving Steam Tables & Food Wells

$8,741.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Owner's manual Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Randell 9560-5-DM Drop-In Hot Food Well with Auto-Fill

5-Well • Wet Operation • 5.5 kW • Made in USA

Give your serving line the holding power it deserves. Randell’s 9560-5-DM keeps five full-size hotel pans at optimum serving temperatures, automatically maintains the correct water level, and cleans up fast with an integrated drain manifold—all while taking up zero countertop space.

Why You’ll Love It

  • 5 independent wells accept standard 12 × 20 × 6.5 in pans.
  • True thermostatic control on each well for pinpoint temperature accuracy.

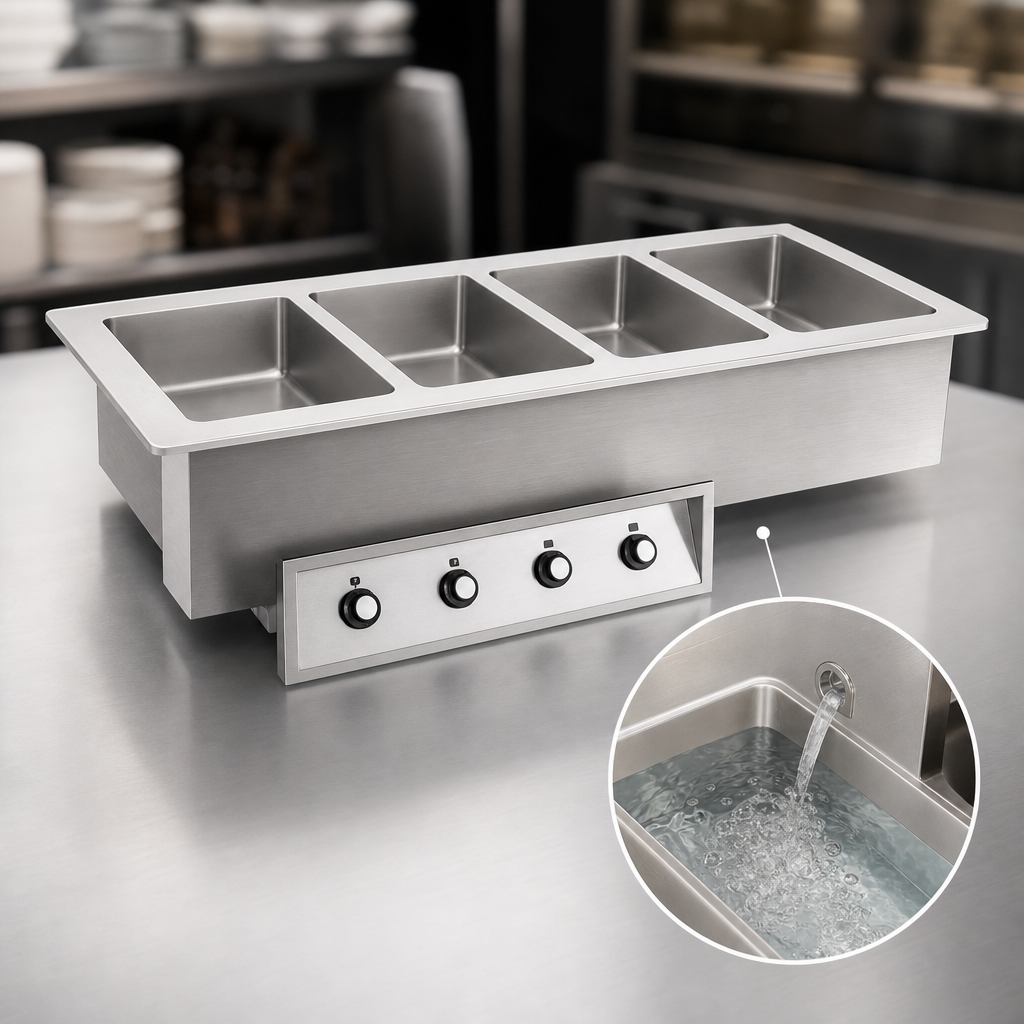

  • Auto-water fill system prevents scorching and labor-intensive refills.
  • One-piece 18 ga. stainless top with die-stamped openings & raised sanitary rims.
  • Fully insulated, corrosion-resistant steel body maximizes efficiency.
  • Pre-wired remote control panel—single-point field connection simplifies installation.
  • Common drain & gate valve speeds end-of-day clean-up.
  • 5.5 kW total output; field-wiring ready for 120, 208 or 240 V operation.
  • cULus & NSF listed for peace of mind—100 % built in the USA.

Technical Specifications

Model 9560-5-DM (with Auto Water Fill)
Pan capacity 5 full-size 12 × 20 in pans
Overall dimensions 73 in L × 26 in W
Counter cut-out 70.75 in L × 22.5 in W
Control panel cut-out 32 in L × 5.75 in H × 6 in D
Well depth 6.5 in (wet operation only)
Total power 5.5 kW — hard-wire connection
Amps (per voltage) 46 A @ 120 V • 27.5 A @ 208 V • 23 A @ 240 V
Certifications cULus, NSF
Approx. weight 220 lb
Warranty 1-year parts & labor (factory)
Electrical & Cut-out Notice: Unit ships pre-wired to a junction box for single-point hard-wire connection. Verify counter cut-out and available amperage before ordering.

Ideal Applications

  • Buffet & self-serve lines
  • Cafeterias and commissaries
  • QSR & fast-casual holding stations
  • C-stores and grab-and-go merchandisers

What’s in the Box

  • Randell 9560-5-DM drop-in hot food unit
  • Remote stainless-steel control panel (pre-wired)
  • Integrated auto-fill assembly & common drain valve
  • Factory documentation & warranty registration

Pan inserts, adapter bars and countertop not included.

Features & Specs

Manufacturer

Randell

Brand_name

Custom & Serving

Certifications

NSF, UL, Made in USA

Width

75.22in

Depth

26.0in

Shipping Weight

230.0lbs

Pan Capacity

(5) full size (12" x 20")

Controls

thermostatic controls

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Wet or Dry operation

wet

Specifications

Drop-In Hot Food Unit, electric, (5) 12" x 20" pan size, auto-water fill, wet operation, individual thermostatic control, stainless steel top, corrosion resistant steel exterior, with drain and common gate valve, 5.5kW, cUL, UL, NSF, Made in USA
