Randell 9560-4-DM Custom & Serving Steam Tables & Food Wells
Description

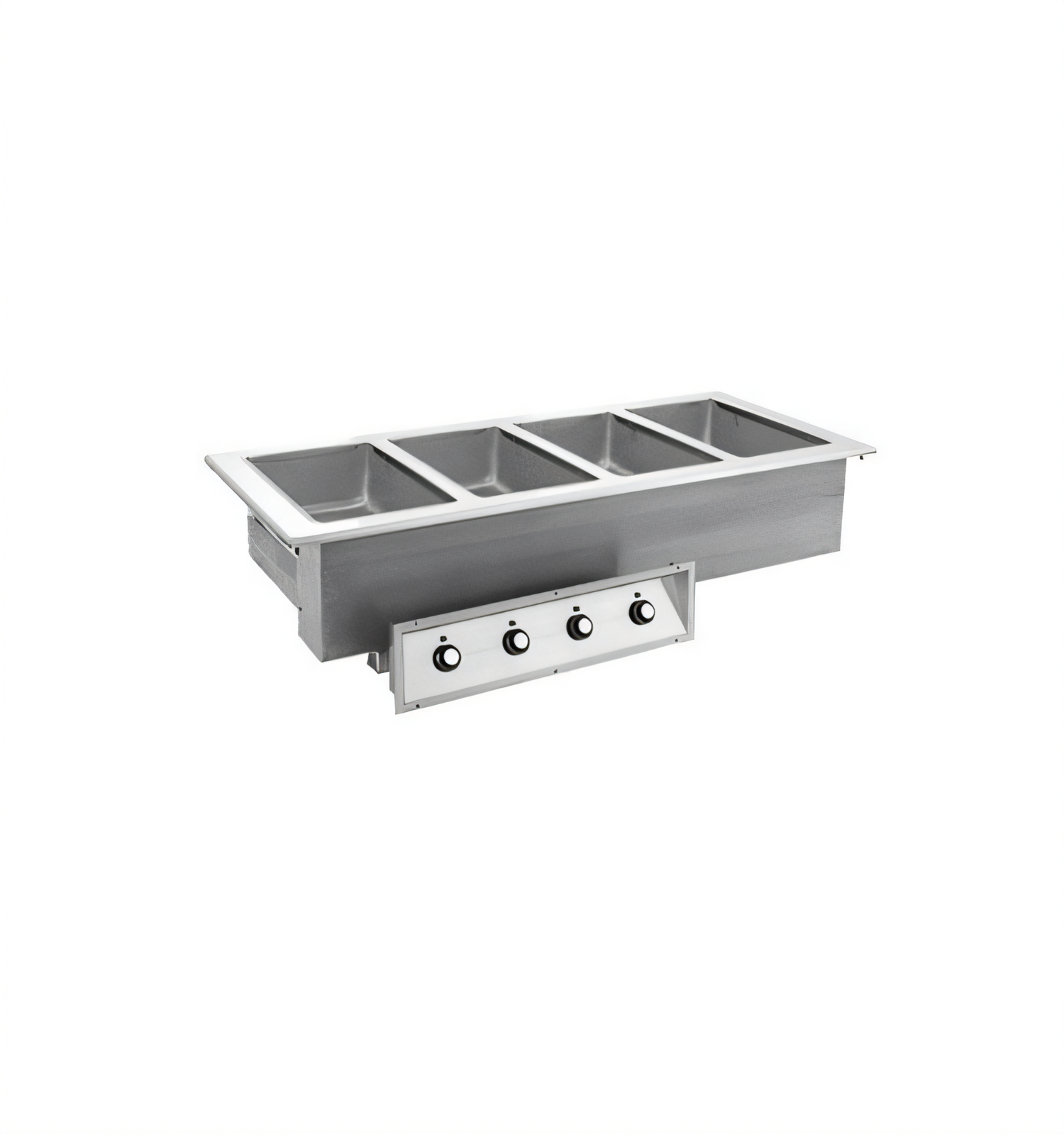

Randell 9560-4-DM Drop-In Hot Food Well – 4 Pan
Electric • Wet Operation • Drains & Manifold Included • Made in USAKeep entrées, sides and sauces at safe serving temperatures without sacrificing counter space. The Randell 9560-4-DM is a heavy-duty, 4-well drop-in unit engineered for demanding serving lines, stadiums, colleges and commercial kitchens that need rock-solid temperature control and effortless cleanup.
Why You’ll Love It
- Four full-size 12 ″ × 20 ″ sealed wells – each holds one 6 1/2 ″ deep hotel pan or adaptor combinations.
- True individual thermostatic controls for every well give you pinpoint temperature precision.
- Designed for wet operation to deliver even, consistent heat across the pan bottom.
- Factory-installed drains & common manifold make end-of-shift cleanup fast and sanitary.

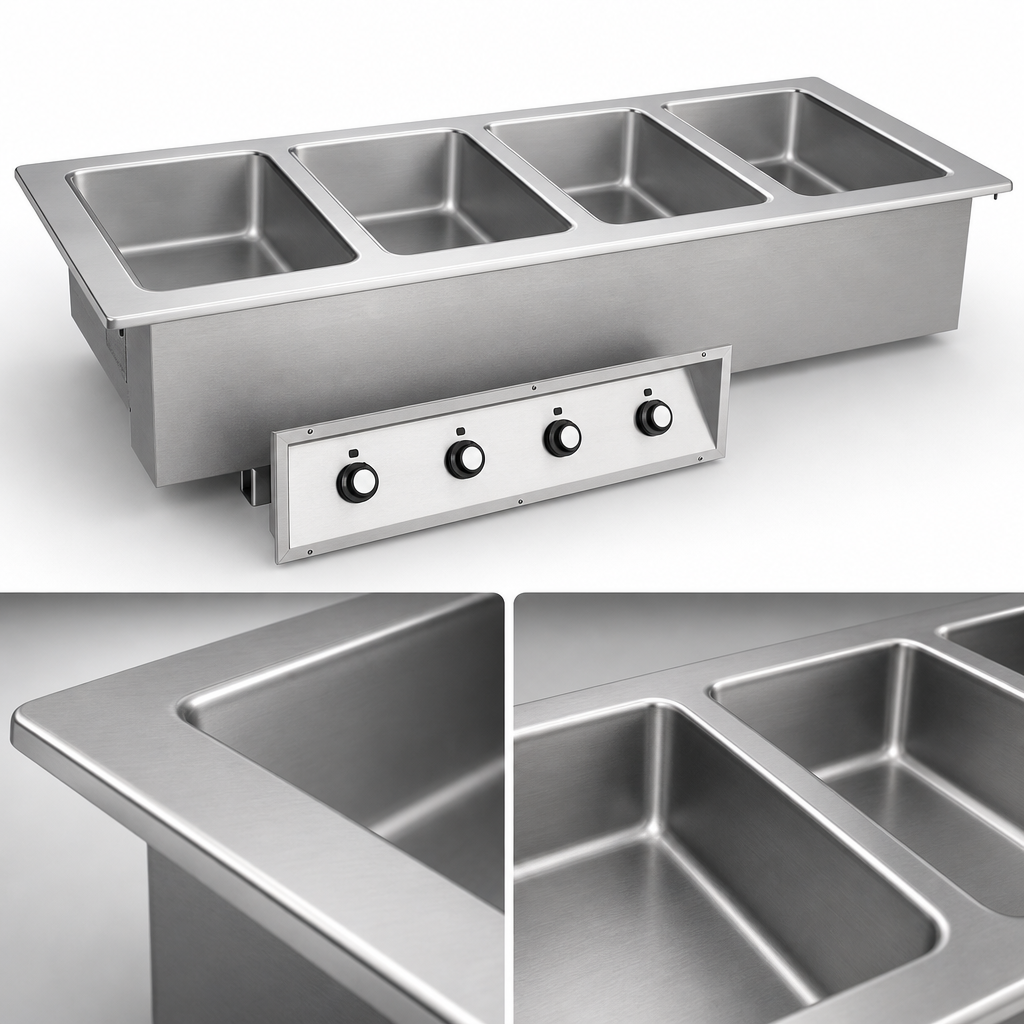

- One-piece 18 ga. stainless steel top with die-stamped, raised rim openings prevents spills from seeping under the counter.
- Fully insulated, corrosion-resistant steel body retains heat and extends component life.
- Pre-wired stainless steel control panel ships loose for easy front-of-counter mounting—single-point electrical hook-up reduces install time.
- 4.4 kW element package quickly recovers temperature during busy rushes.
- Certified cULus & NSF for electrical safety and food-zone sanitation.
- Proudly built in the USA and backed by a 1-year parts & labor warranty.
Technical Specifications
| Model / Part # | 9560-4-xxxDM (“xxx” designates voltage: 120, 208 or 240 V) |
|---|---|
| Pan Capacity | 4 × 12 ″ × 20 ″ (full-size) |
| Overall Dimensions | 59.25 ″ L × 26 ″ W |
| Counter Cut-Out | 57.125 ″ L × 22.5 ″ W |
| Control Panel Cut-Out | 26 ″ L × 5.75 ″ H × 6 ″ D |
| Heating Power | 4.4 kW total |
| Amperage Draw |
36.8 A @ 120 V 21.2 A @ 208 V 18.4 A @ 240 V |
| Electrical Connection | Hard-wired to factory junction box (single-point) |
| Drain Connection | Common 1 ″ NPT gate valve (left end standard) |
| Approx. Shipping Weight | 180 lb / 82 kg |
| Certifications | cULus, NSF |
| Origin | Made in USA |
Popular Factory Options
- Adaptor bars or plates for fractional pans
- Extended thermostatic lead (remote mounting)
- 500 W low-wattage elements
- Automatic water fill kit
Upgrade your serving line with the durability, performance and clean look only a Randell hot well can deliver. Add the 9560-4-DM to your cart or contact us for a custom quote today!
