Randell Custom & Serving 9560-3N-DM Narrow 3-Pan Electric Drop-In Hot Food Well with Drains and Manifold

SKU: 9560-3N-DM
$9,819.60
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Randell Restaurant Equipment Steam Tables & Food Wells

Randell Custom & Serving 9560-3N-DM Narrow 3-Pan Electric Drop-In Hot Food Well with Drains and Manifold

Wet Operation, Individual Thermostatic Controls, 12" x 20" Pan Openings

This narrow drop-in hot well gives operators precise temperature control across three full-size pans in a durable, insulated wet-operation design with built-in drainage.

  • Holds three full-size 12" x 20" pans in a narrow drop-in footprint.
  • Designed for wet operation with individually thermostatic sealed wells for precise holding temperatures.
  • Includes drains with a common gate valve/manifold for easier water management.
  • Stainless steel top and corrosion-resistant steel exterior are built for heavy-duty foodservice use.
  • Separate prewired stainless steel control panel simplifies installation and field connection.
  • Available for 120V, 208V, or 240V operation.

Overall Dimensions:

69.2"W x 18.5"D

Product Weight:

103.0 lb

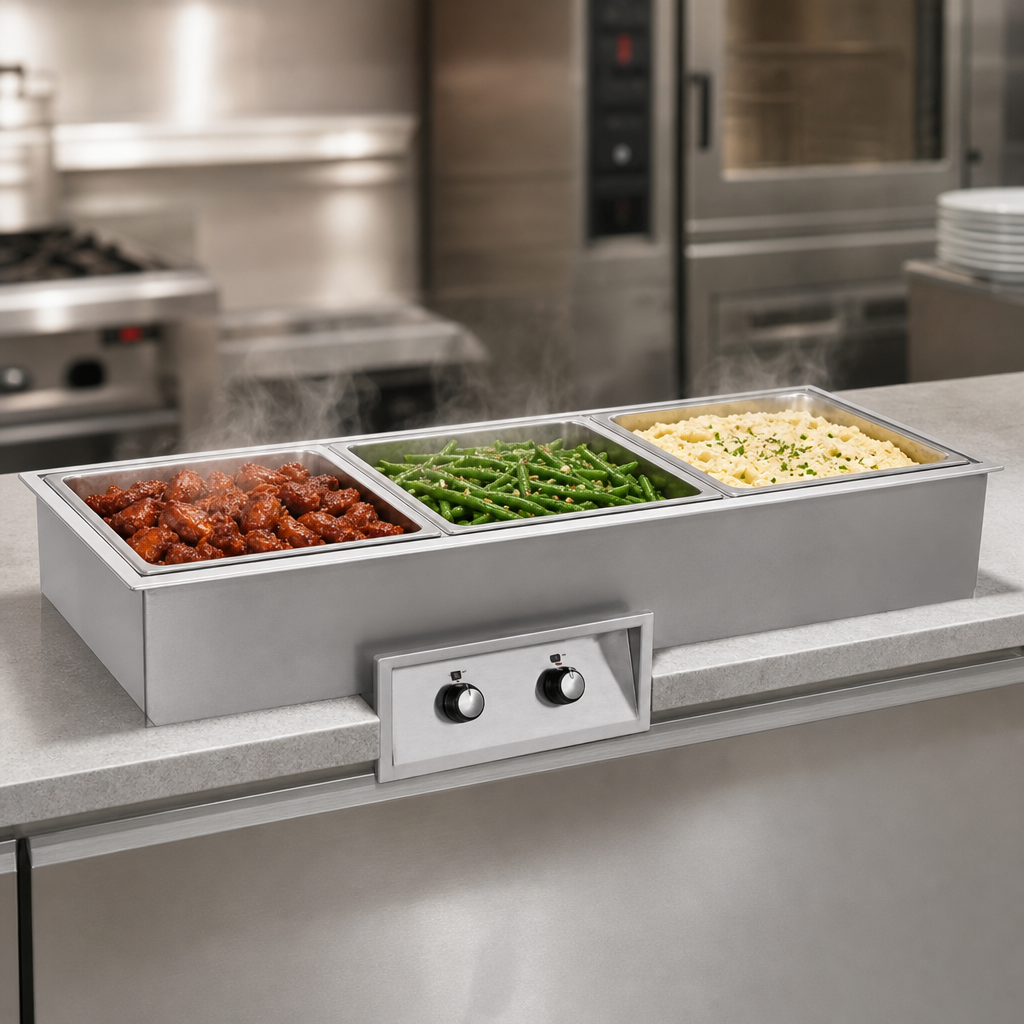

Three-Pan Narrow Layout

Accommodates three full-size 12" x 20" pans in a slim footprint for serving lines with limited space.

Wet-Operation Sealed Wells

Built for wet holding applications to help maintain consistent food temperatures.

Individual Thermostatic Controls

Each well is individually controlled for precise temperature management and better operator flexibility.

Stainless Steel Top

One-piece stainless steel top with die-stamped openings and raised sanitary rims.

Insulated Corrosion-Resistant Body

Fully insulated exterior body helps retain heat while the corrosion-resistant steel construction supports durability.

Drain With Common Gate Valve

Drain and manifold setup is provided and installed for simplified draining and maintenance.

Prewired Control Panel

Controls are mounted on a separate prewired stainless steel panel and the unit is prewired to a junction box for single-point field connection.

Lighted Power Indicators

Each control includes a lighted on/off power indicator for quick status checks.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 3
Pan Size 12 x 20 Inches
Controls Individual Thermostatic
Operation Wet
Insulated Yes
Material Stainless Steel
Plug Type Hardwired
Watts 3.3 kW
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed for three full-size 12" x 20" pans.
This model is designed for wet operation.
Yes. This model includes drains with a common gate valve/manifold.
It uses individual thermostatic controls mounted on a separate prewired stainless steel panel.
The unit is totally prewired to a junction box for single-point field connection and requires hard wiring.
The model family is available for 120V, 208V, or 240V operation.
