Description

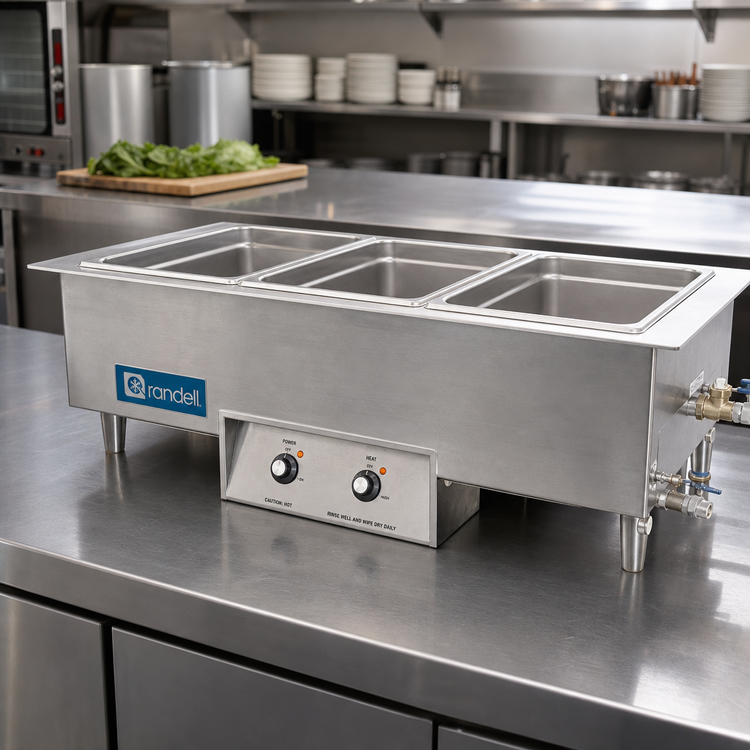

Randell 9560-3-DM Drop-In Hot Food Well

3-Well | Wet Operation | Stainless Steel | Drains & Manifold Included

Hold three different menu items at perfect serving temperature—all in a single, easy-to-clean module. Built in the USA, the Randell 9560-3-DM delivers the durability, food-safe performance, and operator control today’s high-volume service lines demand.

Why you’ll love it

  • Three sealed wells designed for wet operation keep foods moist and appetizing.
  • Individual thermostatic controls let you fine-tune each well independently.

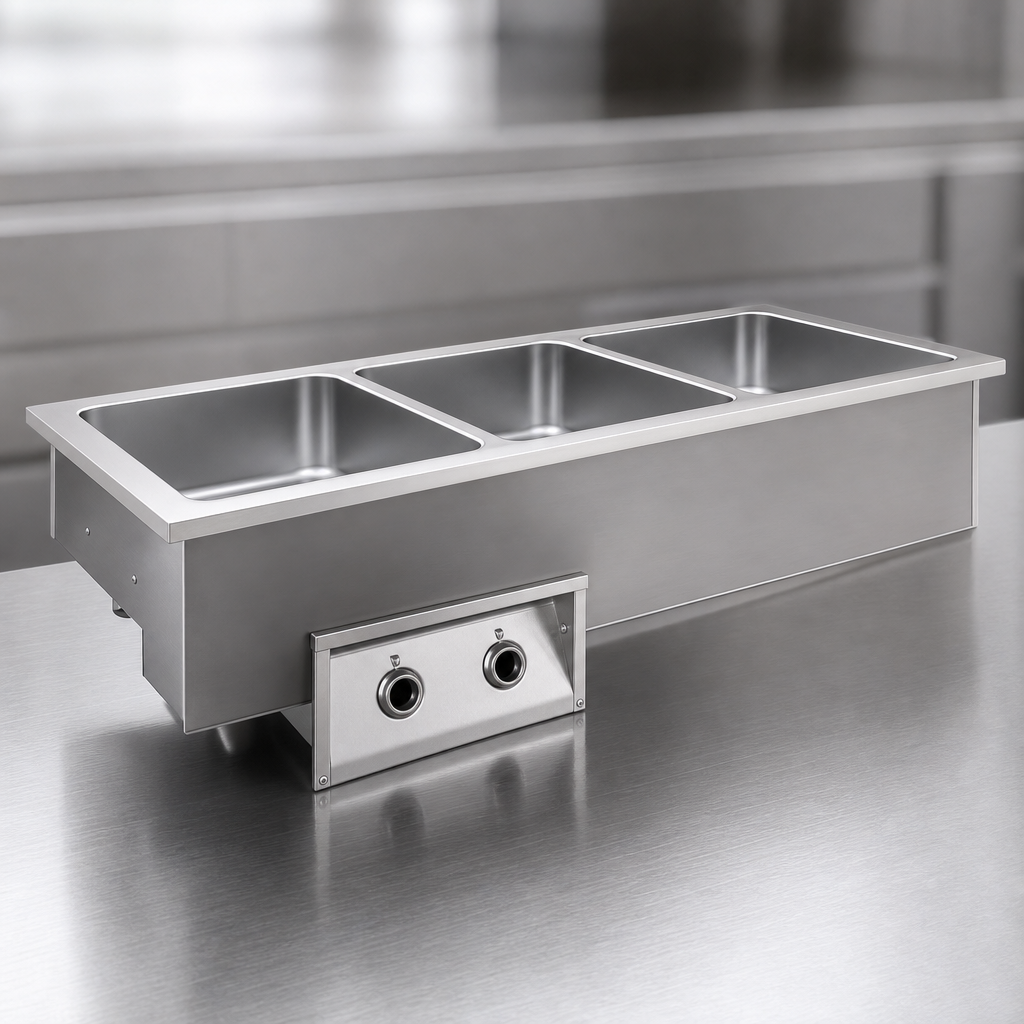

  • One-piece 18-ga. stainless steel top with die-stamped 12" × 20" openings and raised rims for mess-free pan changes.
  • Fully insulated, corrosion-resistant steel exterior minimizes heat loss and energy use.
  • Factory-installed drains & common manifold—open one gate valve to empty all wells at once.
  • Remote, pre-wired stainless steel control panel for fast, single-point field connection.
  • Certified UL, cUL & NSF for electrical safety and sanitation compliance.
  • Proudly Made in the USA.

Technical specifications

Model 9560-3-DM
Pan capacity (3) full-size 12" × 20" × 6.5" pans
Operation Wet (water bath)
Heating controls 3 independent thermostats with power lights
Overall dimensions 45.5" L × 26" W
Counter cut-out 43.5" L × 22.5" W
Control panel cut-out 20" L × 5.75" H × 6" D
Electrical 3.3 kW — 27.6 A @120 V / 15.9 A @208 V / 13.8 A @240 V, 1 ph, hard-wired
Drain (3) 1" IPS drains to common gate valve
Shipping weight Approx. 140 lb
Certifications UL, cUL, NSF

Optional upgrades

  • Adaptor bars for fractional pans
  • Extended thermostat leads (remote sensing)
  • 500 W low-wattage elements
  • Automatic water fill kit
Installation note: Unit ships pre-wired to a junction box and must be hard-wired by a qualified electrician. Verify cut-out dimensions and field wiring requirements before installation.

Looking for a different size or voltage? Randell’s 9560 series is available in 1- to 6-well and slim-line configurations—contact us for details.

Features & Specs

Manufacturer

Randell

Brand_name

Custom & Serving

Certifications

NSF, UL, Made in USA

Width

45.6in

Depth

26.0in

Shipping Weight

103.0lbs

Style

individual pans

Drain

with drain

Construction

stainless steel top, corrosion resistant steel exterior

Controls

thermostatic controls

Insulated or Non-Insulated

insulated

Pan Capacity

(3) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Drop-In Hot Food Unit, electric, (3) 12" x 20" pan size, wet operation, individual thermostatic controls, stainless steel top corrosion resistant steel exterior, drains & manifolds included, 3.3kW, cUL, UL, NSF, Made in USA
