Description

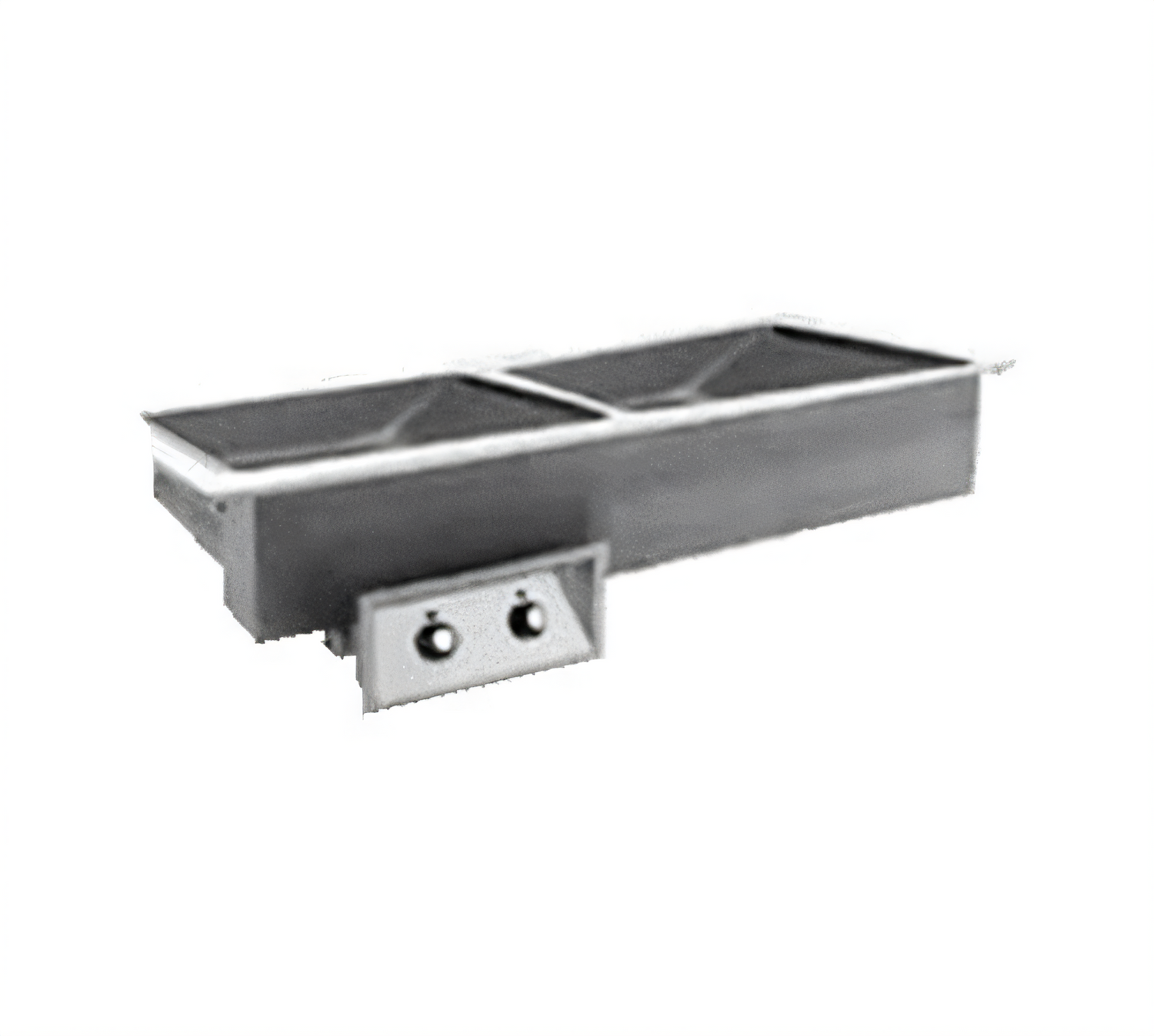

Randell 9560-2N Narrow Drop-In Hot Food Well – 2 Pan Wet Operation
Model 9560-2N-xxxDM | Stainless Steel | With Drains & Common Gate ValveDesigned for tight counter layouts that still demand full-size performance, the Randell 9560-2N narrow hot food well keeps two 12" × 20" pans of hot foods at ideal serving temperatures—all day, every day. Independent thermostatic controls, a fully sealed wet bath, and an included drain manifold make daily operation and cleanup effortless.
Why you’ll love it

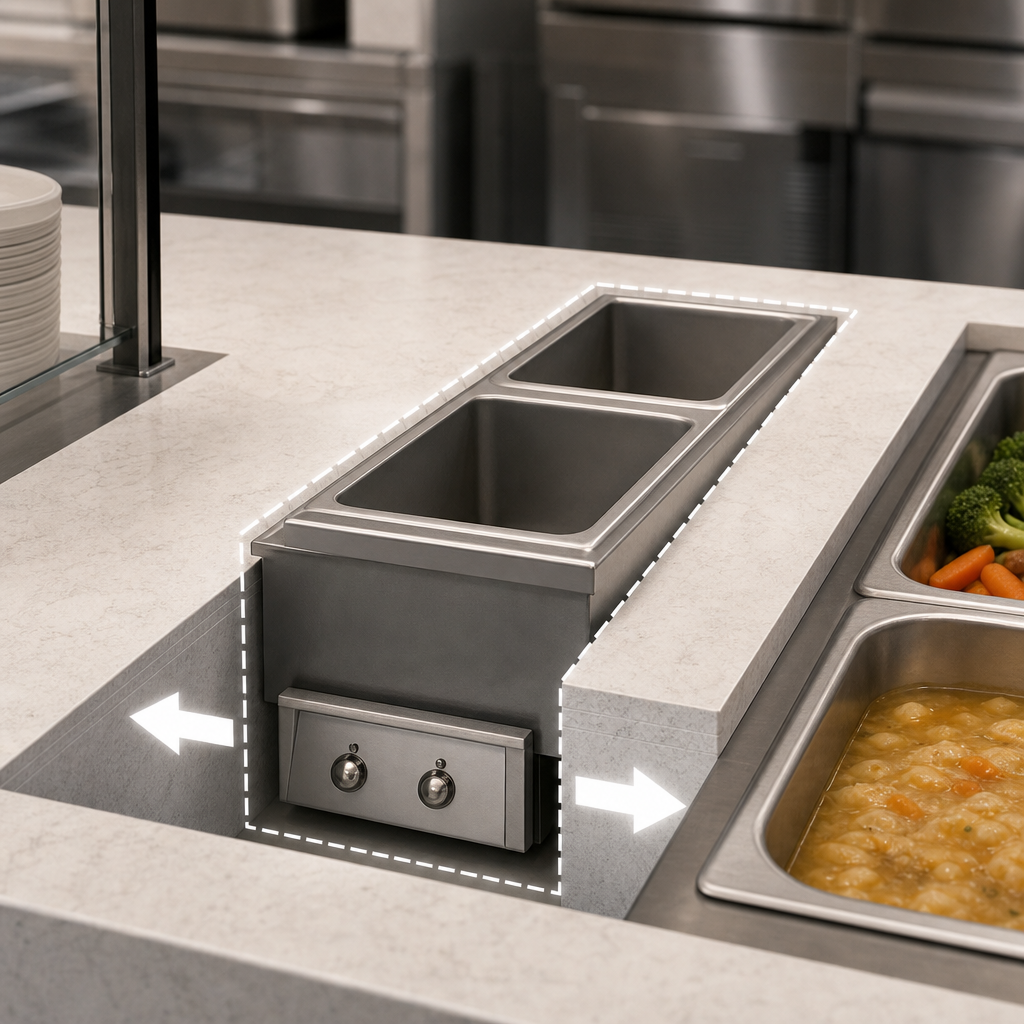

- Space-saving 18.5 inch width slides into slim serving lines without sacrificing pan capacity.
- Holds (2) standard 12" × 20" pans in a sealed wet-only well for superior moisture retention and food quality.
- True thermostatic controls—one per well—for precise, individually tailored holding temperatures.
- Remote stainless-steel control panel (pre-wired) with lighted on/off indicators mounts flush in the counter front.
- 18-gauge one-piece stainless top with die-stamped openings and raised rims prevents drips into the counter cut-out.
- Integrated drains and common gate valve speed end-of-shift water removal—no ladling required.
- Fully insulated, corrosion-resistant steel exterior retains heat and extends component life.
- Factory wired to a single junction box for fast, single-point electrical hook-up.
- cULus & NSF listed and proudly Made in the USA.
At-a-glance specs
Pan capacity | (2) full-size 12" × 20" pans |
---|---|
Overall dimensions (L × W) | 47.6" × 18.5" |
Counter cut-out (L × W) | 45.264" × 16.125" |
Well depth | 6.5" |
Total wattage | 2.2 kW |
Voltage / phase | 120 / 208 / 240 V, 1-phase |
Amps (120 / 208 / 240 V) | 18.4 A / 10.6 A / 9.2 A |
Control panel size | 14.25" × 5.75" × 6" |
Drain connection | Common gate valve (factory installed) |
Certifications | cULus, NSF |
Origin | Made in USA |
Factory options & accessories
- Adaptor bars for fractional pans
- Extended thermostatic sensor leads
- 500 W low-watt elements for energy savings
- Automatic water-fill kit
Need a different size or voltage? Browse the full Randell 9560 series for 1–6 well configurations in standard or narrow widths.
