Randell  |  Custom & Serving  |  SKU: 9560-1AWF

Randell 9560-1AWF Custom & Serving Steam Tables & Food Wells

$3,508.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Owner's manual Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Randell 9560-1 Drop-In Hot Food Well with Auto-Water Fill

1-Pan | Wet Operation | Thermostatic Control | Drain Valve

Keep menu items hot, fresh and ready to serve with the compact, counter-mounted Randell 9560-1. This single-well unit combines precise thermostatic heat with a factory-installed auto-water fill system—so your team spends less time monitoring water levels and more time delighting guests.

Why you’ll love it

  • Holds one standard 12" x 20" (full-size) food pan, 6-1/2" deep

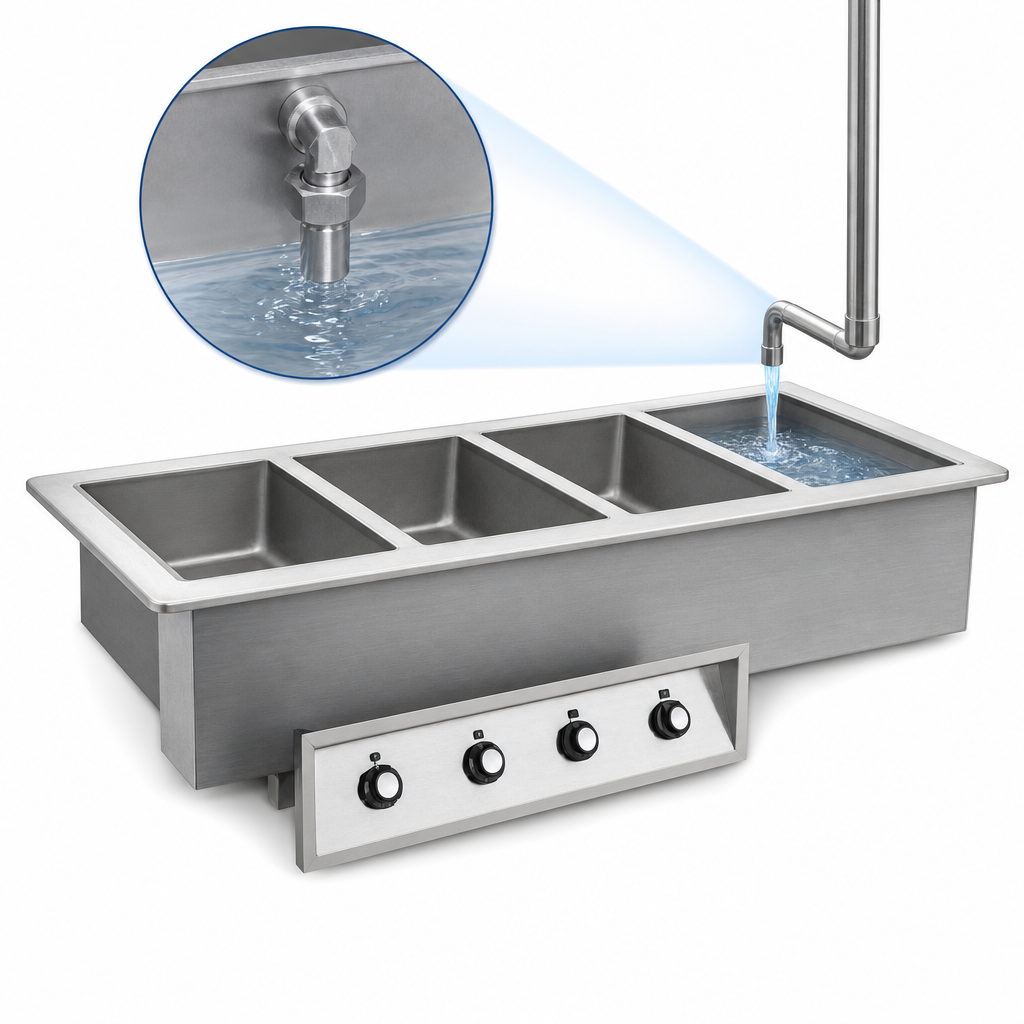

  • Auto Water Fill maintains proper water level automatically—no manual checks
  • True thermostatic control for consistent, food-safe temperatures
  • Wet, sealed well prevents scorching & keeps foods moist
  • Die-stamped 18 ga. stainless top with raised rim contains spills and wipes clean
  • Fully insulated, corrosion-resistant steel exterior improves energy efficiency
  • Integrated 1" drain with common gate valve for quick, safe water disposal
  • Remote, pre-wired control panel with lighted power switch—simple single-point hookup
  • cULus & NSF certified; proudly made in the USA

Specifications

Model 9560-1-120D-AWF  (also available 208 V or 240 V)
Pan capacity (1) full-size 12" x 20" steam-table pan
Heating method Wet operation, sealed electric well – 1.1 kW element
Controls Individual thermostatic dial, lighted on/off switch (remote panel)
Auto Water Fill Factory installed – maintains water level automatically
Drain Yes – 1" NPT with common gate valve
Overall dimensions 18.5" L × 26" W × 9" H
Counter cut-out 16.125" L × 22.5" W
Electrical 120 V / 1-phase / 9.2 A (1.1 kW)
208 V / 5.3 A • 240 V / 4.6 A options
Shipping weight Approx. 60 lb
Certifications cULus, UL, NSF
Warranty 1 year parts & labor

Perfect for

  • Cafeteria serving lines (K-12, colleges & universities)
  • Supermarket hot bars & buffet counters
  • Hotel breakfast or banquet service
  • QSR & fast-casual pickup stations
  • Mobile catering build-outs and kiosks
Installation note: Unit ships without cord or plug and must be hard-wired by a qualified electrician. Auto-Water-Fill models also require a 1/4" cold-water connection (35–80 psi). Always verify cut-out dimensions with the physical unit before cutting the counter.

Features & Specs

Manufacturer

Randell

Brand_name

Custom & Serving

Certifications

NSF, UL, Made in USA

Width

20.27in

Depth

26.0in

Shipping Weight

60.0lbs

Insulated or Non-Insulated

insulated

Pan Capacity

(1) full size (12" x 20")

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Wet or Dry operation

wet

Specifications

Drop-In Hot Food Unit, electric, (1) 12" x 20" pan size, auto-water fill, wet operation, individual thermostatic control, stainless steel top, corrosion resistant steel exterior, with drain and common gate valve, 1.1kW, cUL, UL, NSF, Made in USA
