Randell 9505 Custom & Serving Ice & Water Dispensers
Description

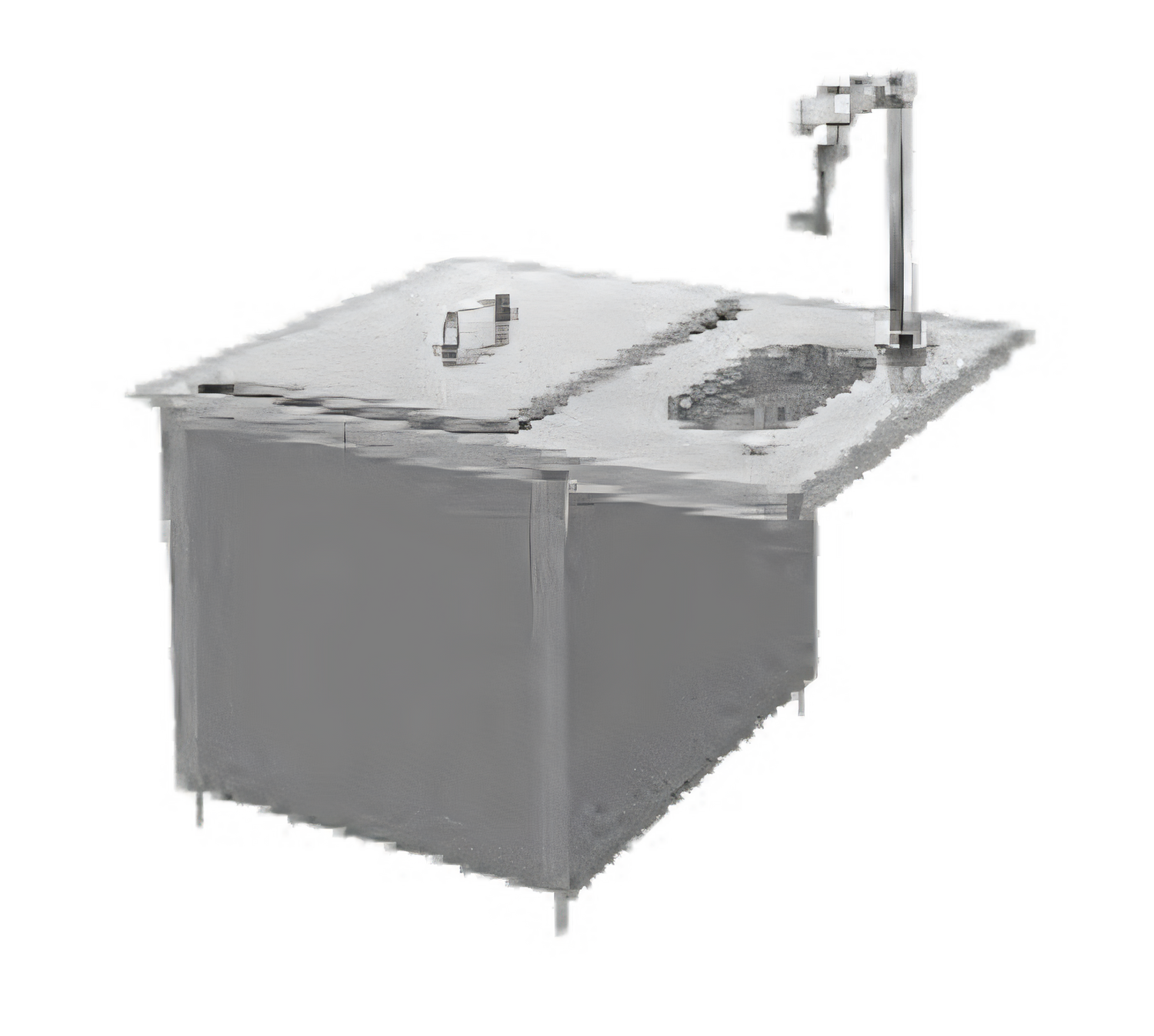

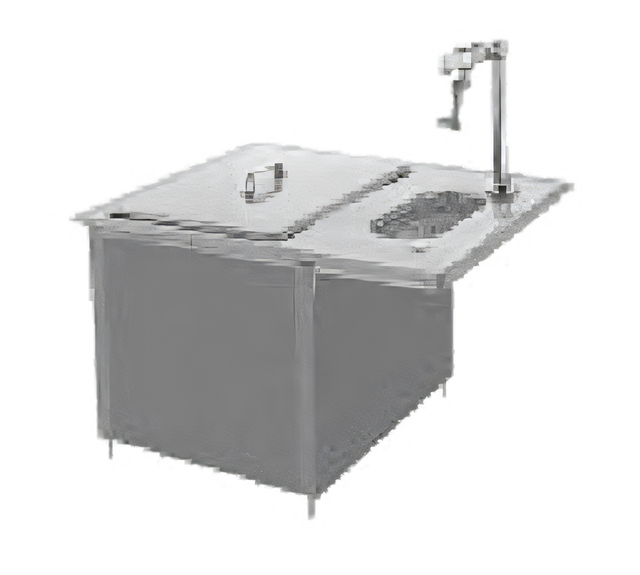

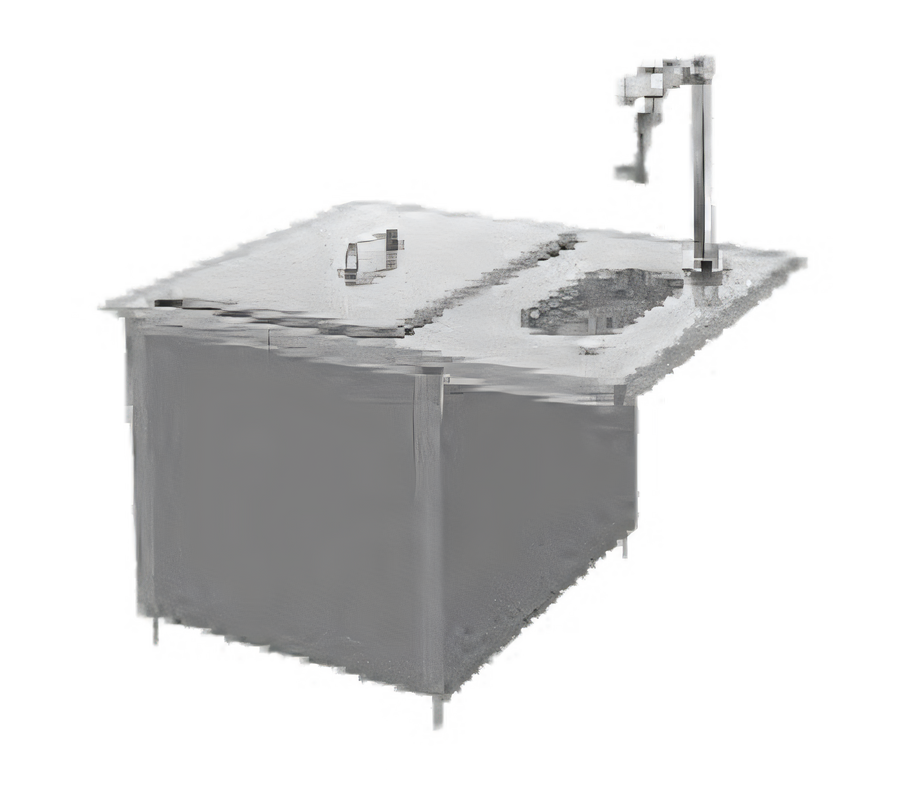

Randell 9505 Drop-In Ice & Water Station
23-3/4″ W × 20″ D • 44 lb insulated ice chest • Made in USATurn any counter into a high-volume beverage hub. The Randell 9505 combines a 44-pound ice chest, chilled-water glass filler and built-in drain trough in one seamless, stainless-steel insert—perfect for cafeterias, cafés, hotels and self-service lines that need cold drinks fast and mess-free.
Key benefits
- One-piece 20-gauge stainless-steel top resists dents, scratches and corrosion.
- Foamed-in-place polyurethane insulation preserves every cube for extended holding time.
- Integrated glass filler accepts a ½″ IPS water connection for quick, sanitary dispensing.
- Stamped water trough with plated wire grate captures overspray and ice melt; ⅝″ drain keeps service areas dry.
- Removable stainless cover with recessed handle protects ice during off-peak hours.
- Coved-corner stainless liner cleans in seconds and meets NSF standards.
- All plumbing connections are kept outside the ice bin—no cross-contamination.
- Manufactured, assembled and factory-tested in the USA for dependable everyday performance.
Technical specifications
| Model | 9505 |
|---|---|
| Exterior dimensions (W × D × H) | 23-3/4″ × 20″ × 23-3/8″ |
| Counter cut-out | 22-3/8″ × 18-7/8″ |
| Ice capacity | 44 lb (20 kg) |
| Ice bin drain | 1″ IPS |
| Water trough drain | ⅝″ line |
| Water supply | ½″ IPS to glass filler |
| Construction | 20-ga stainless top & coved-corner liner; corrosion-resistant steel exterior body |
| Shipping weight | 38 lb |
| Certifications | NSF Listed |
Installation & utilities
- Mount flush in the cut-out shown above; support from below as required.
- Connect ½″ cold-water line to glass filler.
- Provide separate ⅝″ drain for water trough and 1″ drain for ice bin.
- Plumbing connections are field-installed; no electrical hook-up needed.
Warranty
Backed by Randell’s standard 1-year parts & labor warranty with optional extended coverage. See full warranty statement for terms.
