Hoshizaki

(Quick Ship) Hoshizaki KMD-860MRJZ Ice Machines - Scratch & Dent

$4,669.00
/each
Clearance
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Clearance Hoshizaki Ice Machines Ice Makers & Bins New Arrivals

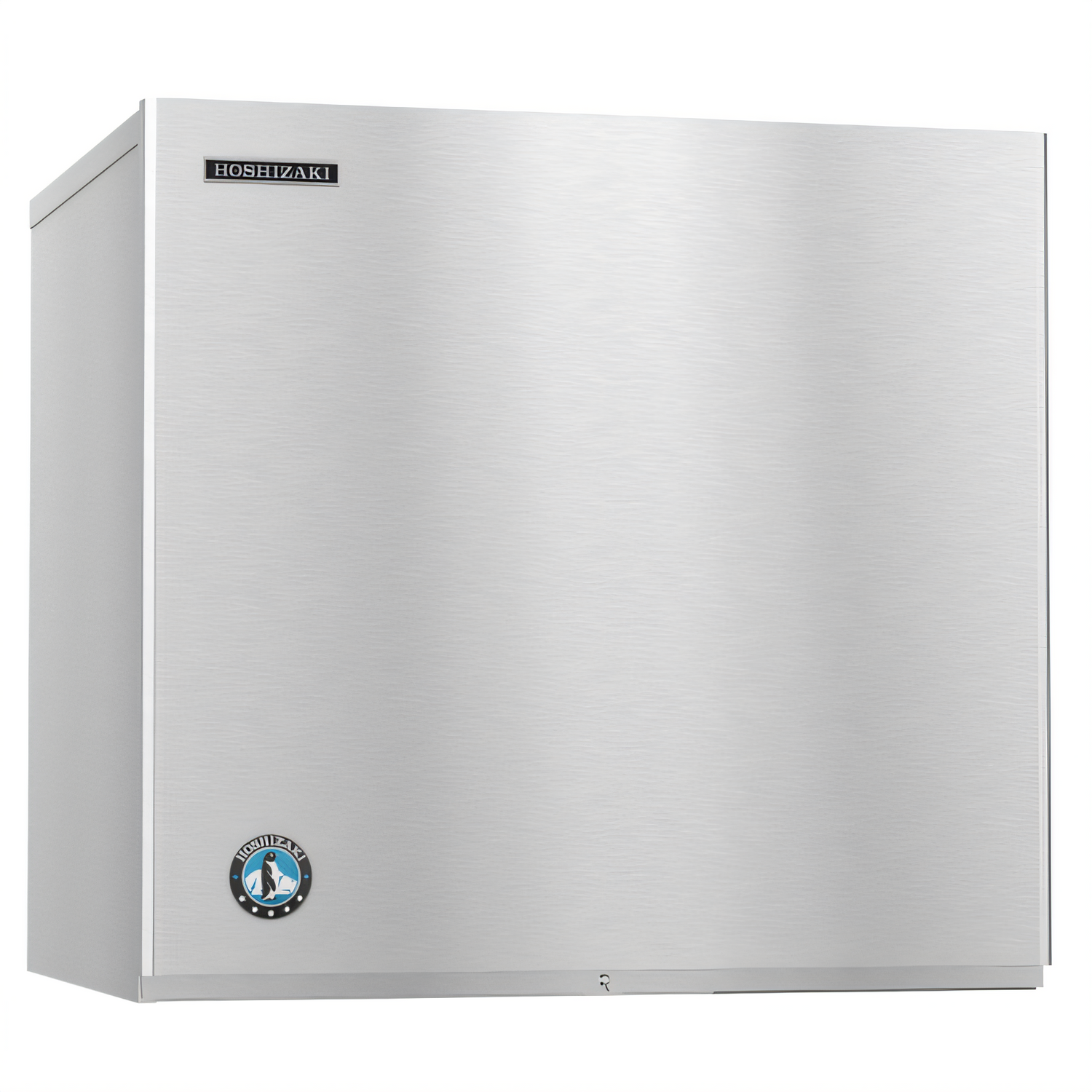

Hoshizaki KMD-860MRJZ Remote Air-Cooled Crescent Ice Machine

967 lb Modular Cuber • 30″ W × 24 ⅝″ D × 28″ H

Engineered for high-volume beverage programs that demand crystal-clear crescent cubes, the KMEdge™ KMD-860MRJZ delivers up to 967 lb of ice every 24 hours while keeping heat and noise outdoors with its matching URC-9FZ “Z” Series remote condenser (sold separately).

Key Features

  • Produces up to 967 lb / day (850 lb AHRI @ 90 °F/70 °F)
  • KMEdge™ individual crescent cubes – hard, clear & slow-melting
  • CycleSaver™ design cuts the number of freeze cycles in half for lower energy use (5.05 kWh/100 lb)
  • Remote air-cooled setup removes heat & reduces kitchen noise
  • EverCheck™ visual & audible alarm system simplifies service
  • Stainless steel exterior and dual-sided stainless evaporator
  • H-GUARD Plus antimicrobial agent protects food-zone components
  • Field-cleanable, front-mounted air filter
  • NSF & UL Listed for assured sanitation and safety
  • Backed by a 3 yr parts & labor / 5 yr evaporator & compressor warranty

At-a-Glance Specifications

Ice production 967 lb/24 hr @ 70 °F air / 50 °F water
850 lb/24 hr AHRI @ 90 °F / 70 °F
Ice type Crescent cube (KMEdge™)
Condenser Remote air-cooled – pair with URC-9FZ “Z” condenser
Electrical 208-230 V / 60 Hz / 1-ph • 12.5 A • 20 A min. circuit
Energy / Water use 5.05 kWh  |  18.2 gal per 100 lb of ice
Refrigerant R-404A
Heat rejection 13,000 BTU/hr
Exterior Stainless steel cabinet & evaporator
Unit dimensions 30″ W × 24 ⅝″ D × 28″ H
Clearance required 6″ sides, rear & top
Net / Ship weight 226 lb / 256 lb
Certifications NSF • UL

Operating limits: 45–100 °F ambient • 45–90 °F incoming water • 10–113 psi water pressure • voltage range 187–253 V. Water in ¼″ ID copper; gravity drain ¾″ ID.

Important: Always match “Z” model ice machines with the corresponding “Z” model remote condenser and Hoshizaki brazed line set (25′, 35′, or 55′). Remote condenser, line set, storage bin, and water filter are sold separately.

Recommended Accessories

  • URC-9FZ remote condenser
  • HS-5604 (25′), HS-5605 (35′) or HS-5606 (55′) pre-charged line set
  • Hoshizaki B-Series ice storage bins (250 – 1650 lb capacities)
  • Single-cartridge water filtration system

Choose the KMD-860MRJZ for quieter dining rooms, lower utility bills, and the industry’s most dependable crescent ice.

Please note: This item is Scratch & Dent — Open-box/returned item. Fully tested, all parts included, repackaged for resale. Final sale. Limited warranty.

Quantities are limited on scratch and dent items. To ensure your item is still available, please call us before ordering.

Overall Dimensions:

30.0"W x 24.63"D x 28.0"H

Product Weight:

256.0 lb
Manufacturer Hoshizaki
Certifications ["NSF", "UL", "AHRI"]
Height 28.0in
Width 30.0in
Depth 24.63in
Weight 256.0lbs
Ice Type crescent cubes
Width (side - side) 30 - 39" wide
Condenser Type air-cooled
Refrigeration remote (refrigeration not included)
Production per 24 hr 901 - 1000 lb = 409 - 454 kg
Specifications Ice Maker, Cube-Style, 30"W, air-cooled, remote condenser (priced separately), production capacity up to 967 lb/24 hours at 70°/50° (850 lb AHRI certified at 90°/70°), crescent cube style, stainless steel finish, R-404A refrigerant, 208-230v/60/1-ph, 12.5 amps, protected with H-GUARD Plus Antimicrobial Agent, NSF, UL (always pair “Z” model ice machines with “Z” model remote condenser)

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Ice machine brochure PDF Download PDF Kmedge cuber flyer PDF Download PDF Ice maker calculator PDF Download PDF Cleaning sheets PDF Download
