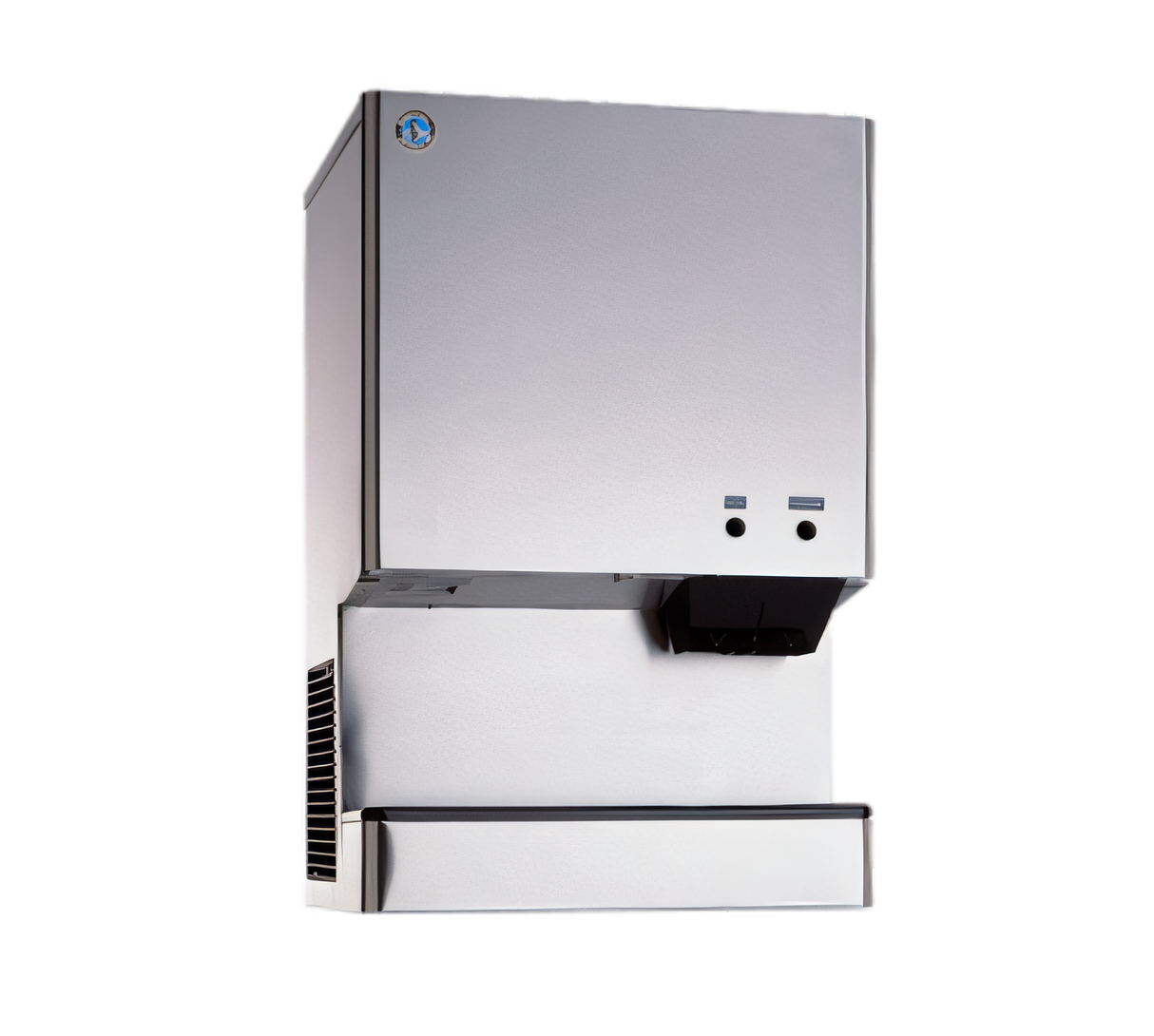

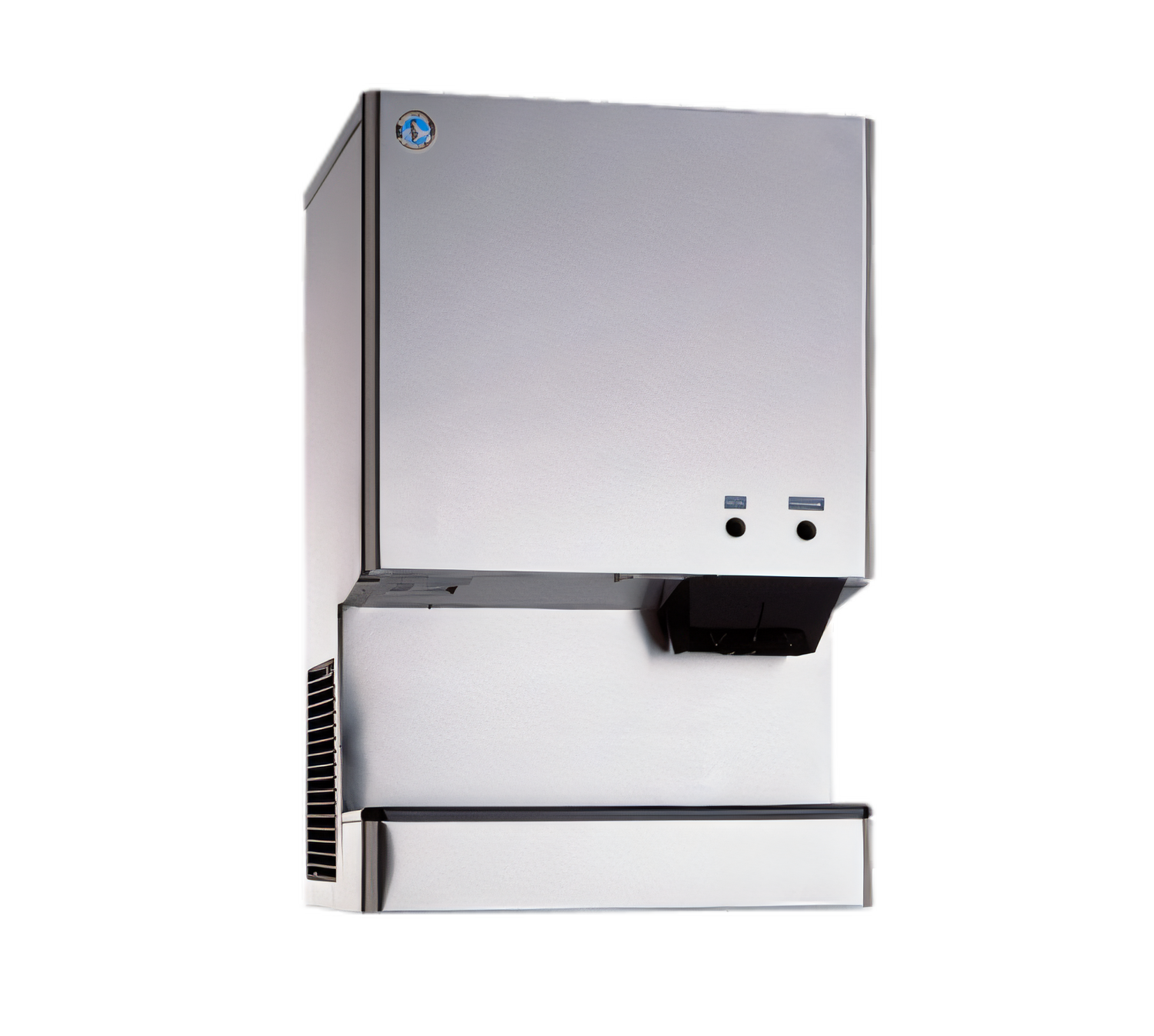

Hoshizaki DCM-500BAH Cubelet Ice & Water Dispenser
Air-cooled, countertop, 618 lb/day productionServe crowd-pleasing, chewable cubelet ice and crystal-clear water from one compact unit. Built for high-volume healthcare, breakroom, café, and c-store applications, the DCM-500BAH pairs Hoshizaki’s industry-leading sanitation technology with push-button simplicity and heavy-duty stainless steel construction.
Why you’ll love it
- High output: up to 618 lb of ice every 24 hr (450 lb AHRI at 90°/70 °F).
- 40 lb built-in bin keeps ice ready for sudden rushes.
- Dual dispense: delivers ice & water at the touch of a button—no scoop, no mess.
- Easy-to-chew cubelet ice absorbs flavors for a better beverage experience.
- CleanCycle24™ flushes the evaporator for 2 sec every hour, automatically reducing scale and sediment.
- H-GUARD Plus antimicrobial protects food-zone components between cleanings.
- Stainless steel exterior, bin & auger with greaseless bearings for long life and lower maintenance.
- Self-contained, air-cooled condenser—no remote refrigeration required.
- Compact 26 in W footprint; optional SD-500 floor stand adds storage & the perfect working height.
Technical specifications
| Ice type | Cubelet (nugget-style), approx. ⅜ in × ½ in × ½ in |
|---|---|
| Daily production (70 °F air / 50 °F water) |
618 lb / 280 kg |
| AHRI production (90 °F air / 70 °F water) |
450 lb / 204 kg |
| Storage capacity | 40 lb (1.3 ft³) built-in bin |
| Dispense method | Push-button – ice or water |
| Condenser type | Air-cooled, self-contained |
| Refrigerant | R-404A |
| Electrical | 115 V / 60 Hz / 1-ph, 12.9 A, 20 A circuit (including ground) |
| Heat rejection | 7,000 BTU/hr |
| Cabinet dimensions | 26 in W × 22 ½ in D × 40 in H |
| Net / Ship weight | 251 lb / 255 lb |
| Certifications | NSF, UL |
| Factory warranty | 3 yr parts & labor, 5 yr compressor & air-cooled coil (US/CA) |
Installation & utility requirements
- Supplied without legs; order the stainless steel SD-500 stand or 6 in legs if floor mounting is desired.
- Allow 6 in (15 cm) clearance on sides & rear for airflow, and 24 in (61 cm) above for auger removal.
- Water supply: ¼ in ID line, 10–113 PSI, 45–90 °F.
- Drain: ¾ in ID gravity drain from bin.
- Ambient operating range: 45–100 °F.
- Use a GFCI breaker (not receptacle) where local code requires GFCI protection.
Need a water-cooled version? See model DCM-500BWH for reduced heat exhaust and lower ambient noise.
Please note: This item is Scratch & Dent — Open-box/returned item. Fully tested, all parts included, repackaged for resale. Final sale. Limited warranty.
Quantities are limited on scratch and dent items. To ensure your item is still available, please call us before ordering.
