Quantum WR86-3072S-5 Wire Shelving
Description

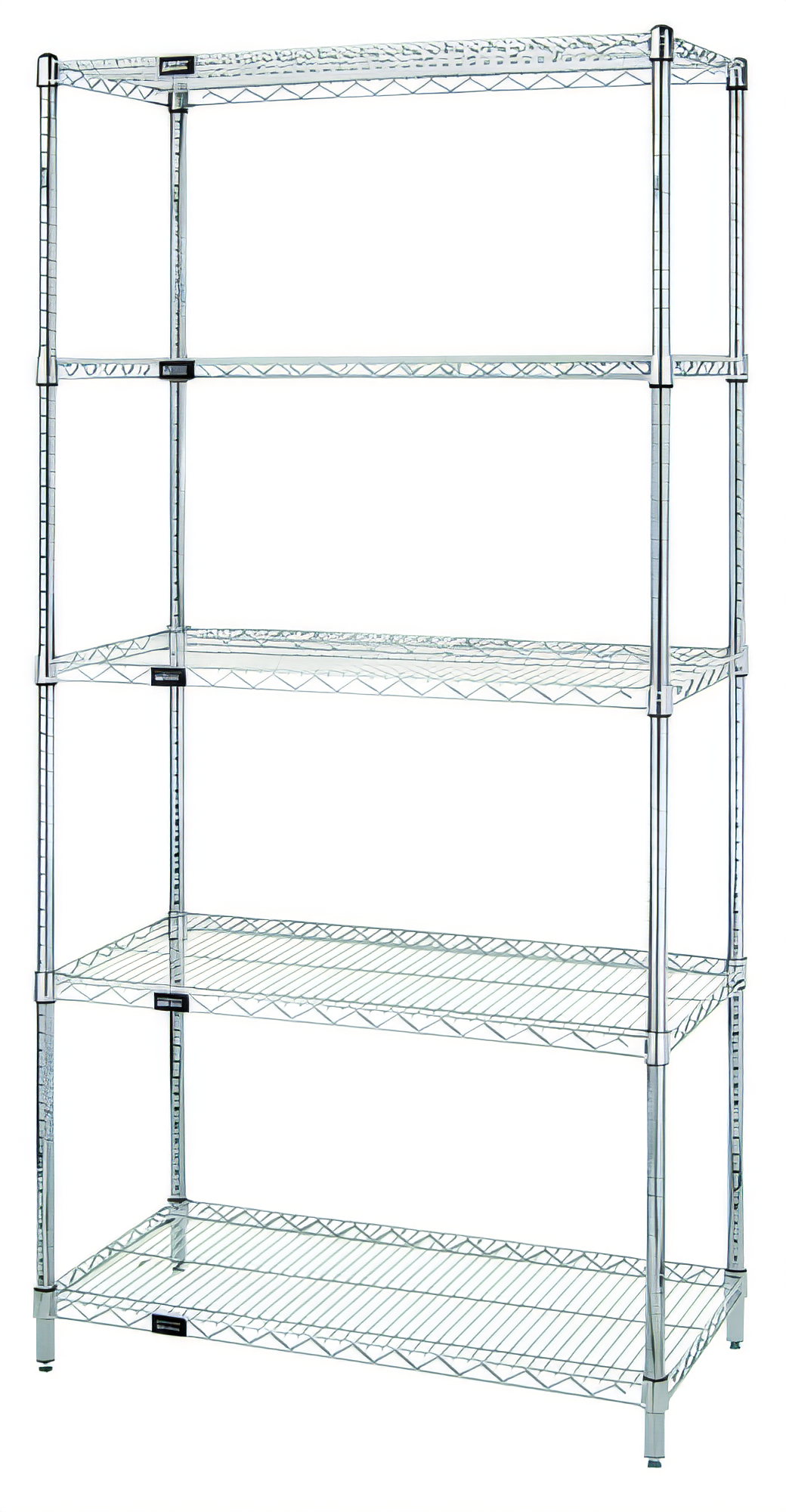

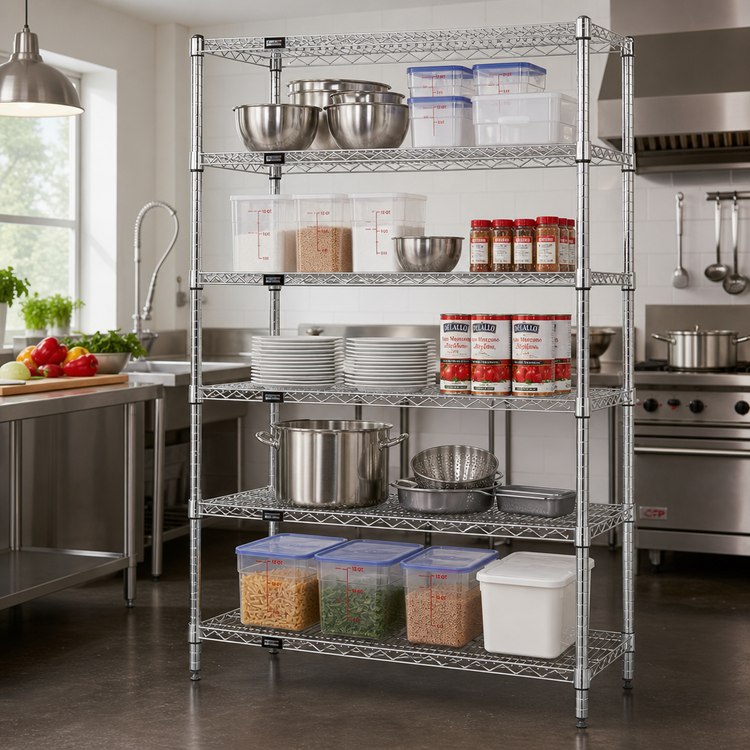

Quantum 5-Shelf Stainless Steel Wire Shelving Starter Kit – 72"W x 30"D x 86"H
600 lb–800 lb capacity per shelf • NSF Listed • Ships KDEngineered for food-service, laboratory and high-humidity environments, this starter kit delivers the strength of heavy-gauge open wire with the corrosion-proof performance of Type 304 stainless steel. Assemble it in minutes—no tools required—then adjust the shelves anywhere you need, 1" at a time.
Key Features
- Type 304 stainless steel shelves & posts with electro-polish finish for lifelong corrosion resistance.
- Open-wire design reduces dust build-up, boosts airflow and light penetration, and improves product visibility.
- Five shelves lock onto numbered posts with included split sleeves and adjust on 1" centers.
- Architectural wire trusses support up to 600 lb per shelf (evenly distributed static load on 72" length).
- NSF certified for wet, dry or clean-room use.
- 3/8-16 stainless leveling feet keep the unit stable on uneven floors.
- Ships knock-down (KD) to save freight; assembles fast without special tools.
What’s in the Box
- (5) 72" × 30" wire shelves
- (4) 86" stationary posts with pre-installed leveling feet
- (20) pairs of split sleeves (4 per shelf)
Technical Specifications
| Overall dimensions (W × D × H) | 72" × 30" × 86" (1829 × 762 × 2184 mm) |
|---|---|
| Shelves included | 5 adjustable wire shelves |
| Shelf load rating | 600 lb per shelf (72" length) — up to 800 lb on shorter shelves |
| Material / finish | Type 304 stainless steel, electro-polished |
| Post increments | 1" numbered grooves (double groove every 8") |
| Leveling adjustment | ±0.5" via 3/8-16 stainless leveling bolt |
| NSF certification | Yes — NSF/ANSI Standard 2 |
| Assembly | Tool-free split sleeve & taper-lock system |
| Shipment | Knock-down (KD), Class 70 |
| Warranty | Lifetime against rust & corrosion on stainless finish |
Looking to expand? Quantum’s modular system supports add-on units, extra shelves, S-hooks, mobile casters and more.
