Quantum WR86-3036S-5 Wire Shelving
Description

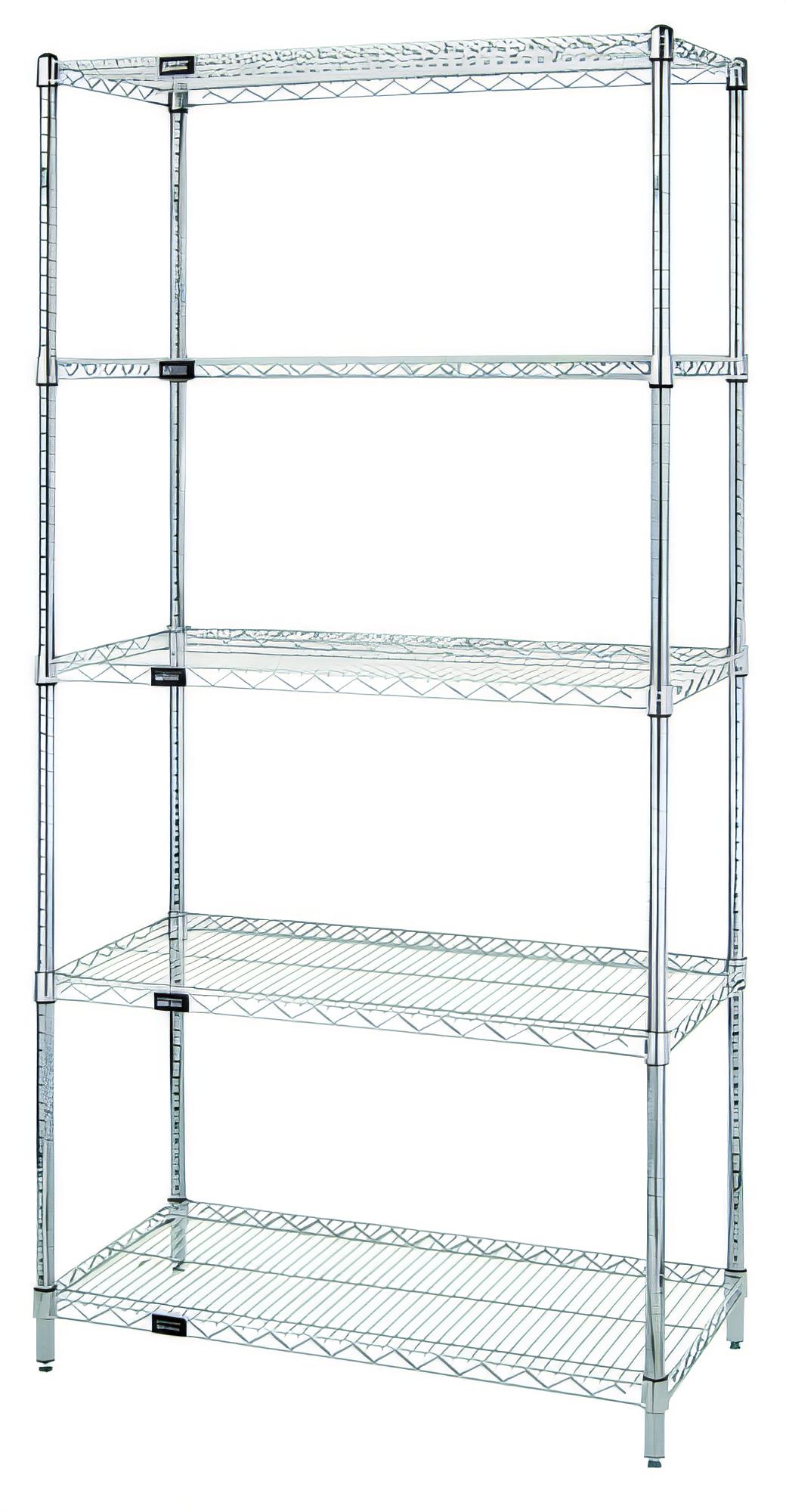

Quantum 304 Stainless Steel Wire Shelving Starter Kit – 36"W x 30"D x 86"H
5-shelf, 4-post starter unit • up to 800 lb per shelf • NSF listedEngineered for the most demanding food-service, laboratory and clean-room applications, this Quantum starter kit delivers industry-leading strength and corrosion resistance in a space-saving 36 × 30 inch footprint. Five open-wire shelves and four numbered posts assemble in minutes—no tools, no guesswork, no rust.
Key features

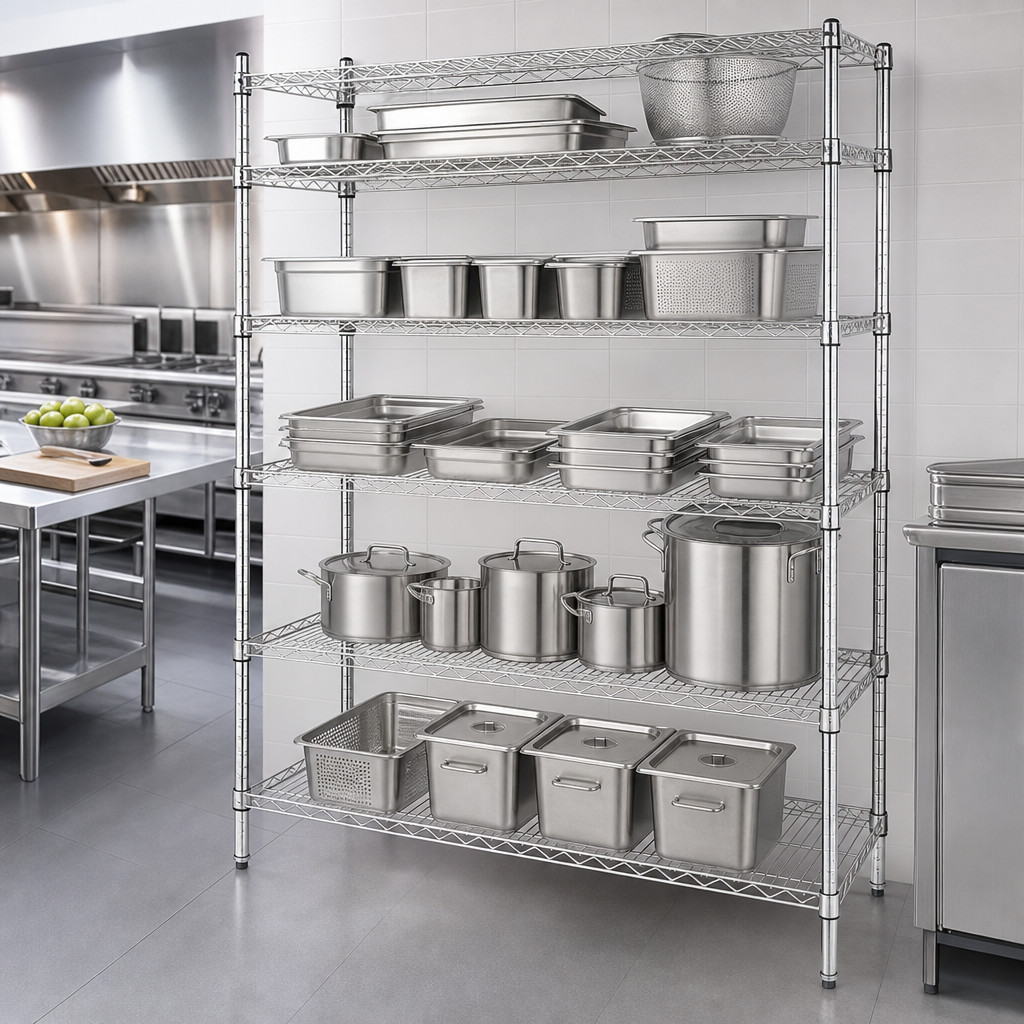

- 304 stainless steel, electro-polished – lifetime warranty against rust & corrosion.
- Heavy-duty capacity – up to 800 lb per shelf (evenly distributed); minimum rating 600 lb.
- Open-wire design minimizes dust, maximizes air flow & light penetration.
- 1 inch adjustability – numbered posts with double-groove guides every 8 inches for fast alignment.
- Tool-free assembly – snap-on tapered split sleeves lock shelves firmly in place.
- Architectural wire trusses prevent flex and keep shelves level under load.
- Top mat wires run front-to-back for effortless loading and unloading.
- Stainless leveling feet (3/8-16) compensate for uneven floors.
- NSF certified for direct food contact and hygienic storage.
- Ships KD to reduce freight costs; assembles in minutes on site.
What’s in the box
- (5) 304 stainless steel wire shelves – 36"W × 30"D
- (4) 304 stainless steel stationary posts – 86"H with pre-inserted leveling feet
- (20) Pairs of high-impact plastic split sleeves (4 per shelf)
Technical specifications
| Overall dimensions (W × D × H) | 36" × 30" × 86" (914 mm × 762 mm × 2184 mm) |
|---|---|
| Material / finish | Type 304 stainless steel, electro-polished |
| Shelf capacity | 800 lb (363 kg) per shelf up to 48" long 600 lb (272 kg) minimum rating |
| Total kit capacity | 4,000 lb (1,814 kg) evenly distributed |
| Shelf adjustment | 1" (25 mm) increments along post |
| Certifications | NSF NSF #2 – food equipment |
| Assembly hardware | Snap-on split sleeves (included); no tools required |
| Shipping | KD (knocked-down), Class 70 |
| Warranty | Lifetime against rust & corrosion (304 SS) |
Ideal for

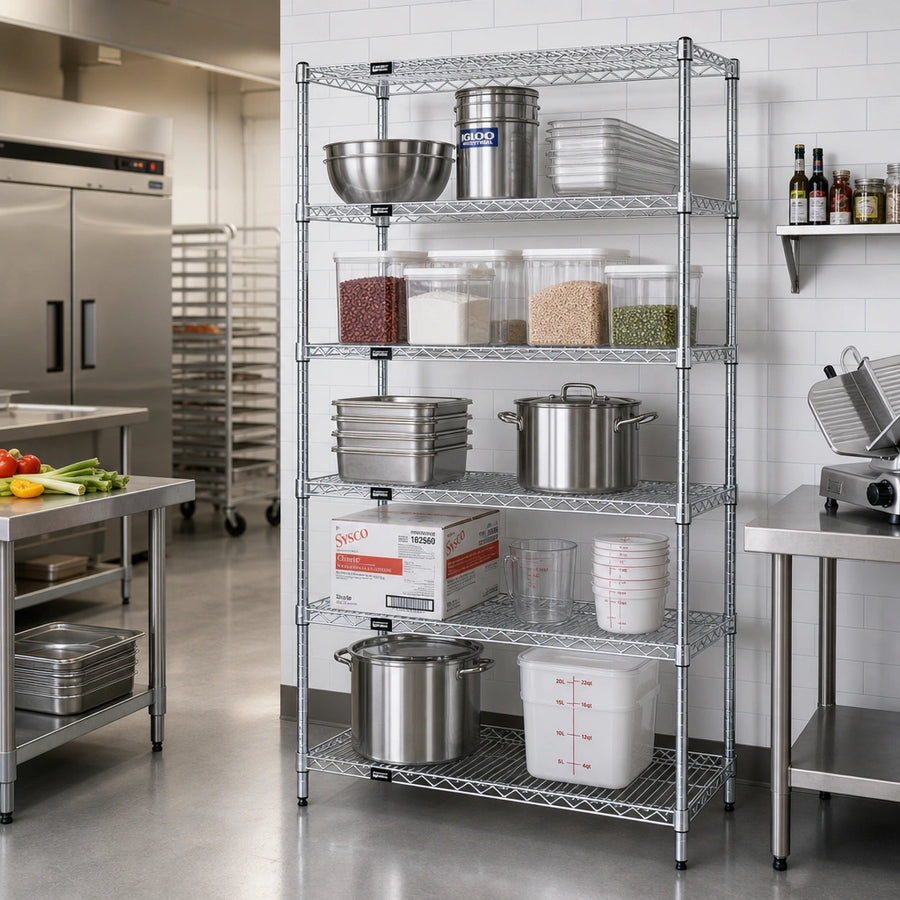

- Commercial kitchens, walk-in coolers & freezers
- Pharmaceutical & biotech clean rooms
- Labs, hospitals and sterile storage areas
- High-humidity or corrosive environments where chrome or epoxy can’t keep up
Load ratings apply to stationary units with evenly distributed static loads. For mobile applications or uneven loading, consult Quantum guidelines.
