Quantum MWRS-7-604 Wire Shelving
Description

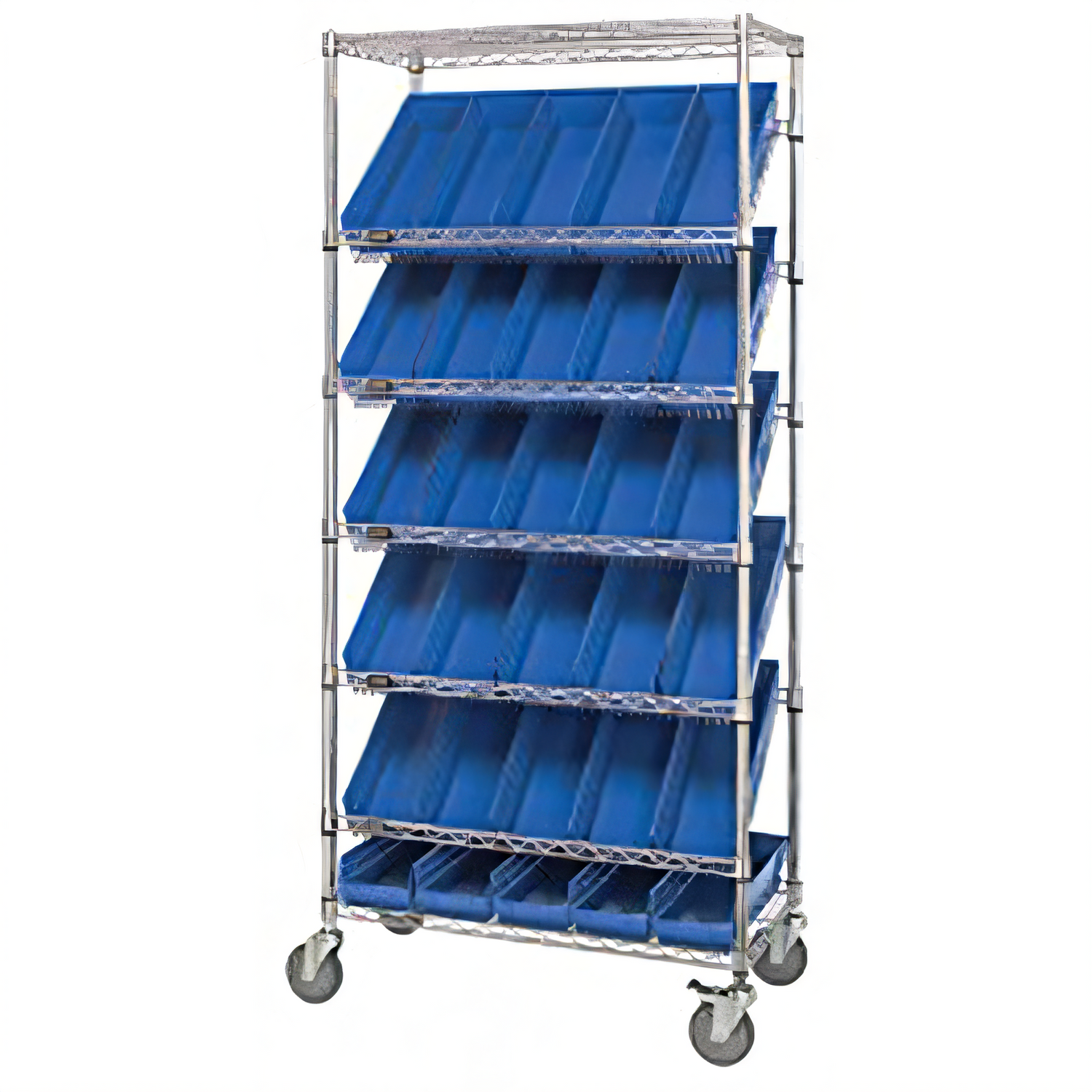

Quantum Mobile Wire Bin System – 36" W × 18" D × 80" H
Complete unit with 48 QED604 bins, slanted pick shelves & locking castersBring fast visual picking, stock rotation and true mobility to your storage area. Quantum’s chrome-plated wire frame keeps air moving and dust at bay, while 48 heavy-duty QED604 bins give every part its own clearly defined home—no label searching required.
What’s Included
- (4) 1"-dia. chrome posts – 80" H
- (2) Flat wire shelves – 36" W × 18" D
- (5) Slanted wire shelves – 36" W × 18" D for angled, gravity-feed access

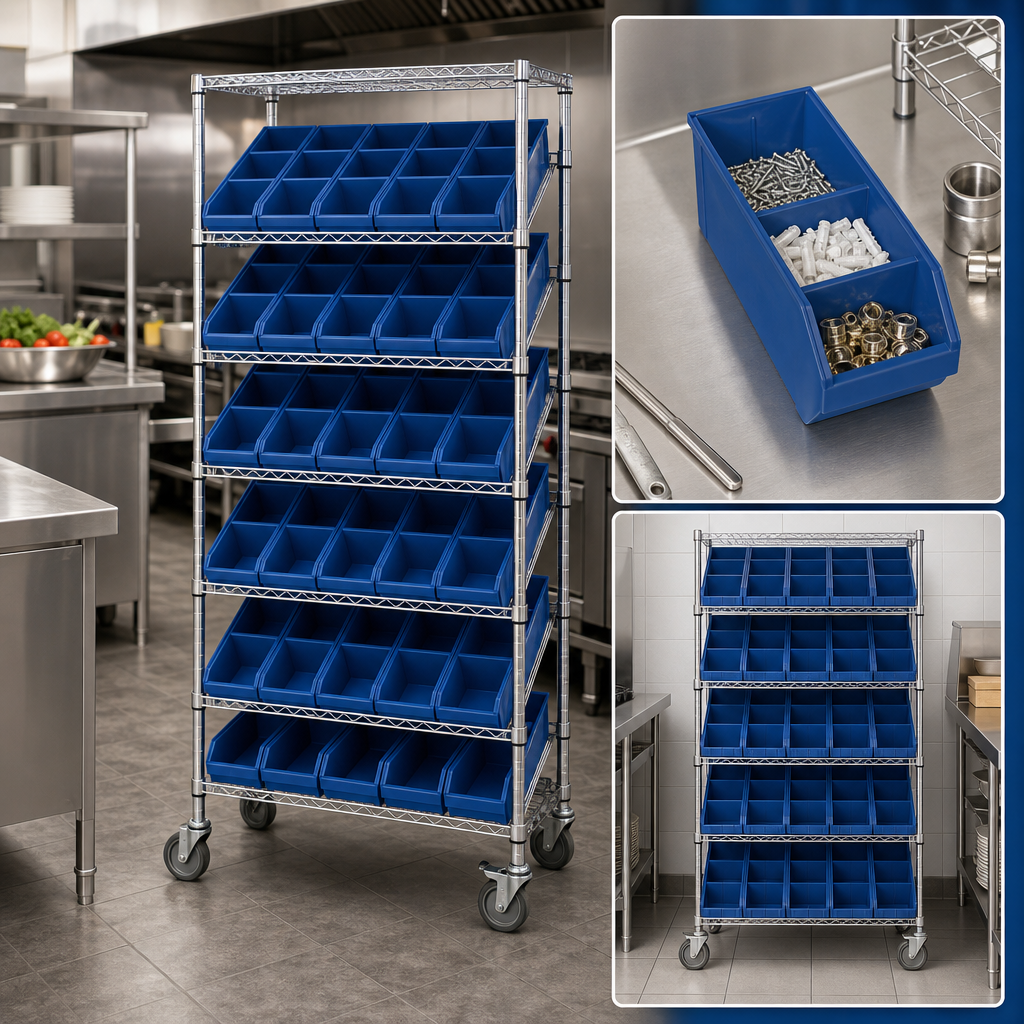

- (48) QED604 injection-molded bins – 17-5/8" L × 3-3/4" W × 4-5/8" H (choose color)
- (4) 5" swivel polyurethane casters – 2 with step-on brakes
- Shelf clips, split sleeves & all hardware
Key Benefits
- Slanted shelves present bin contents at a 30° angle for quicker part retrieval.
- Chrome wire construction promotes air circulation—ideal for dry storage & stockrooms.
- NSF listed components meet food-service and healthcare dry-area standards.
- 5" urethane casters glide quietly; two front brakes lock the unit for safe loading.
- Bins resist oils, grease and most chemicals; integrated rear hang-lock tilts out without falling.
- Ships knocked-down (KD) to save freight costs; tool-free assembly in minutes.
Technical Specifications
| Overall dimensions (W × D × H) | 36" × 18" × 80" (91.4 × 45.7 × 203.2 cm) |
|---|---|
| Shelf capacity – static | 600 lb per shelf (evenly distributed) |
| Caster load rating | 1,200 lb total (300 lb each) |
| Total bin volume | 8.6 ft³ (0.18 ft³ per bin) |
| Material / finish | Steel wire, electro-plated chrome |
| Environment | Dry storage, stockroom, assembly, healthcare, food prep (non-wet) |
| NSF certification | Yes – for dry environments |
| Assembly | No tools required; split sleeves snap onto posts |
| Manufacturer | Quantum Storage Systems |
| Model / kit no. | Mobile Bin System with QED604 bins |
Note: Bin colors are selected during checkout. Images may show assorted colors for illustration only. Chrome finish is recommended for dry areas; choose a rust-resistant finish for wet or corrosive environments.
Need a different bin size or shelf configuration? Speak with our storage specialists for a custom quote.
