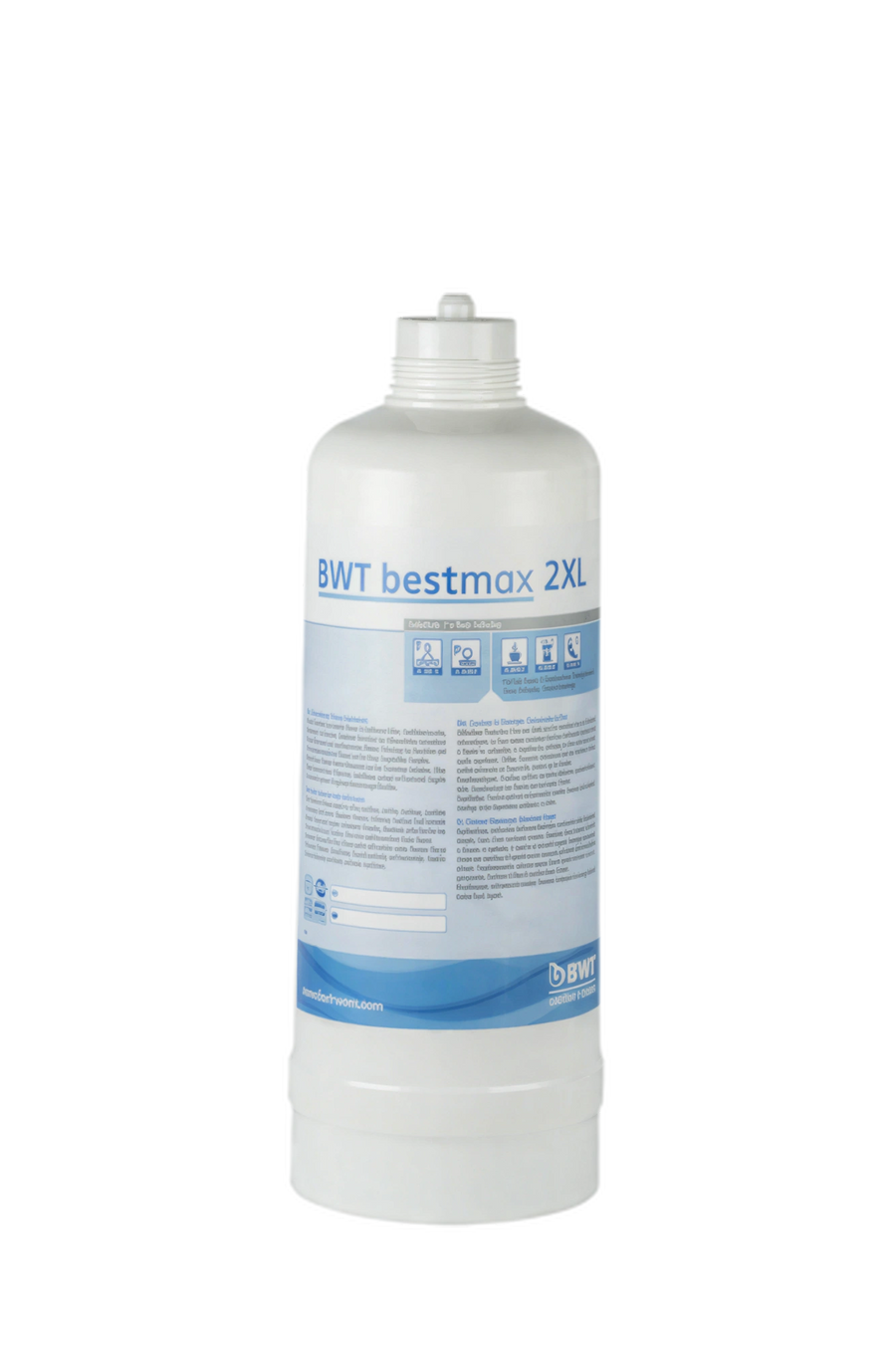

Pro Coffee Gear BWT 812223 2XL Water Filter Cartridge, 22.6 in H, 7.28 in Diameter

SKU: 812223
$693.70
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Beverage Equipment Coffee & Accessories Coffee & Tea Equipment Components Coffee Maker Replacement Parts Equipment New Arrivals Pro Coffee Gear Restaurant Equipment Restaurant Equipment Parts

The BWT bestmax 2XL filter cartridge provides water optimisation for commercial coffee and beverage equipment.

Its five filter levels separate coarse and fine particles, reduce oxidants and chlorine, remove organic substances and foreign odours and tastes, and adjust hardness and mineral balance through ion exchange.

  • Suitable for coffee machines, espresso machines, office coffee systems, vending machines, combination steamers, ovens, and cold beverage supply.
  • Designed for horizontal or vertical installation.
  • Operating conditions include 2–8 bar input pressure and 4–30 °C water temperature.

Overall Dimensions:

7.75"W x 7.75"D x 22.5"H

Product Weight:

19.0 lb

Five filter levels

The filtration stages separate coarse and fine particles, reduce oxidants and chlorine, remove organic substances and foreign odours and tastes, and adjust hardness and mineral balance.

Hardness and mineral adjustment

The high-performance ion exchanger removes hardening substances and adjusts the mineral balance.

Commercial equipment applications

The documentation lists coffee machines, espresso machines, office coffee systems, vending machines, combination steamers, ovens, and cold beverage supply.

Flexible installation

The technical data indicates horizontal or vertical installation.

Defined operating range

Input pressure is 2–8 bar, water temperature is 4–30 °C, and ambient temperature is 4–40 °C.

2XL capacity

For vending without steam generation at temporary hardness of ≤7 °dKH and blend 3, the listed capacity is ≥20,570 L. For hot beverage preparation with steam generation under the same conditions, the listed capacity is ≥17,140 L.

Filter size 2XL
Filter levels 5
Height without bracket 22.60 in
Height with bracket 23.62 in
Connection height 20.47 in
Distance to floor 2.56 in
Installation length 4.92 in
Filter cartridge diameter 7.28 in
Installation orientation Horizontal or vertical
Input pressure 2–8 bar
Water temperature 4–30 °C
Ambient temperature 4–40 °C
Capacity, vending without steam generation ≥20,570 L at temporary hardness ≤7 °dKH and blend 3
Capacity, hot beverage preparation with steam generation ≥17,140 L at temporary hardness ≤7 °dKH and blend 3

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It is a BWT bestmax 2XL filter cartridge.
The listed filter cartridge diameter is 7.28 in. Height is 22.60 in without bracket or 23.62 in with bracket.
Yes. The technical data indicates horizontal or vertical installation.
The specified input pressure is 2–8 bar, and the specified water temperature is 4–30 °C.
It is listed for coffee machines, espresso machines, office coffee systems, vending machines, combination steamers, ovens, and cold beverage supply.
For vending without steam generation at temporary hardness ≤7 °dKH and blend 3, capacity is listed as ≥20,570 L. For hot beverage preparation with steam generation under the same conditions, it is ≥17,140 L.
