Pitco Frialator (Middleby) SG14RS-4FD Solstice Gas Fryers
Description

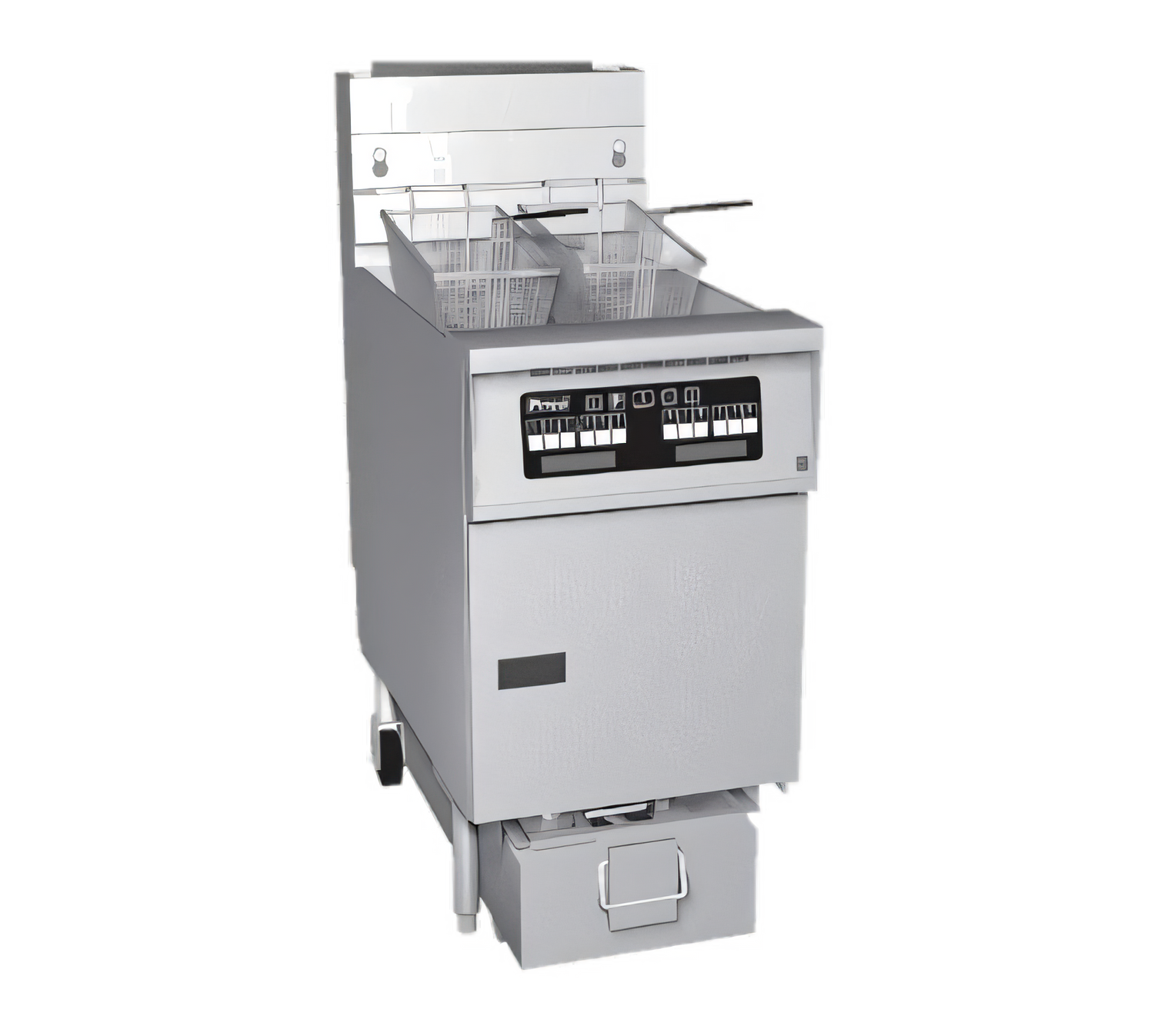

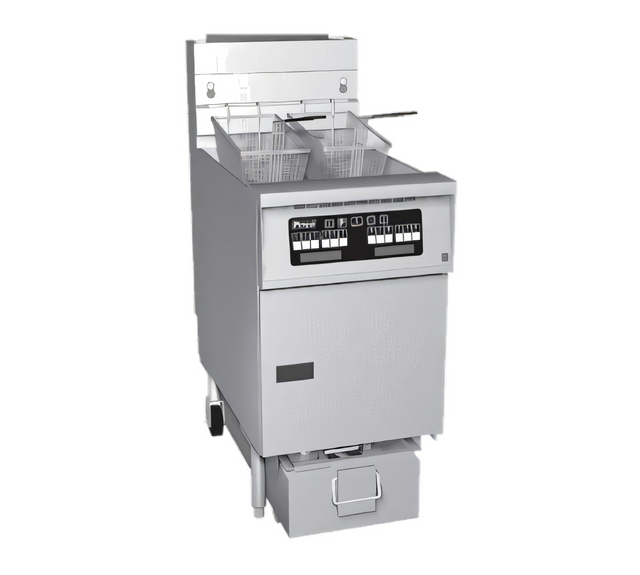

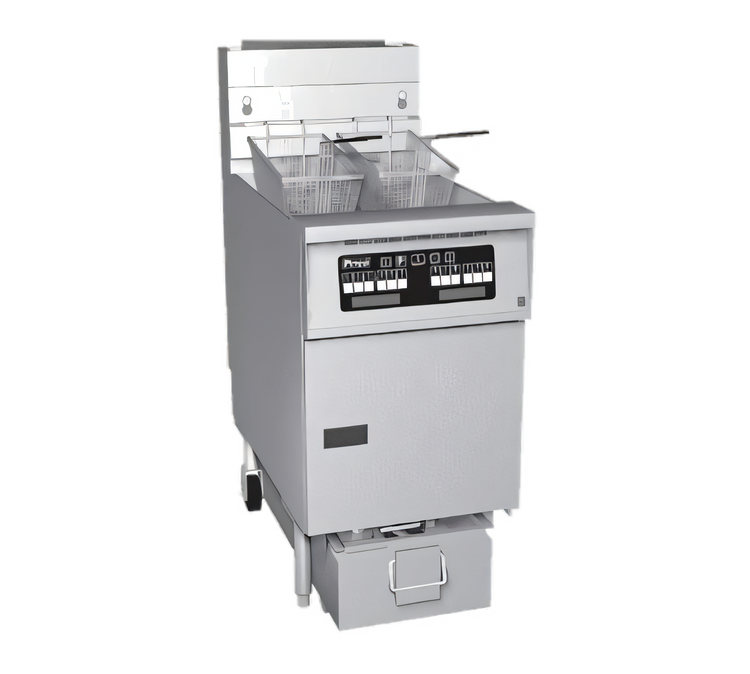

Pitco Solstice™ 4-Fryer High-Power Gas System w/ Integrated Filter Drawer
Model -FFFF | 4 × 50 lb vats | 488,000 BTU totalBuilt for busy kitchens that demand maximum throughput and rock-solid reliability, this pre-packaged Pitco Solstice™ system pairs four high-efficiency fryers with a space-saving under-fryer filter drawer. Expect lightning-fast recovery, longer oil life and the confidence of Pitco’s 10-year stainless tank warranty—all in one, ready-to-install battery.
Key Advantages
- 122,000 BTU Solstice burners in each vat (57 % thermal efficiency) for rapid temperature recovery during rush periods.
- Total system output of 488,000 BTU/hr drives continuous, high-volume production.
- Millivolt thermostat control—no electrical hookup required for frying, so you keep cooking even during power outages.
- Factory-installed Solstice Filter Drawer with 3" full-port drain and 8 GPM / ⅓ HP pump; two-step “blue-handle drain / red-handle return” filters a full vat in minutes.
- Large 500 in² (3 226 cm²) media area captures more crumbs, extending oil life and preserving flavor.
- Stainless steel fry tanks, front and sides; welded pan on casters glides out smoothly—even over rubber mats.
- Front-serviceable layout puts every component within arm’s reach for faster maintenance.
- Approved & ready for global kitchens: NSF, CE, CSA Flame, CSA Star, AuGA.
- 10-year limited fry-tank warranty (1-year parts & labor standard).
Performance Specifications
| Number of vats | 4 full-size (SG14R) |
|---|---|
| Oil capacity per vat | 40 – 50 lb (18 – 23 kg) |
| Total oil capacity | 160 – 200 lb (72 – 91 kg) |
| Cooking surface (per vat) | 14" × 14" × 4" (35.6 × 35.6 × 10.2 cm) |
| Heat input | 122,000 BTU/hr per vat | 488,000 BTU/hr total (36 kW × 4) |
| Gas types | Natural 4" W.C. (7" supply) / LP 10" W.C. (13" supply) |
| Filtration pump | 8 GPM (30 LPM) | ⅓ HP motor |
| Drain line | 3" swivel spout for splash-free disposal |
| Controls | Millivolt thermostat; color-coded hand valves for filtration |
| Construction | Stainless steel tanks, front & sides; aluminized rear |
| Certifications | NSF | CE | CSA Flame | CSA Star | AuGA |
Included Accessories
- Filter paper envelopes (25-pack starter)
- Filter powder & fryer cleaner sample packets
- Light-weight pick-up assembly with built-in handle
- Cleaning brush & fryer scoop
Need extras like a flush hose, filter heater for solid shortening or basket lifts? Ask about factory-installed options!
Why Solstice™?
Patented Solstice burners pull in more primary air, creating a “scrubbing” flame that extracts extra heat while keeping flue temps low. The result is higher productivity, reduced gas costs and less stress on your ventilation system.
Specifications are subject to change without notice. Images may show optional accessories.
