Pitco Frialator (Middleby) SG14RS-3FD Solstice Gas Fryers
Description

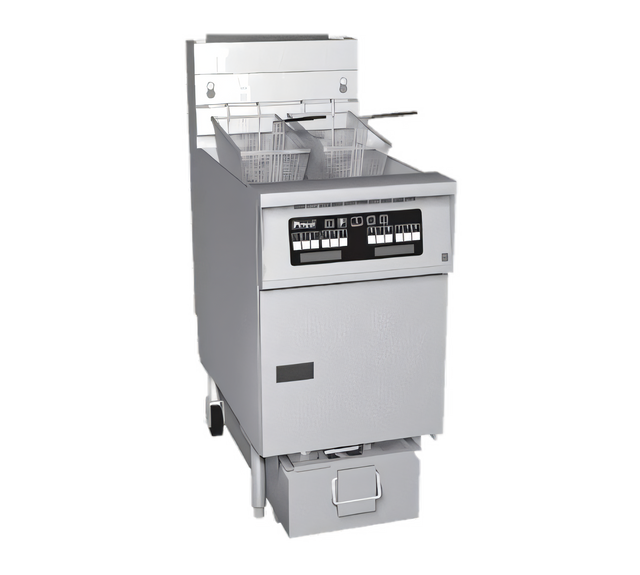

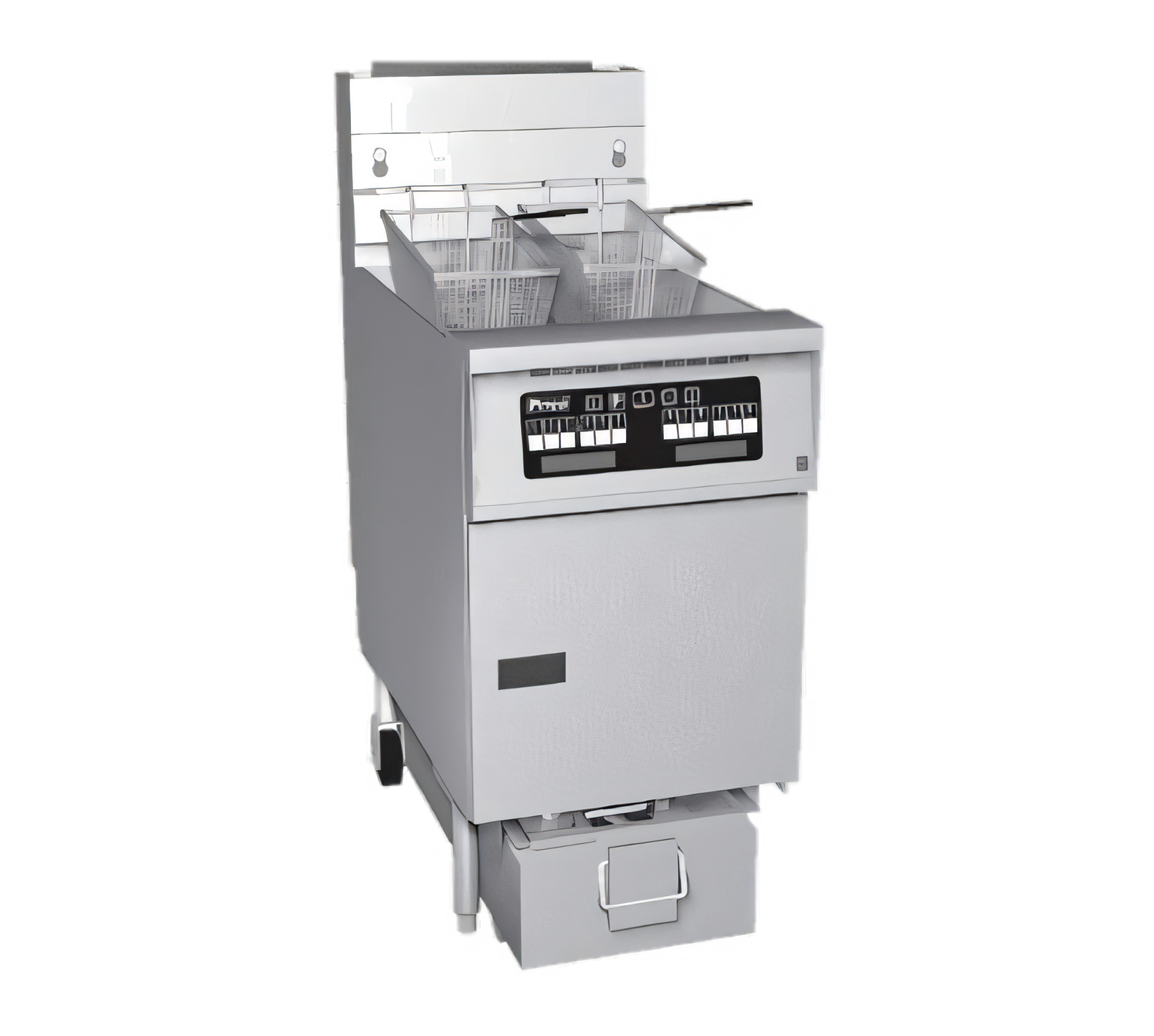

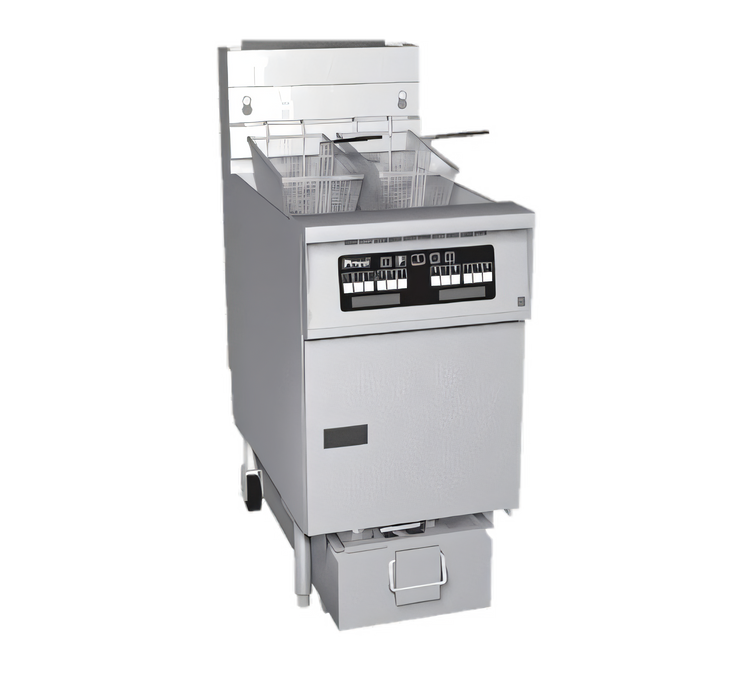

Pitco Solstice™ 3-Bank High-Power Gas Fryer System
Integrated Solstice™ Filter Drawer • 150 lb oil • 366,000 BTUBuilt for operators that refuse to slow down, this pre-packaged Solstice™ fryer suite delivers blistering production, countertop-quick filtration, and legendary Pitco reliability in one compact footprint. Three full-size 50-lb tanks crank out crispy, consistent product all day—while the self-contained under-fryer drawer filters and returns your oil in seconds, keeping flavor high and costs low.
Key Performance Advantages
- High-production Solstice burners extract more heat from every flame for faster recovery and 57 % thermal efficiency.
- Total firepower of 366,000 BTU/hr (3 × 122 k) tackles back-to-back rushes with ease.
- Millivolt mechanical controls—no electronic board required—for unmatched uptime and service simplicity.
- Matchless ignition lights the standing pilot automatically at power-on.
- Front-serviceable layout puts every component within arm’s reach of the cookline.
- Rugged, pressure-blasted stainless tanks carry Pitco’s 10-year warranty.
Built-In Solstice™ Drawer Filtration
- Two-step process: 1) Pull the blue drain handle - 2) Pull the red return handle.
- 1/3 HP pump moves 8 GPM through a 3″ full-port drain for lightning-fast turnaround.
- Self-aligning piping & swivel spout virtually eliminate messy hookups and splashing.
- Welded stainless filter pan rolls on stabilizer legs/casters—glides even over rubber mats.
- 500 in² filter media area extends time between paper changes when frying heavy-breaded items.
Included Accessories
- Filter paper starter pack & filter powder
- Fryer cleaning brush & filter brush
- Oil scoop and filter scoop
- Quick-lift removable filter pick-up assembly with integrated handle
Technical Specifications
| Configuration | Three full-tank gas fryers + Solstice™ Filter Drawer |
|---|---|
| Oil Capacity | 50 lb (25 L) per tank | 150 lb (75 L) total |
| Heat Input | 366,000 BTU/hr (natural or LP) |
| Cook Zone | 14″ × 14″ × 4″ (per tank) |
| Controls | Millivolt thermostat, 200–400 °F (93–204 °C) |
| Filtration Rate | 8 GPM (30.3 LPM) @ 60 Hz via 1/3 HP motor |
| Drain Line | 3″ swivel full-port with curved down-spout |
| Electrical (filter) | 115 V / 1 Ø / 60 Hz • 7 A (separate cord supplied) |
| Gas Connection | 1″ NPT rear manifold • 7″ W.C. NG | 13″ W.C. LP |
| Overall Dimensions | ≈ 46 ⅛″ W × 34 ⅜″ D × 46″ H (117 × 87 × 117 cm) |
| Minimum Clearances | Front 30″ | Sides & Rear 6″ (combustible) |
| Shipping Weight | ≈ 720 lb (327 kg) |
| Certifications | NSF • CE • CSA Flame & Star • AuGA |
Warranty
1-year parts & labor on the complete system, plus a 10-year limited warranty on stainless steel fry tanks.
