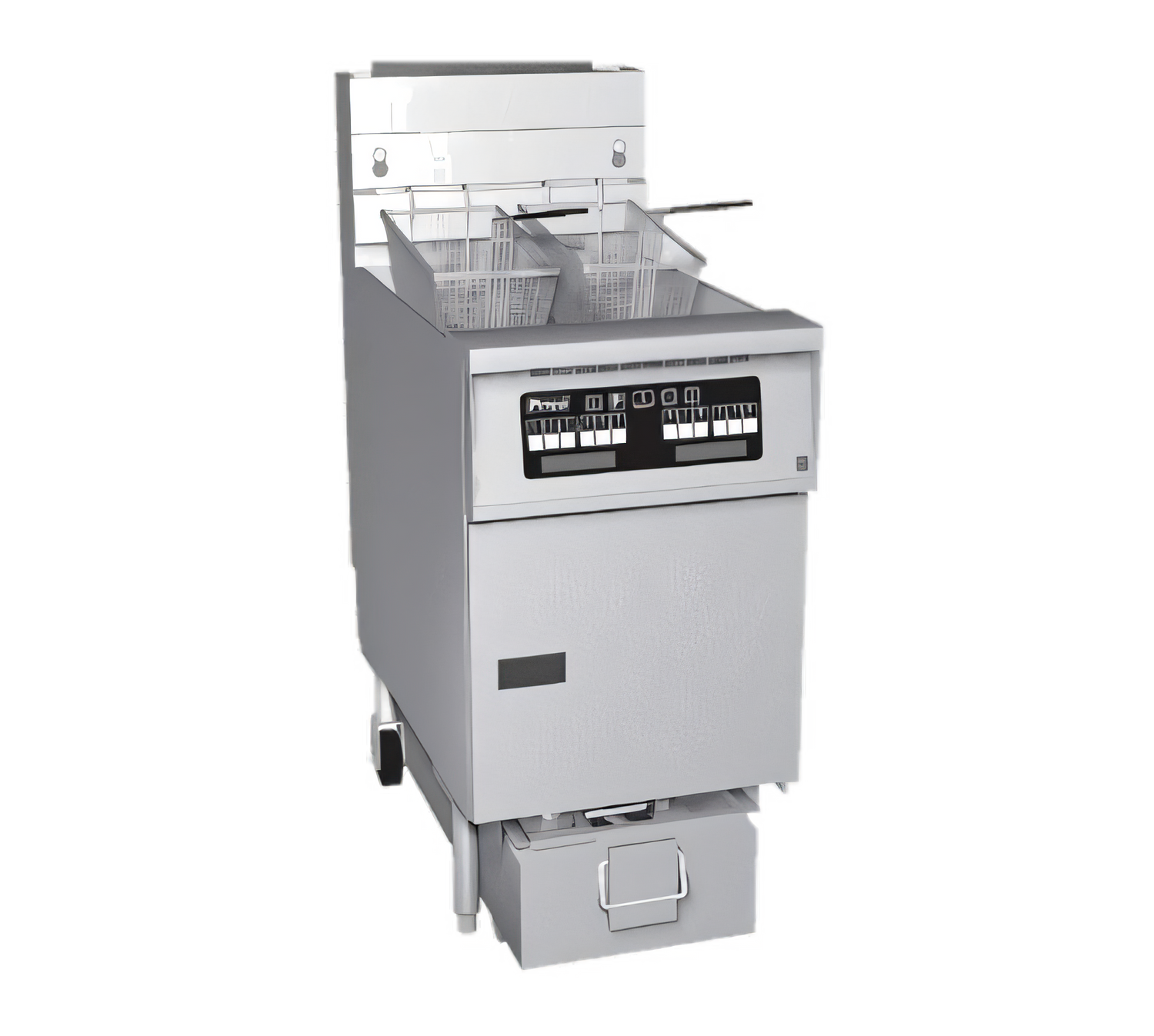

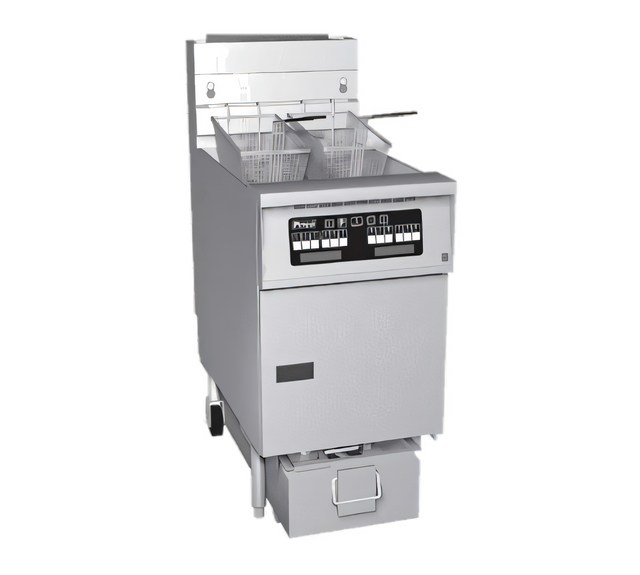

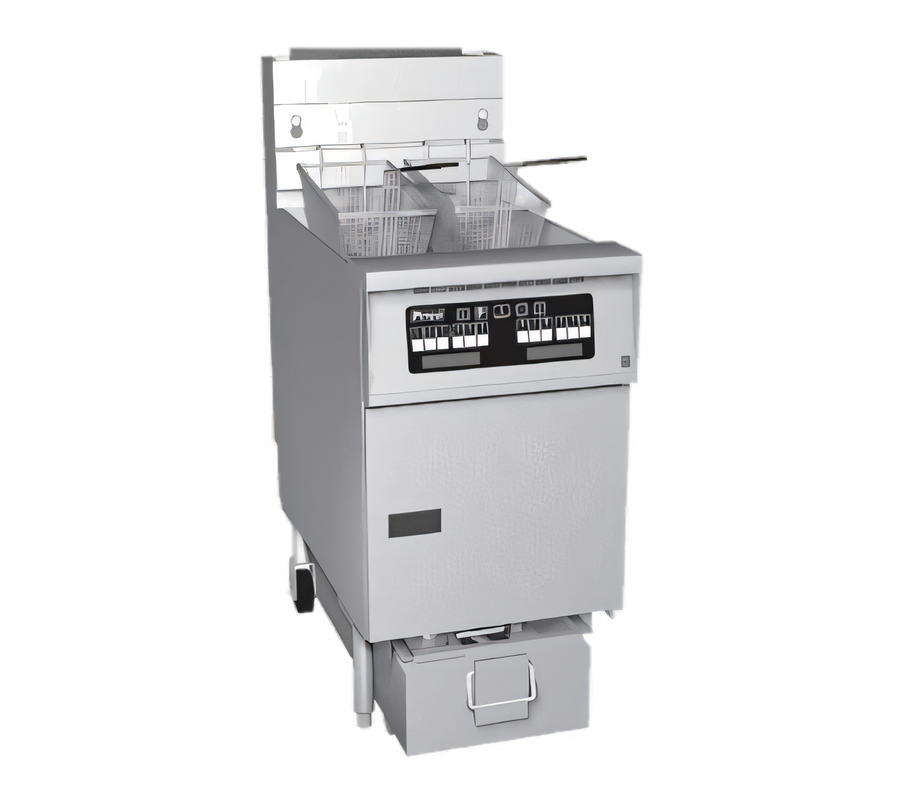

Pitco Frialator (Middleby) SG14RS-2FD Solstice Gas Fryers
Description
Pitco Solstice™ Twin Fryer System with Built-In Filter Drawer – 244,000 BTU, Gas
Factory-packaged high-production solution: (2) 50-lb fryers + under-fryer filtrationDesigned for busy kitchens that refuse to slow down, the Pitco Solstice™ pre-packaged fryer system combines two battle-tested 50 lb stainless steel fryers with a slide-out Solstice™ Filter Drawer. The result? Faster turn-arounds, longer oil life and lower operating costs—right out of the crate.
Key Features at a Glance
- High-power Solstice burners – 122,000 BTU/hr per tank (244,000 BTU/hr total) for rapid recovery.
- (2) 50 lb stainless steel fry tanks deliver 100 lb total capacity in a compact footprint.
- Millivolt snap-action thermostat requires no electrical connection for the fryers themselves.
- Matchless ignition lights the pilot once per day, reducing wear on components.
- Front-serviceable design keeps every component within easy reach.
- NSF, CE, CSA Flame, CSA Star & AuGA certified for worldwide code compliance.
Built-In Solstice™ Filter Drawer Advantages
- Simple two-step process—blue handle drains, red handle returns filtered oil.
- 8 GPM pump with 1/3 HP motor and large return lines refills the tank fast.
- 3" full-port drain valve and swivel spout for splash-free, clog-free disposal.
- 500 sq in (3226 cm²) filter area tackles heavily breaded products without slowing down.
- Welded stainless filter pan rides on stabilizer legs & casters—glides easily over rubber mats.
- All parts self-align—no loose fittings or tools required between cycles.
Specifications
| Oil Capacity | (2) × 50 lb / 23 L tanks (100 lb total) |
|---|---|
| Cooking Area (per tank) | 14 in × 14 in × 4 in (356 × 356 × 102 mm) |
| Heat Input | 122,000 BTU/hr per tank – 244,000 BTU/hr total |
| Fuel | Natural Gas or Propane (field convertible) |
| Gas Connection | 1" NPT rear manifold (field-reversible) |
| Manifold Pressure | NG 7" W.C. | LP 13" W.C. |
| Filtration Pump | 8 GPM, 1/3 HP, 115 V / 1 Ph / 60 Hz, 7 A |
| Drain Valve | 3" full-port with curved swivel spout |
| Exterior Construction | Stainless steel tanks, front & sides; galvanized rear & bottom |
| Overall Dimensions* | 34 ⅜ "W × 46 ⅛ "D × 58 "H (873 × 1172 × 1473 mm) |
| Minimum Clearances* | Sides/Rear 6 in (152 mm) | Front 30 in (762 mm) |
| Certifications | NSF, CE, CSA Flame, CSA Star, AuGA |
*Dimensions and clearances are approximate. Confirm all site requirements with the factory spec sheet before installation.
What’s Included
- 25-sheet pack of 18 ½ " × 20 ½ " filter paper
- Filter powder & fryer cleaner sample packets
- Light-weight removable pickup wand with built-in handle
- Cleaning brush
- Fryer scoop & filter scoop
Industry-Leading Warranty
1-year parts & labor coverage—plus a 10-year limited warranty on the stainless steel fry tanks for long-term peace of mind.
