Pitco Frialator (Middleby) RP18 Fryer Filtration Systems
Description

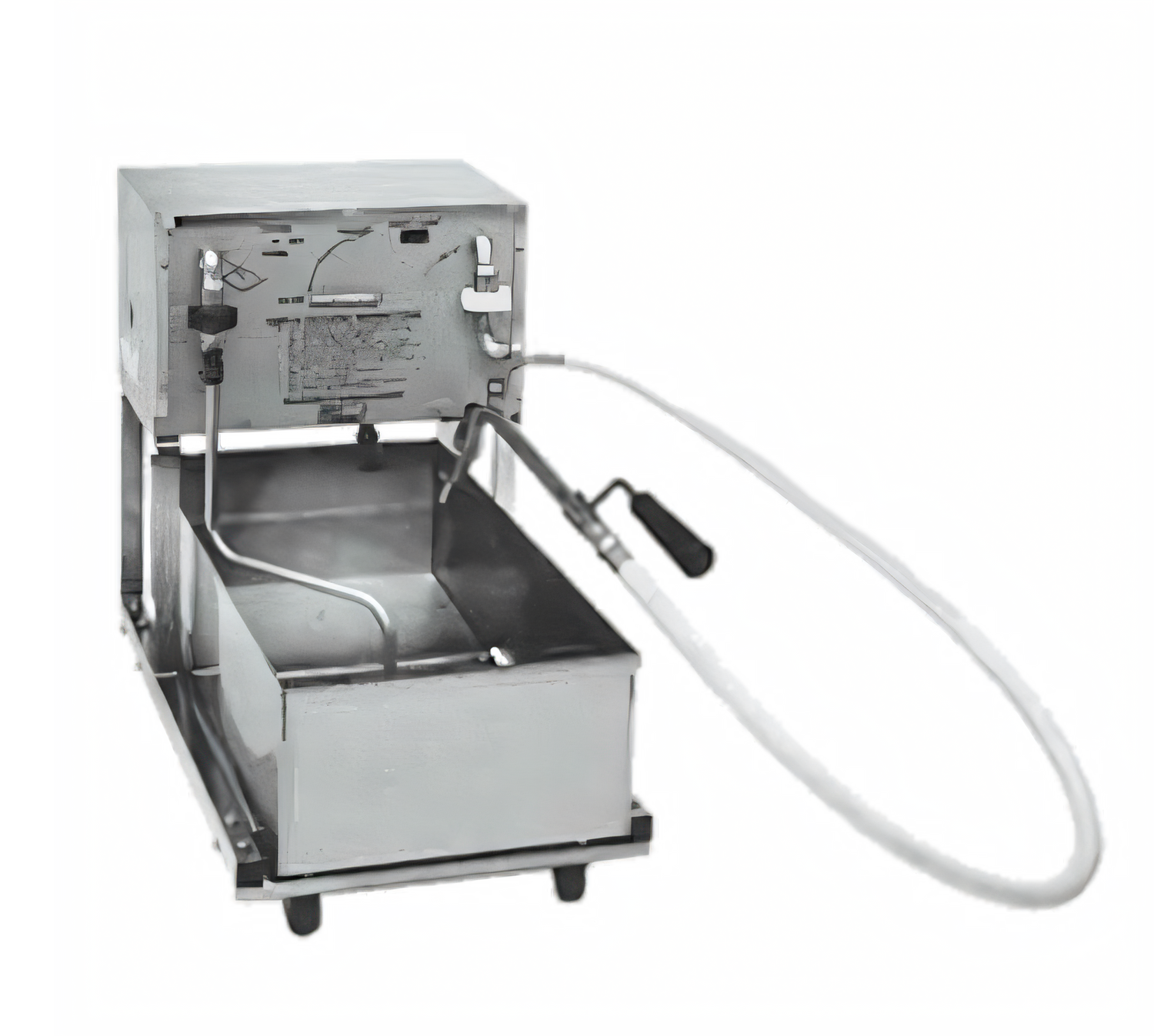

Pitco RP18 Mobile Fryer Oil Filter System
75 lb (34 kg) capacity • Reversible pump • Low-profile cartKeep your frying oil clean, clear and profitable with the Pitco RP18. Purpose-built for any 18-size fryer, this all-stainless, low-profile filter cart rolls easily under the drain, vacuums spent oil, filters through a generous 500 in² media bed, then pumps it back—all in one closed, reversible cycle.
Key benefits
- Handles up to 75 lb / 34 kg of oil per cycle—ideal for high-volume kitchens.
- Reversible 1/3 HP pump moves 5 gal (18.9 L) per minute and back-flushes lines to prevent clogs.
- Low-profile, 18-gauge stainless steel lift-cover slides under gravity-drain fryers.
- 5 ft (1.5 m) high-temperature return hose with cool-touch nickel-plated nozzle.
- Four heavy-duty swivel casters for effortless maneuvering and storage.
- Quick-disconnect hose fittings and lift-out filter pan speed up cleaning.
- Meets CSA Flame & Star, NSF, UL & CE standards for worldwide compliance.
Included accessories
- Sediment clean-out scoop
- 7 in (17.8 cm) drain nipple
- Sample envelope filter paper & filter powder packets
- 10 ft (3.05 m) oil-proof power cord (NEMA 5-15P on 120 V models)
- Stainless steel pan cover
Specifications
| Oil capacity | Up to 75 lb (34.0 kg) |
|---|---|
| Pumping rate | 5.0 gal (18.9 L) per minute |
| Filter area | 500 in² (3,226 cm²) |
| Motor / pump | 1/3 HP reversible gear pump |
| Electrical | 120 V / 1 ph / 60 Hz – 5 A | 220–240 V / 1 ph / 50 Hz – 4 A |
| Hose length | 5 ft (1.5 m) return hose |
| Overall dimensions (L × W × H) | 34 in × 20.25 in × 24 in (86.4 cm × 51.4 cm × 60 cm) |
| Shipping weight / volume | 156 lb (70.8 kg) • 14 cu ft (0.40 m³) |
| Construction | Polished stainless steel pan & pump enclosure; nickel-plated frame & hardware |
| Certifications | CSA Flame, CSA Star, NSF, UL, CE |
| Warranty | 1-year parts & labor (commercial use) |
Optional upgrades
- Filter heater kit for solid shortening
- Bulk filter paper (envelope style)
- Replacement filter powder packets
