Pitco Frialator (Middleby) RP14 Fryer Filtration Systems
Pitco Frialator (Middleby) RP14 Fryer Filtration Systems is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Pitco Frialator (Middleby) RP14 Fryer Filtration Systems
Description

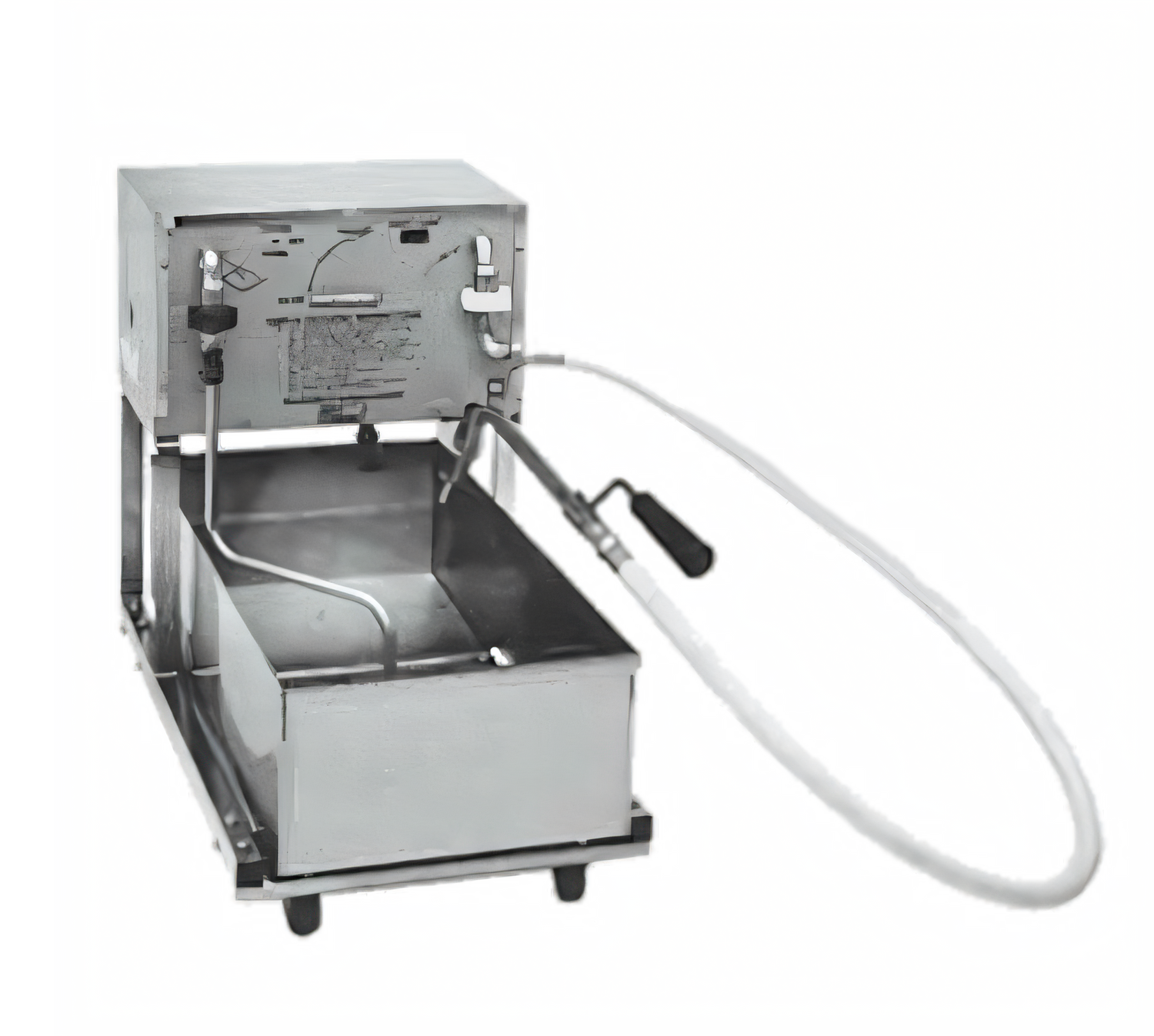

Pitco RP14 Portable Fryer Oil Filter System
55 lb mobile filtration with reversible pump for all 14-size Pitco fryersKeep your frying program running cleaner, longer and more profitably. The Pitco RP14 is a low-profile, stainless-steel mobile filter that lets you polish up to 55 lb (24.9 kg) of oil in minutes and roll it safely away when you’re done.
Key benefits
- Reversible 1/3 HP pump moves up to 5 gal (18.9 L) per minute and back-flushes drain lines at the flip of a switch.
- Low 10.5 in (26.7 cm) profile slides under gravity drains — no need to lift heavy vats.
- Polished stainless-steel filter pan & pump enclosure with rugged 18-gauge lift cover stand up to daily abuse.
- 500 in² (3,226 cm²) of filter area captures more crumbs for longer oil life.
- 5 ft (1.5 m) high-temperature return hose with nickel-plated steel nozzle and cool-touch handle.
- Four swivel casters and a 10 ft (3.05 m) oil-proof power cord for effortless mobility.
- Tool-free, quick-disconnect hose fittings and lift-out filter pan simplify cleaning and paper changes.
- Certified safe: CSA Flame & Star, NSF, UL, CE.
What’s in the box
- Mobile filter base with pump & motor assembly
- Stainless-steel cover
- Filter pan & media frame
- Sample filter paper envelope & powder packets
- 7 in (17.8 cm) drain nipple
- Sediment clean-out scoop
Specifications
| Oil capacity | Up to 55 lb (24.9 kg) |
|---|---|
| Pump output | 5 gal (18.9 L) per minute, reversible |
| Filter area | 500 in² (3,226 cm²) |
| Electrical | 120 V / 1 ph / 60 Hz, 5 A (220-240 V / 1 ph / 50 Hz, 4 A) |
| Motor | 1/3 HP heavy-duty |
| Dimensions (H × L × W) | 24 in × 30 in × 17 in (60.0 cm × 76.2 cm × 43.2 cm) |
| Clearance height | 10.5 in (26.7 cm) |
| Shipping weight | 131 lb (59.4 kg) |
| Certifications | CSA Flame & Star, NSF, UL, CE |
Options & accessories
- Filter heater for solid shortening start-up
- Replacement filter paper (envelope style)
- Additional filter powder packets
1-year parts & labor warranty included. Always use genuine Pitco OEM parts for service to maintain certification and warranty coverage.
