Pitco Frialator (Middleby)  |  SKU: P14

Pitco Frialator (Middleby) P14 Fryer Filtration Systems

$5,337.75
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Instructions and parts list Warranty sheet
Related Searches
Fryer Filtration Systems Fryers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

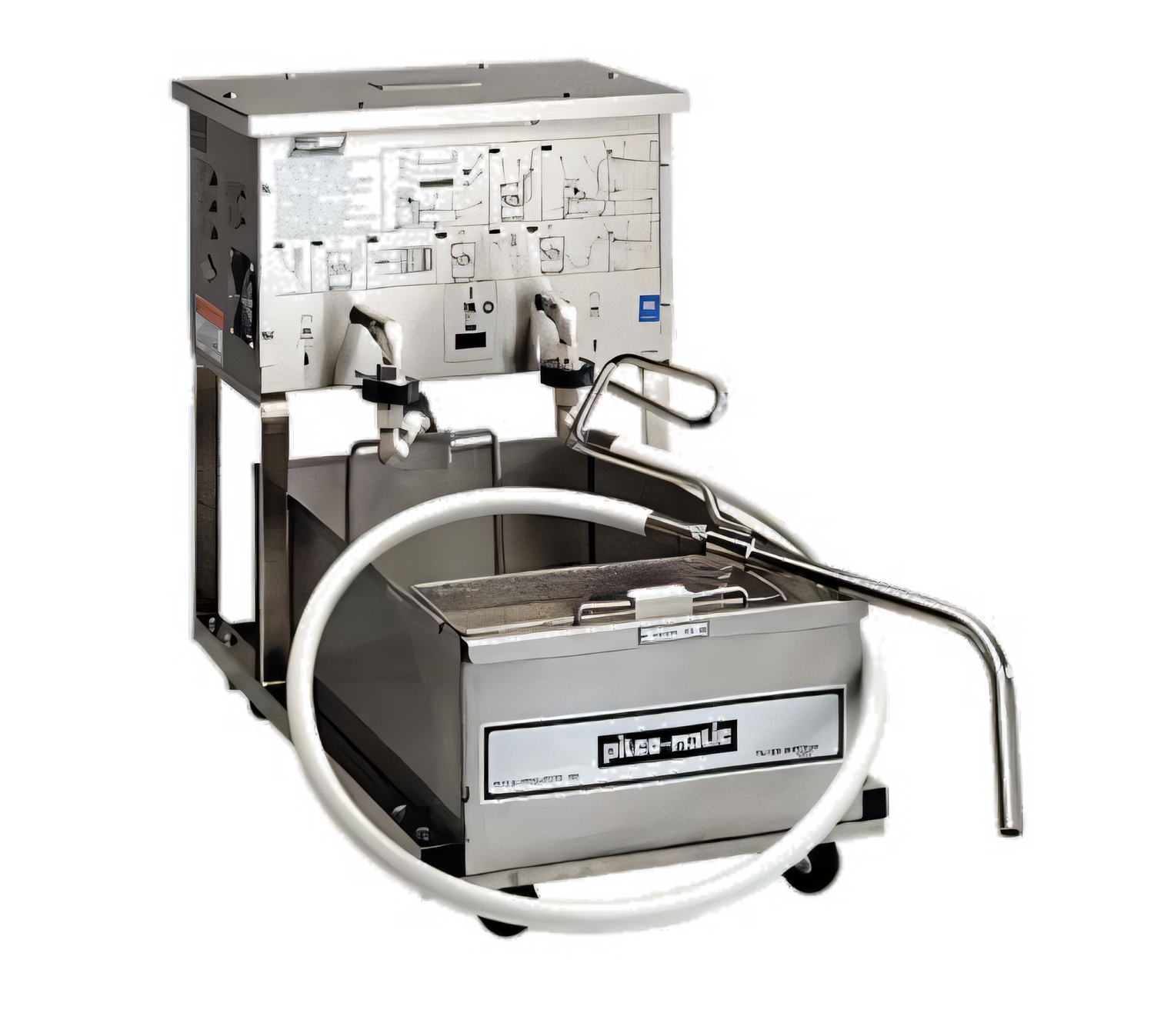

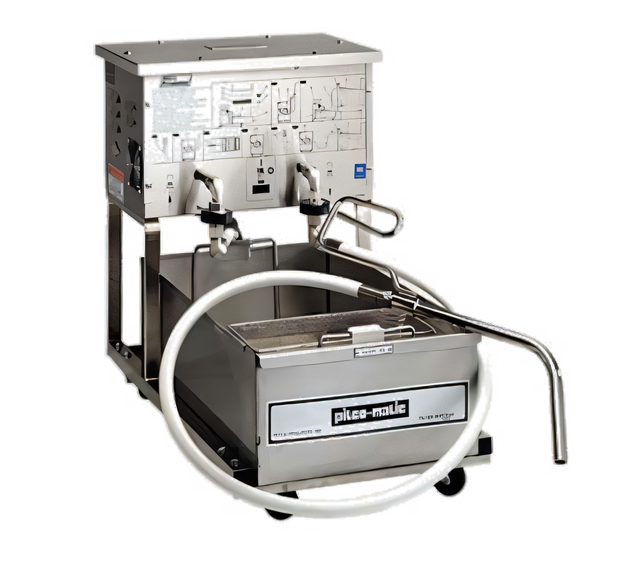

Pitco P14 Mobile Fryer Filter – 55 lb Oil Capacity

(Middleby Essentials • Quick-Ship in 1–2 Days)

Give your fryers the clean oil they deserve and keep your food quality sky-high. The Pitco P14 mobile filter rolls right under the drain of any Pitco 7-, 12- (floor), or 14-size fryer, polishing up to 55 lb of hot oil in minutes and sending it back to the vat—no heavy lifting, no mess.

Why You’ll Love It
  • Low-profile design (10-½" pan height) slides easily beneath fryer drains.
  • 55 lb (24.9 kg) pan with 300 sq in filter area extends oil life and saves money.
  • 1/3 HP pump & motor returns filtered oil fast; quick-disconnects make clean-up simple.
  • Built to last – polished stainless-steel pan & enclosure, nickel-plated frame & hose nozzle.
  • Cool-touch nozzle handle plus 5 ft high-temp return hose for safe, ergonomic operation.
  • Four ball-bearing swivel casters for effortless mobility and storage.
  • Plug-in & go – 10 ft oil-proof power cord, 115 V/60 Hz, only 7 A.
  • Fully certified – CSA, NSF, UL & CE listed for worldwide peace of mind.
Included in the Box
  • 18-gauge lift cover
  • 7" drain nipple extension
  • Filter catch basket
  • Sample filter powder & flat filter paper
  • Sediment clean-out scoop
Technical Specs
Oil capacity 55 lb / 24.9 kg
Filter area 300 sq in / 1 936 cm²
Motor / pump 1/3 HP, 7 A @ 115 V 60 Hz (4 A @ 220-240 V 50 Hz)
Hose 5 ft (1.5 m) high-temperature, sanitary, quick-disconnect
Power cord 10 ft (3.05 m) oil-proof, NEMA 5-15 plug on 115 V units
Dimensions (H × L × W × Pan H) 24 3/8" × 30 1/4" × 17 7/32" × 10 ½"
(61.9 × 76.8 × 43.7 × 28 cm)
Shipping weight / volume 131 lb / 59.4 kg • 10 cu ft / 0.28 m³
Certifications CSA, NSF, UL, CE, MEA Approved
Warranty 1-year parts & labor (see Pitco standard warranty)
Compatible fryers Pitco 7-, 12-floor, and 14-size drain-type fryers

This item qualifies for Middleby Essentials Quick Ship—in stock and leaves our warehouse within 1–2 business days.

Important: Never pump water through the filter system. The pump is lubricated by hot oil only.

Features & Specs

Manufacturer

Pitco Frialator (Middleby)

Certifications

NSF, CE, UL, CSA

Shipping Weight

131.0lbs

Construction

stainless steel exterior

Design

low profile

Oil flow type

with one way pump and hose

Maximum Fat Capacity (approximate)

50 - 70 lb capacity

Specifications

(QUICK SHIP) (MIDDLEBY ESSENTIALS ITEM) Fryer Filter, mobile, 55 lb. oil capacity, 18 gauge stainless steel lift-cover, low-profile design, with pump & hose assembly, stainless steel, for use with all 7, 12 (floor), & 14 size fryers, CSA, NSF, UL, CE (Ships within 1-2 days)
