Pitco Frialator (Middleby) FBG24 Gas Fryers
Description

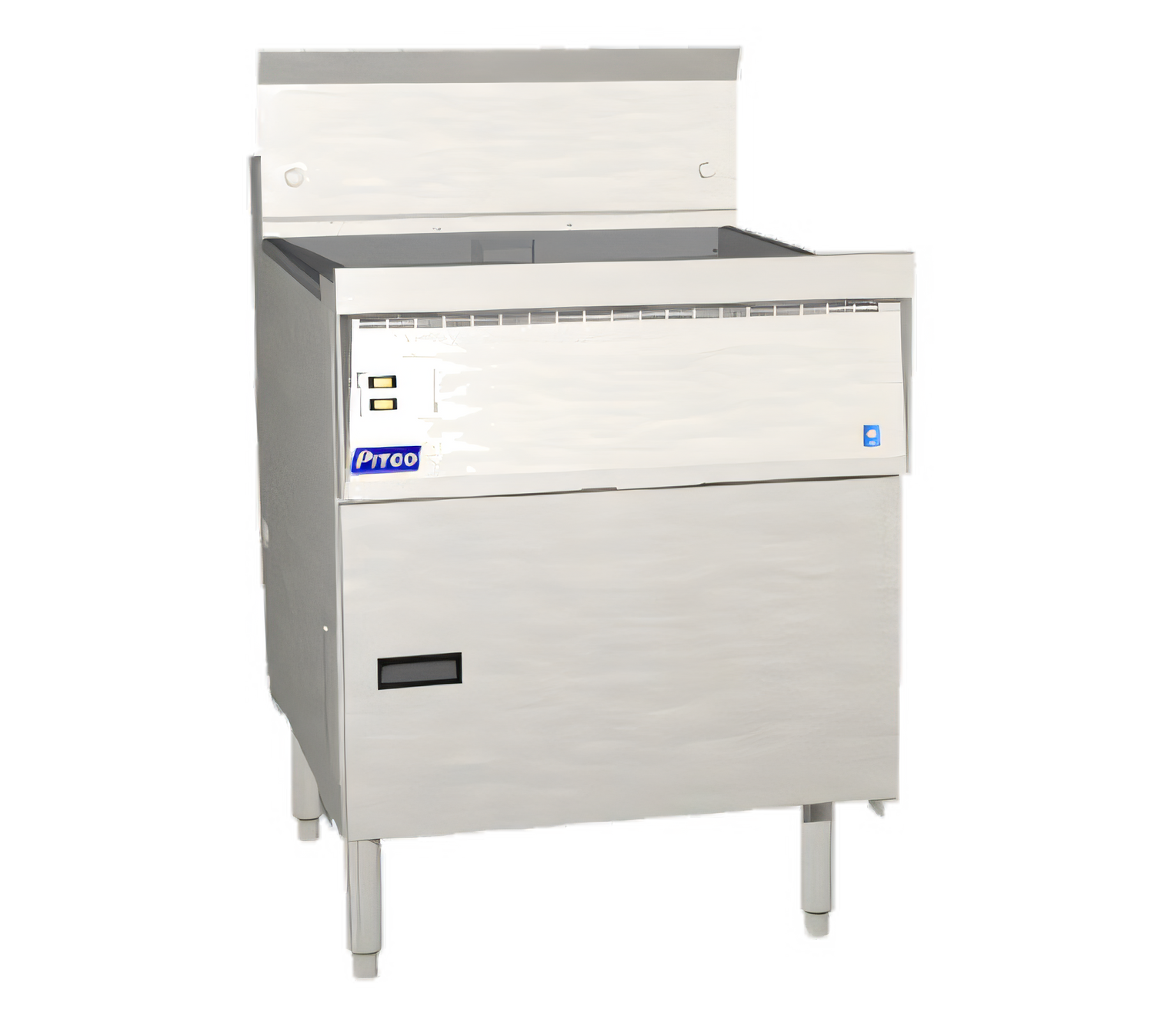

Pitco FBG24 Flat-Bottom Gas Fryer — 24" x 24"
57-87 lb oil capacity | 120,000 BTU | Floor modelDesigned for high-volume, wet-batter specialties, the Pitco FBG24 pairs a generously sized flat frying surface with blower-free burner technology for fast recovery and consistent, crispy results. Stainless steel construction on the outside and a heavy-gauge mild-steel tank on the inside mean easier clean-up, long life, and superior heat transfer where it matters most.
Top Reasons to Choose the FBG24
- 24" × 24" (61 × 61 cm) flat frying area handles large, delicate items without crowding.
- 57–87 lb (25.6–39.5 kg) oil capacity supports all-day production.
- Solid state controller with matchless ignition, automatic melt cycle & boil-out mode for solid shortening management.
- Blower-Free Burner Technology delivers 120,000 BTU/h without noisy, failure-prone blowers.
- Marine front edge keeps batter trays secure and work surfaces clean.
- 1¼" full-port front drain & included clean-out rod make draining and filtering quick.
- Built-in safety: drain-valve interlock, high-limit shut-off & integrated gas control valve.
- All stainless steel front, sides & splash-back for a professional, durable finish.
- Certified NSF, CSA Flame, CSA Star & CE for global code compliance.
Performance Specifications
| Model | Pitco FBG24 |
|---|---|
| Frying area | 24" × 24" (61 × 61 cm) |
| Oil capacity | 57 – 87 lb (25.6 – 39.5 kg) |
| Cook depth | 3 ¼" – 5" (8.3 – 12.7 cm) |
| Heat input | 120,000 BTU/h (35.1 kW) |

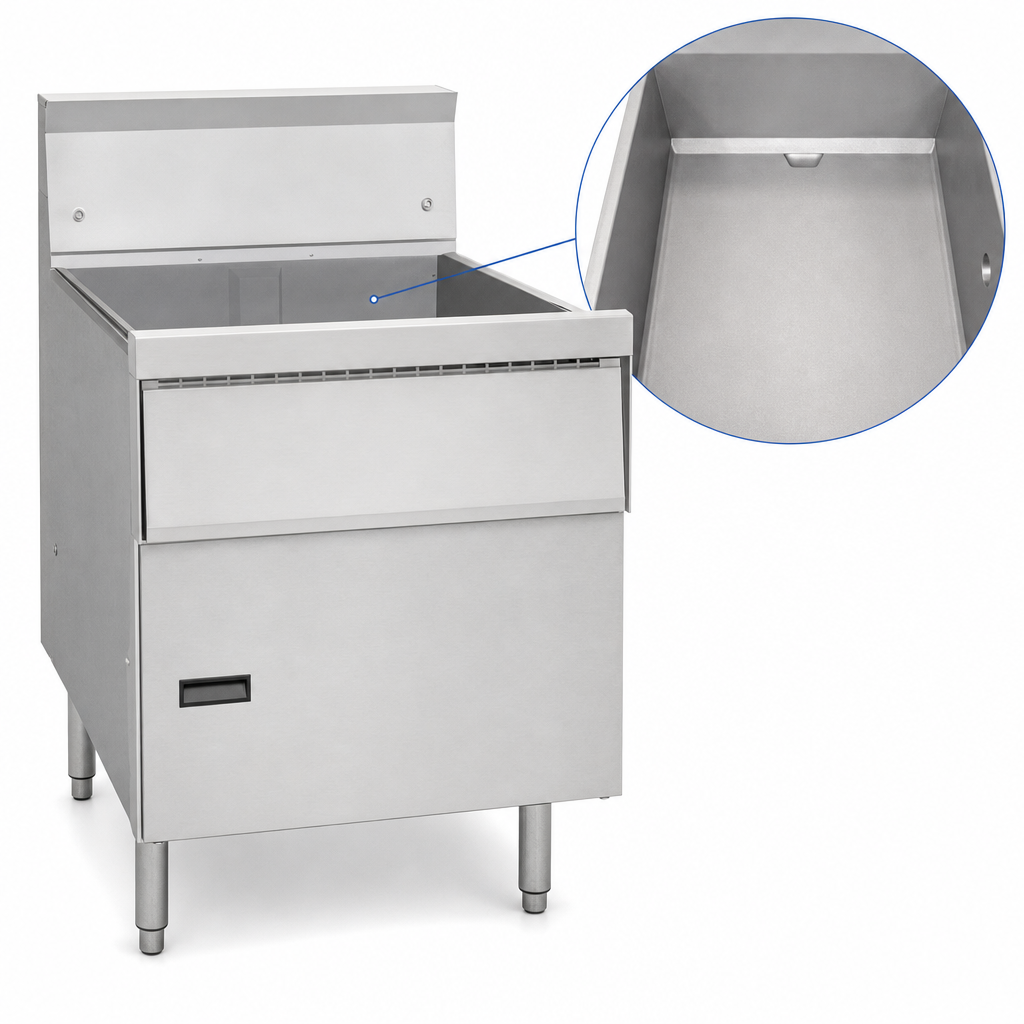

| Tank material | Heavy-gauge mild steel, peened smooth |

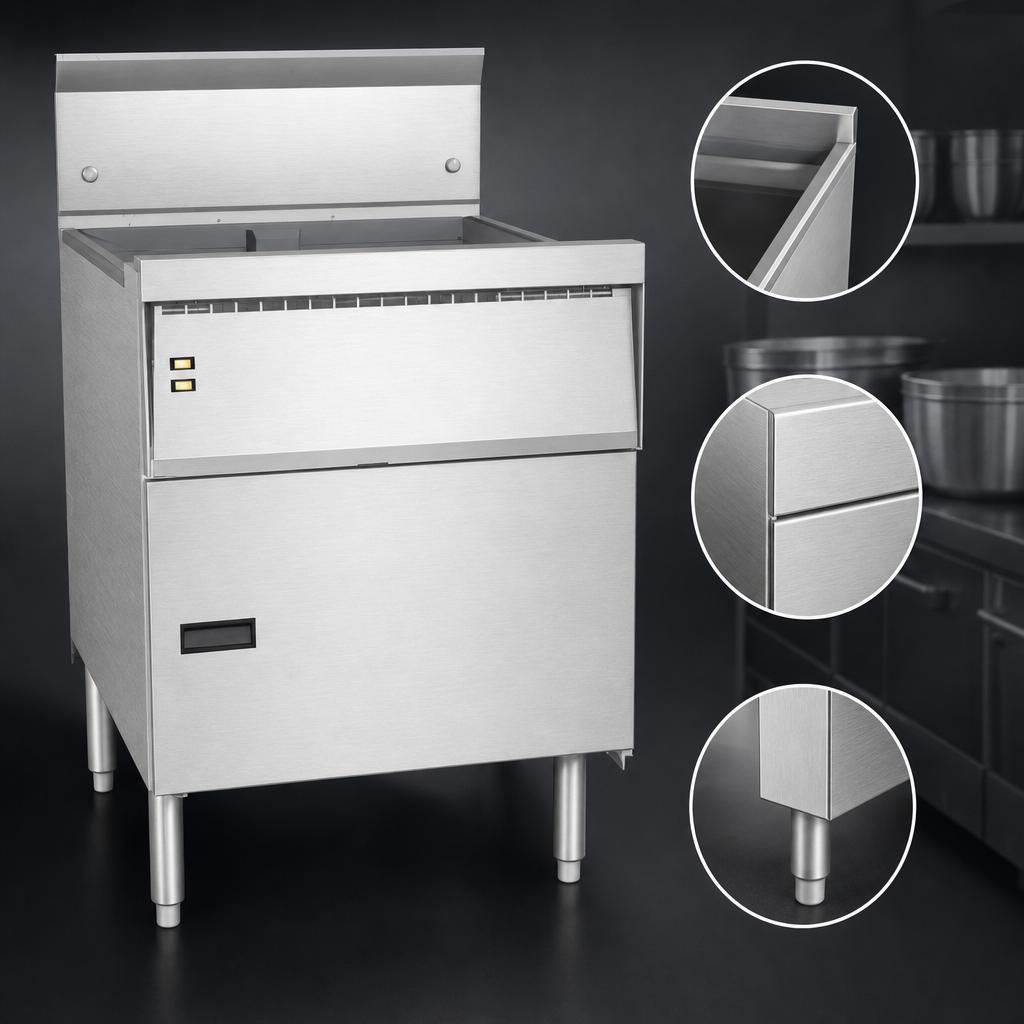

| Cabinet material | Stainless steel front, sides & splash-back |
| Controls | Solid state thermostat, power switch, indicator lights |
| Ignition | Matchless standing pilot (single daily light-off) |
| Drain valve | 1¼" full-port, front mounted |
| Gas connection | ¾" NPT rear (natural or LP) |
| Approvals | NSF, CSA Flame, CSA Star, CE |
Optional Upgrades & Accessories
- FD-M filter drawer filtration system or stand-alone filter cabinet for effortless, closed-loop oil polishing.
- Digital thermostat with countdown timer.
- Rear & front locking casters (9").
- Crumb tray, perforated pan divider & tank cover.
- Flexible gas hose with quick-disconnect.
Ideal Applications
- Fish & chips shoppes
- Seafood houses & clam shacks
- State-fair concessionaires (funnel cakes, elephant ears, churros)
- Tempura & Asian fusion kitchens
Warranty
1-year parts & labor on the entire fryer plus a 4-year pro-rated fry-tank warranty.
See Pitco’s official policy for full terms.
