Piper Products/Servolift Eastern Reflections R4-HF Mobile Electric Hot Food Serving Counter, 4 Sealed Wells, Stainless Steel Top, 60 x 30 x 36 in

SKU: R4-HF
$9,058.44

Want to speak to an expert?

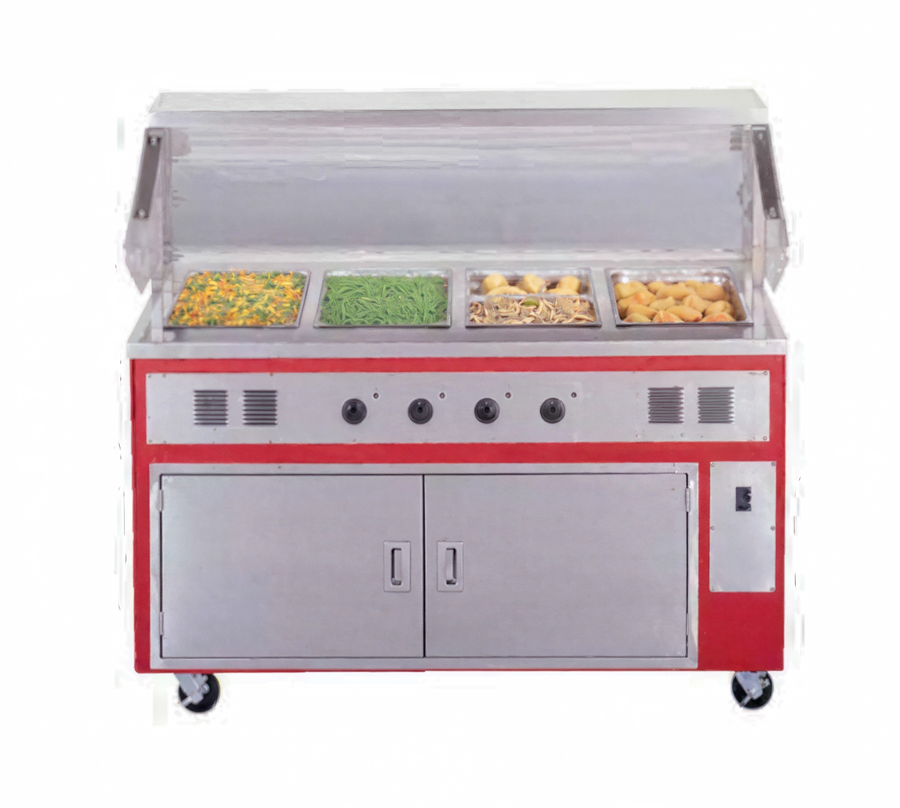

The Reflections R4-HF is a mobile electric hot food serving counter with four 12 x 20 in sealed wells. It measures 60 in wide by 30 in deep by 36 in high and features a stainless steel top, enclosed base, molded F.R.P. body, and standard manifold drains.

  • Four sealed wells: Each well has a 12 x 20 in opening and can be operated wet or dry.
  • Mobile construction: The unit includes swivel plate casters with brakes.
  • Service access: Works-in-a-drawer construction provides access to heating elements without removing the unit top.

Overall Dimensions:

60.0"W x 30.0"D x 36.0"H

Product Weight:

295.0 lb

Four sealed wells

The R4-HF has four 12 x 20 in sealed wells with die-stamped openings and raised beaded edges.

Wet or dry operation

The wells can be operated wet or dry.

Stainless steel top

The unit has a stainless steel top with fully welded square turndowns on all sides.

Molded F.R.P. body

The cabinet body is molded F.R.P. with a smooth exterior and rounded corners.

Enclosed base

The serving counter has an enclosed base.

Works-in-a-drawer access

Heating elements can be accessed without removing the unit top.

Mobile construction

Four swivel plate casters with brakes support mobile use.

Manifold drains

Manifold drains are standard.

Product type Electric hot food serving counter
Construction Mobile modular
Number of wells 4
Well size 12 in x 20 in
Well type Sealed well
Top material Stainless steel
Base design Enclosed base
Body material Molded F.R.P.
Drainage Manifold drains standard
Pan depth Up to 6 in
Electrical 208 V or 240 V, single-phase
208 V rating 4000 W, 19.2 A, NEMA 6-30P
240 V rating 5320 W, 22.2 A, NEMA 6-30P
Caster size 4 in
Overall width 60 in
Overall depth 30 in
Overall height 36 in
Product weight 295 lb

Warranty & Protection

One-year parts and labor warranty from the date of purchase.

Frequently Asked Questions

The R4-HF has four sealed wells, each with a 12 x 20 in opening.
The unit is 60 in wide, 30 in deep, and 36 in high.
Yes. It is a mobile modular counter with four swivel plate casters with brakes.
The R4-HF is available in 208 V or 240 V single-phase configurations. The listed ratings are 4000 W at 208 V and 5320 W at 240 V.
Yes. Manifold drains are listed as standard for the R4-HF.
The product carries a one-year parts and labor warranty, subject to the manufacturer's warranty terms.
