Piper Products/Servolift Eastern

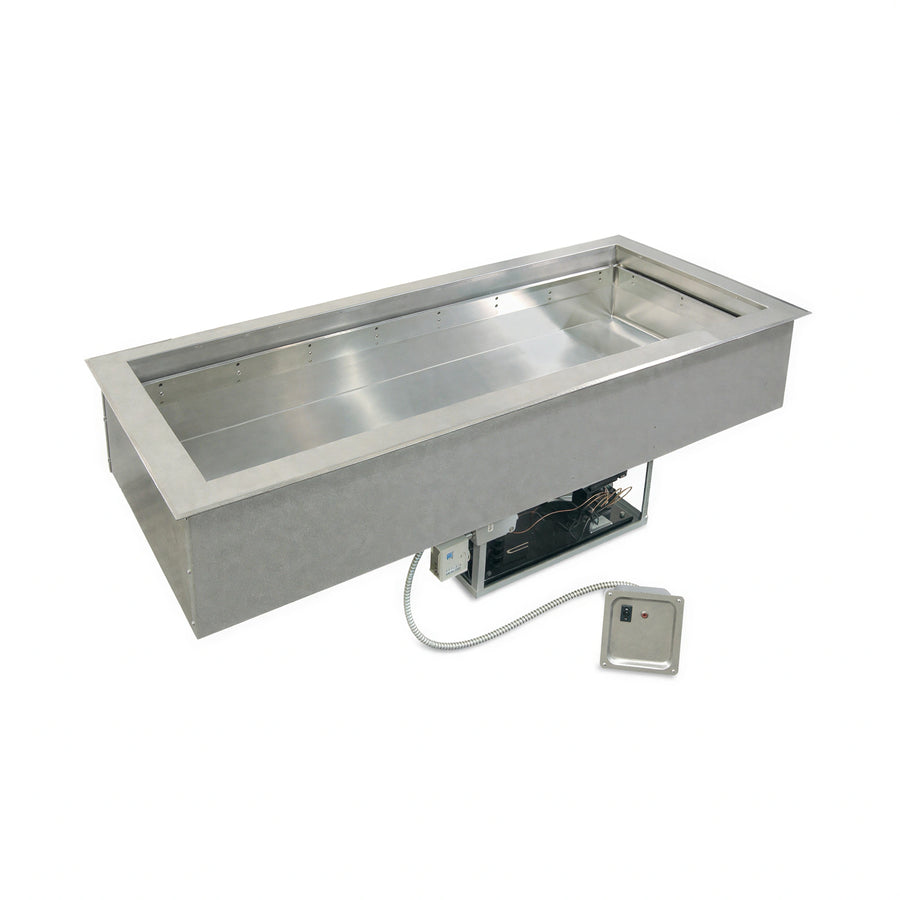

Piper Products/Servolift Eastern 6BCM-DI Drop-In Cold Food Unit, 6-Pan, Extra-Deep Well, Self-Contained Refrigeration

SKU: 6BCM-DI
$8,016.48
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Cold Wells & Serving Stations Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Piper Products/Servolift Eastern Prep & Cold Holding Refrigerated Cold Wells & Pan Rails Refrigeration & Ice Restaurant Equipment Steam Tables & Food Wells

6BCM-DI is a drop-in cold food unit with a 9-7/16-inch extra-deep well sized for six full-size 12 x 20-inch pans.

Mechanical refrigeration uses a 1/3 HP fan-cooled condensing unit with capillary tube and thermostat control. The insulated well has a 1-inch I.D. drain with shut-off valve and is enclosed in galvanized sheet housing.

  • 14-gauge stainless steel top with a feathered down edge for countertop installation.
  • 20-gauge stainless steel well with fiberglass insulation.
  • 120 V single-phase operation at 6.3 amps.

BCM units have been performance tested to hold food-like media at or below 41°F without freezing for four hours at an 86°F ambient temperature.

Overall Dimensions:

88.0"W x 28.0"D x 24.88"H

Product Weight:

310.0 lb

Extra-deep well

The well is 9-7/16 inches deep and provides six-pan capacity.

Full-size pan capacity

Accepts six full-size pans measuring 12 x 20 inches.

Mechanical refrigeration

Uses a 1/3 HP fan-cooled condensing unit with capillary tube and thermostat control.

Drop-in construction

The 14-gauge stainless steel top has a feathered down edge for countertop installation.

Insulated stainless steel well

The well is fabricated from 20-gauge stainless steel and insulated with fiberglass.

Drain and shut-off valve

A 1-inch I.D. drain is built into the bottom of the well and includes a shut-off valve.

Electrical operation

Operates at 120 V, single phase, and 6.3 amps.

Type Drop-in cold food unit
Refrigeration Mechanical, self-contained
Well depth 9-7/16 in
Pan capacity 6 pans
Pan size Full-size, 12 x 20 in
Well material 20-gauge stainless steel
Top material 14-gauge stainless steel
Housing Galvanized sheet
Insulation 1 in fiberglass around sides; 2 in thick fiberglass on bottom
Drain 1 in I.D. with shut-off valve
Refrigeration control Capillary tube and thermostat
Condensing unit 1/3 HP, fan-cooled
Refrigerant R134A
Electrical 120 V, single phase
Amperage 6.3 A
Cutout dimensions 86-5/8 x 26-1/16 in
Overall dimensions 88 W x 28 D x 24.88 H in
Shipping dimensions 88 W x 28 D x 25 H in
Weight 310 lb
Standards listing NSF/ANSI Standard 7

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

One-year limited warranty covering parts and labor.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The unit holds six full-size pans measuring 12 x 20 inches.
It uses self-contained mechanical refrigeration with a 1/3 HP fan-cooled condensing unit, capillary tube, and thermostat control.
The unit operates at 120 V, single phase, and 6.3 amps.
The product measures 88 inches wide x 28 inches deep x 24.88 inches high and weighs 310 pounds.
Yes. It has a 1-inch I.D. drain with a shut-off valve.
Piper provides a one-year limited warranty covering parts and labor, subject to manufacturer conditions.
