Piper Products/Servolift Eastern 4-FTDI 4-Well Drop-In Frost Top, 59-5/8"W x 25-5/8"D, Self-Contained Refrigeration

SKU: 4-FTDI
$6,224.98

Want to speak to an expert?

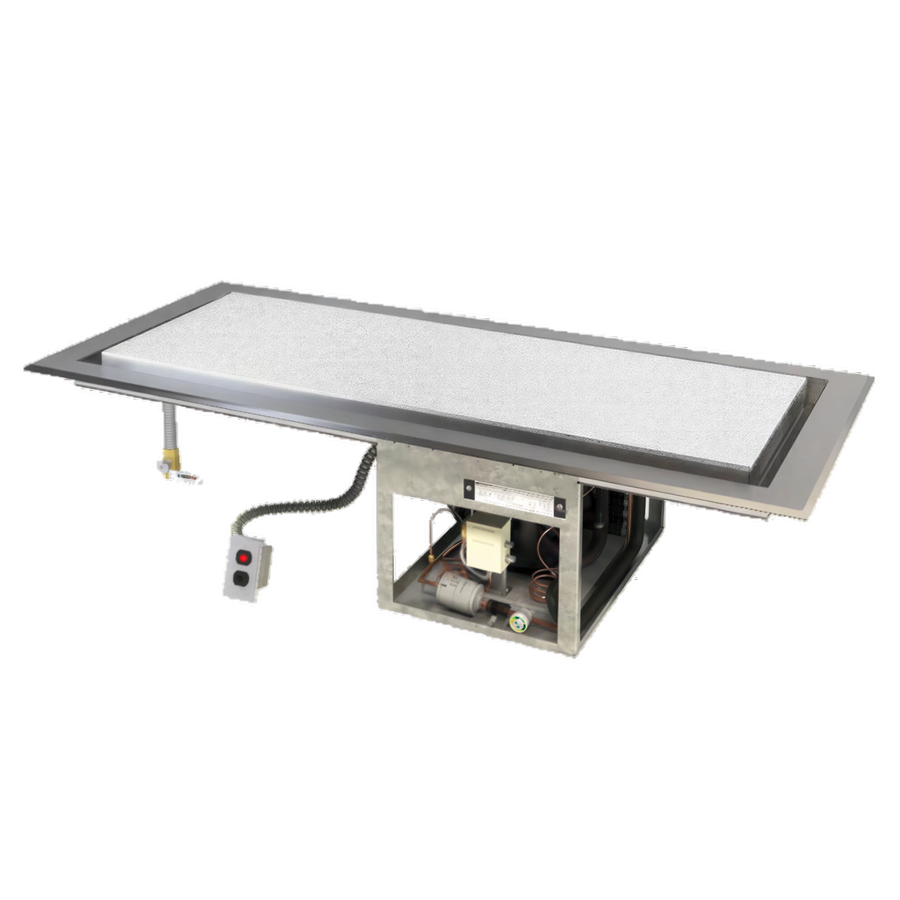

The Piper Products/Servolift Eastern 4-FTDI is a four-well drop-in frost top with self-contained refrigeration, a raised one-piece cold plate, and a stainless steel top.

A drip trough runs along all sides of the cold plate, with a 3/4-inch drain built into the bottom of the well. An on/off switch and light are supplied in a remote-mounted control box connected via flexible conduit.

The unit measures 59-5/8 inches wide by 25-5/8 inches deep overall.

Overall Dimensions:

59.63"W x 25.63"D

Product Weight:

275.0 lb

Four-well format

Provides four wells in a drop-in frost top configuration.

Raised cold plate

Uses a raised, one-piece 14-gauge cold plate.

Stainless steel top

The top is stainless steel with a feathered down edge on all sides.

Drip trough and drains

The cold plate has a drip trough on all sides; a 3/4-inch drain is built into the bottom of the well.

Self-contained refrigeration

Includes a self-contained refrigeration system with a 1/3 HP fan-cooled condensing unit.

Remote controls

An on/off switch and light are supplied in a remote-mounted control box connected via flexible conduit.

Product type Drop-in frost top
Well count 4 wells
Refrigeration Self-contained
Top material Stainless steel
Cold plate Raised one-piece 14-gauge cold plate
Top edge Feathered down edge on all sides
Drip trough On all sides
Well drain 3/4 in drain built into the bottom of the well
Trough drain 1/2 in drain and valve on one end of the trough
Compressor 1/3 HP
Condensing unit Fan cooled
Refrigerant 134A
Voltage 120 V
Phase Single-phase
Current 6.3 A
Controls On/off switch and light in a remote-mounted control box

Warranty & Protection

12-month limited warranty covering parts and labor.

Frequently Asked Questions

The 4-FTDI has four wells.
The overall dimensions are 59-5/8 inches wide by 25-5/8 inches deep. A product height is not provided.
Yes. The 4-FTDI uses self-contained refrigeration.
The cutsheet specifies 120 volts, single-phase, and 6.3 amps.
An on/off switch and light are supplied in a remote-mounted control box connected via flexible conduit.
