Perlick Corporation

Perlick Top Shelf TSF Series 6-Inch Stainless Steel Pass-Thru Station Soda Gun Filler Section

SKU: TSS6SGB
$869.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment New Arrivals Perlick Corporation Restaurant Equipment Underbar Equipment

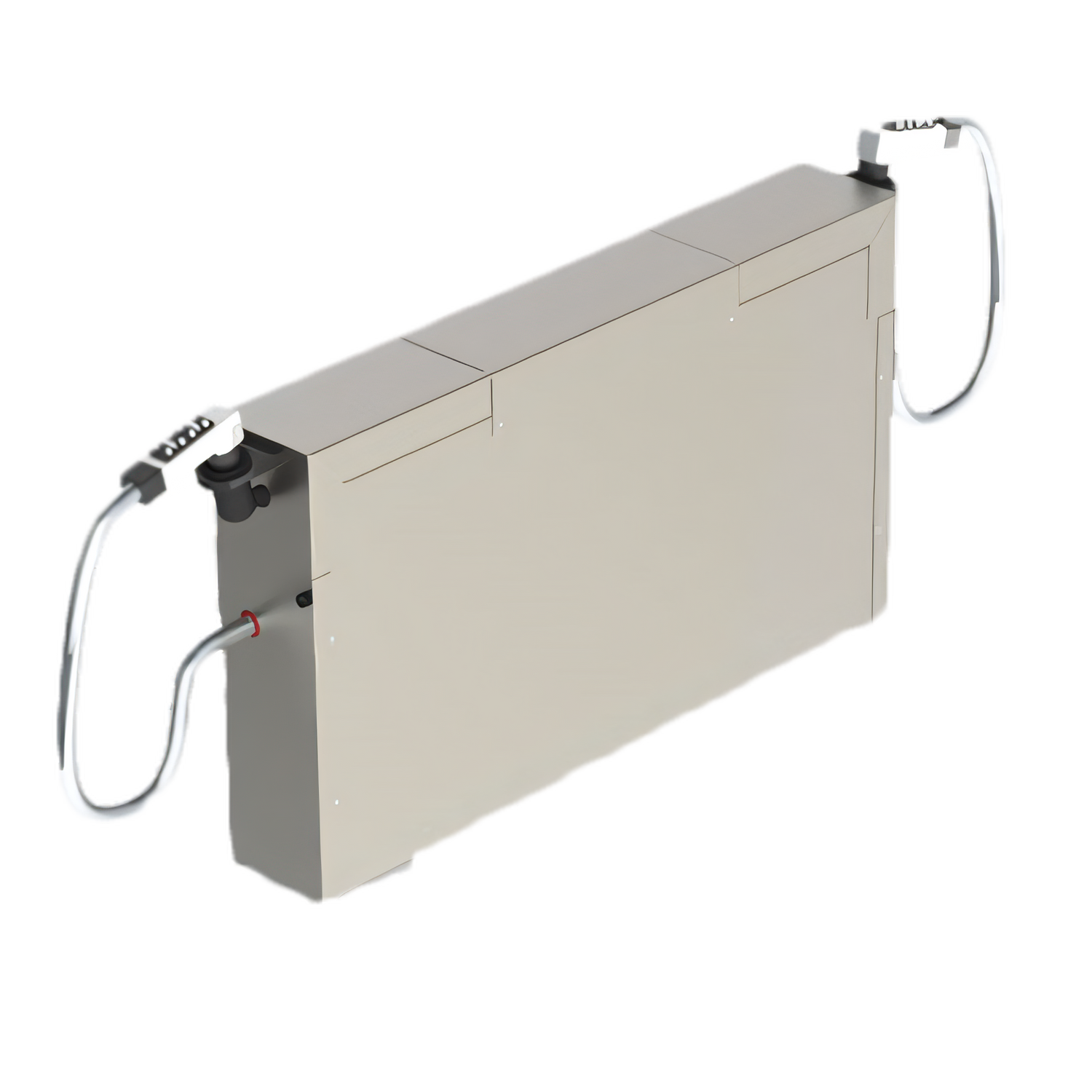

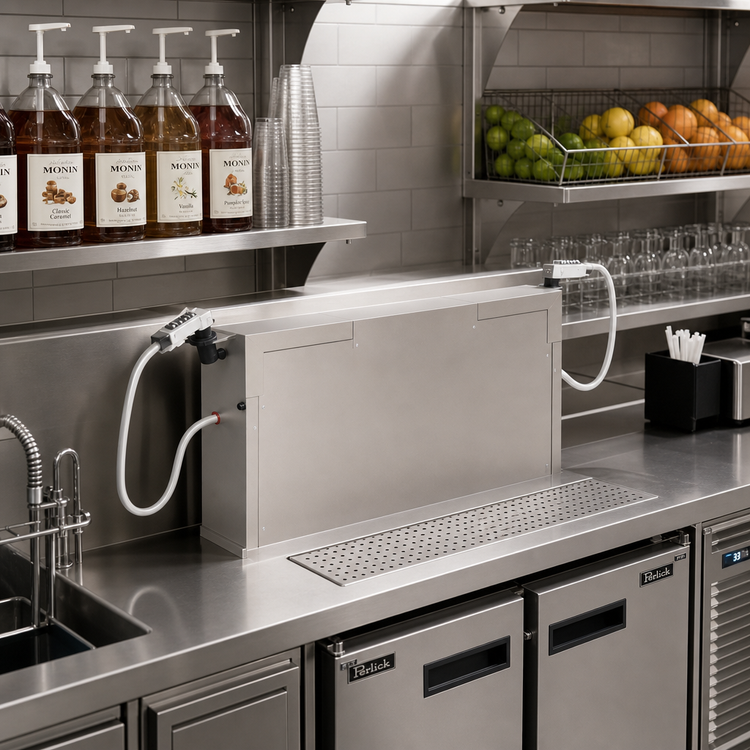

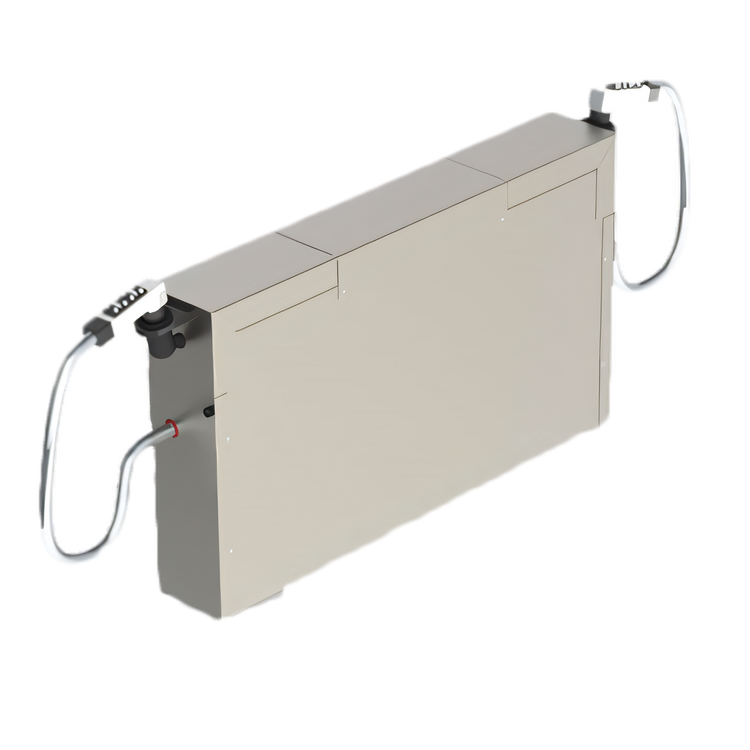

Perlick Top Shelf TSF Series 6-Inch Stainless Steel Pass-Thru Station Soda Gun Filler Section

Universal design accepts Wunder-Bar and Schroeder America 8-14 product manifolds

This compact stainless steel filler section keeps soda lines concealed while giving bartenders and service staff fast, tool-free access when they need it.

  • Compact 6-inch-wide filler section for underbar pass-thru station layouts.
  • All stainless steel construction for durability in demanding beverage service.
  • Universal design accepts Wunder-Bar and Schroeder America 8-14 product soda manifolds and drip cups.
  • Tool-less top cover removal and concealed line routing simplify service and improve presentation.
  • No legs; unit must be supported by adjacent equipment and can work with accessory speed rails.
  • Housing only; soda manifold, hose gun, and drip cup are sold separately.

Overall Dimensions:

6.0"W x 38.0"D x 22.0"H

Product Weight:

18.0 lb

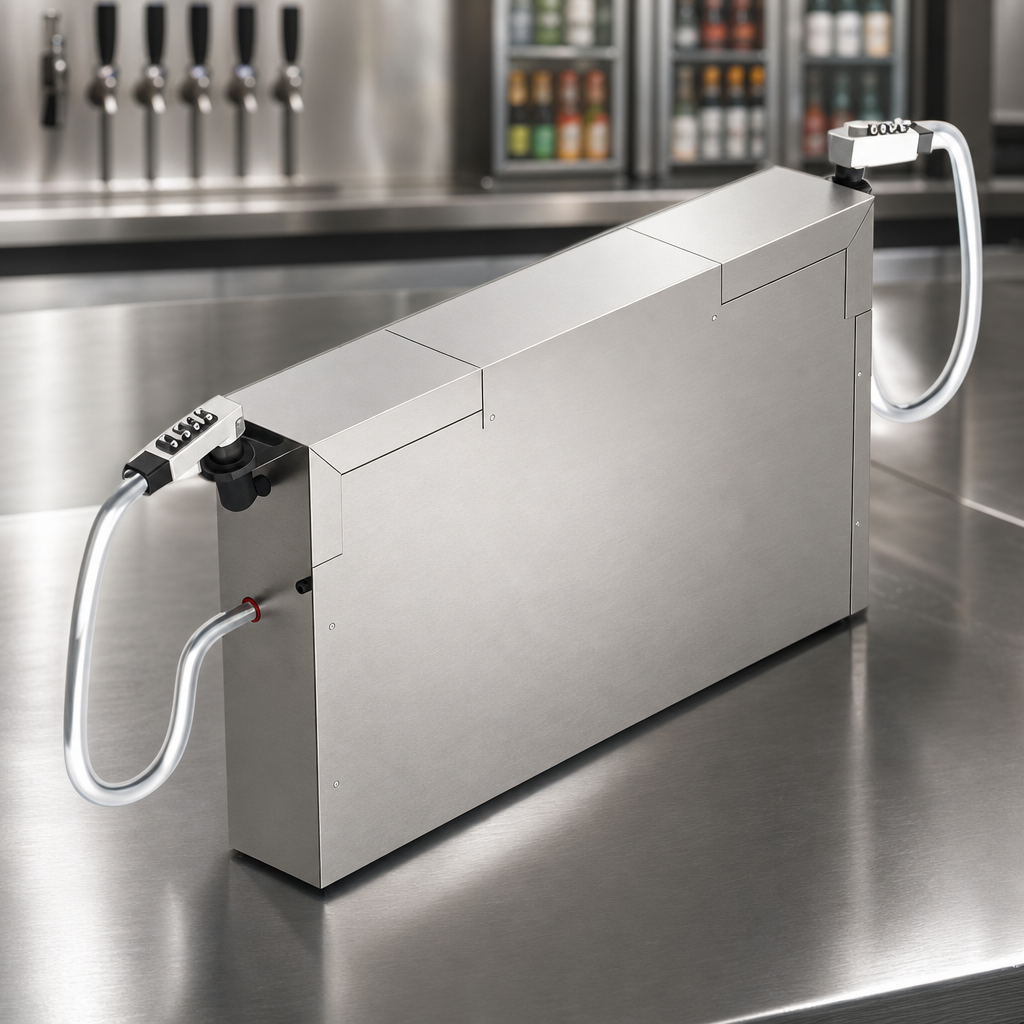

All Stainless Steel Construction

Durable stainless build designed for long service life in busy beverage environments.

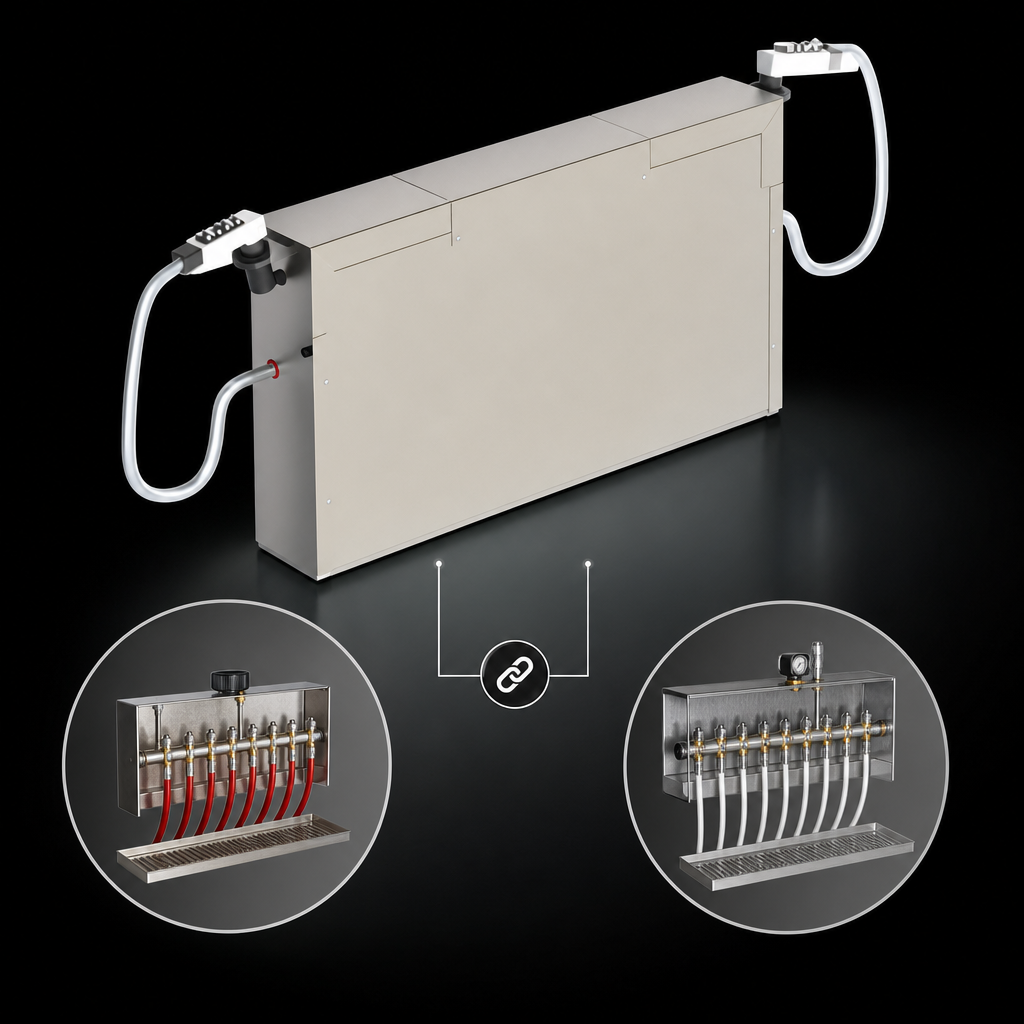

Universal Manifold Compatibility

Accepts Wunder-Bar and Schroeder America 8-14 product soda manifolds and drip cups.

Concealed Soda Lines

Interior-mounted manifold keeps soda lines out of view for a cleaner station appearance.

Tool-Less Top Cover

Top cover removes without tools for quick access during service and maintenance.

Integrated Drip Cup Mounting

Allows concealed routing of the drip tube to the waste drain.

Accessory Speed Rail Support

Accessory speed rails can bypass or terminate on the soda gun filler section.

Adjacent Equipment Mounting

No legs are provided; the unit requires support from adjacent equipment.

Housing Only

Soda manifold, hose gun, and drip cup are not included and must be purchased separately.

Type Soda Gun Filler Section
Style Pass-Thru Station
Material Stainless Steel
Shipping Width 6 Inches
Shipping Depth 38 Inches
Shipping Height 22 Inches
Shipping Weight 18 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It measures 6 inches wide, 38 inches deep, and 22 inches high.
It accepts universal Wunder-Bar and Schroeder America 8-14 product soda manifolds and drip cups.
No. The soda manifold, hose gun, and drip cup are not included.
The top cover removes without tools, providing easy access to product line connections.
No. Legs are not applicable, and the unit must be supported by adjacent equipment.
