Top Shelf TSF Series Modular Full-Depth Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate, 30-Inch Wide

Approx. 85-lb. Ice Capacity, 6-Inch Backsplash, Stainless Steel Front and Sides

A modular, full-depth ice station that keeps cocktails moving with hidden cold-plate cooling and durable stainless construction.

  • 30-inch wide full-depth underbar ice bin/cocktail unit for modular bar layouts
  • Concealed 10-circuit aluminum cold plate chills beverages using the ice in the bin
  • Approximately 85-lb. ice capacity supports busy cocktail service
  • 6-inch backsplash with 1-inch top return helps contain splashes
  • Stainless steel front, sides, and bin with galvanized back and bottom for durability
  • 1/2-inch NPS male drain and adjustable stainless steel legs for straightforward installation

Overall Dimensions:

30.0"W x 24.0"D x 36.5"H

Product Weight:

150.0 lb

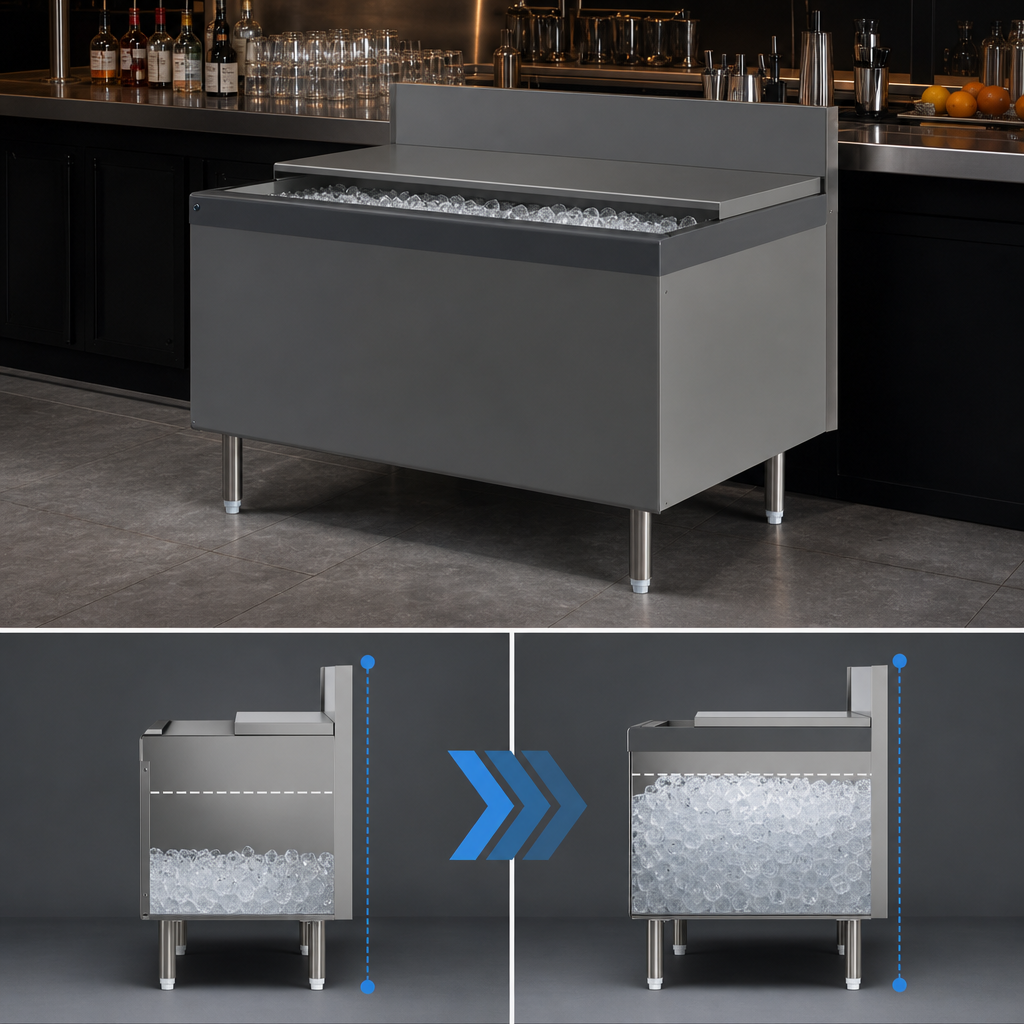

Modular Full-Depth Design

TSF series full-depth construction increases ice chest capacity and usable work surface compared with standard depth units.

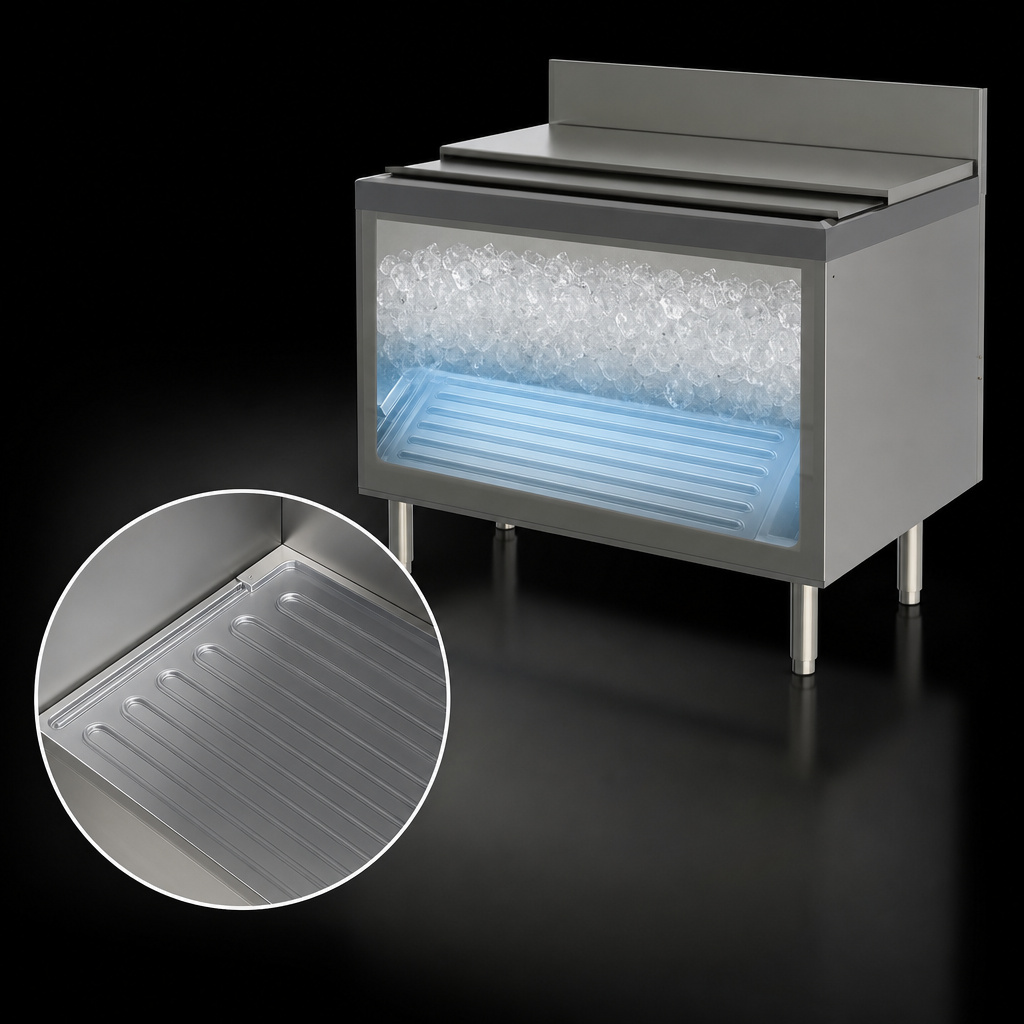

Concealed 10-Circuit Cold Plate

An aluminum cold plate concealed under the bin liner chills beverages efficiently using the ice in the chest.

Approximate 85-Lb. Ice Capacity

Provides ample ice storage for high-volume cocktail and beverage service.

6-Inch Backsplash

Helps contain splashes and includes a 1-inch return at the top.

10-3/4-Inch Deep Stainless Steel Bin

Durable, sanitary ice bin depth designed for bar service.

Stainless Steel Front and Sides

Corrosion-resistant exterior surfaces built for commercial use.

Galvanized Steel Back and Bottom

Rugged supporting construction for added durability.

ABS Plastic Top Ledge

Provides a durable top ledge above the bin.

Tubular Stainless Steel Legs

1-5/8-inch tubular stainless steel legs with 1-inch adjustable thermoplastic feet help with leveling.

Rear Legs Set Back

Rear legs are positioned away from the die wall to allow room for mechanicals and beverage line routing.

1/2-Inch NPS Male Drain

Allows the unit to connect to drainage.

Type Ice Bin/Cocktail Unit
Style Full Depth
Installation Type Freestanding
Capacity 85 Pounds
Backsplash 6 Inches
Bin Depth 10-3/4 Inches
Cold Plate 10-Circuit Aluminum
Material Stainless Steel
Drain Connection Required
Drain Connection Size 1/2 Inch NPS Male
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 150 Pounds

Documents

PDF Cutsheet PDF Download PDF Ts design guide PDF Download

Frequently Asked Questions

Approximately 85 pounds of ice.
Yes. It includes a concealed 10-circuit aluminum cold plate under the bin liner.
The unit measures 30 inches wide by 24 inches deep by 36.5 inches high.
It has a stainless steel front, sides, and ice bin, with a galvanized steel back and bottom.
It uses a 1/2-inch NPS male drain connection.
