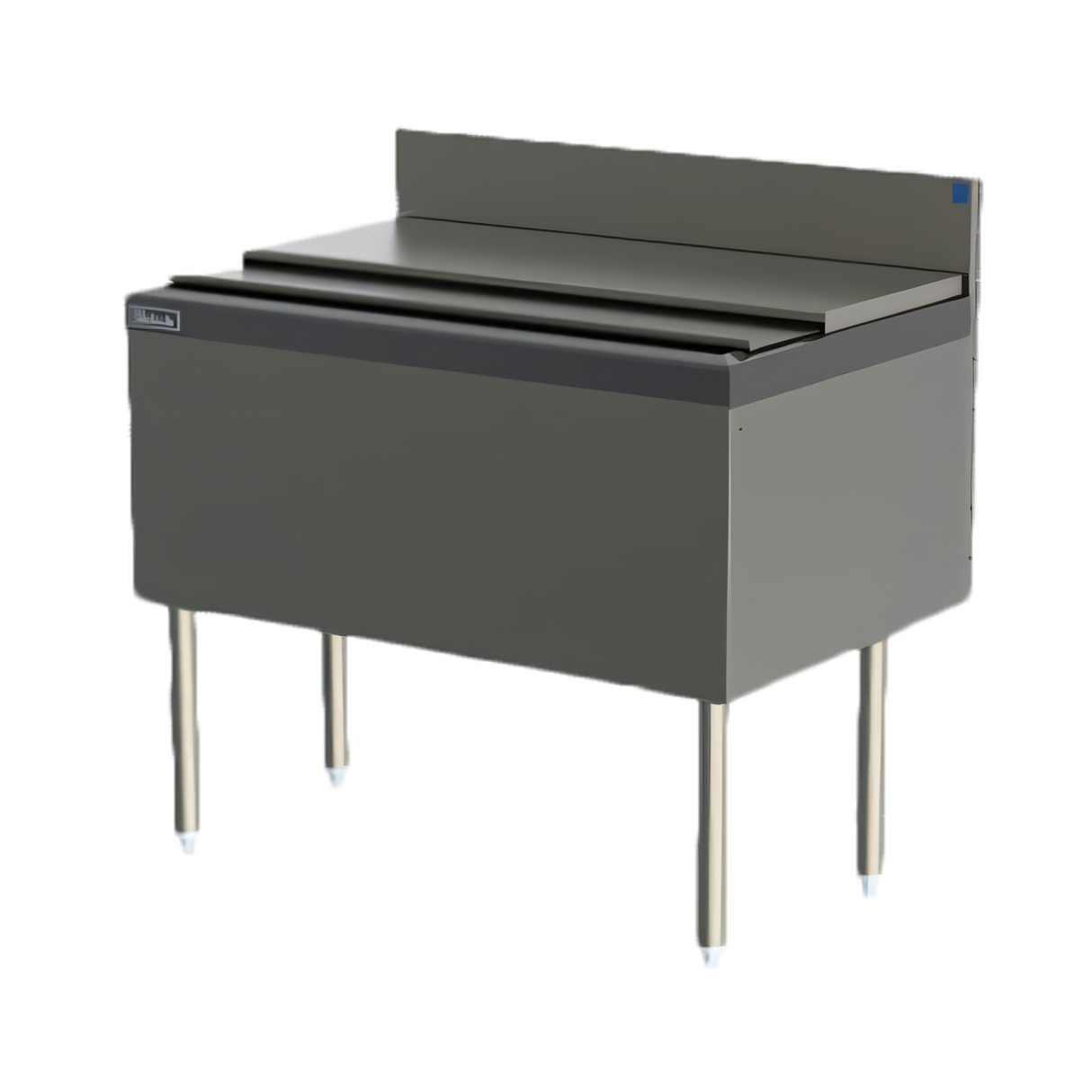

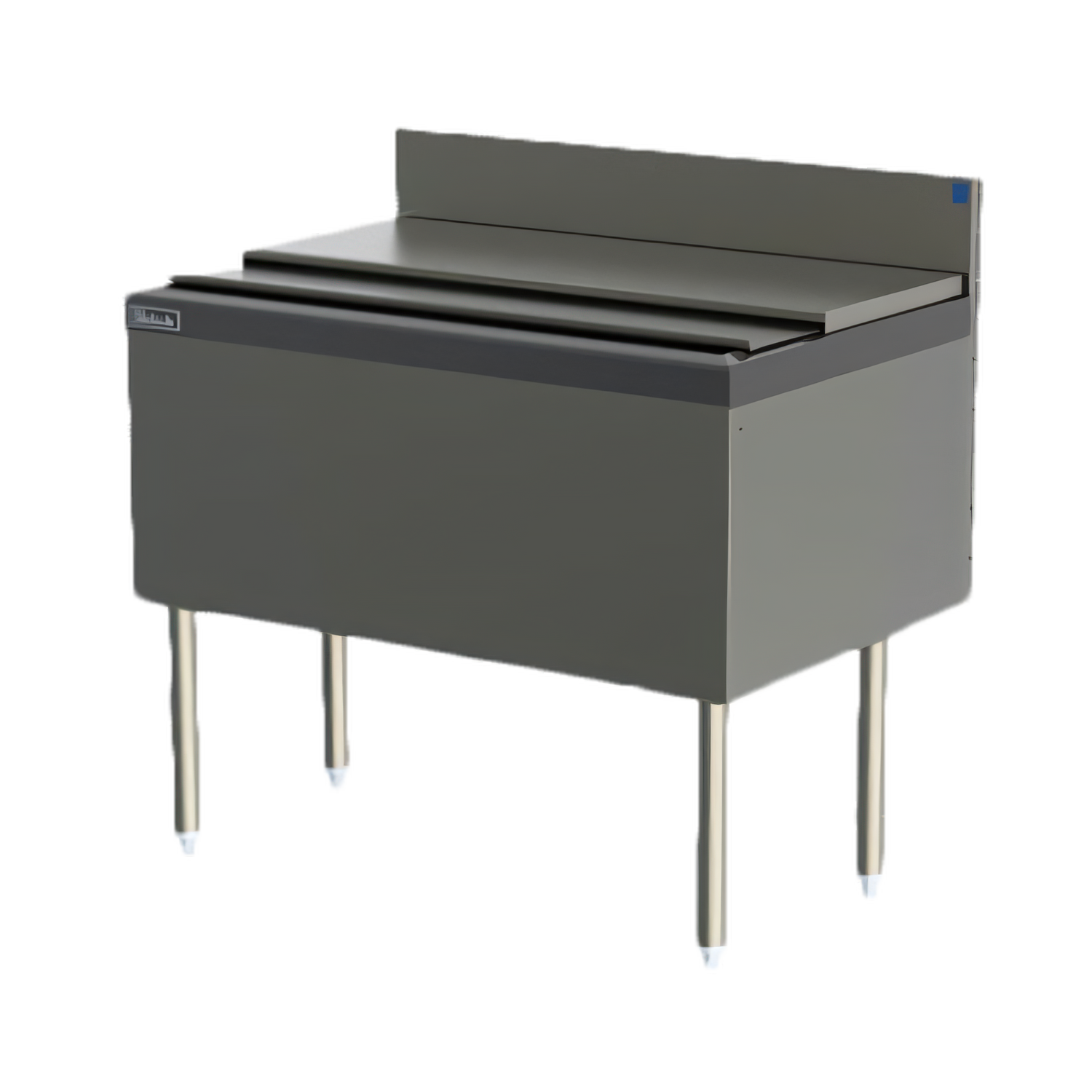

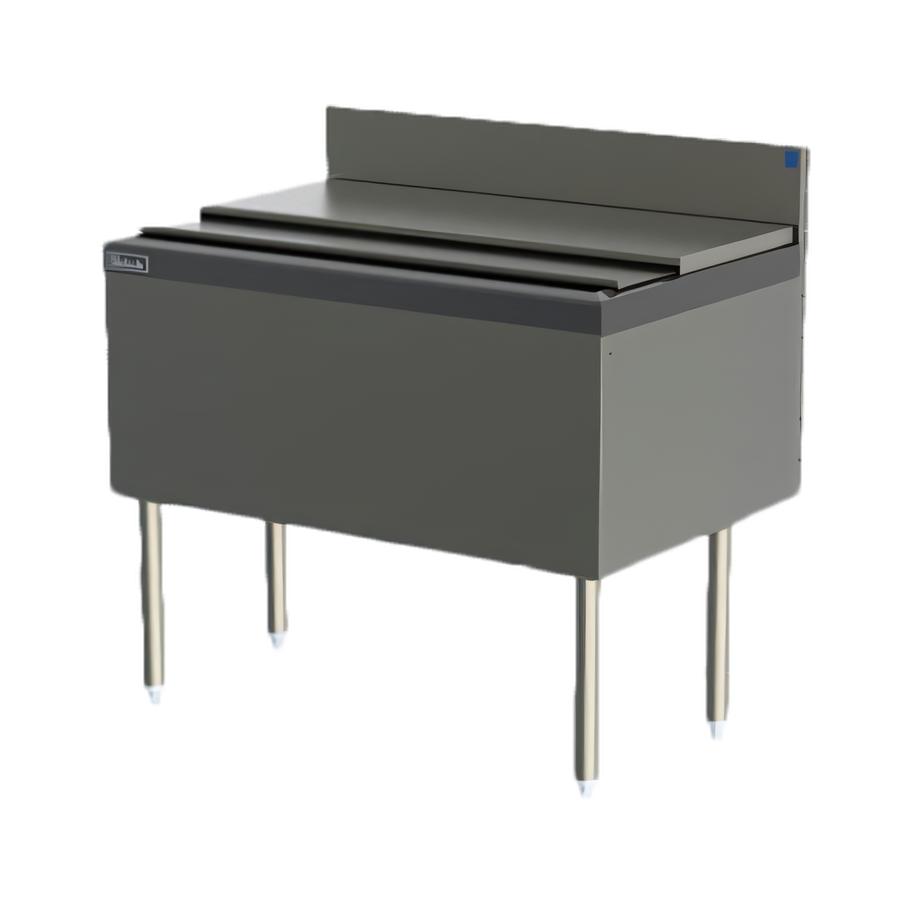

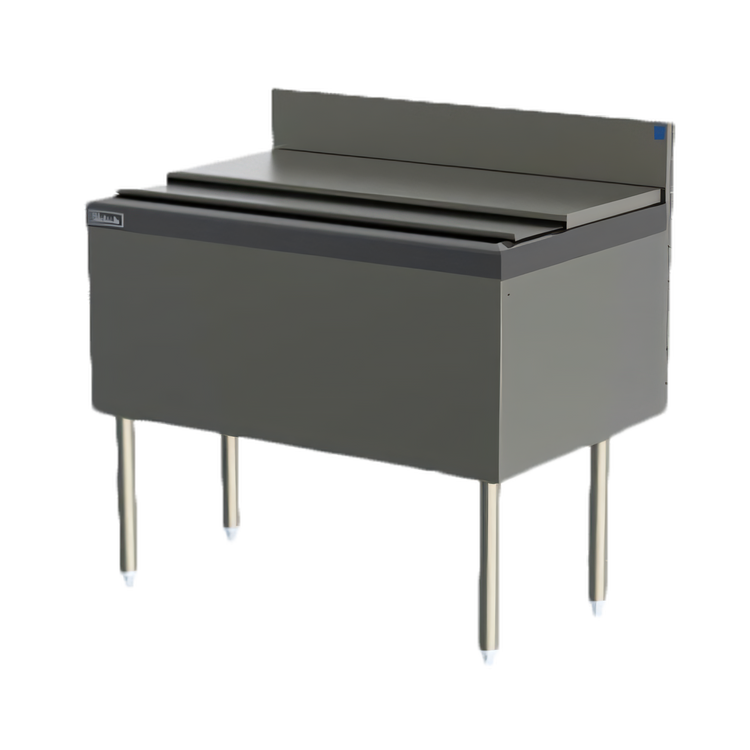

Perlick Top Shelf TSF Series Modular Full-Depth Underbar Ice Bin/Cocktail Unit, 24" W x 24" D, 65 lb Capacity

6" Backsplash, Stainless Steel Bin, ABS Top Ledge

A modular full-depth ice bin/cocktail unit that gives bartenders more ice storage in a compact 24-inch footprint.

  • Full-depth TSF design increases usable ice storage and work surface compared with standard-depth units.
  • 24" x 24" modular footprint fits compact underbar layouts.
  • Approximate 65-lb. ice capacity keeps service ice close at hand.
  • 6" backsplash with a 1" top return helps contain splashes and spills.
  • Stainless steel front, sides, and bin pair with galvanized steel back and bottom for durable service use.
  • 1/2" NPS male drain and adjustable thermoplastic feet support easier installation and leveling.

Overall Dimensions:

24.0"W x 24.0"D x 36.5"H

Product Weight:

70.0 lb

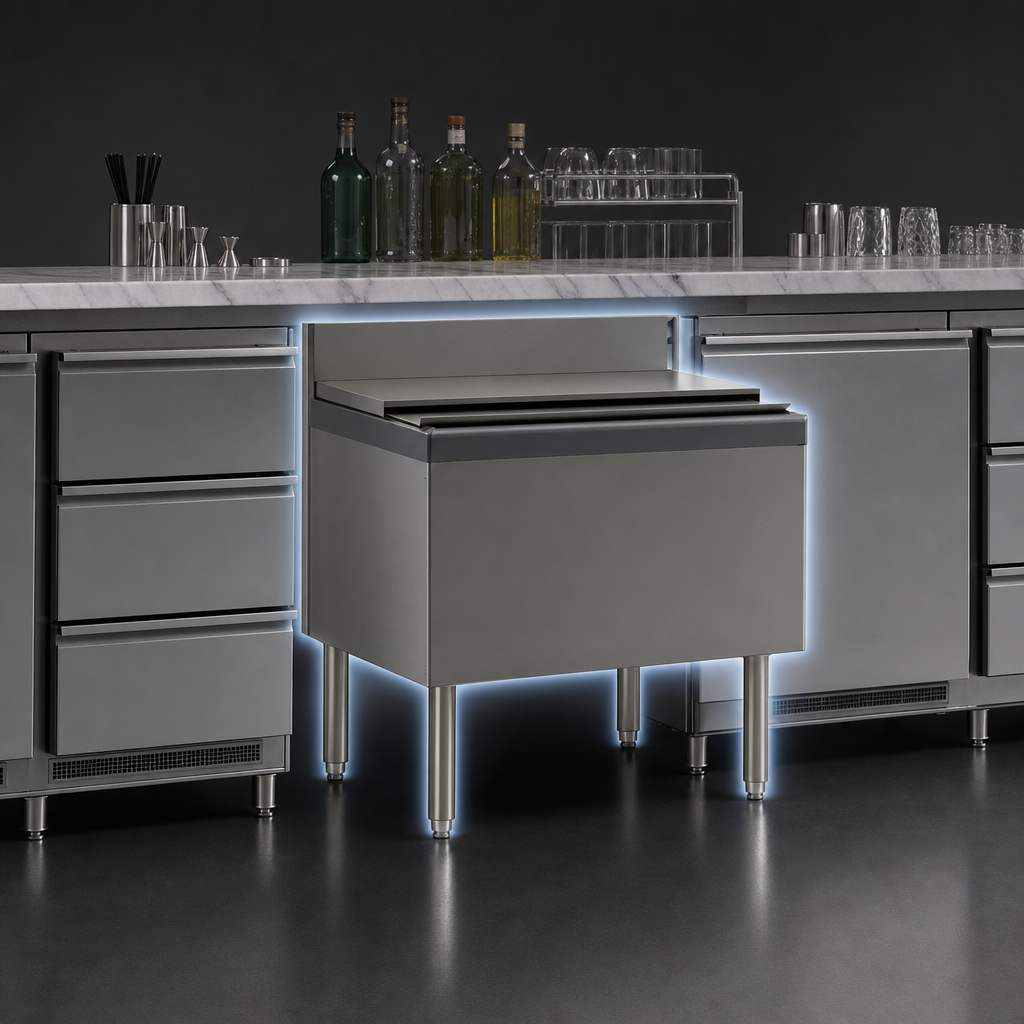

Modular Underbar Design

Built as part of the Top Shelf modular underbar line for flexible bar layouts.

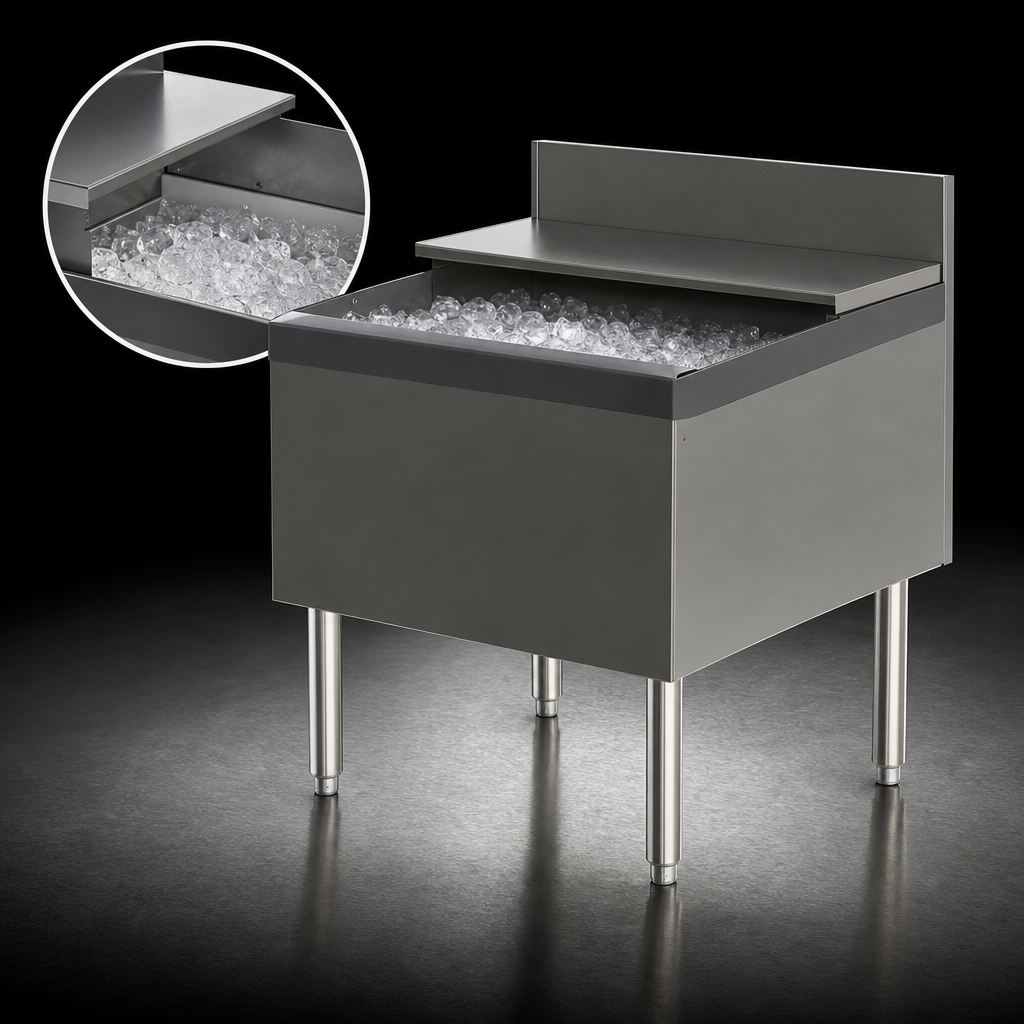

Full-Depth TSF Configuration

The deeper TSF profile provides more usable ice chest volume and work surface than standard-depth units.

Ice Capacity

Approximate 65-lb. ice capacity keeps ice within easy reach during service.

Backsplash

6" high backsplash with a 1" return at the top helps reduce splash and contain spills.

Construction

Stainless steel front, sides, and ice bin with galvanized steel back and bottom.

Drain Connection

Includes a 1/2" NPS male drain for plumbing connection.

Support Legs

1-5/8" tubular stainless steel legs with 1" adjustable thermoplastic feet for leveling.

ABS Top Ledge

ABS plastic top ledge adds a durable surface around the bin opening.

Type Underbar Ice Bin/Cocktail Unit
Style TSF Series
Installation Type Freestanding
Capacity 65 Pounds
Material Stainless Steel
Drain Connection Size 1/2 Inch NPS Male
Drain Connection Required
Shipping Width 24 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 70 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Ts design guide PDF Download

Frequently Asked Questions

No. This model is listed without a cold plate.
It has an approximate ice capacity of 65 lb.
The unit measures 24" W x 24" D x 36.5" H.
It uses a 1/2" NPS male drain connection.
The unit has a stainless steel ice bin, front, and sides, with a galvanized steel back and bottom.
