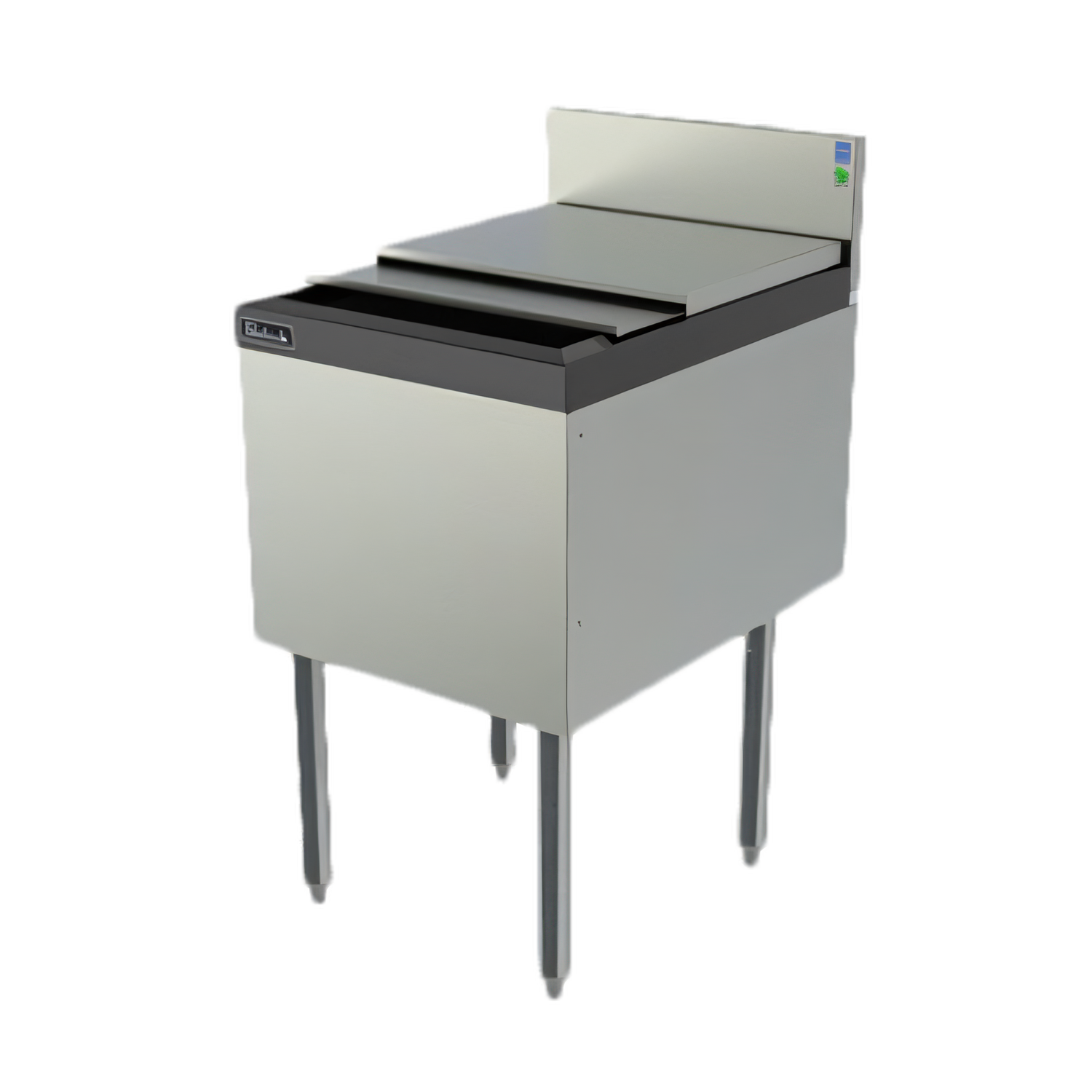

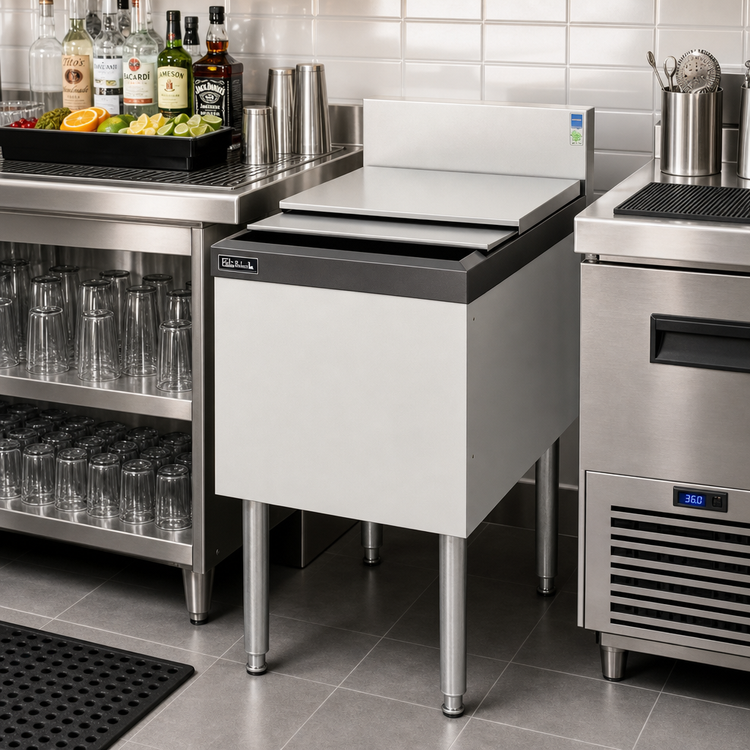

Top Shelf TSF Series Full-Depth Freestanding Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate, 18 Inch W x 24 Inch D
Top Shelf TSF Series Full-Depth Freestanding Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate, 18 Inch W x 24 Inch D
Approx. 45 lb. ice capacity; 6 Inch backsplash; stainless steel and galvanized steel construction
This full-depth underbar ice bin keeps cocktail service moving with a concealed 10-circuit cold plate, durable mixed-metal construction, and easy-access ice storage.
- Full-depth TSF modular design provides a 24-inch deep underbar footprint.
- Approximate 45-lb. ice capacity supports busy bar and cocktail service.
- Concealed 10-circuit aluminum cold plate chills beverages using the ice in the bin.
- 6-inch backsplash with 1-inch top return helps contain splashes.
- Stainless steel front, sides, and ice bin with galvanized steel back and bottom.
- Includes a 1/2-inch NPS male drain and tubular stainless steel legs with adjustable feet.
- ABS plastic top ledge and 10-3/4-inch deep bin add durability and usability.
Overall Dimensions:
18.0"W x 24.0"D x 36.5"HProduct Weight:

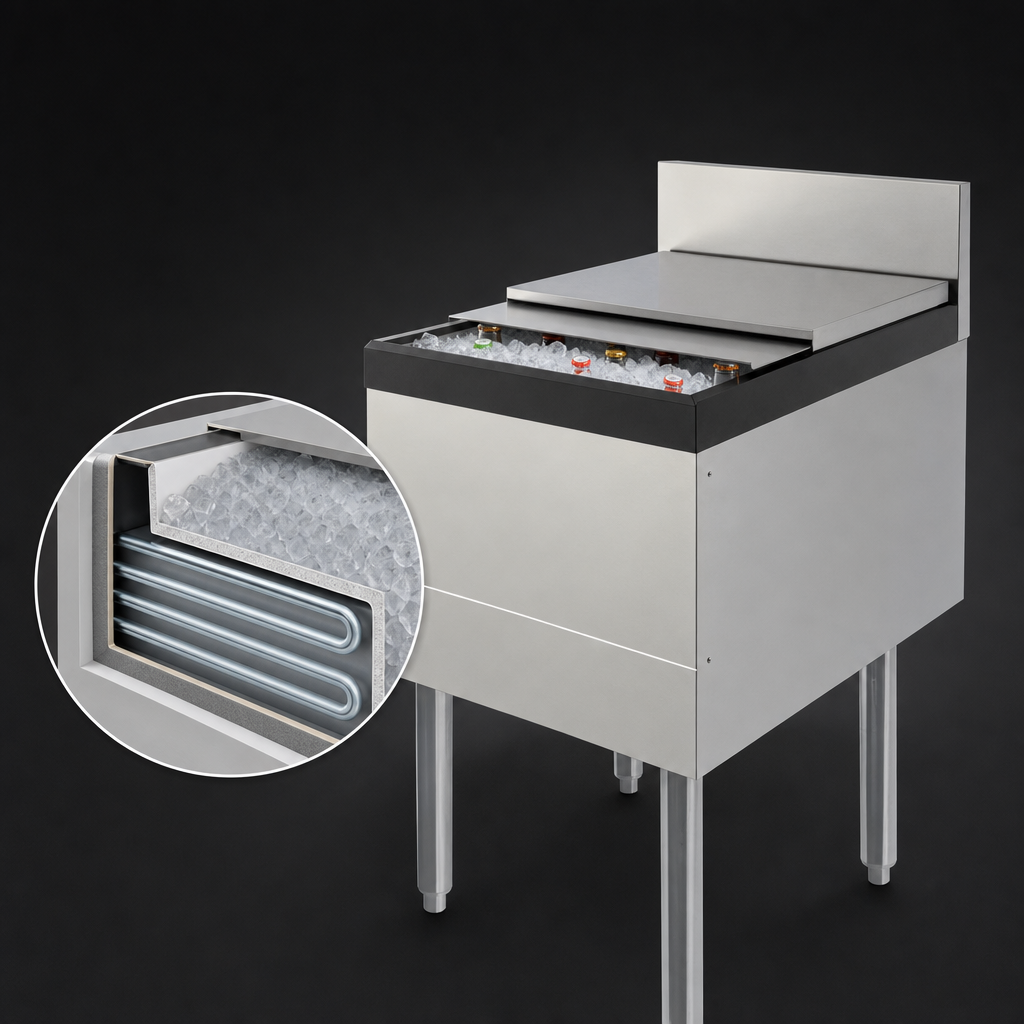

130.0 lbConcealed 10-Circuit Cold Plate
Aluminum cold plate is concealed under the bin liner to chill beverages efficiently using the ice in the chest.

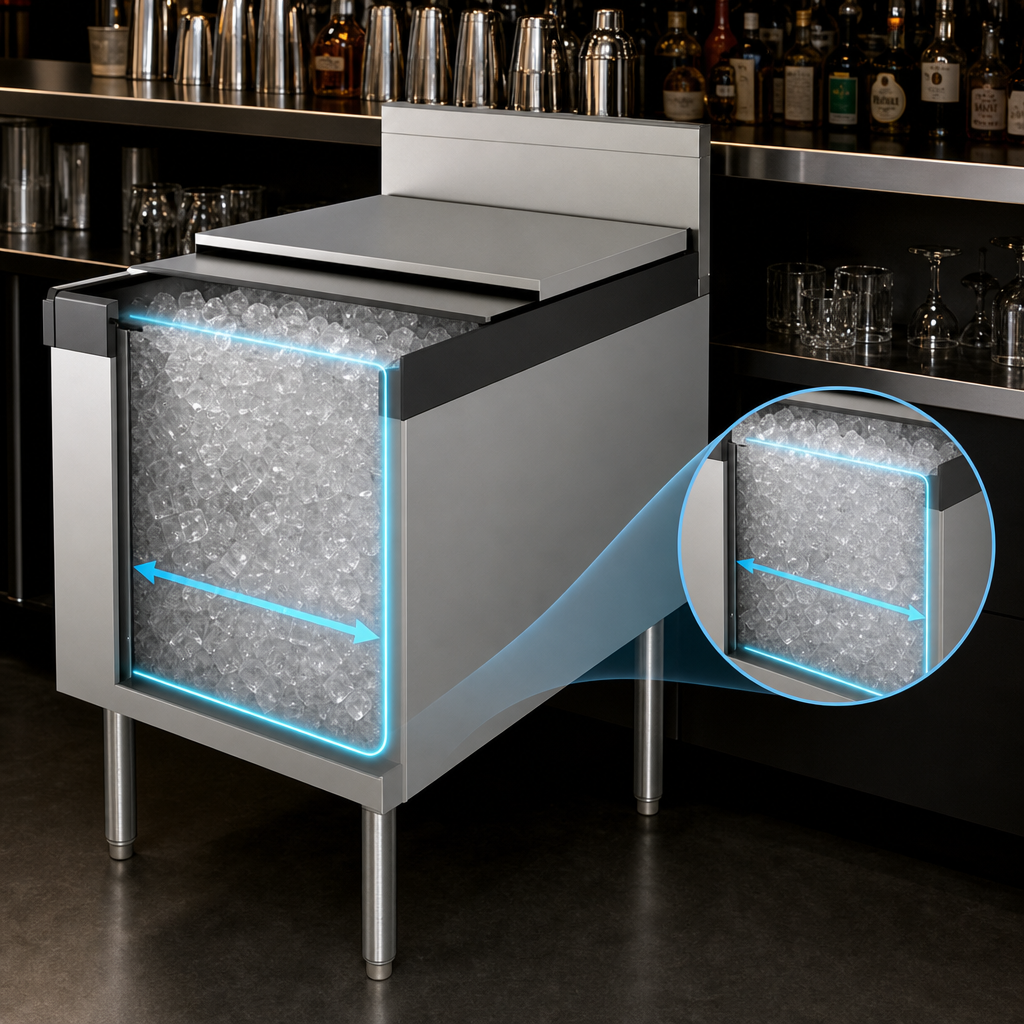

Full-Depth TSF Design
24-inch depth increases ice capacity and usable work surface compared with standard-depth underbar units.
Approx. 45-Lb. Ice Capacity
Provides generous ice storage for cocktail service and bar prep.
6-Inch Backsplash With 1-Inch Return
Helps contain spills and keep the underbar work area cleaner.
Stainless Steel and Galvanized Steel Construction
Stainless steel front, sides, and ice bin pair with a galvanized steel back and bottom for durability.
10-3/4-Inch Deep Ice Bin
Offers a deep ice storage area for easy access during service.
1/2-Inch NPS Male Drain
Built-in drain connection supports convenient drainage.
Tubular Stainless Steel Legs
1-5/8-inch tubular stainless steel legs with 1-inch adjustable thermoplastic feet help level the unit.
ABS Plastic Top Ledge
Durable top ledge provides a clean finished edge and added strength.
