Perlick Corporation

Perlick Top Shelf TSD48IC10 48-Inch Modular Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate

SKU: TSD48IC10
$3,449.60
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Beverage Equipment Equipment Ice Machines & Beverage Equipment New Arrivals Perlick Corporation Restaurant Equipment Underbar Equipment

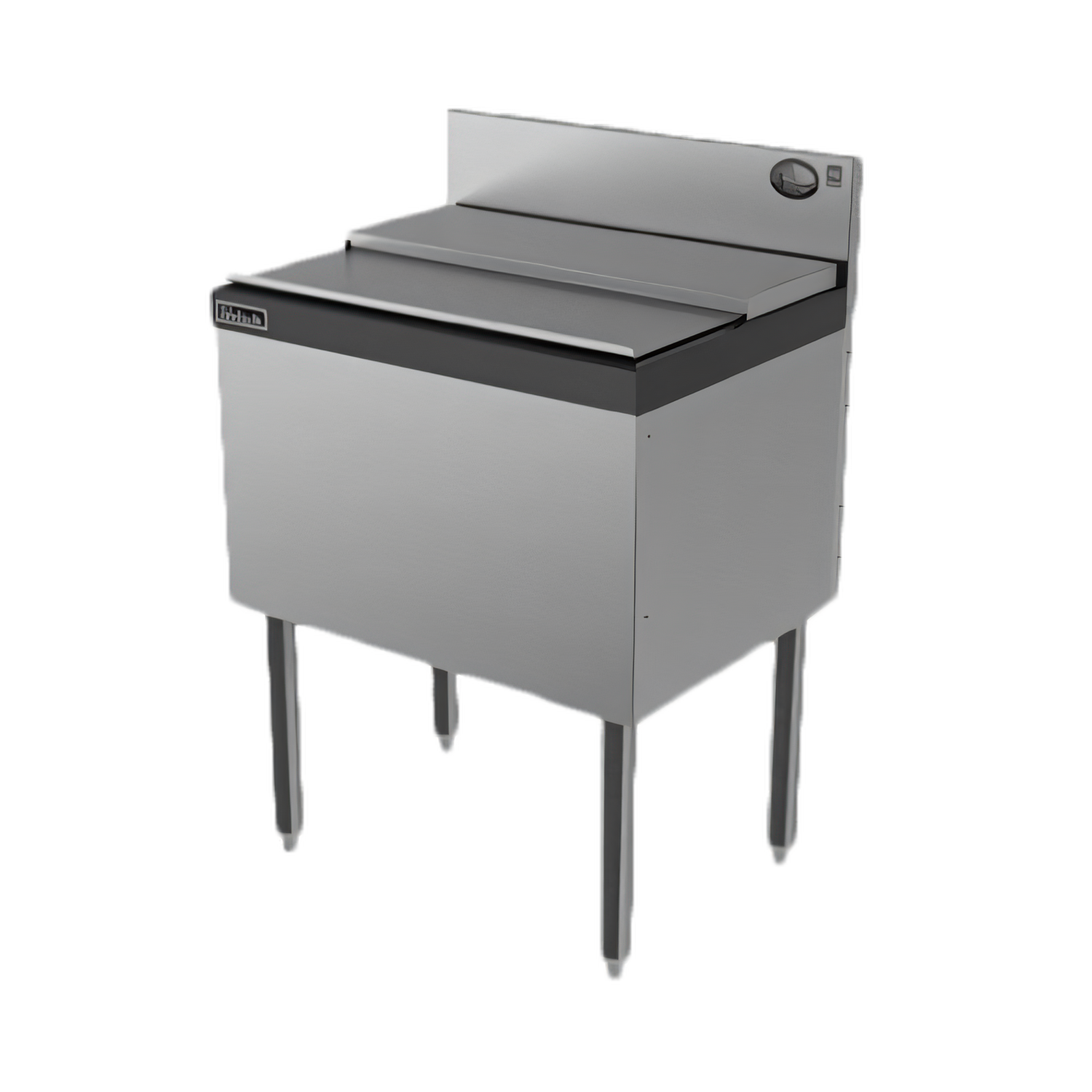

Perlick Top Shelf TSD48IC10 48-Inch Modular Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate

24-Inch Deep, Approx. 115-Lb. Ice Capacity, Stainless Steel and Galvanized Steel Construction

Built for busy bars, this modular underbar ice chest uses a concealed cold plate and generous ice storage to keep cocktails moving.

  • 48-inch modular underbar ice bin/cocktail unit built for bar service.
  • Concealed 10-circuit aluminum cold plate helps rapidly chill beverages.
  • Approx. 115-pound ice capacity supports high-volume cocktail stations.
  • Stainless steel front, sides and ice bin provide durable, easy-clean construction.
  • 6-inch backsplash with 1-inch return and adjustable legs help simplify installation and cleanup.
  • Accessories are available separately; covers are not included.

Overall Dimensions:

48.0"W x 24.0"D x 36.5"H

Product Weight:

170.0 lb

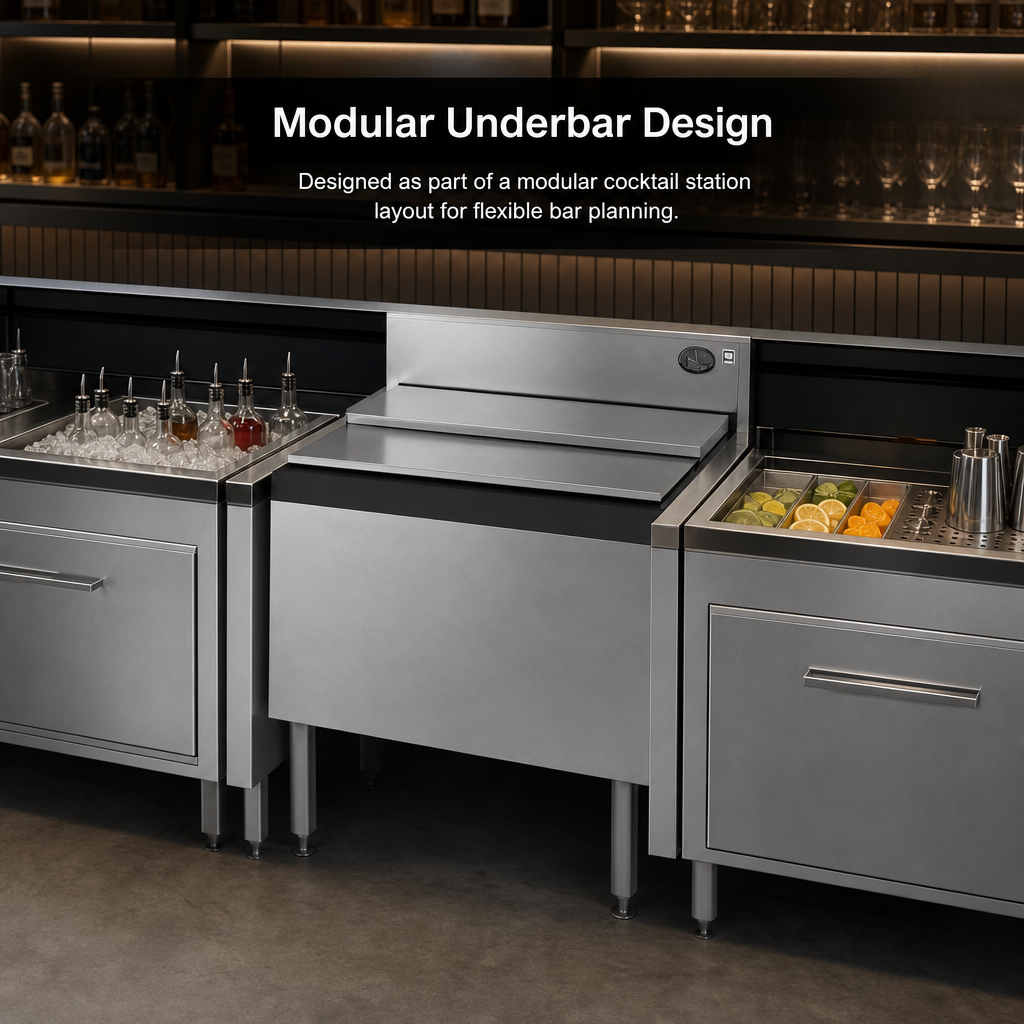

Modular Underbar Design

Designed as part of a modular cocktail station layout for flexible bar planning.

Modular Underbar Design

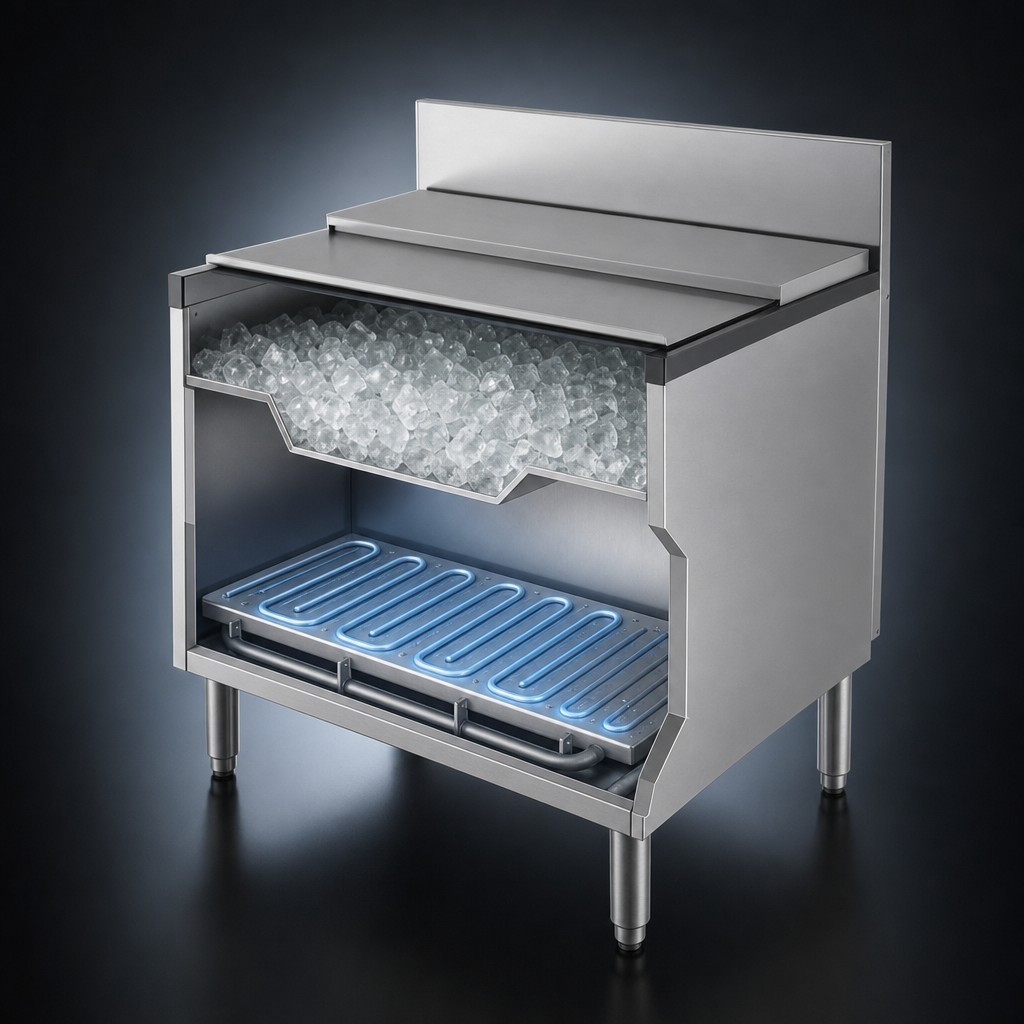

Concealed 10-Circuit Cold Plate

Aluminum cold plate is hidden under the bin liner to help chill beverages efficiently using ice.

Concealed 10-Circuit Cold Plate

Fully Insulated Cabinet

Foamed-in-place polyurethane insulation helps reduce ice melt and improve cold retention.

115-Lb. Ice Capacity

Holds approximately 115 pounds of ice for busy service periods.

10-3/4-Inch Deep Stainless Steel Ice Bin

Deep stainless steel bin provides durable, easy-to-clean ice storage.

6-Inch Backsplash with 1-Inch Return

Helps contain splash and protect the wall behind the unit.

Durable Mixed-Material Build

Stainless steel front and sides with galvanized steel back and bottom, plus an ABS plastic top ledge.

Adjustable Stainless Steel Legs

1-5/8-inch tubular stainless steel legs with 1-inch adjustable thermoplastic feet simplify leveling.

Accessory-Ready Rear Deck

Built-in rear deck adds useful space and the design supports separately ordered bar accessories.

Type Ice Bin/Cocktail Unit
Style Deck Style
Installation Type Freestanding
Capacity 115 Pounds
Material Stainless Steel
Interior Finish Stainless Steel
Drain Connection Size 1-1/2 Inches NPS Male
Shipping Width 48 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 170 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Ts design guide PDF Download

Frequently Asked Questions

This model has an approximate ice capacity of 115 pounds.
Yes. It includes a concealed 10-circuit aluminum cold plate under the bin liner.
The unit uses a 1-1/2-inch NPS male drain connection.
No. Covers are not included.
Available accessories include covers, ice bin dividers, condiment trays with cups, speed rails, blender shelves, a bottle opener, towel rings, side splashes and a soda gun filler section.
