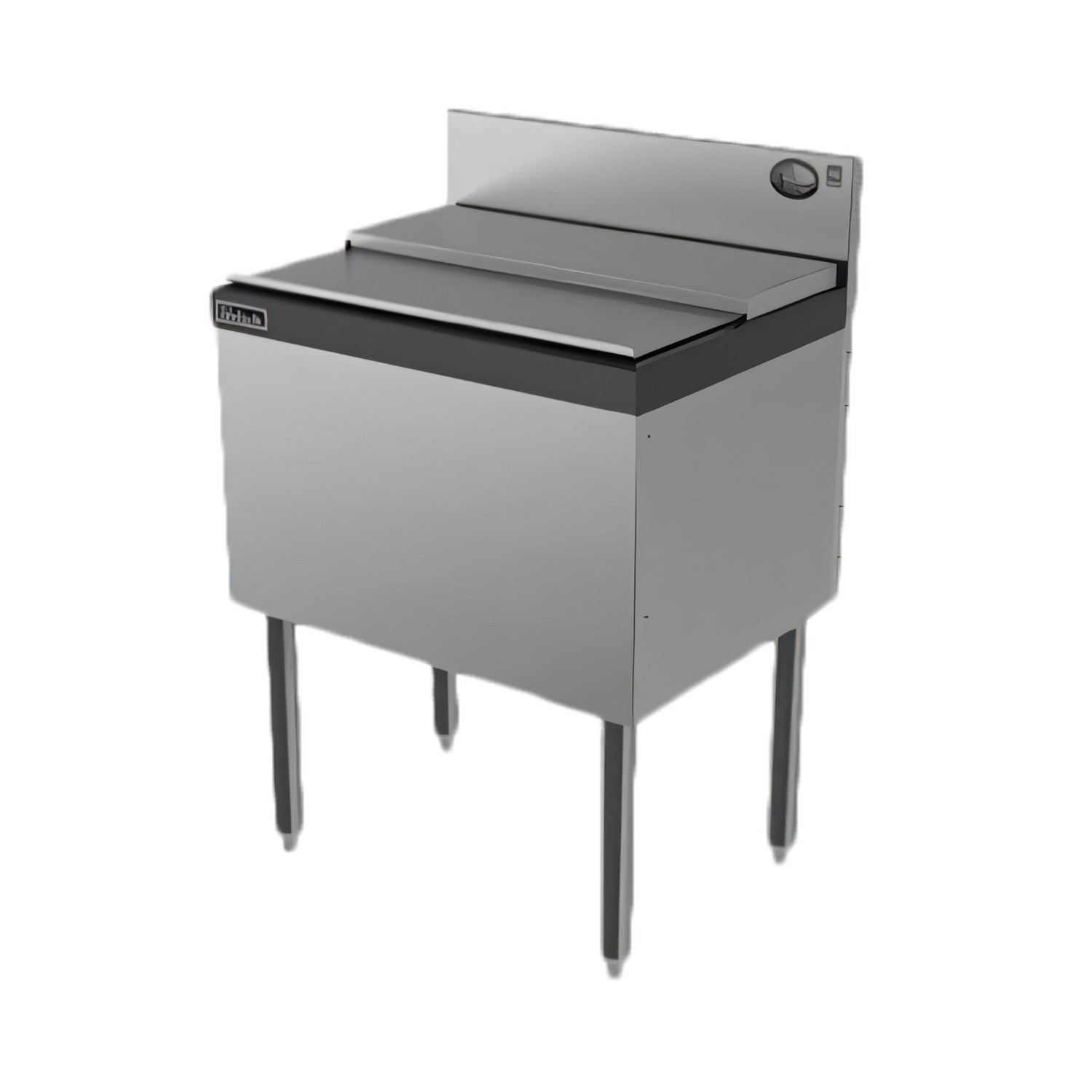

Perlick Top Shelf TSD Series 42-Inch Modular Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate

42" W x 24" D, 145 lb. Ice Capacity, Stainless Steel Construction

Built for busy bars, this modular underbar ice bin combines a concealed 10-circuit cold plate, durable stainless steel construction, and a generous ice reserve for fast beverage service.

  • 42-inch modular underbar ice bin/cocktail unit for high-traffic bar service
  • Concealed 10-circuit aluminum cold plate chills drinks efficiently through the ice
  • 145 lb. ice capacity supports longer service during peak periods
  • Stainless steel front, sides, and interior with galvanized steel back and bottom
  • Fully insulated foamed-in-place construction helps reduce ice melt
  • 6-inch deck backsplash, ABS top ledge, and adjustable stainless steel legs
  • 1-1/2-inch NPS male drain connection for straightforward drainage

Overall Dimensions:

42.0"W x 24.0"D x 36.5"H

Product Weight:

160.0 lb

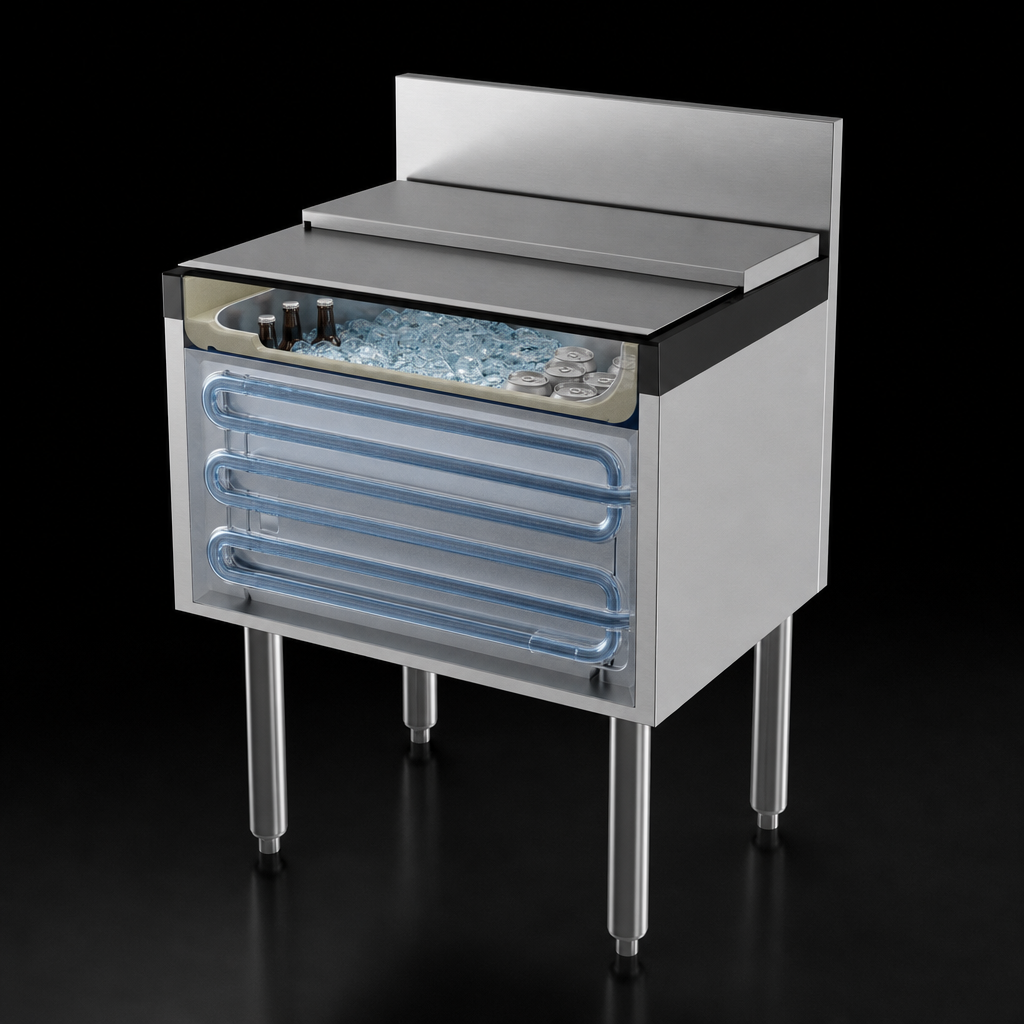

Concealed 10-Circuit Cold Plate

A cast aluminum cold plate is concealed under the bin liner to chill beverages efficiently while keeping the interior sanitary.

Concealed 10-Circuit Cold Plate

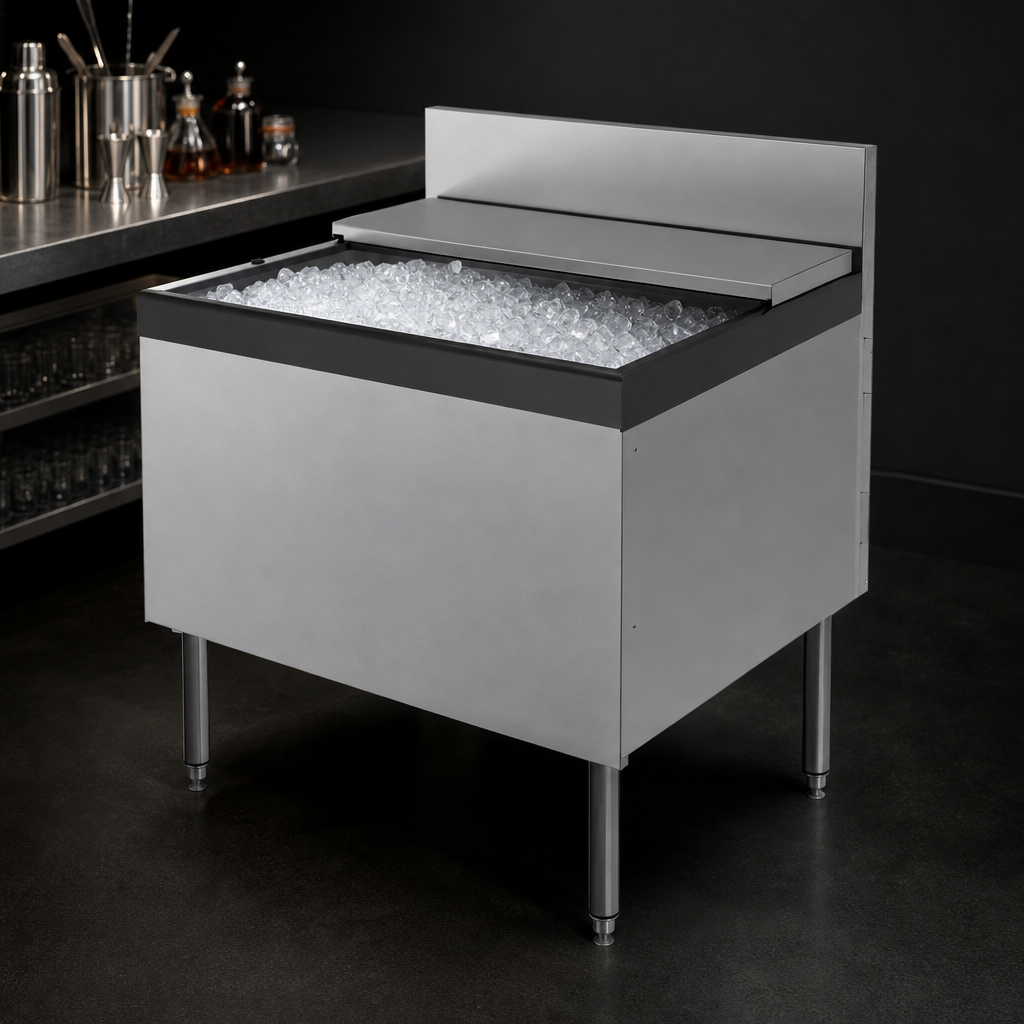

High-Capacity Ice Bin

The 42-inch model holds approximately 145 lb. of ice, making it well suited for busy cocktail service.

High-Capacity Ice Bin

Stainless Steel Construction

Stainless steel front, sides, and interior provide a durable, easy-to-clean surface, while the back and bottom are galvanized steel.

Fully Insulated Cabinet

Foamed-in-place polyurethane insulation helps reduce ice melt and improves efficiency in warm environments.

Deck-Style Backsplash

The 6-inch backsplash with 1-inch top return adds workspace and helps manage beverage line routing.

Heavy-Duty Legs

1-5/8-inch tubular stainless steel legs with 1-inch adjustable thermoplastic feet provide stable support.

ABS Top Ledge and Practical Drainage

The ABS plastic top ledge adds durability at the working edge, and the unit includes a 1-1/2-inch NPS male drain connection.

Type Underbar Ice Bin/Cocktail Unit
Style TSD Series
Installation Type Freestanding
Capacity 145 lb.
Material Stainless Steel
Interior Finish Stainless Steel
Drain Connection Size 1-1/2 Inches NPS Male
Shipping Width 42 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 160 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Ts design guide PDF Download

Frequently Asked Questions

The 42-inch TSD42IC10 model has an ice capacity of approximately 145 lb.
It uses a concealed cast aluminum cold plate with 10 circuits total, made up of 2 full-length circuits and 8 half-length circuits.
The unit has stainless steel front, sides, and interior surfaces, galvanized steel back and bottom, an ABS top ledge, and foamed-in-place polyurethane insulation.
It uses a 1-1/2-inch NPS male drain connection.
Covers are not included. Available accessories include covers, ice bin dividers, condiment trays with cups, speed rails, blender shelves, bottle opener, towel rings, side splashes, and a soda gun filler section.
