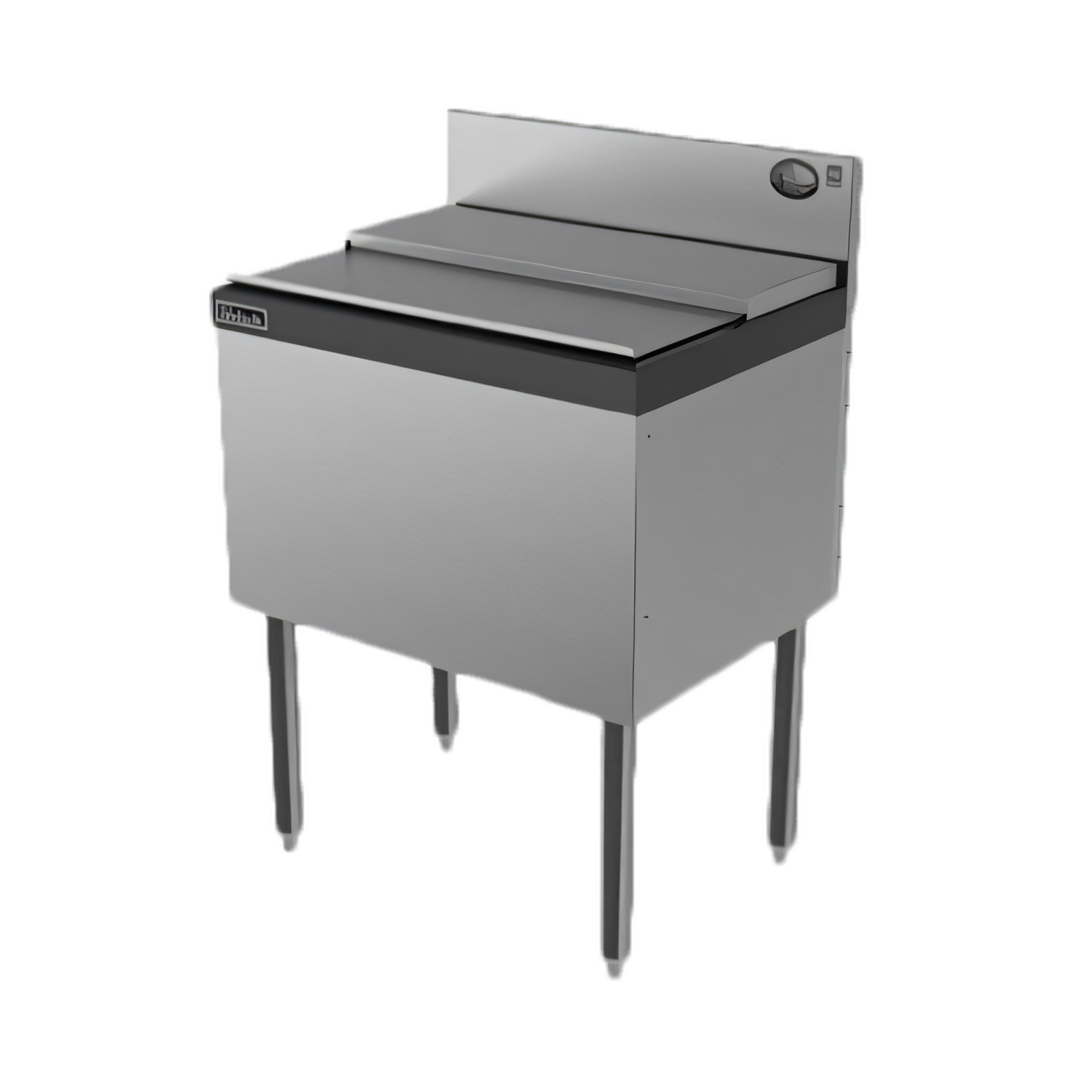

Perlick Top Shelf TSD Series 36-Inch Modular Underbar Ice Chest/Cocktail Unit with 10-Circuit Cold Plate

Freestanding Stainless Steel Unit with Deck-Style Backsplash

Built for efficient bar service, this modular ice chest chills drinks fast with a concealed 10-circuit cold plate and durable stainless steel construction.

  • 36-inch underbar ice chest/cocktail unit designed for modular TSD bar layouts.
  • Concealed 10-circuit aluminum cold plate chills beverages using the ice in the bin.
  • Stainless steel front, sides, and interior deliver a durable, easy-to-clean surface.
  • Foamed-in-place polyurethane insulation helps reduce ice melt in busy bars.
  • 6-inch backsplash with 1-inch return helps contain spills and support clean line routing.
  • Stainless steel legs with adjustable thermoplastic feet provide stable leveling.
  • Accessories such as dividers, speed rails, and blender shelves are available separately; covers are not included.

Overall Dimensions:

36.0"W x 24.0"D x 36.5"H

Product Weight:

150.0 lb

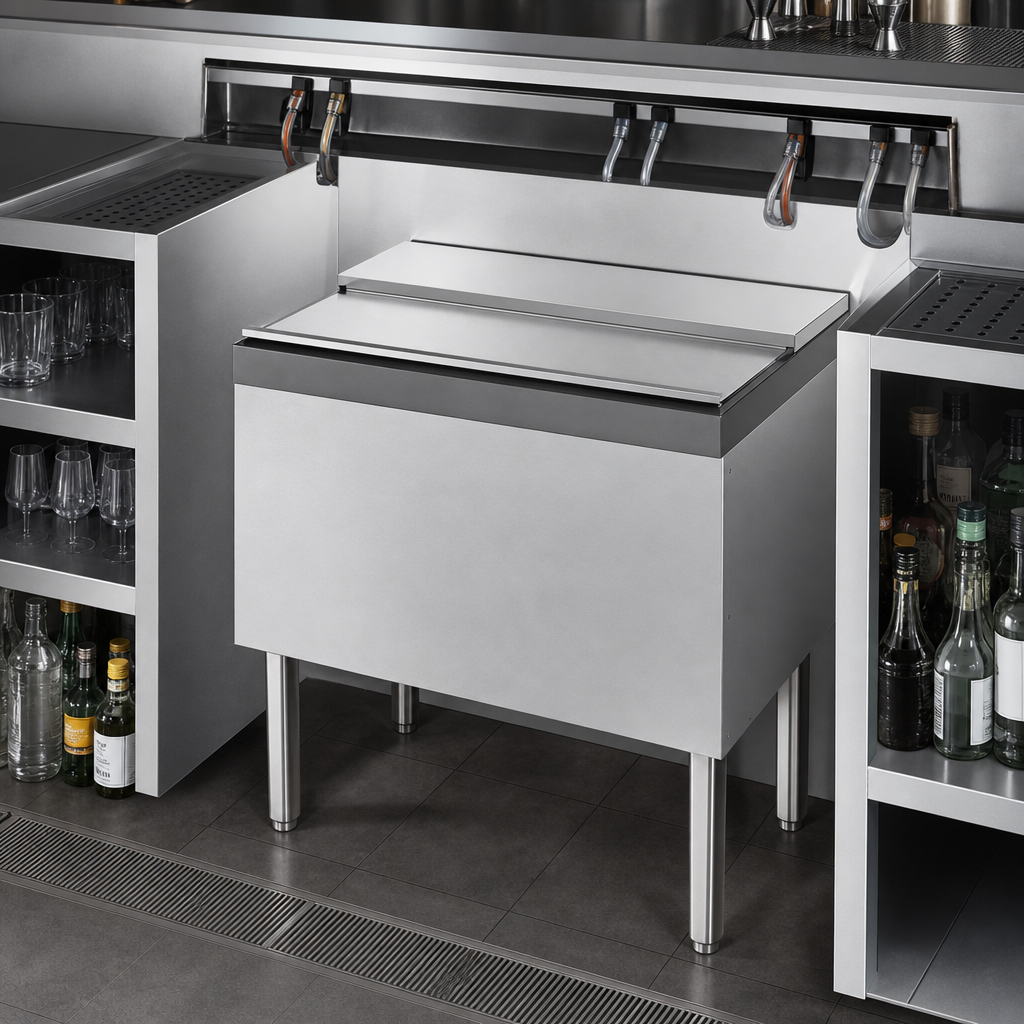

Modular Deck-Style Construction

The TSD deck backsplash creates room for routing beverage lines and integrates cleanly into modular underbar layouts.

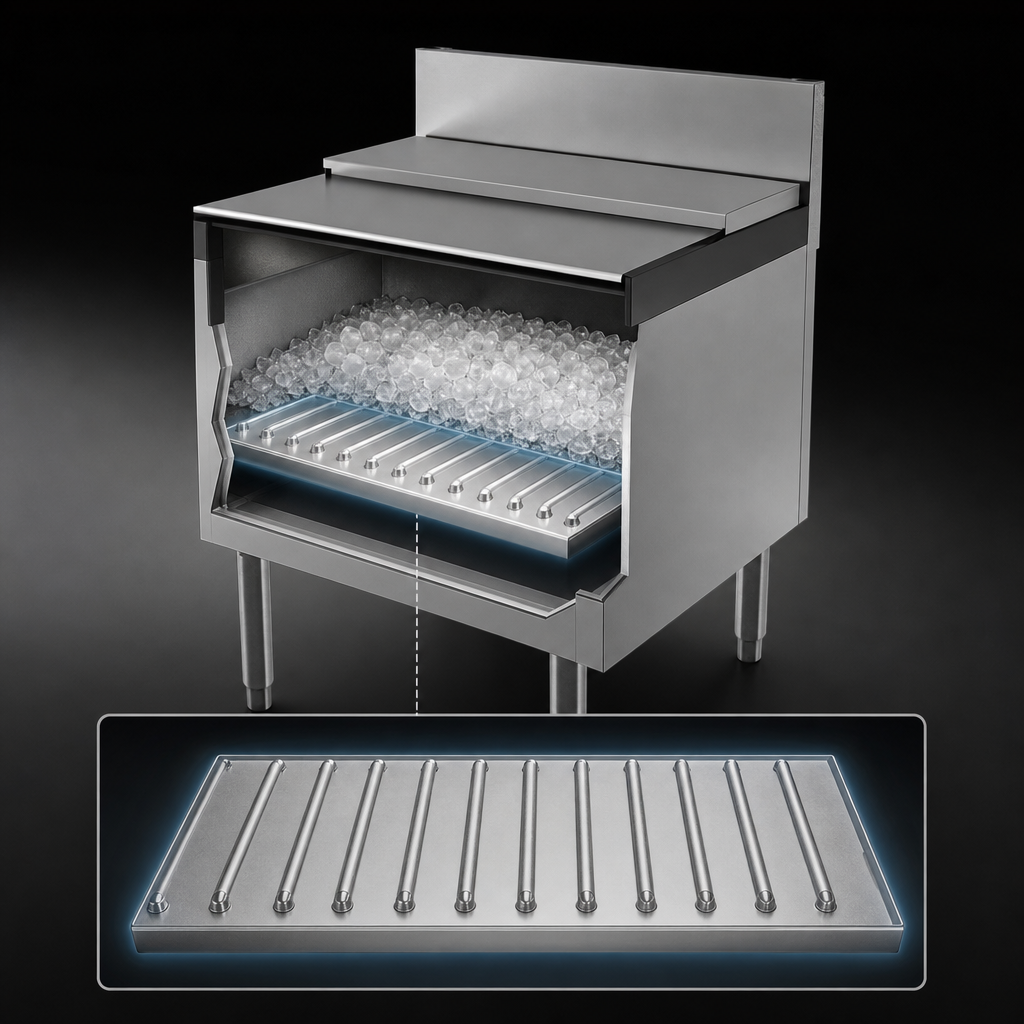

Concealed 10-Circuit Cold Plate

A cast aluminum cold plate sits under the bin liner to rapidly chill soft drinks using ice from the chest.

Stainless Steel Bin and Surfaces

Stainless steel front, sides, and interior provide a durable, sanitary, easy-to-clean work area.

Galvanized Steel Back and Bottom

Galvanized back and bottom panels add structural support.

Foamed-In-Place Polyurethane Insulation

Fully insulated construction helps minimize ice melt in warmer environments.

6-Inch Backsplash with 1-Inch Return

The raised backsplash helps contain splashes and provides a finished top edge.

1-1/2-Inch NPS Male Drain Connection

A rear drain connection supports straightforward drainage during installation and cleaning.

Stainless Steel Legs with Adjustable Feet

1-5/8-inch tubular stainless steel legs and 1-inch adjustable thermoplastic feet help level the unit.

Accessory Options

Covers, ice bin dividers, condiment trays, speed rails, blender shelves, bottle openers, towel rings, side splashes, and soda gun filler sections are available separately.

Type Ice Chest
Style Deck Style
Installation Type Freestanding
Capacity 125 lb.
Material Stainless Steel
Interior Finish Stainless Steel
Insulation Foamed-In-Place Polyurethane
Backsplash Height 6 Inches
Backsplash Return 1 Inch
Cold Plate Material Aluminum
Cold Plate Circuits 10 Circuits
Drain Connection Required
Drain Connection Size 1-1/2-Inch NPS Male
Shipping Width 36 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 150 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Ts design guide PDF Download

Frequently Asked Questions

Yes. It uses a concealed aluminum cold plate with 10 circuits, including 2 full-length circuits and 8 half-length circuits.
The cutsheet lists a 125 lb. ice capacity for this 36-inch cold plate model.
The unit has stainless steel front, sides, and interior surfaces, with a galvanized steel back and bottom.
It uses a 1-1/2-inch NPS male drain connection.
No. Covers are available separately and are not included with the unit.
