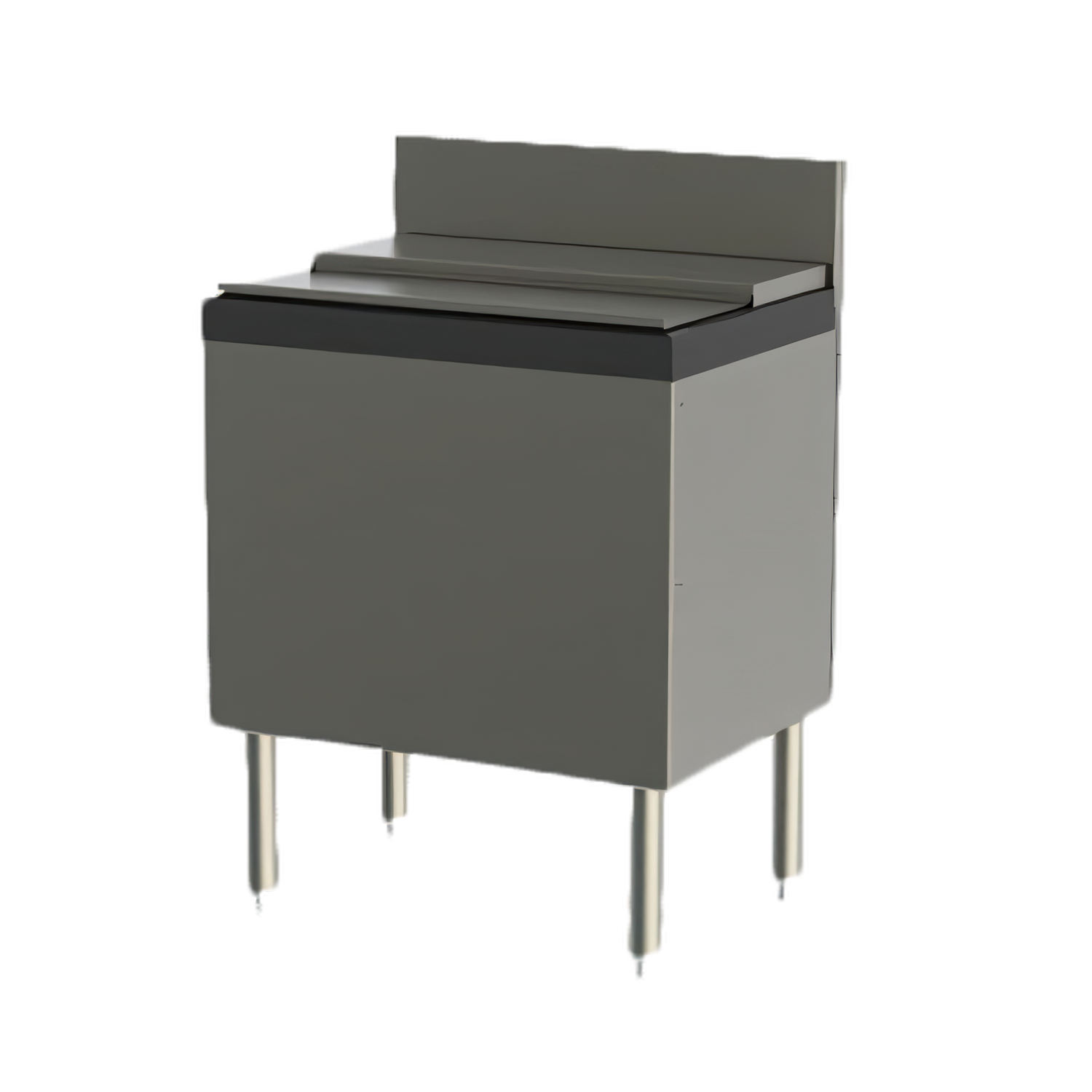

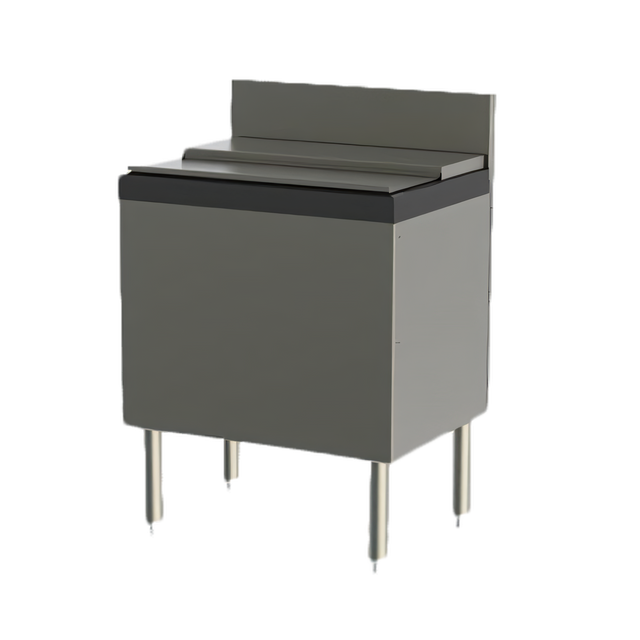

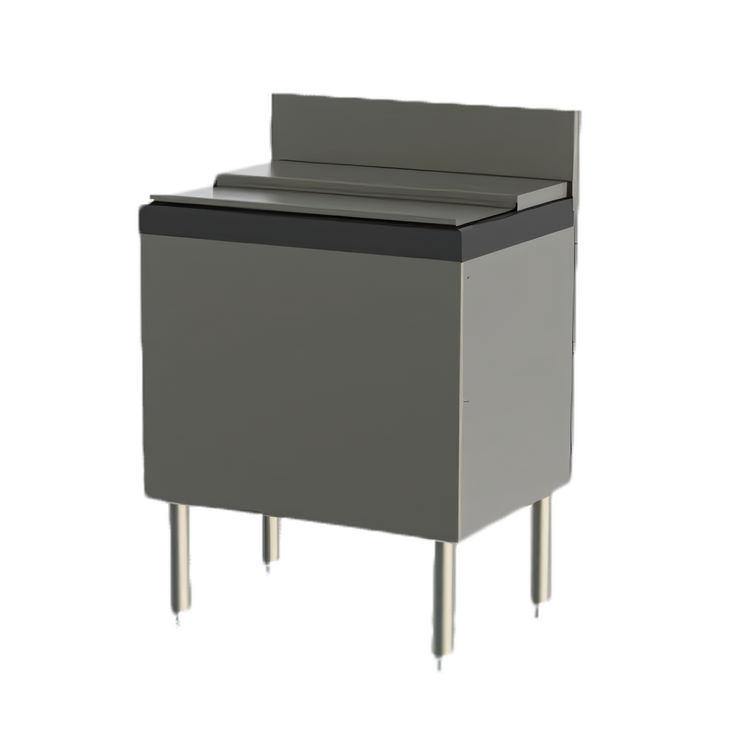

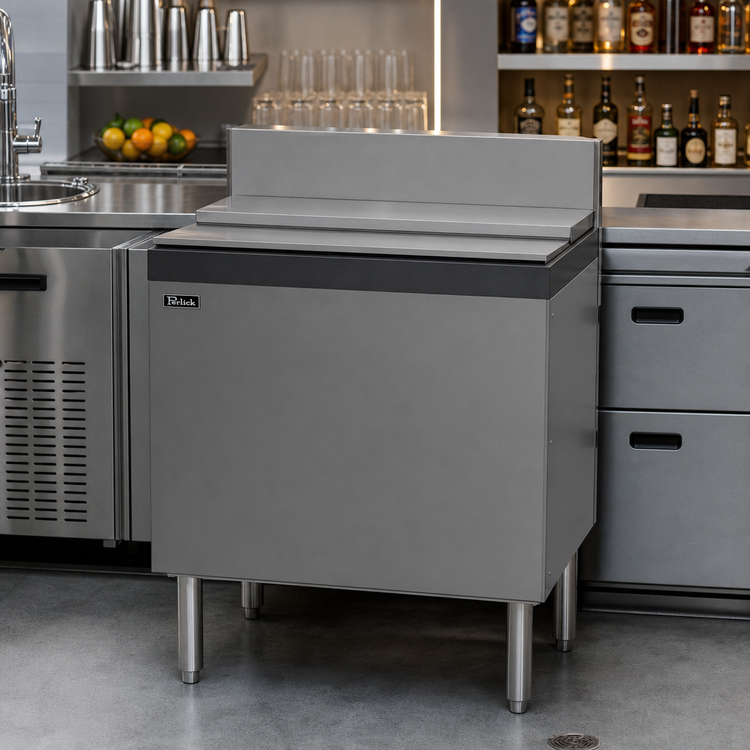

Perlick Top Shelf TSD Series 36-Inch Extra Capacity Modular Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate
Perlick Top Shelf TSD Series 36-Inch Extra Capacity Modular Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate
36-Inch W x 24-Inch D, 115-lb. Ice Capacity, 15-Inch Deep Bin, Deck-Style Backsplash
Built for busy cocktail service, this extra-capacity underbar ice bin pairs a deep ice chest with a concealed cold plate to keep drinks cold and service moving.
- 36-inch-wide modular underbar unit designed for high-volume cocktail stations.
- Approximately 115 lb. ice capacity with a 15-inch deep bin.
- Concealed 10-circuit aluminum cold plate helps chill beverages efficiently.
- 6-inch backsplash with a 1-inch top return helps contain splash.
- Stainless steel front and sides with galvanized steel back and bottom for durable bar use.
- Includes a 1/2-inch NPS male drain plus tubular stainless steel legs with adjustable thermoplastic feet.
Overall Dimensions:
36.0"W x 24.0"D x 36.5"HProduct Weight:

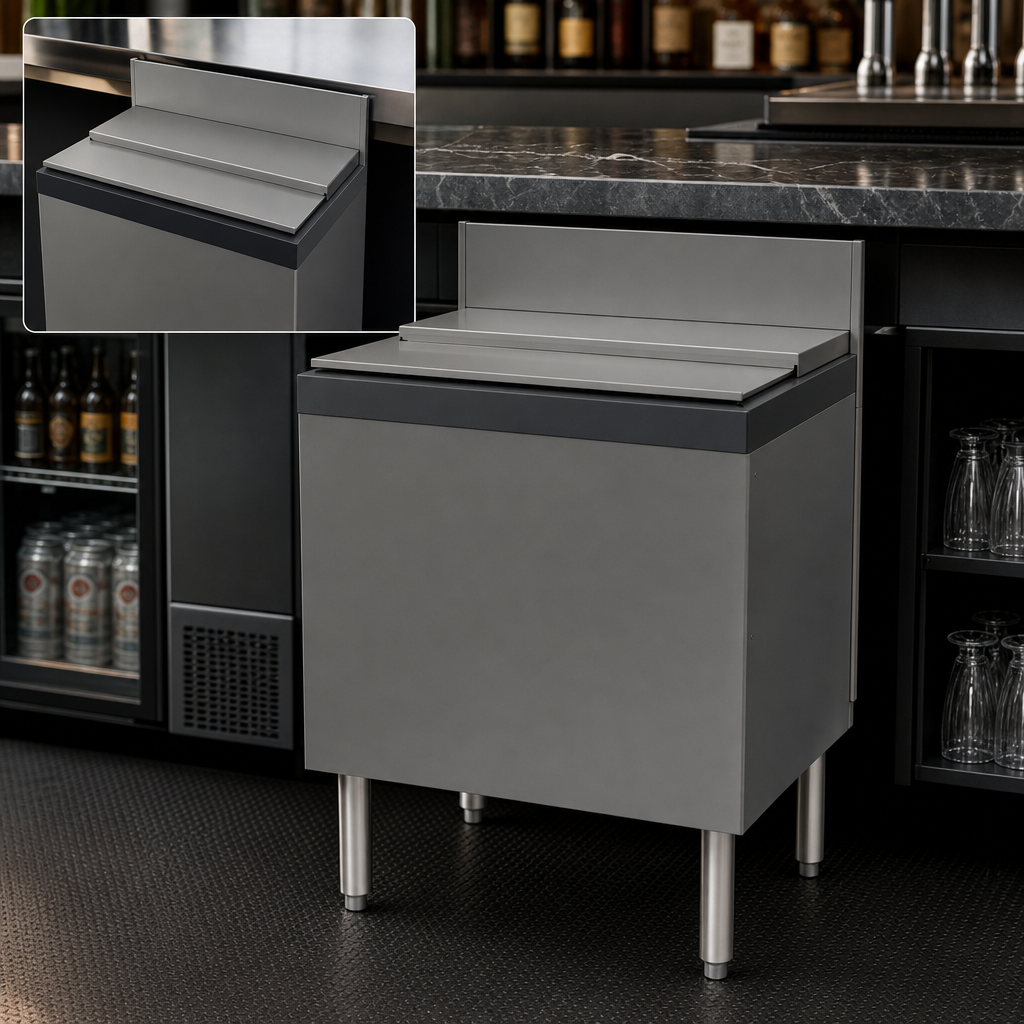

190.0 lbTSD Deck-Style Module
Freestanding underbar design with a flat rear deck for custom bar layouts and beverage line routing.

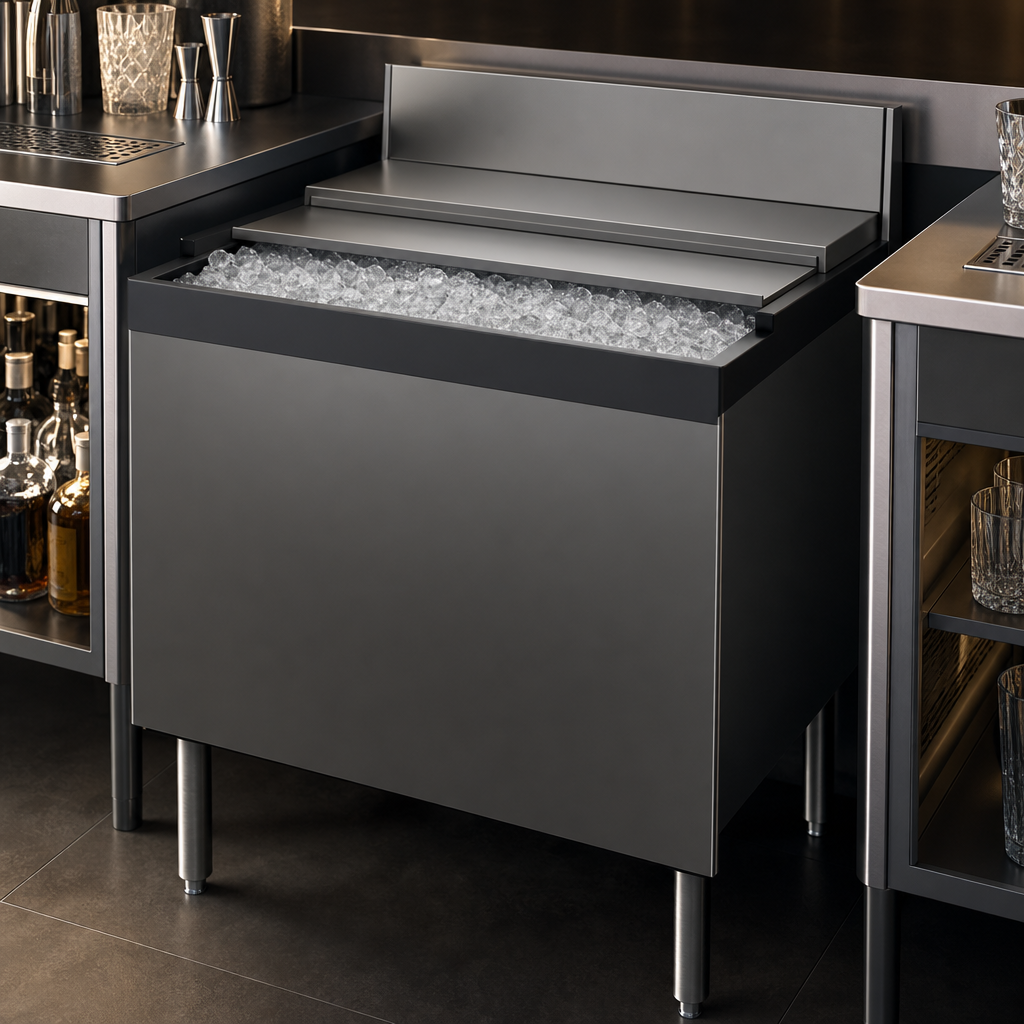

Extra-Capacity Ice Bin
15-inch deep bin provides approximately 115 pounds of ice storage for busy service.
Concealed Cold Plate
10-circuit aluminum cold plate is hidden beneath the bin liner to chill beverages through the ice.
Splash-Containing Backsplash
6-inch backsplash with a 1-inch top return helps keep the work area cleaner.
Durable Mixed-Material Construction
Stainless steel front and sides are paired with a galvanized steel back and bottom for bar-duty durability.
Service-Friendly Hardware
ABS plastic top ledge, 1/2-inch NPS male drain, and 1-5/8-inch tubular stainless steel legs with 1-inch adjustable thermoplastic feet.
