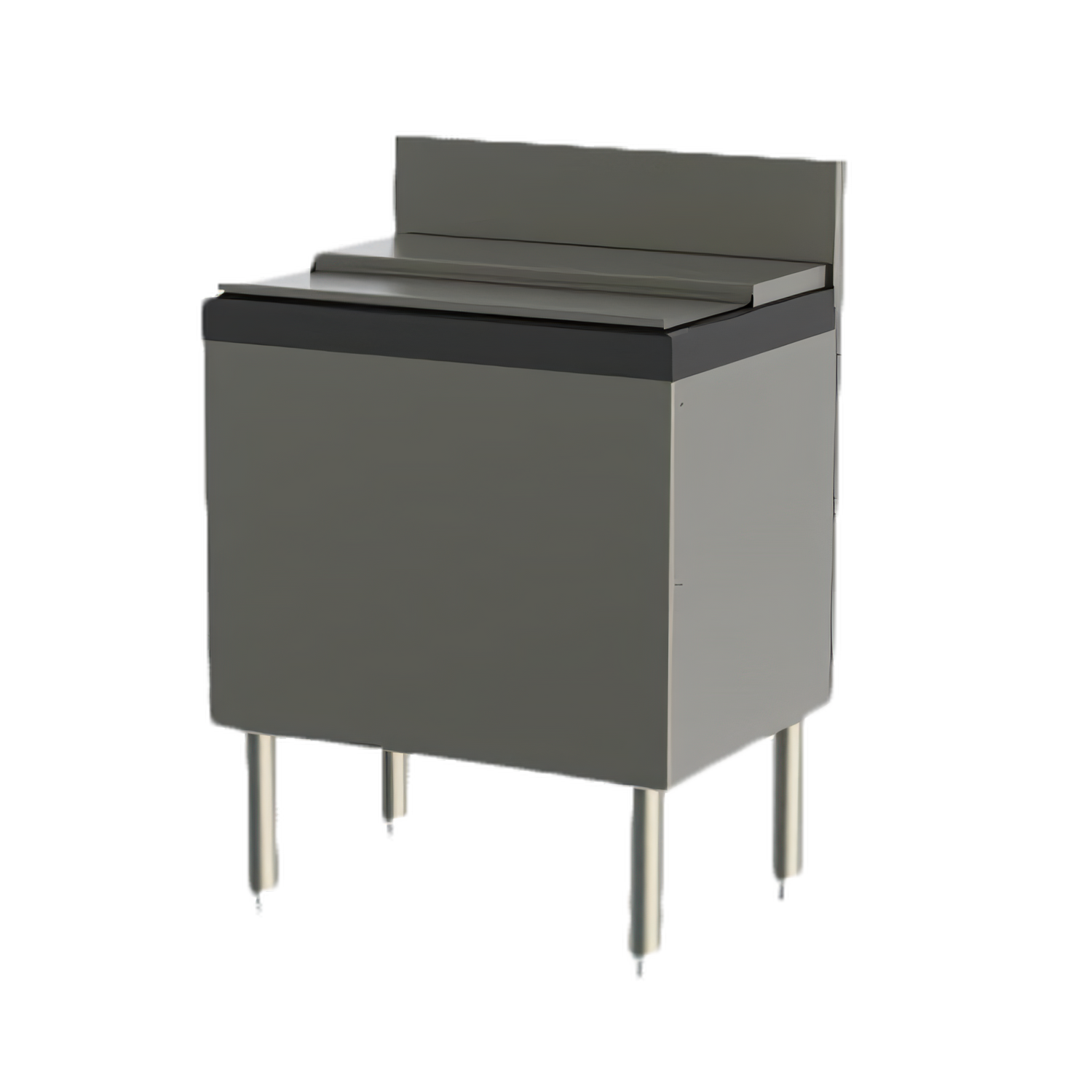

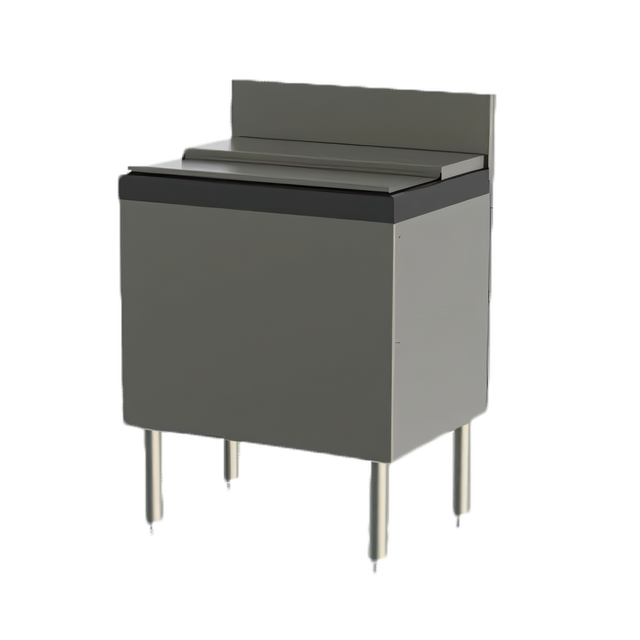

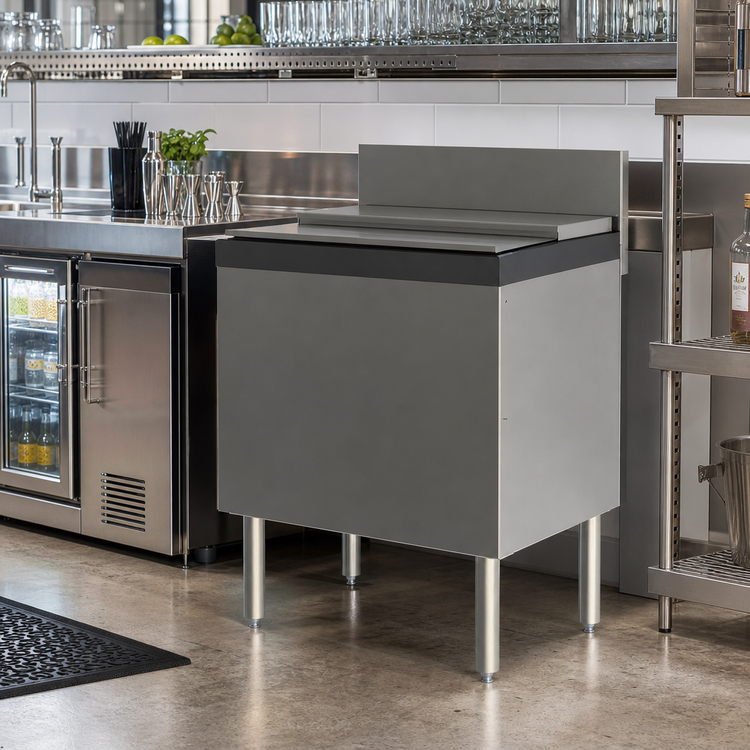

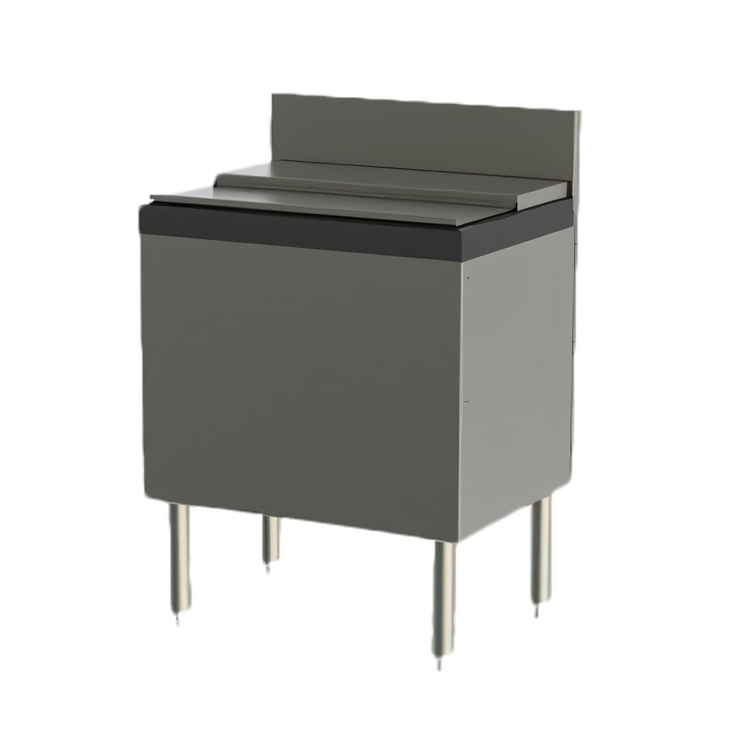

Perlick Top Shelf TSD Series Extra Capacity 36-Inch Underbar Ice Bin/Cocktail Unit

36"W x 24"D, 115-Lb. Ice Capacity, Deck-Style Backsplash

Give bartenders fast access to a deep ice reserve with this modular extra-capacity underbar unit built for high-volume cocktail service.

  • Extra-capacity ice bin/cocktail unit designed for modular underbar bar layouts.
  • Approximate 115-lb. ice capacity helps keep service moving during peak hours.
  • 36-inch-wide, 24-inch-deep footprint fits standard underbar applications.
  • Stainless steel front, sides, and ice bin deliver durable commercial performance.
  • Deck-style TSD backsplash adds utility space and helps manage beverage line routing.
  • Includes a 1/2-inch NPS male drain and adjustable stainless steel legs for easier installation.
  • ABS plastic top ledge and thermoplastic feet support practical day-to-day use.

Overall Dimensions:

36.0"W x 24.0"D x 36.5"H

Product Weight:

120.0 lb

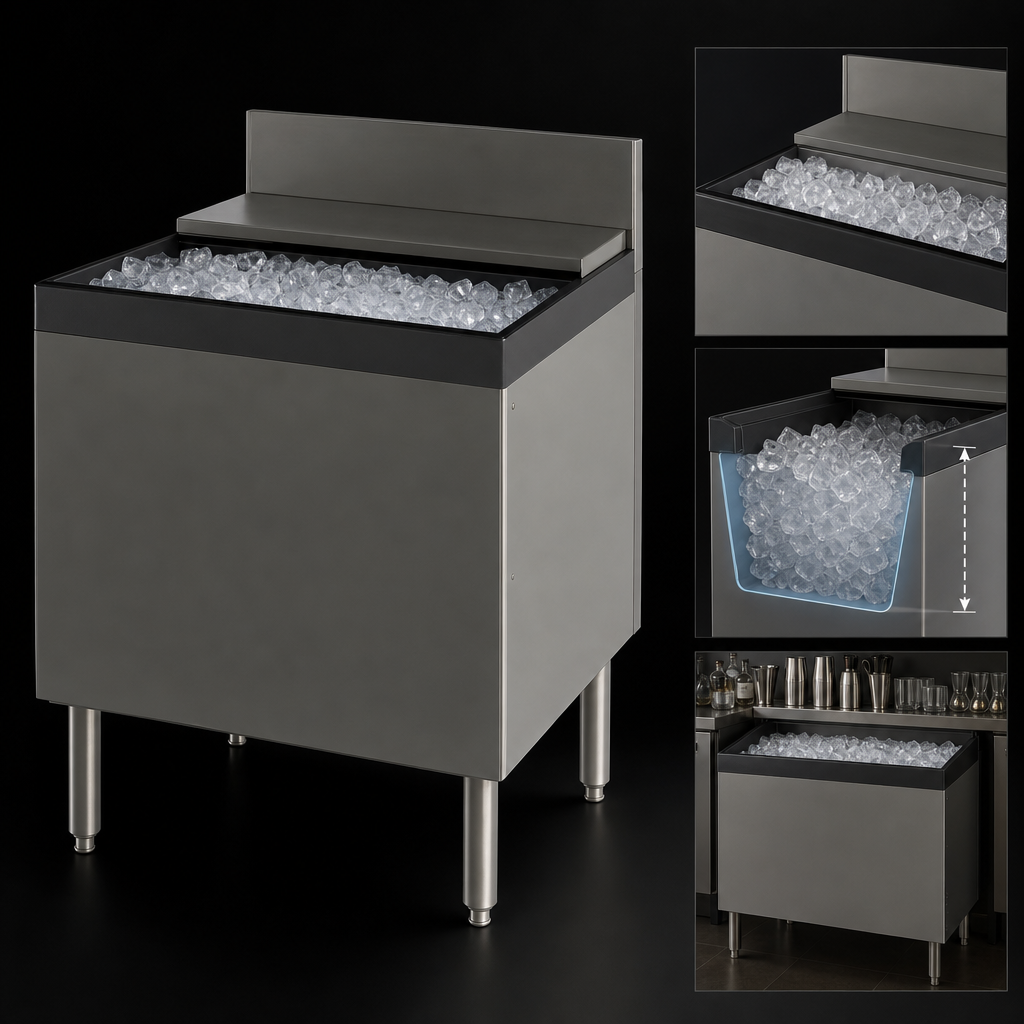

Extra Capacity Ice Bin

Deeper bin design provides approximately 115 lb. of ice storage for high-volume beverage service.

Extra Capacity Ice Bin

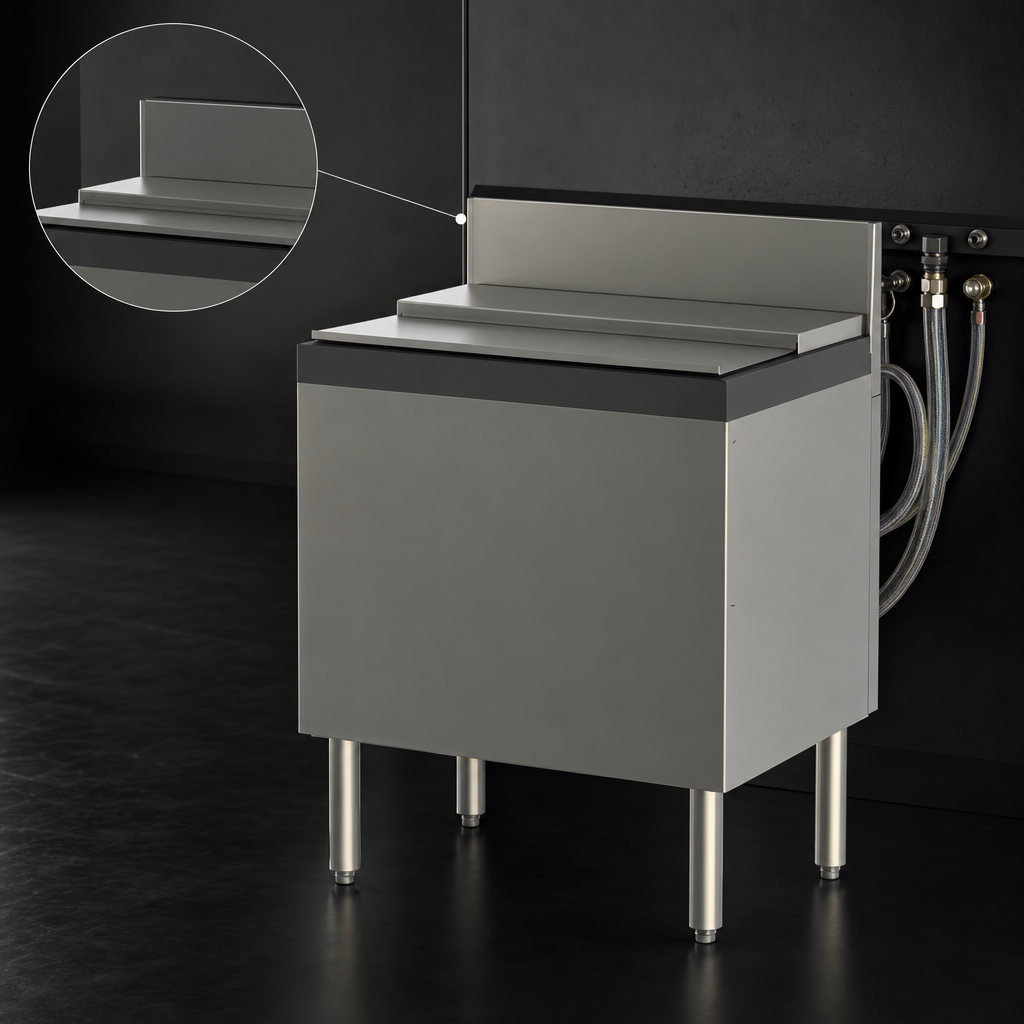

TSD Deck-Style Backsplash

Flat deck backsplash adds usable utility space behind the unit and supports cleaner routing of beverage lines.

TSD Deck-Style Backsplash

Stainless Steel Construction

Stainless steel front, sides, and ice bin provide a durable surface for commercial bar use.

Galvanized Steel Back & Bottom

Galvanized steel rear and bottom panels add strength to the underbar structure.

ABS Plastic Top Ledge

Impact-resistant top ledge provides a cleanable edge around the service area.

1/2-Inch NPS Male Drain

Standard drain connection supports straightforward plumbing hookup and drainage.

Adjustable Stainless Steel Legs

1-5/8-inch tubular stainless steel legs with 1-inch adjustable thermoplastic feet help level the unit during installation.

Type Underbar Ice Bin/Cocktail Unit
Style Extra Capacity
Installation Type Freestanding
Capacity 115 lb. Ice Capacity
Material Stainless Steel
Interior Finish Stainless Steel
Drain Connection Size 1/2 Inch NPS Male
Shipping Width 36 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 120 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Ts design guide PDF Download

Frequently Asked Questions

It has an approximate ice capacity of 115 lb.
No. The category attributes indicate this model is without a cold plate.
The unit measures 36 inches wide by 24 inches deep by 36.5 inches high.
It includes a 1/2-inch NPS male drain connection.
The unit features a stainless steel ice bin, front, and sides, with galvanized steel back and bottom panels and an ABS plastic top ledge.
Yes. It is built with stainless steel legs and adjustable feet for standalone installation.
