Perlick Corporation

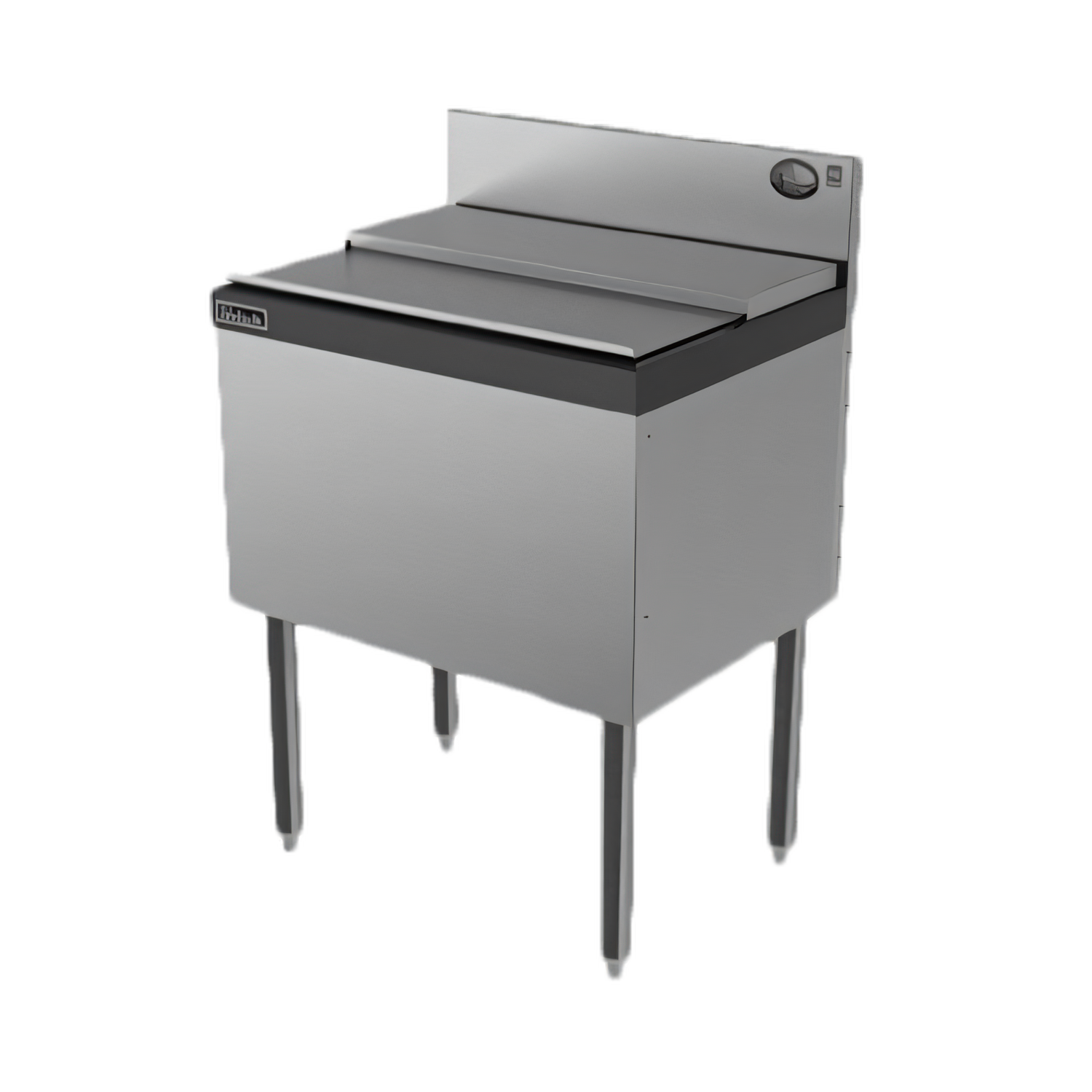

Perlick Top Shelf TSD Series 30-Inch Modular Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate

SKU: TSD30IC10
$3,012.90
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment New Arrivals Perlick Corporation Restaurant Equipment Underbar Equipment

Perlick Top Shelf TSD Series 30-Inch Modular Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate

6-Inch Backsplash, Approx. 100-Lb. Ice Capacity

Built for fast, efficient bar service, this modular ice bin keeps ice close at hand while its concealed cold plate chills beverages on contact.

  • Concealed 10-circuit aluminum cold plate chills drinks quickly during service.
  • Approx. 100-lb. ice capacity supports busy cocktail stations.
  • Stainless steel front, sides, and interior are built for durability and easy cleaning.
  • Eco-friendly polyurethane foam insulation helps reduce ice melt.
  • 6-inch backsplash with 1-inch return and ABS top ledge supports clean bar setup.
  • Adjustable stainless steel legs help simplify installation and leveling.
  • Separate accessories are available for covers, dividers, speed rails, and other bar add-ons.

Overall Dimensions:

30.0"W x 24.0"D x 36.5"H

Product Weight:

140.0 lb

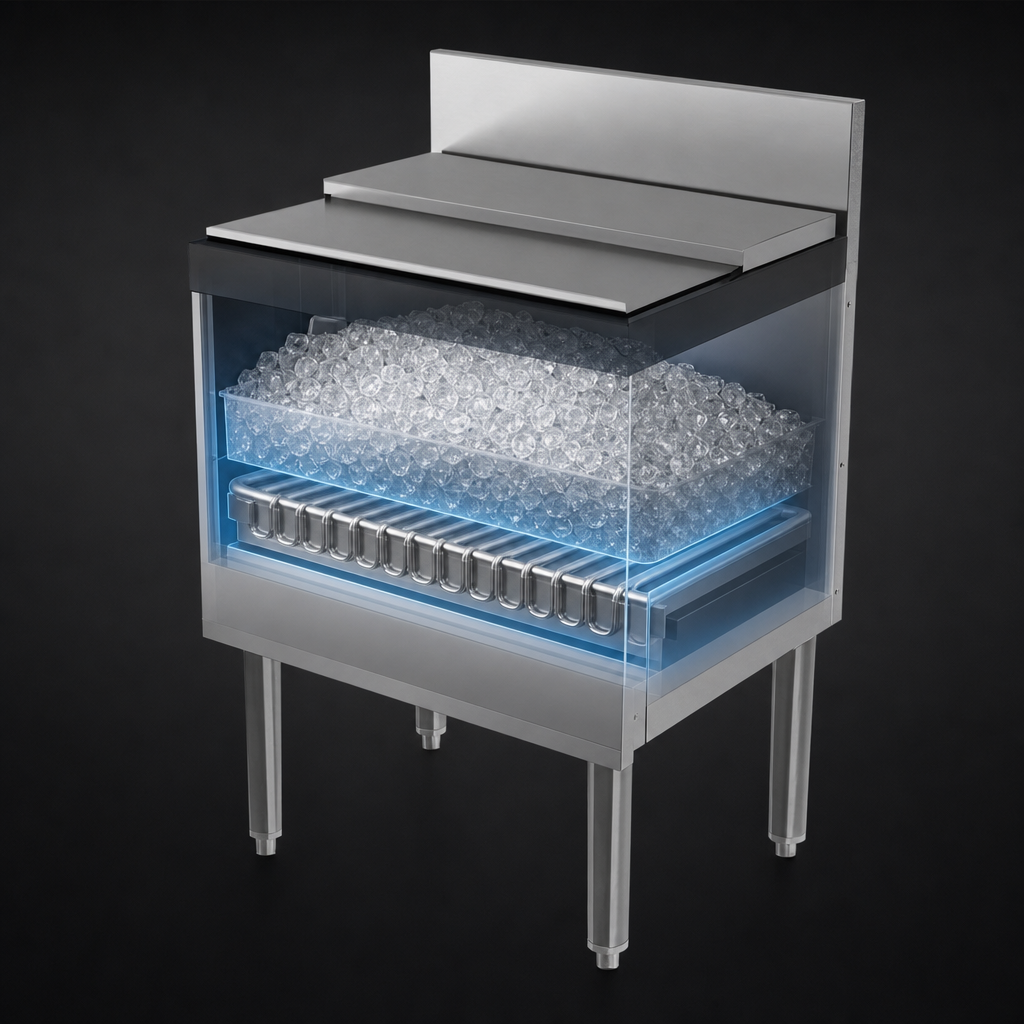

Concealed 10-Circuit Cold Plate

Cast aluminum cold plate is hidden under the bin liner to chill beverages efficiently using the stored ice supply.

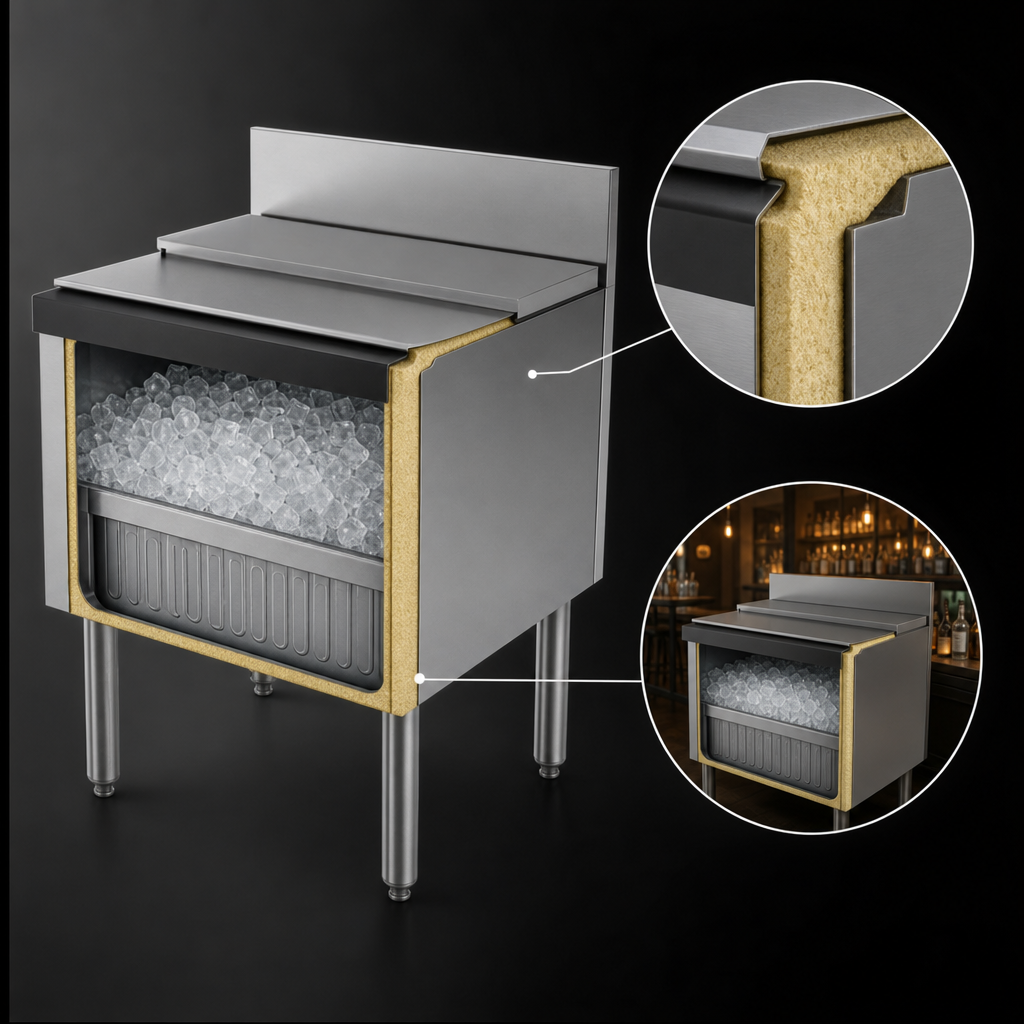

Fully Insulated Construction

Foamed-in-place polyurethane insulation helps reduce ice melt and improve holding efficiency in warm bar environments.

Stainless Steel Ice Bin

Stainless steel front, sides, and interior surfaces are durable, sanitary, and easy to clean.

Deck-Style Backsplash

6-inch backsplash with a 1-inch top return helps contain splash and provides a practical rear work area.

ABS Top Ledge

ABS plastic top rim adds durability at the work surface.

Adjustable Stainless Legs

1-5/8-inch tubular stainless steel legs with 1-inch adjustable thermoplastic feet aid leveling and stability.

Rear Deck Space

Built-in rear deck provides additional space for bar service setup.

Drain Connection

1-1/2-inch NPS male drain connection simplifies drainage.

Type Ice Chest
Style Cold Plate
Installation Type Freestanding
Capacity 100 Pounds
Material Stainless Steel
Interior Finish Stainless Steel
Drain Connection Size 1-1/2 Inches NPS Male
Shipping Width 30 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Ts design guide PDF Download

Frequently Asked Questions

The ice capacity is approximately 100 pounds.
Yes. It includes a concealed 10-circuit aluminum cold plate under the bin liner.
The unit measures 30 inches wide by 24 inches deep by 36.5 inches high.
It features stainless steel front, sides, and interior surfaces, with a galvanized steel back and bottom.
No. The cutsheet notes that covers are ordered separately and are not included.
Available accessories include covers, ice bin dividers, condiment trays with cups, speed rails, blender shelves, bottle opener, towel rings, side splashes, and a soda gun filler section.
