Perlick Corporation

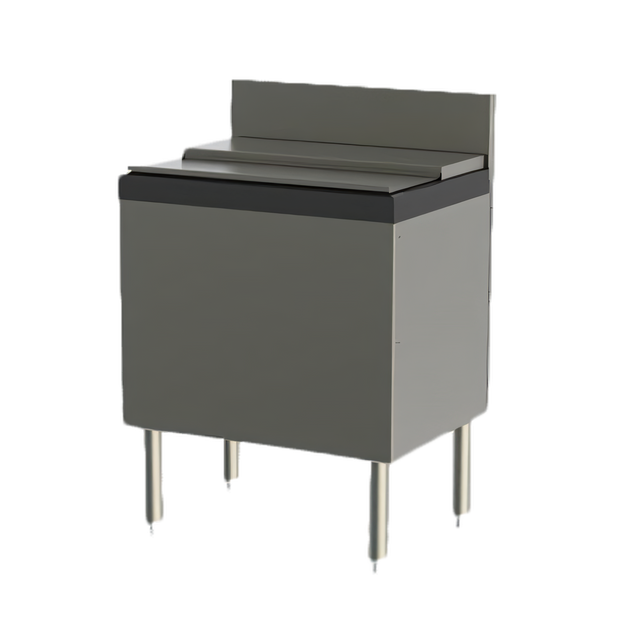

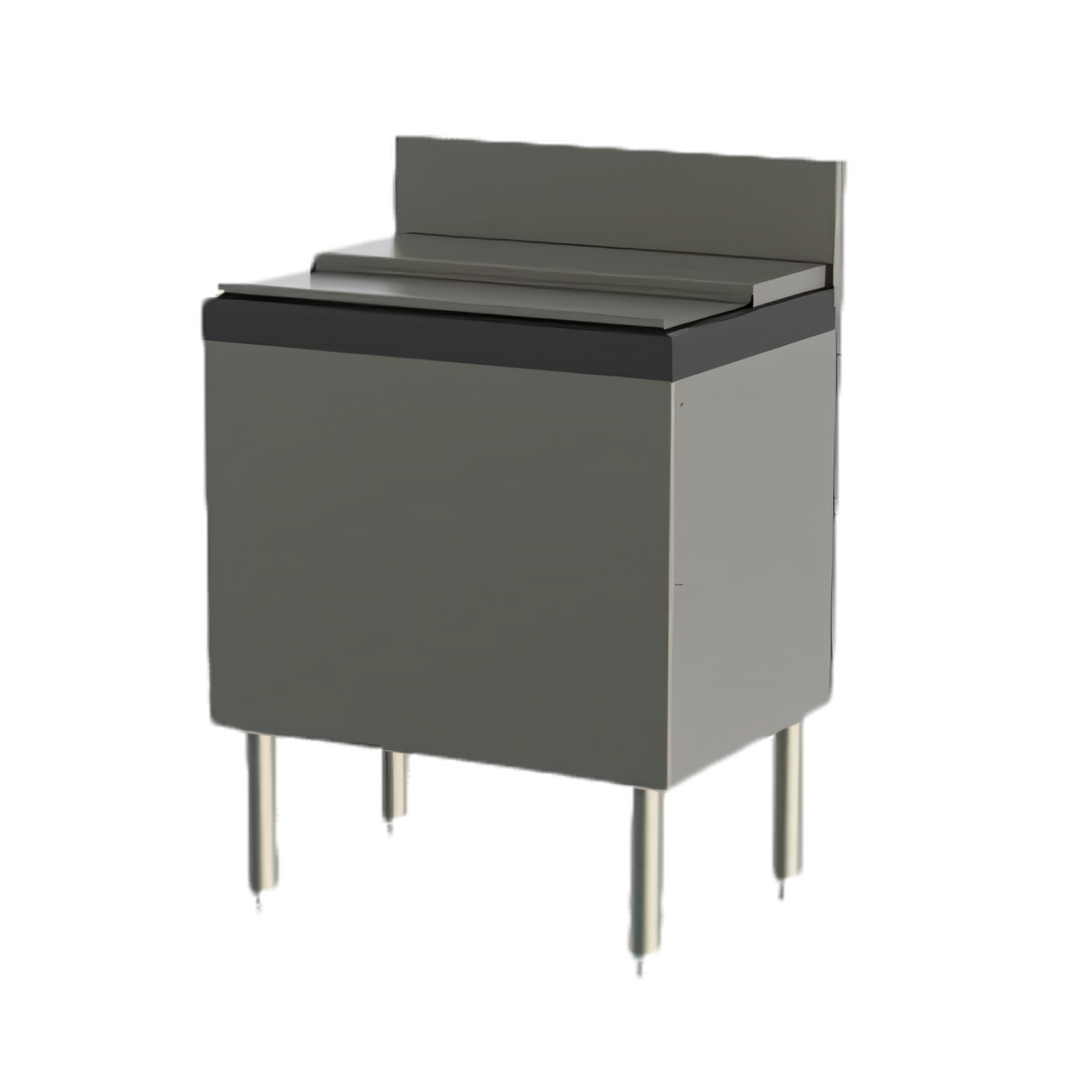

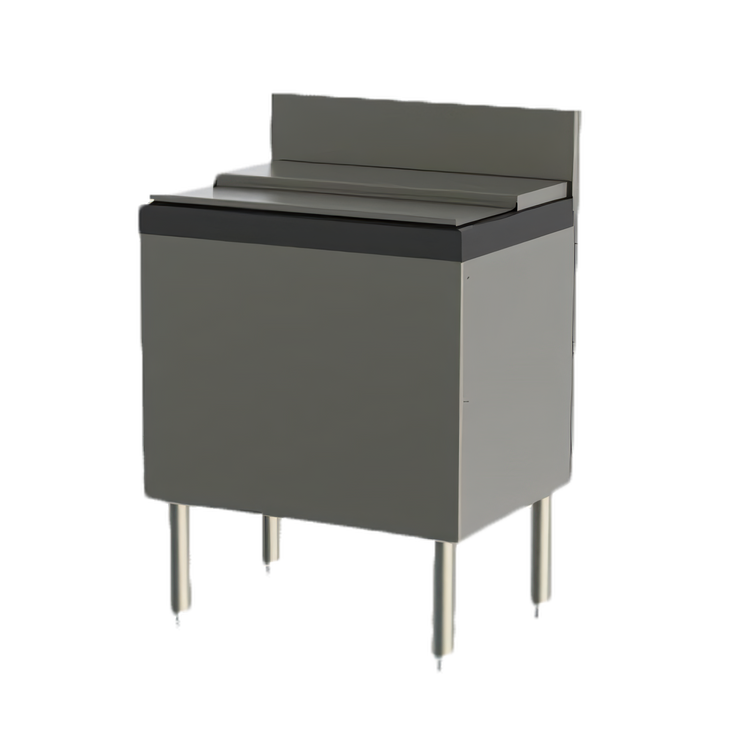

Perlick Top Shelf TSD Series Extra Capacity 30-Inch Underbar Ice Bin/Cocktail Unit

SKU: TSD30IC-EC
$1,703.35
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Beverage Equipment Equipment Ice Machines & Beverage Equipment New Arrivals Perlick Corporation Restaurant Equipment Underbar Equipment

Perlick Top Shelf TSD Series Extra Capacity 30-Inch Underbar Ice Bin/Cocktail Unit

30" W x 24" D; Approx. 95-Lb. Ice Capacity

Built for busy bars, this extra-capacity modular ice bin delivers deep ice storage in a compact 30-inch footprint.

  • Approximate 95-lb. ice capacity gives bartenders more service-ready ice in a 30-inch-wide module.
  • 15-inch deep stainless steel ice bin supports efficient cocktail prep and fast access.
  • TSD deck-style backsplash provides a flat rear deck for easier line routing behind the unit.
  • Durable mixed-material construction combines stainless steel front and sides with galvanized steel back and bottom.
  • Includes a 6-inch backsplash with 1-inch return and an ABS plastic top ledge.
  • Supplied with a 1/2-inch NPS male drain and stainless steel legs with adjustable thermoplastic feet.
  • Modular underbar design fits into custom bar layouts and coordinated cocktail stations.

Overall Dimensions:

30.0"W x 24.0"D x 36.5"H

Product Weight:

110.0 lb

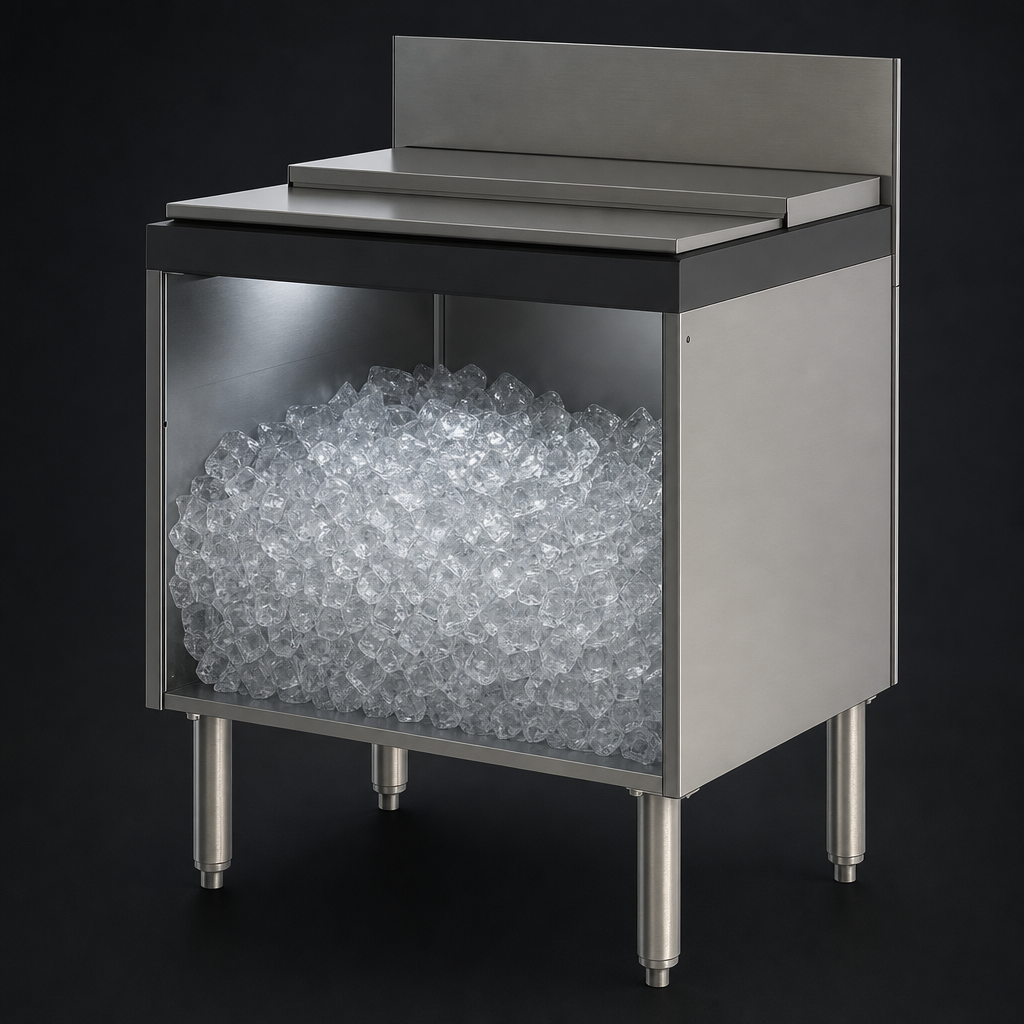

Extra Capacity Ice Bin

Deeper bin design provides approximately 95 pounds of ice capacity in a 30-inch-wide unit.

Extra Capacity Ice Bin

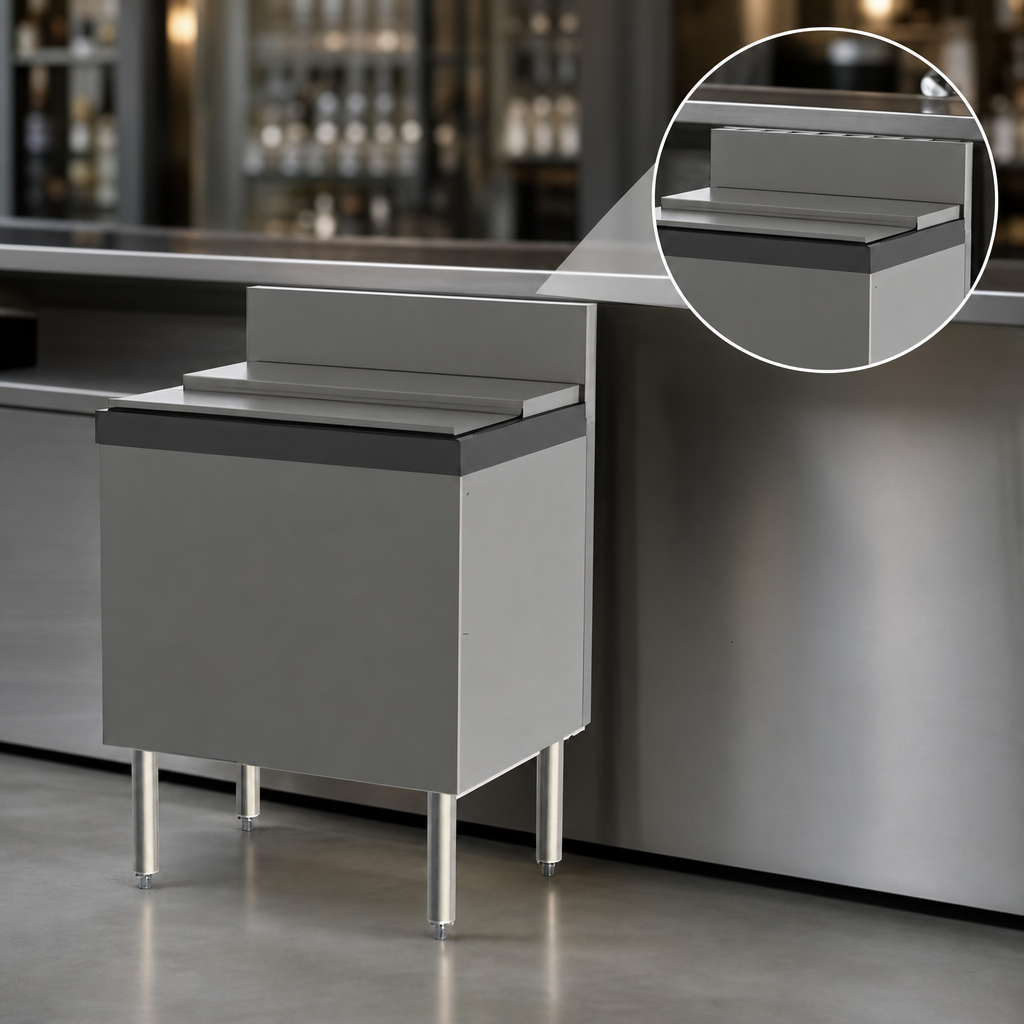

TSD Deck-Style Backsplash

Flat deck backsplash creates rear routing space and is designed for modular underbar layouts.

TSD Deck-Style Backsplash

15-Inch Deep Stainless Steel Bin

The ice bin is 15 inches deep for practical service capacity and easy bartender access.

6-Inch Backsplash With 1-Inch Return

Helps contain splash while providing a finished top edge.

ABS Plastic Top Ledge

Durable top ledge material adds a clean, functional work surface at the rear of the unit.

Stainless Steel and Galvanized Construction

Stainless steel front, sides, and bin combine with galvanized steel back and bottom for durable bar use.

Drain Connection

Features a 1/2-inch NPS male drain connection for simple drainage hookup.

Adjustable Stainless Steel Legs

1-5/8-inch tubular stainless steel legs with 1-inch adjustable thermoplastic feet help with leveling.

Type Underbar Ice Bin/Cocktail Unit
Style Deck Style
Installation Type Freestanding
Material Stainless Steel
Capacity 95 Pounds
Drain Connection Size 1/2 Inch NPS Male
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 110 Pounds

Documents

PDF Cutsheet PDF Download PDF Ts design guide PDF Download

Frequently Asked Questions

This extra-capacity model holds approximately 95 pounds of ice.
The stainless steel ice bin is 15 inches deep.
No. This specific model is listed without a cold plate.
It features stainless steel front and sides, a stainless steel ice bin, galvanized steel back and bottom, and an ABS plastic top ledge.
It uses a 1/2-inch NPS male drain connection.
Overall dimensions are 30 inches wide by 24 inches deep by 36.5 inches high.
