Perlick Corporation

Top Shelf TSD Series 24-Inch Modular Underbar Ice Bin/Cocktail Unit with Cold Plate

SKU: TSD24IC10
$2,867.70
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment New Arrivals Perlick Corporation Restaurant Equipment Underbar Equipment

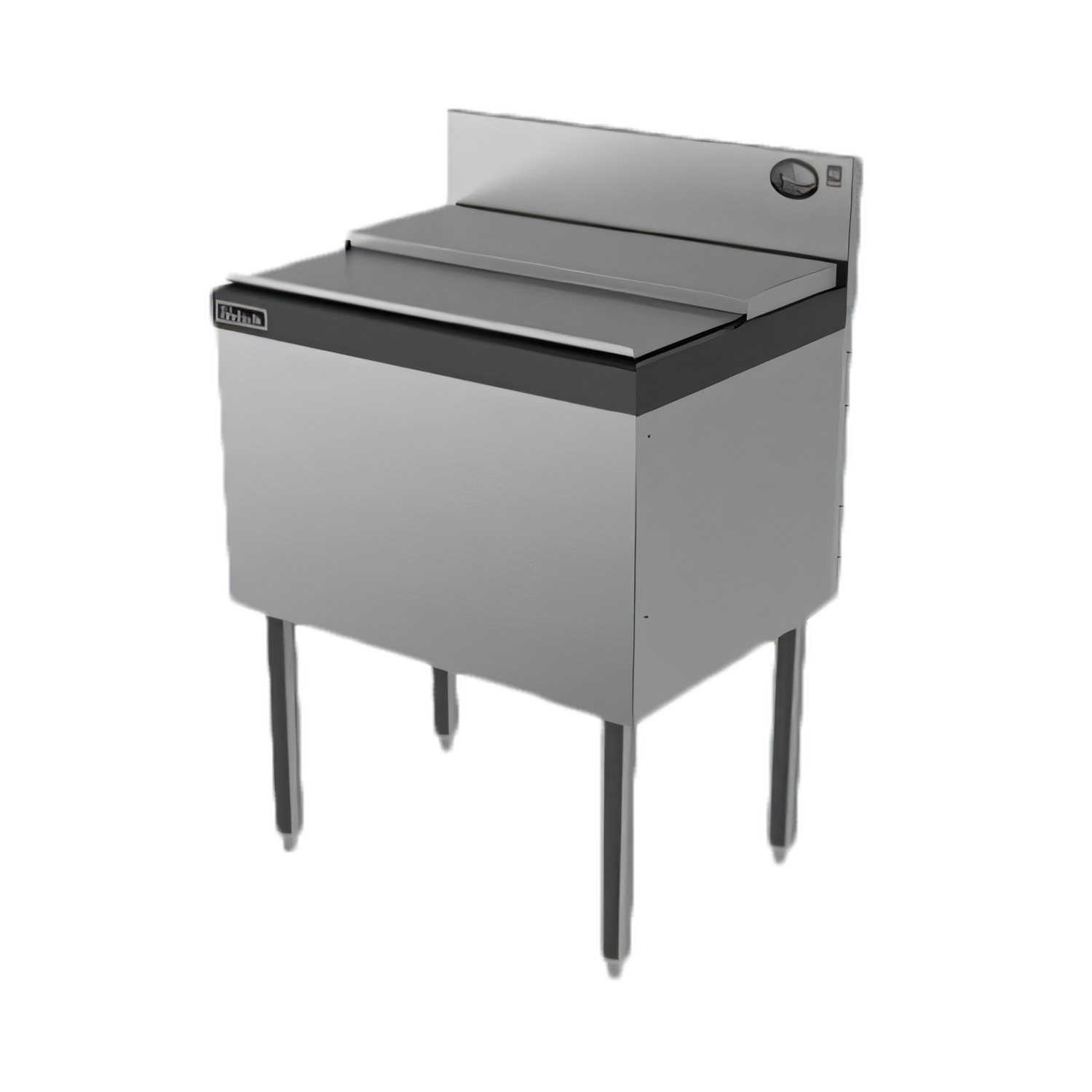

Top Shelf TSD Series 24-Inch Modular Underbar Ice Bin/Cocktail Unit with Cold Plate

24" W x 24" D, Stainless Steel, Deck-Style Backsplash

Keep drinks colder and bartenders moving with a compact stainless underbar ice bin built around a concealed 10-circuit cold plate.

  • Modular 24-inch underbar ice bin/cocktail unit designed for efficient bar service.
  • Concealed 10-circuit aluminum cold plate chills beverages quickly while staying hidden under the liner.
  • Stainless steel front, sides, and interior help deliver durability and easy cleanup.
  • Fully insulated construction helps reduce ice melt and improve performance in warm bar environments.
  • 6-inch deck-style backsplash, built-in rear deck, and adjustable stainless legs support a clean, practical workstation.

Overall Dimensions:

24.0"W x 24.0"D x 36.5"H

Product Weight:

130.0 lb

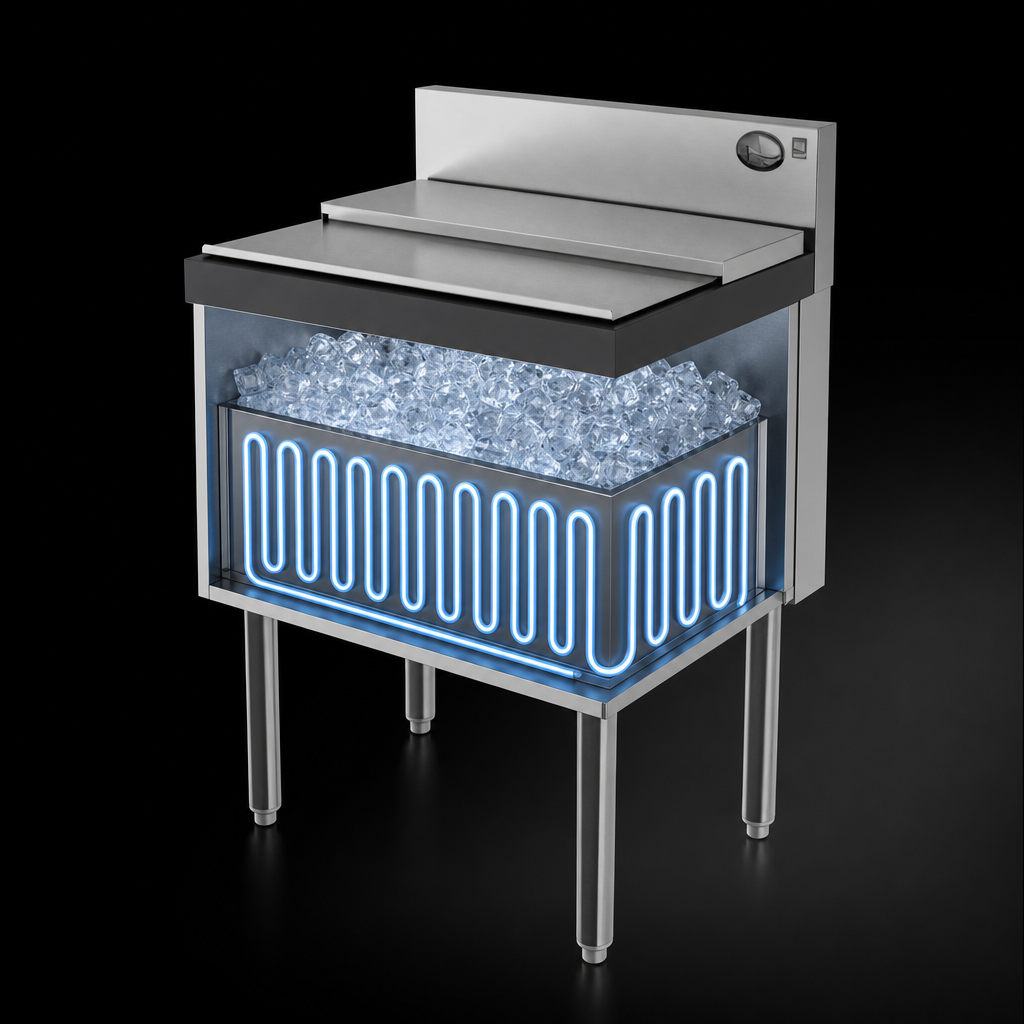

Concealed 10-Circuit Cold Plate

Aluminum cold plate is concealed under the bin liner and uses 10 circuits to help chill beverages quickly and efficiently.

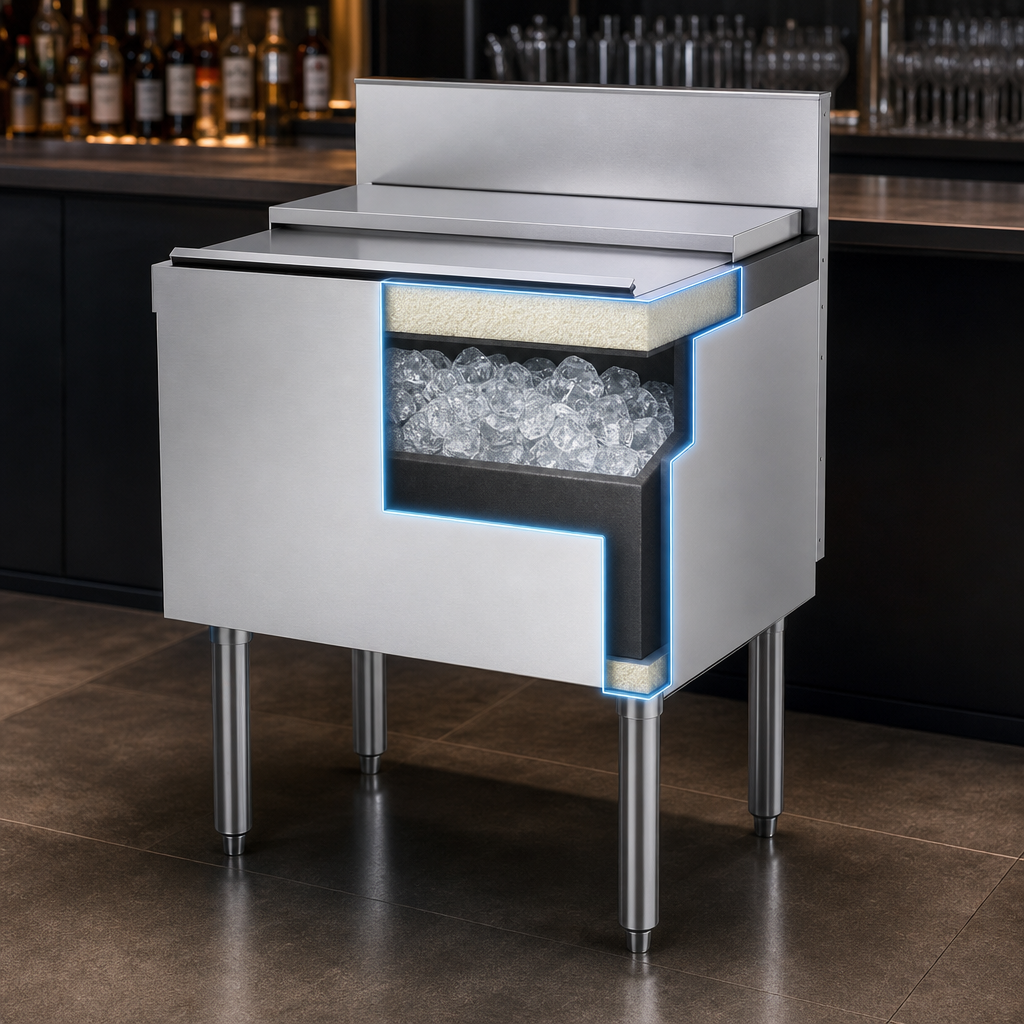

Fully Insulated Construction

Foamed-in-place polyurethane insulation helps reduce ice melt and improves holding efficiency in busy bar conditions.

Stainless Steel Working Surfaces

Front, sides, and interior are stainless steel for a durable, sanitary, easy-to-clean finish.

Deck-Style Backsplash

6-inch backsplash with a 1-inch return at the top helps contain splashes and supports beverage line routing.

Deep Ice Bin and Rear Deck

10-3/4-inch-deep ice bin provides generous ice storage, and the built-in rear deck adds extra utility space.

ABS Top Ledge

ABS plastic top ledge adds a durable, practical surface at the top of the unit.

Adjustable Stainless Steel Legs

1-5/8-inch tubular stainless steel legs with 1-inch adjustable thermoplastic feet provide sturdy support and easy leveling.

Standard Drain Connection

1/2-inch NPS male drain connection supports straightforward plumbing installation.

Type Underbar Ice Bin/Cocktail Unit
Style Deck Style
Installation Type Freestanding
Capacity 80 Lb. Ice Capacity
Material Stainless Steel
Drain Connection Size 1/2 Inch NPS Male
Shipping Width 24 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 130 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Ts design guide PDF Download

Frequently Asked Questions

The manufacturer spec sheet lists 80 lb. of ice capacity.
Yes. It includes a concealed aluminum cold plate with 10 circuits.
It uses stainless steel front, sides, and interior, galvanized steel back and bottom, and an ABS top ledge.
It uses a 1/2-inch NPS male drain connection.
No. Covers are ordered separately and are not included.
It comes with 1-5/8-inch tubular stainless steel legs and 1-inch adjustable thermoplastic feet.
