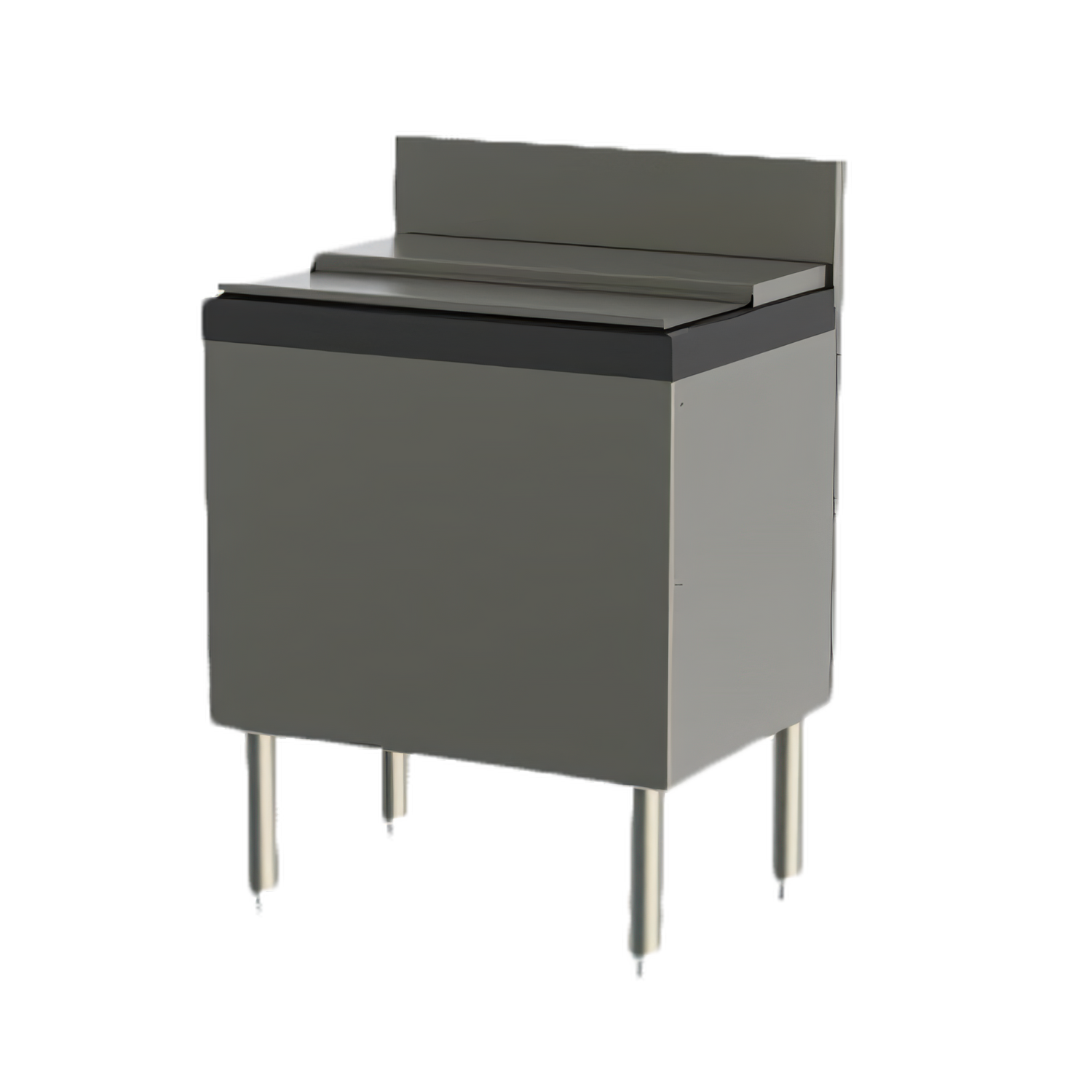

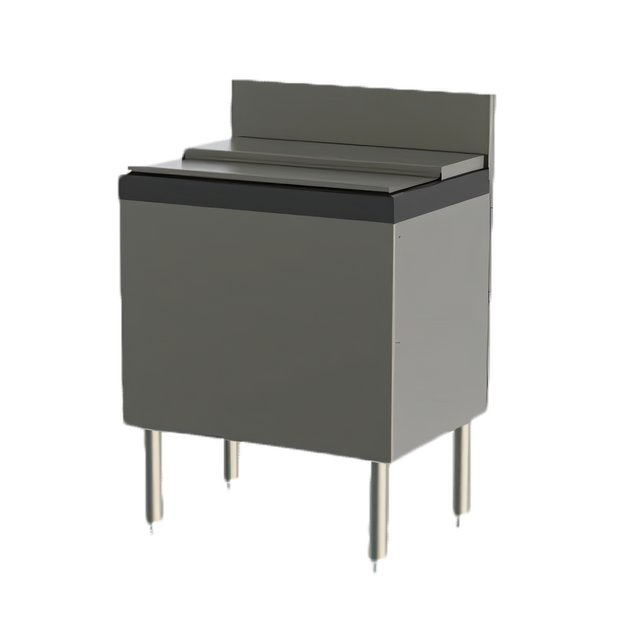

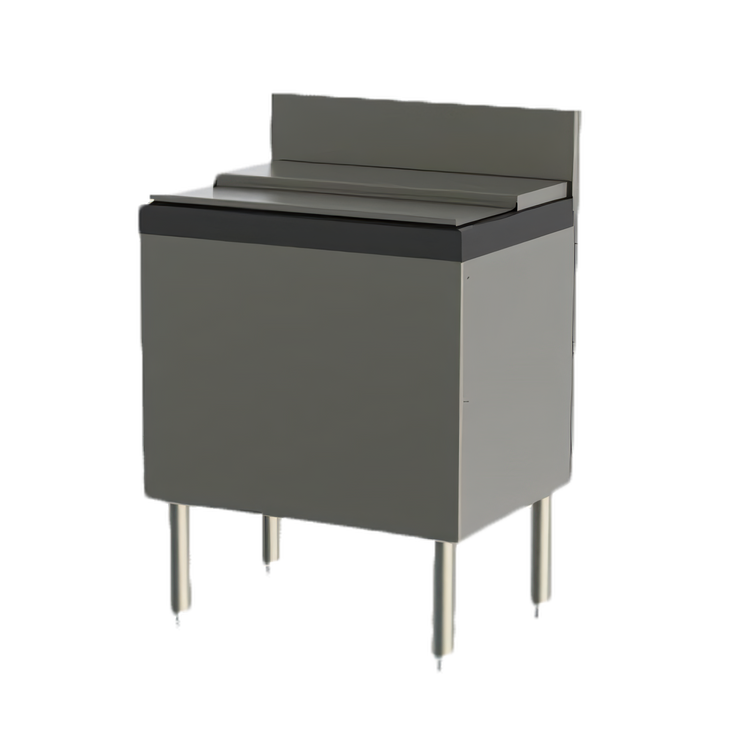

Top Shelf TSD Series 24-Inch Extra Capacity Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate

24" W x 24" D, 15" Deep Bin, Approx. 75-Lb. Ice Capacity

Keep cocktails moving with a compact underbar ice bin that combines extra ice storage with a concealed 10-circuit cold plate for efficient beverage service.

  • Extra-capacity 24" x 24" footprint holds about 75 lb. of ice for busy bars.
  • Concealed 10-circuit aluminum cold plate helps chill beverages through the stored ice.
  • TSD deck-style backsplash adds rear utility space and supports cleaner line routing.
  • Stainless steel ice bin, front, and sides with galvanized steel back and bottom deliver durable construction.
  • 1-5/8" tubular stainless steel legs with adjustable feet help simplify leveling during installation.

Overall Dimensions:

24.0"W x 24.0"D x 36.5"H

Product Weight:

170.0 lb

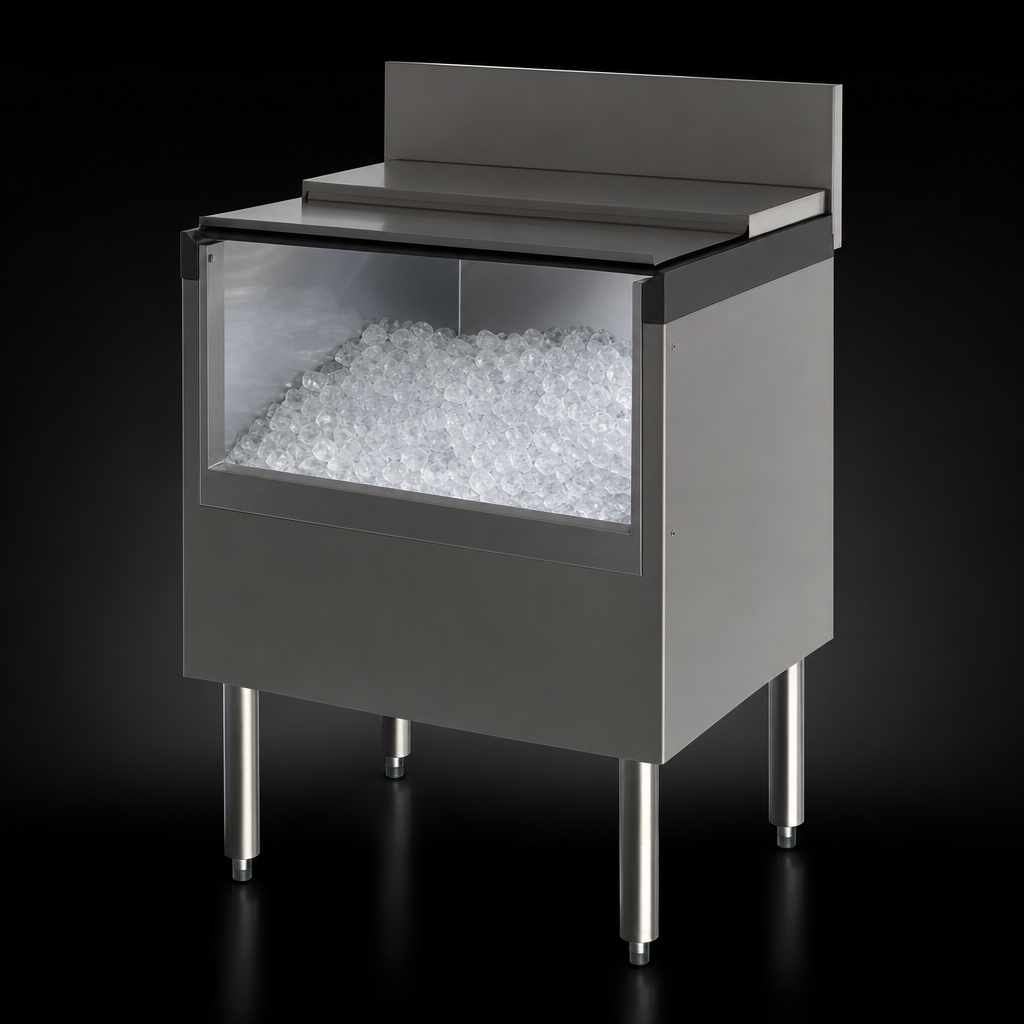

Extra-Capacity Ice Bin

Deeper bin design provides approximately 75 lb. of ice capacity in a compact 24" x 24" footprint.

Extra-Capacity Ice Bin

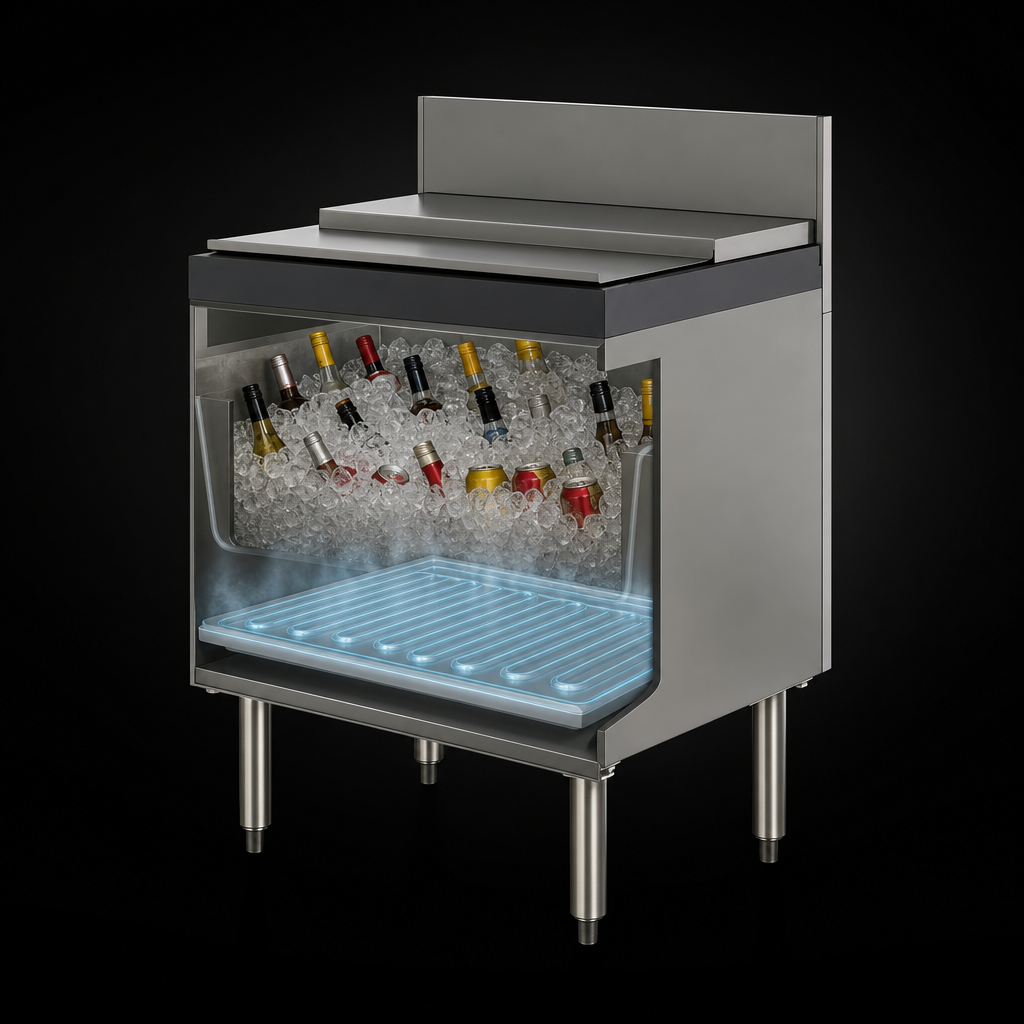

10-Circuit Aluminum Cold Plate

A concealed aluminum cold plate sits under the bin liner to help chill beverages as they pass through the unit.

10-Circuit Aluminum Cold Plate

TSD Deck-Style Backsplash

The flat rear deck increases overall depth and helps create space for beverage line routing behind the unit.

6-Inch Backsplash With Return

The 6" high backsplash with a 1" top return helps contain splash and keeps the work area cleaner.

Stainless Steel Ice Bin and Front/Sides

Food-contact and visible surfaces are stainless steel for durability and easy cleaning in bar service.

Galvanized Steel Back and Bottom

Galvanized steel rear and base sections add strength to the underbar construction.

ABS Plastic Top Ledge

The ABS top ledge provides a durable edge detail at the top of the unit.

Adjustable Stainless Steel Legs

1-5/8" tubular stainless steel legs with 1" adjustable thermoplastic feet help level the unit on uneven floors.

1/2-Inch NPS Male Drain

Includes a 1/2" NPS male drain connection for drainage hookup.

Type Underbar Ice Bin/Cocktail Unit
Style TSD Series
Installation Type Freestanding
Capacity 75 lb.
Material Stainless Steel
Water Connection Not Required
Drain Connection Required
Drain Connection Size 1/2 Inch NPS Male
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 170 lb.

Documents

PDF Cutsheet PDF Download PDF Ts design guide PDF Download

Frequently Asked Questions

It has approximately 75 lb. of ice capacity.
The concealed 10-circuit aluminum cold plate uses the surrounding ice to help chill beverages running through the internal tubing.
The unit measures 24" wide by 24" deep by 36.5" high.
It includes a 1/2" NPS male drain connection.
The ice bin, front, and sides are stainless steel, while the back and bottom are galvanized steel.
