Perlick Corporation

Top Shelf TSD Series Modular Underbar Ice Bin/Cocktail Unit, 18 Inch W x 24 Inch D, 35 lb Capacity

SKU: TSD18IC
$1,092.30
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment New Arrivals Perlick Corporation Restaurant Equipment Underbar Equipment

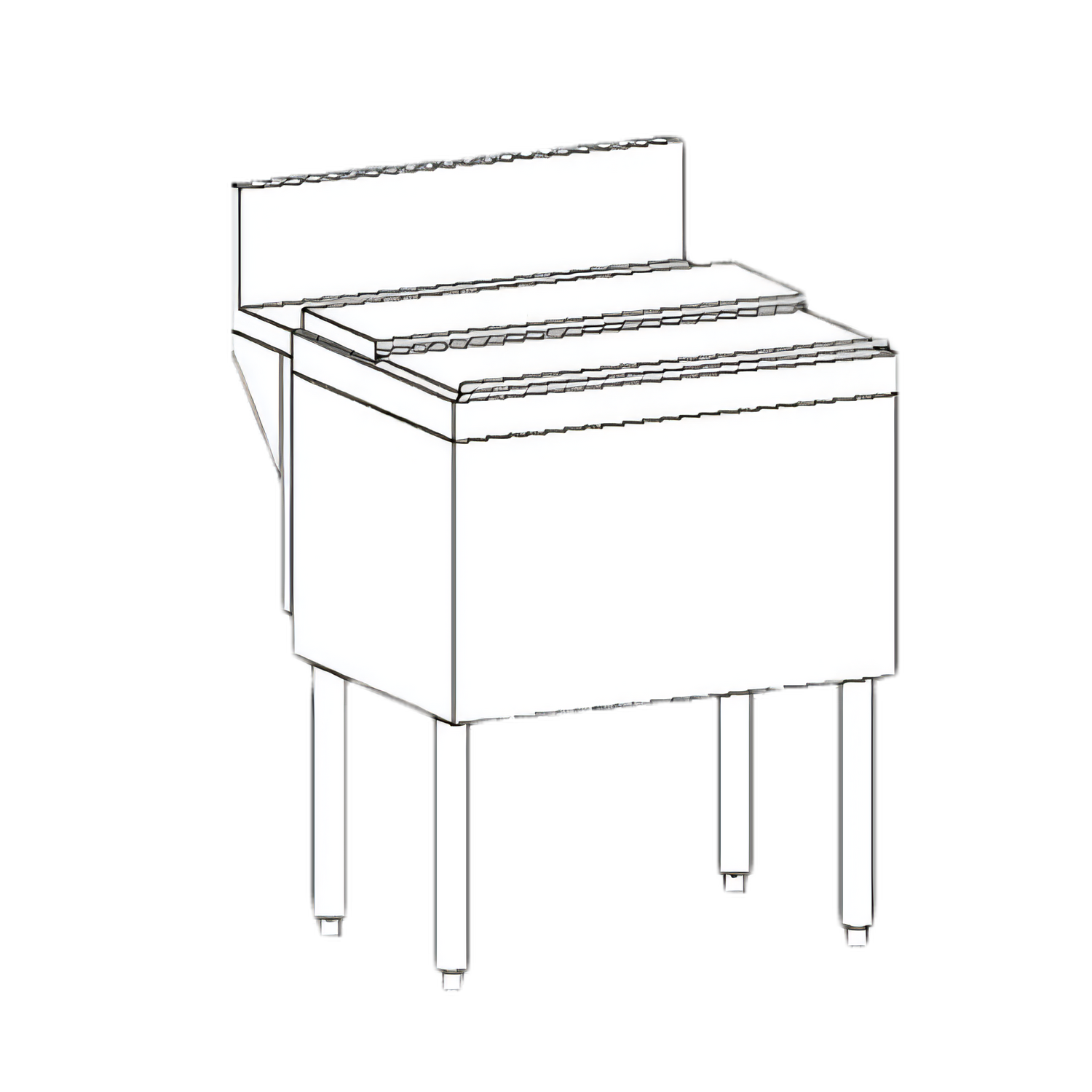

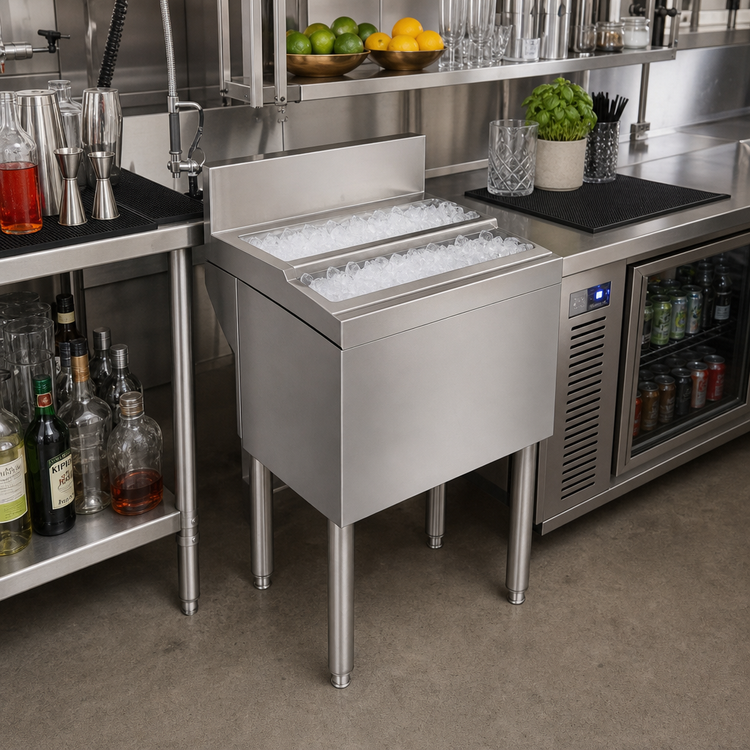

Top Shelf TSD Series Modular Underbar Ice Bin/Cocktail Unit, 18 Inch W x 24 Inch D, 35 lb Capacity

Non-Cold Plate Model, 6 Inch Backsplash, Stainless Steel Front and Sides

A compact, fully insulated underbar ice bin and cocktail unit built for durable bar service, easy cleaning, and efficient ice storage.

  • Modular 18-inch underbar ice bin/cocktail unit designed for bar service.
  • Approximate 35-lb ice capacity with a 10-3/4-inch deep stainless steel ice bin.
  • Non-cold-plate design with fully insulated construction to help reduce ice melt.
  • 6-inch backsplash with a 1-inch top return and built-in rear deck for extra storage.
  • Stainless steel front and sides with a galvanized steel back and bottom.
  • ABS plastic top ledge, stainless steel legs, and adjustable thermoplastic feet for stability.
  • Drain connection is provided for installation.

Overall Dimensions:

18.0"W x 24.0"D x 36.5"H

Product Weight:

50.0 lb

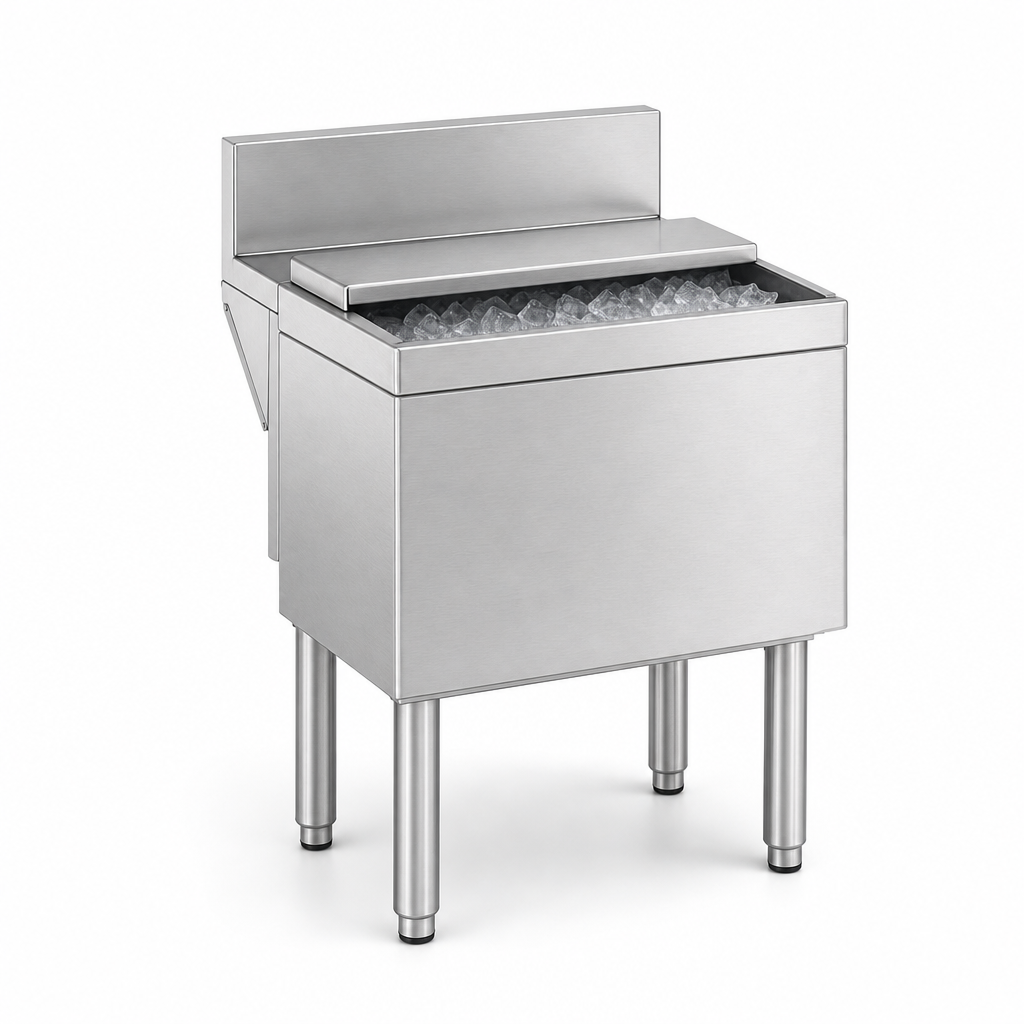

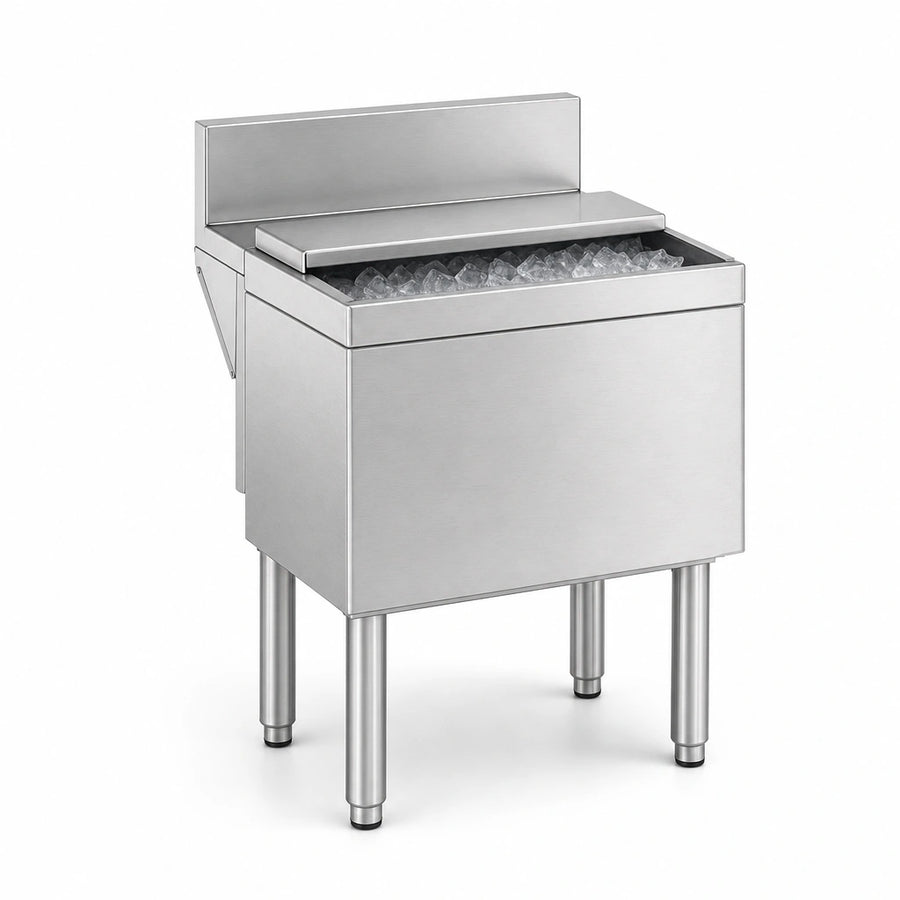

Non-Cold Plate Model

This model is the standard ice chest/cocktail unit version without a cold plate.

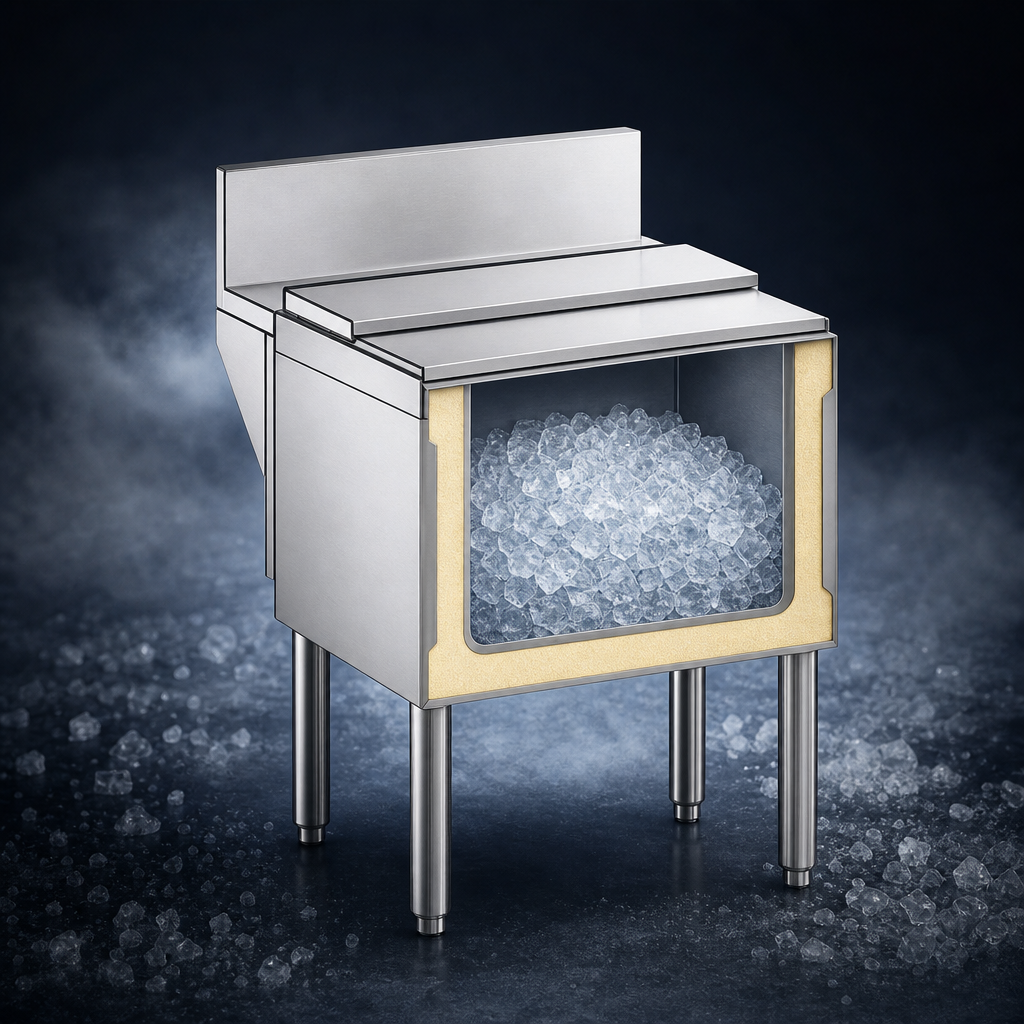

Fully Insulated Construction

Foamed-in-place polyurethane insulation helps reduce ice melt and improve thermal efficiency.

Stainless Steel Ice Bin

The 10-3/4-inch deep ice bin is stainless steel for durability and easy cleaning.

Stainless Steel Front And Sides

Durable stainless steel exterior surfaces help stand up to busy bar environments.

Galvanized Steel Back And Bottom

Galvanized steel is used on the back and bottom for sturdy support construction.

6-Inch Backsplash

The backsplash helps contain splashes and includes a 1-inch return at the top.

Built-In Rear Deck

Rear deck space adds convenient storage at the bar station.

ABS Plastic Top Ledge

The ABS top ledge provides a durable rim around the unit.

Stainless Steel Legs With Adjustable Feet

1-5/8-inch tubular stainless steel legs with 1-inch adjustable thermoplastic feet help simplify leveling.

Drain Connection

Includes a 1-1/2-inch NPS male drain connection.

Type Underbar Ice Bin/Cocktail Unit
Style Modular
Installation Type Floor Model
Capacity 35 Pounds
Material Stainless Steel
Interior Finish Stainless Steel
Backsplash Height 6 Inches
Bin Depth 10-3/4 Inches
Drain Connection Size 1-1/2 Inches NPS Male
Shipping Width 18 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 50 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

No. TSD18IC is the non-cold-plate model.
The unit has an approximate ice capacity of 35 pounds.
It features stainless steel front and sides, a stainless steel ice bin, a galvanized steel back and bottom, and an ABS plastic top ledge.
It uses a 1-1/2-inch NPS male drain connection.
Available accessories include covers, ice bin dividers, condiment trays with cups, speed rails, blender shelves, a bottle opener, towel rings, side splashes, and a soda gun filler section.
