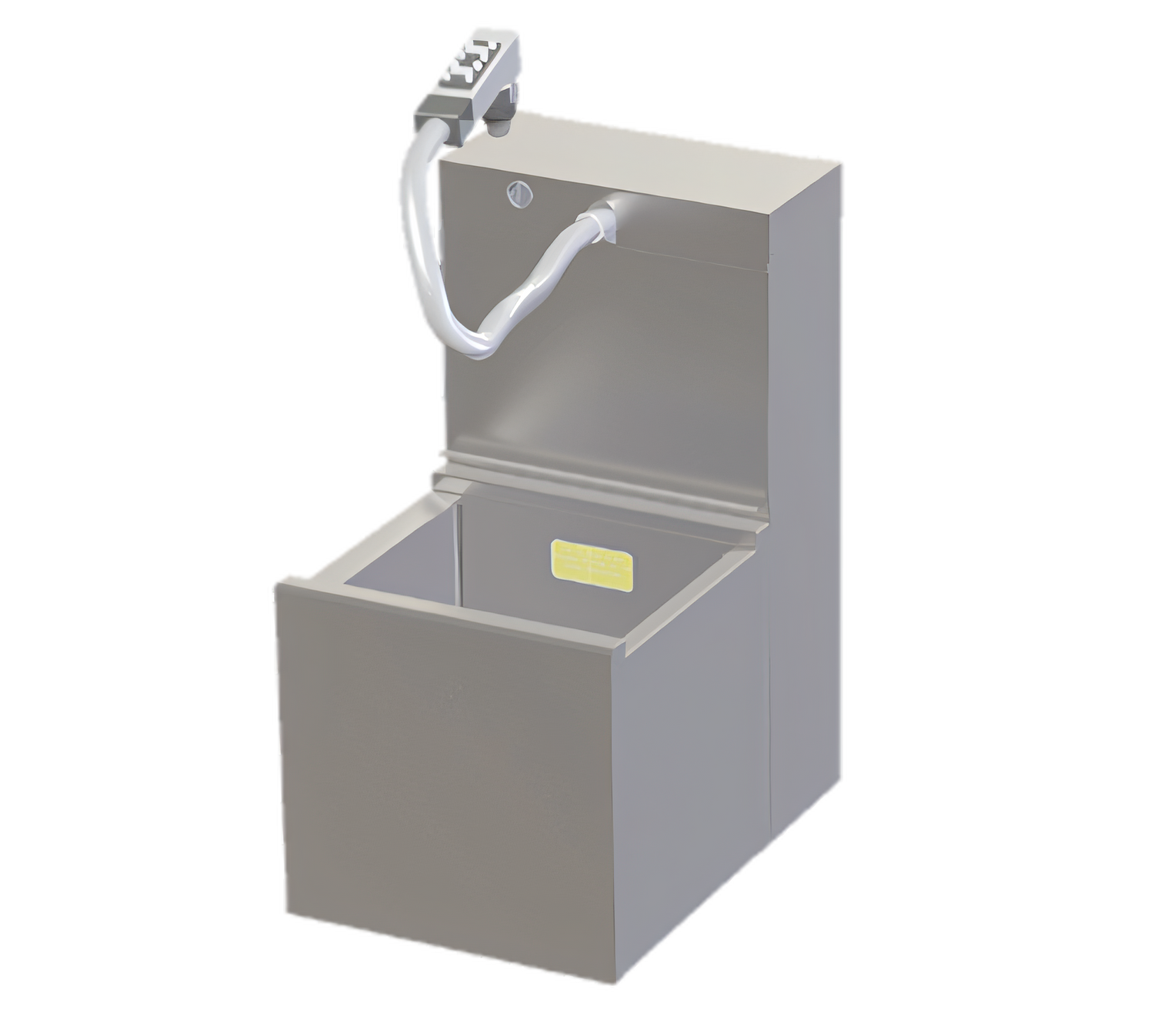

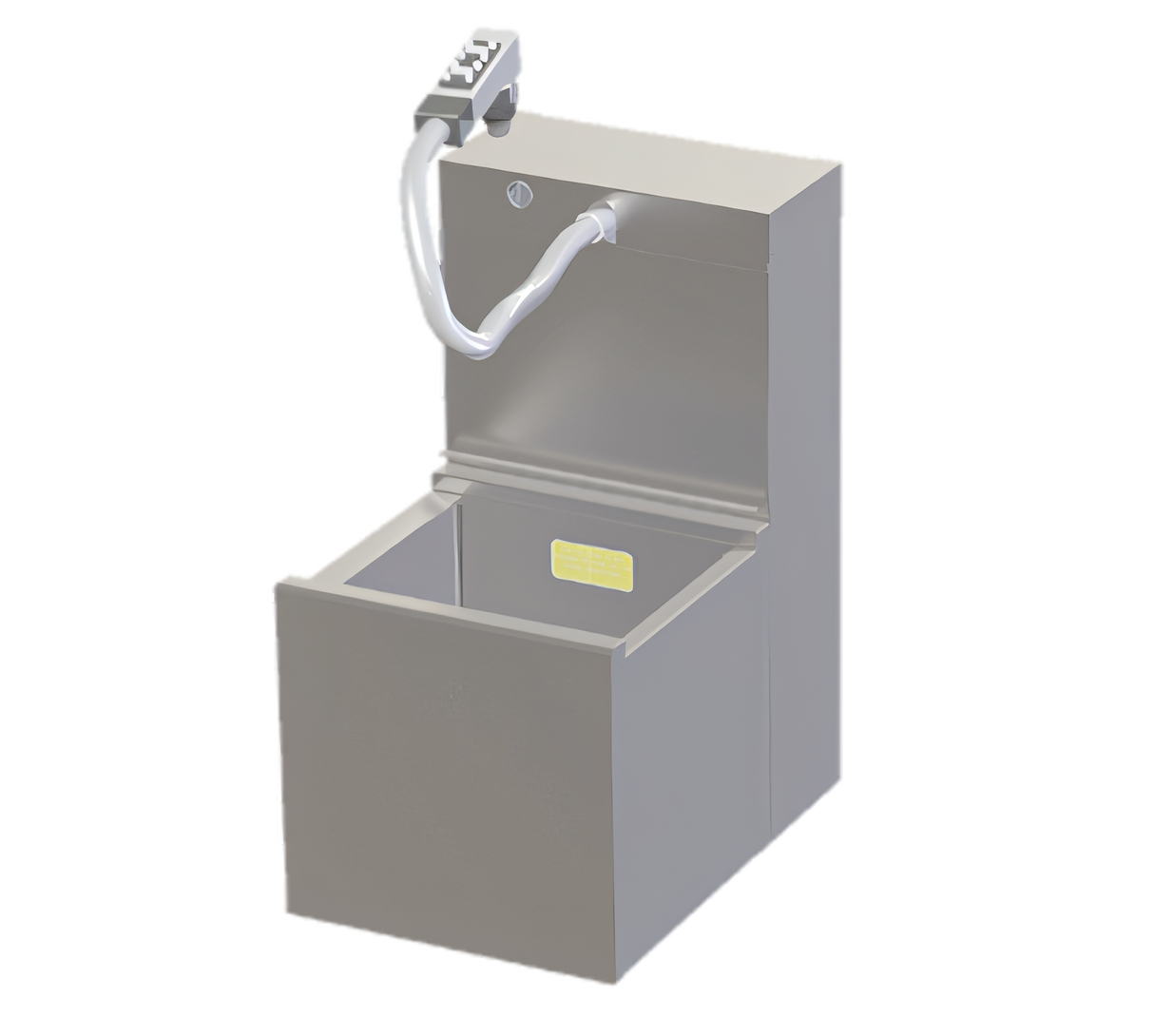

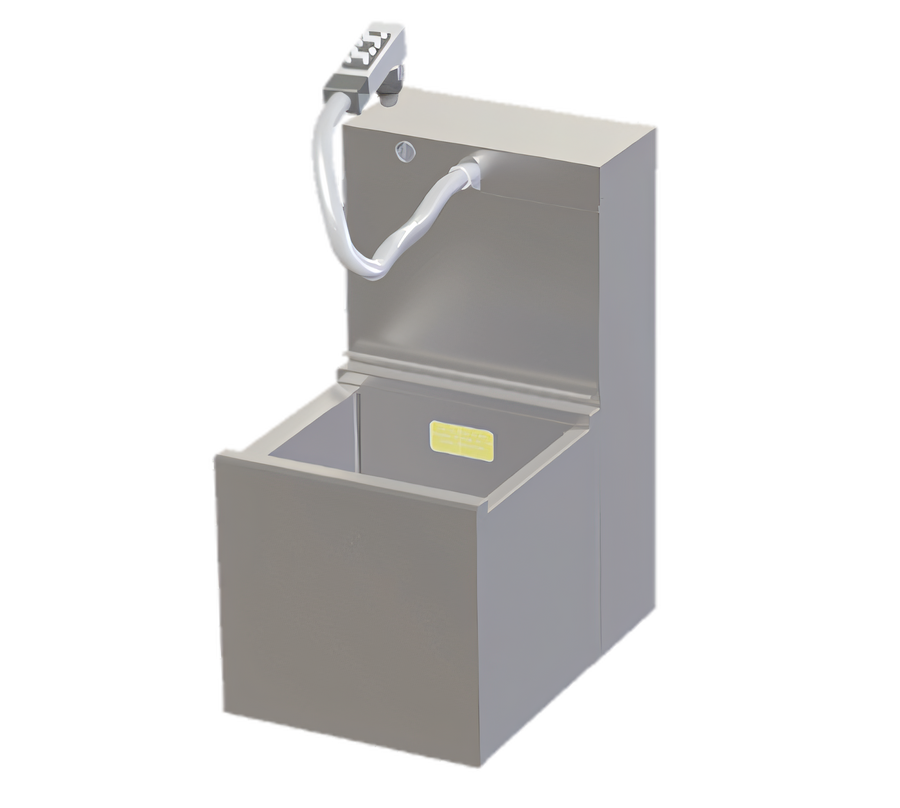

Tobin Ellis Signature 12-Inch Insulated Bottle Well with Integrated Soda Manifold Housing
Tobin Ellis Signature 12-Inch Insulated Bottle Well with Integrated Soda Manifold Housing
Holds 5 Bottles, Stainless Steel, 6-Inch Backsplash

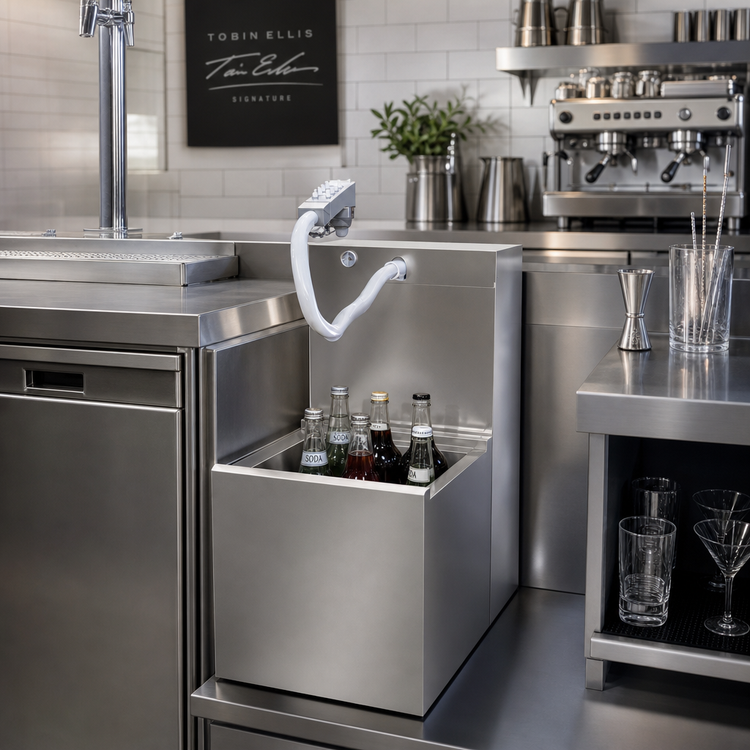

Keep chilled mixers and bottled ingredients at arm's reach with a compact insulated bottle well that hides soda lines inside an integrated housing.
- Insulated, foamed-in-place construction helps keep wine, beer, juice, and syrups chilled during service.
- Holds up to 5 bottles with a 3-3/4-inch diameter.
- Integrated flip-down soda manifold housing is designed for Wunder Bar and Schroeder America 8-14 button soda gun/manifolds.
- All stainless steel construction with a smooth welded interior supports durability and easy cleaning.
- Includes a 6-inch backsplash with 1-inch return, a 1/2-inch NPS drain, and stainless steel legs with adjustable thermoplastic feet.
- Requires 40 inches of minimum clearance under the bar top for proper installation.
Overall Dimensions:
12.0"W x 16.88"DProduct Weight:

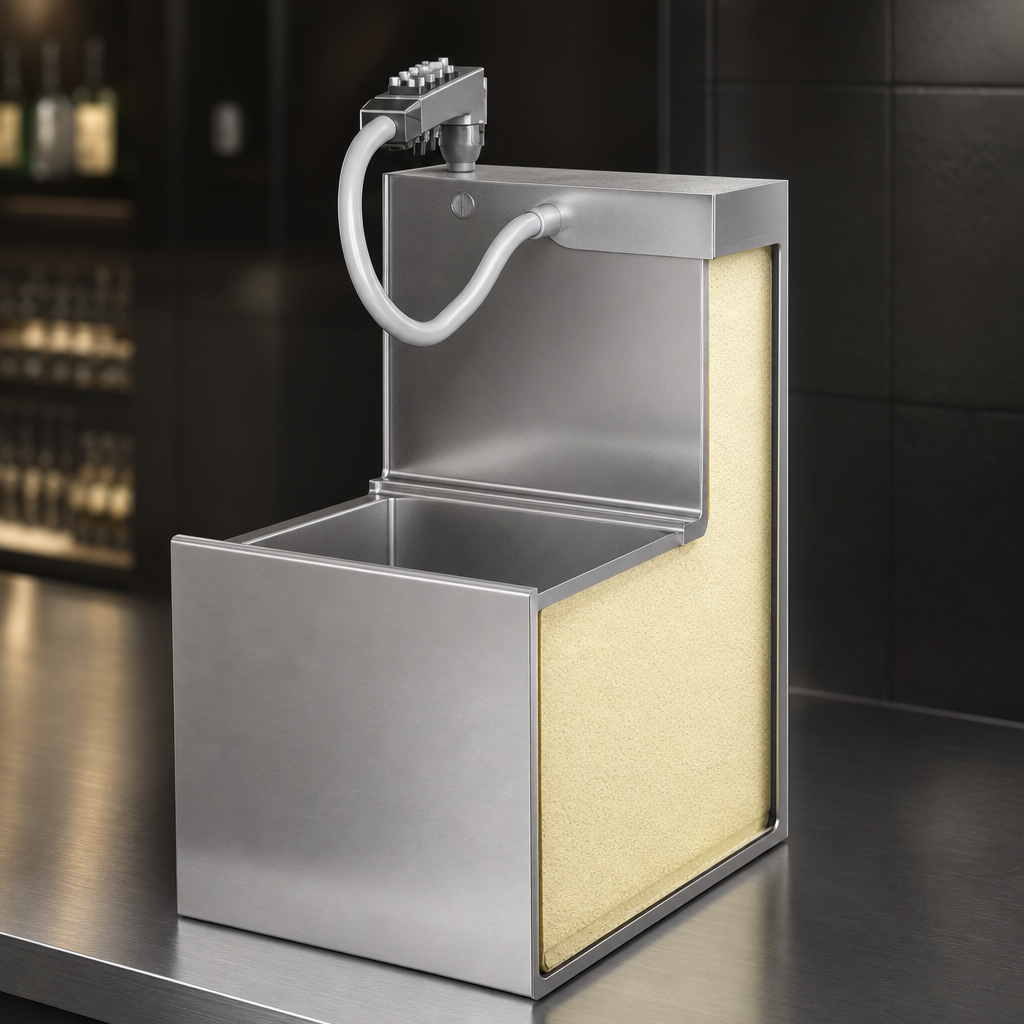

40.0 lbInsulated Construction
Foamed-in-place polyurethane insulation helps keep beverages and mixers cold throughout service.

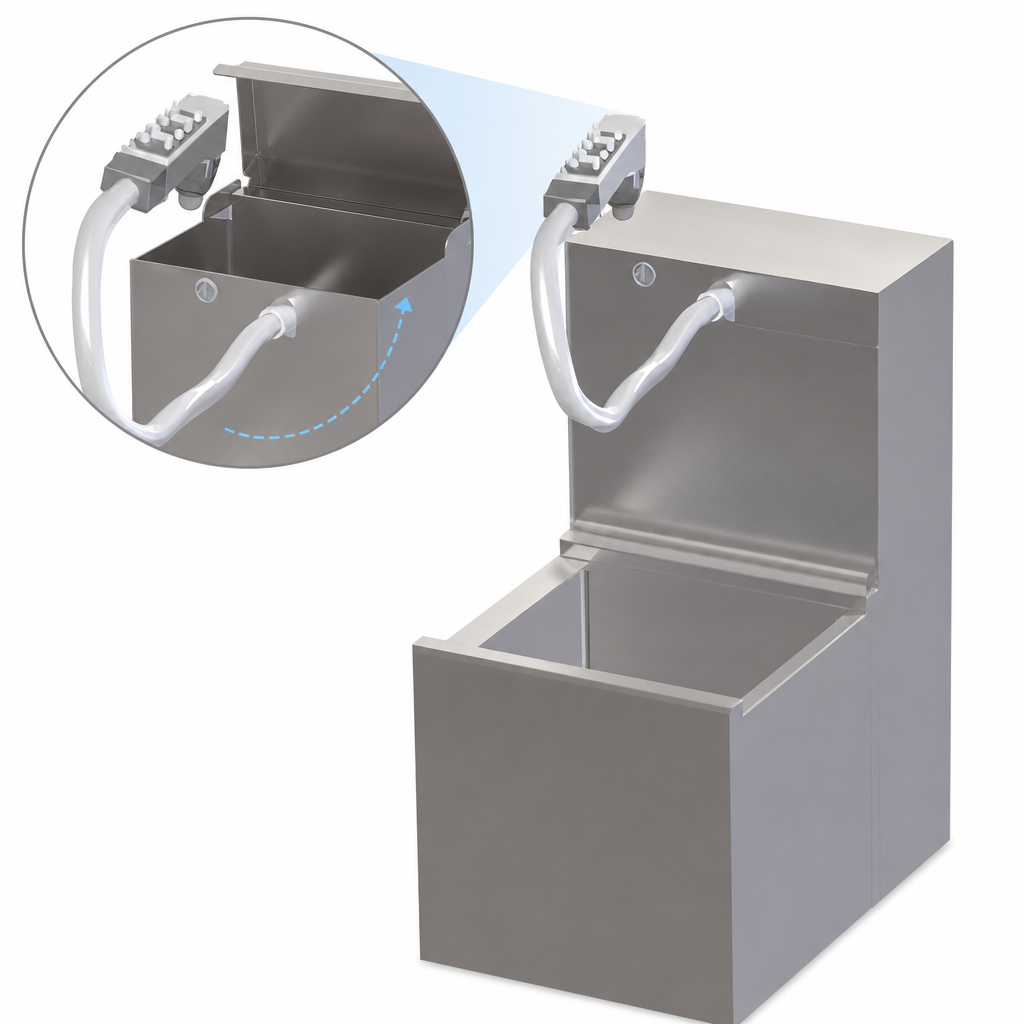

Integrated Manifold Housing
Tool-less flip-down housing is designed for use with Wunder Bar and Schroeder America 8-14 button soda gun/manifolds.
All Stainless Steel Build
Stainless steel construction with a smooth interior liner helps provide durability and simplifies cleaning.
Bottle Capacity
Holds 5 bottles up to 3-3/4 inches in diameter.
Backsplash
6-inch high stainless steel backsplash with a 1-inch return helps contain spills.
Drain Connection
Includes a 1/2-inch NPS drain connection.
Adjustable Legs
Stainless steel legs with adjustable thermoplastic feet help with placement and leveling.
Installation Clearance
Unit requires 40 inches minimum clearance under the bar top for proper installation.
